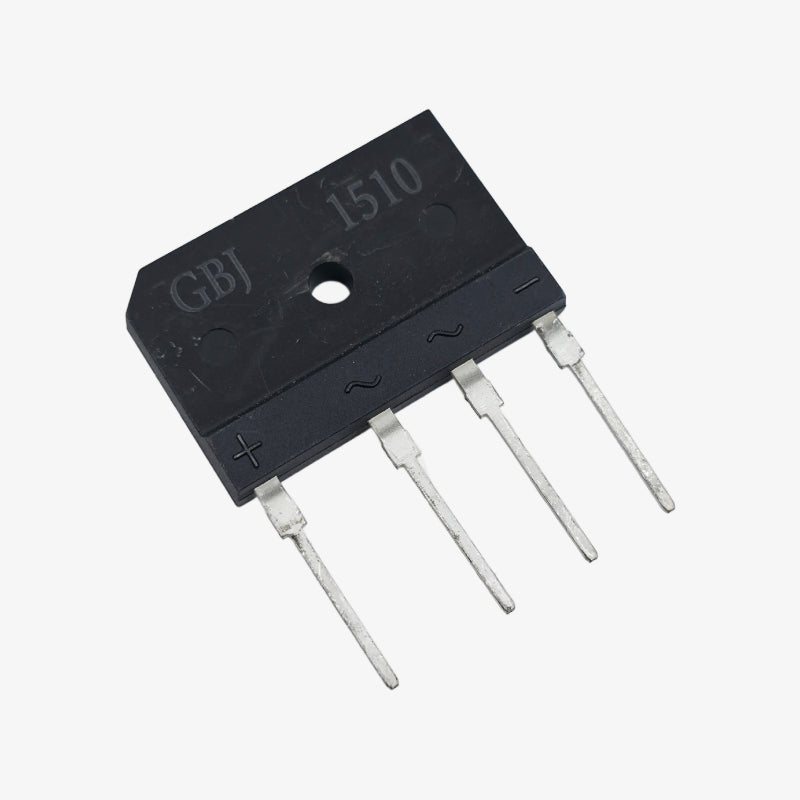

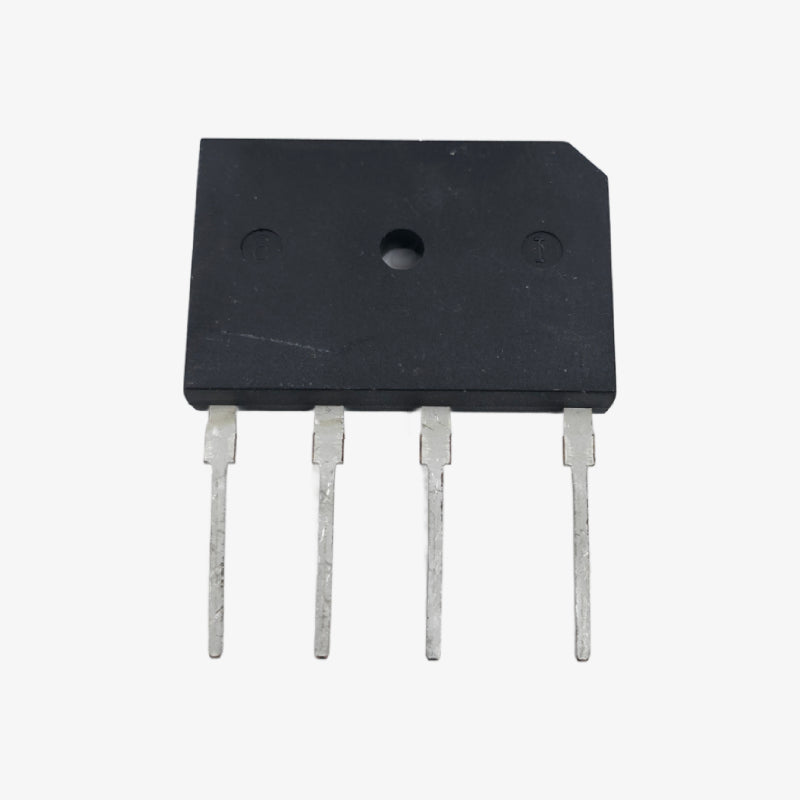

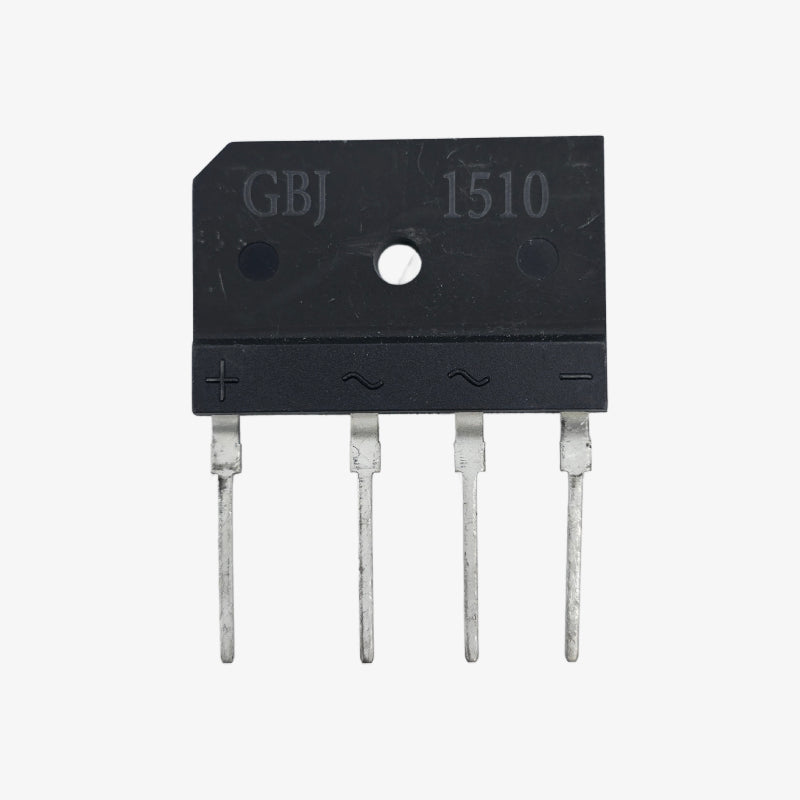

GBJ1510 15A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package

The GBJ1510 Bridge Rectifier 15A is a robust through-hole rectifier designed for high-efficiency AC to DC conversion in power supplies and control circuits. Its glass-passivated die and molded plastic body provide excellent thermal conductivity and mechanical strength. Ideal for adapters, chargers, and industrial power modules requiring reliable rectification.

Features:

1. High forward current capability up to 15A

2. Built-in PCB stand-offs for easy mounting

3. UL-recognized construction with 94V-0 flame-retardant body

4. High surge current capacity up to 220A

5. Supports high-temperature soldering up to 260°C for 5 seconds

Specifications:

• Average Forward Current (IF(AV)): 15A (with heatsink at TC = 100°C)

• Average Forward Current (IF(AV)): 3.2A (without heatsink)

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• RMS Voltage (VR(RMS)): 700V

• DC Blocking Voltage (VDC): 1000V

• Peak Forward Surge Current (IFSM): 220A (8.3ms half-sine wave)

• Forward Voltage (VF): 1.1V at IF = 7.5A DC

• Reverse Current (IR) at 25°C: 10µA

• Reverse Current (IR) at 125°C: 500µA

• Thermal Resistance Junction-to-Case (RθJC): 1.5°C/W

• Operating Junction Temperature (TJ): -55°C to +150°C

• Storage Temperature (TSTG): -55°C to +150°C

Package Includes:

1 × GBJ1510 15A 1000V Single Phase Bridge Rectifier Module - Inline 4-Pin Package
