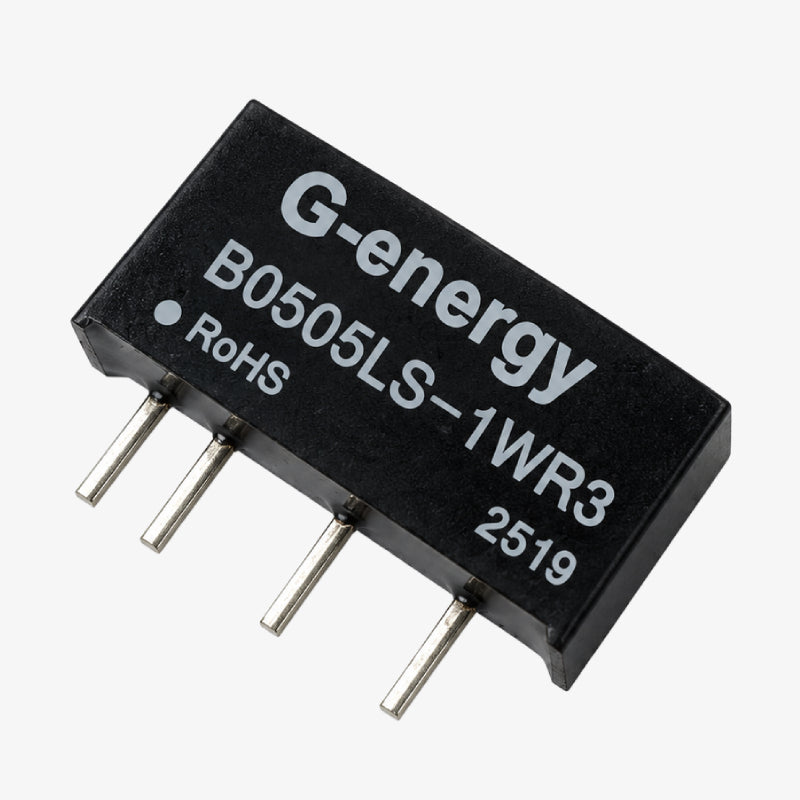

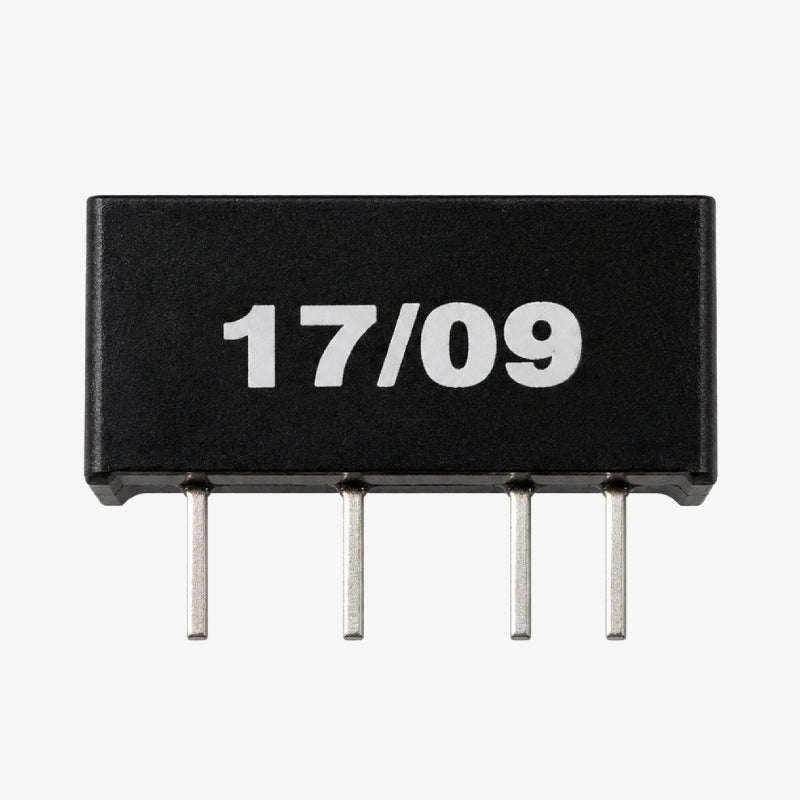

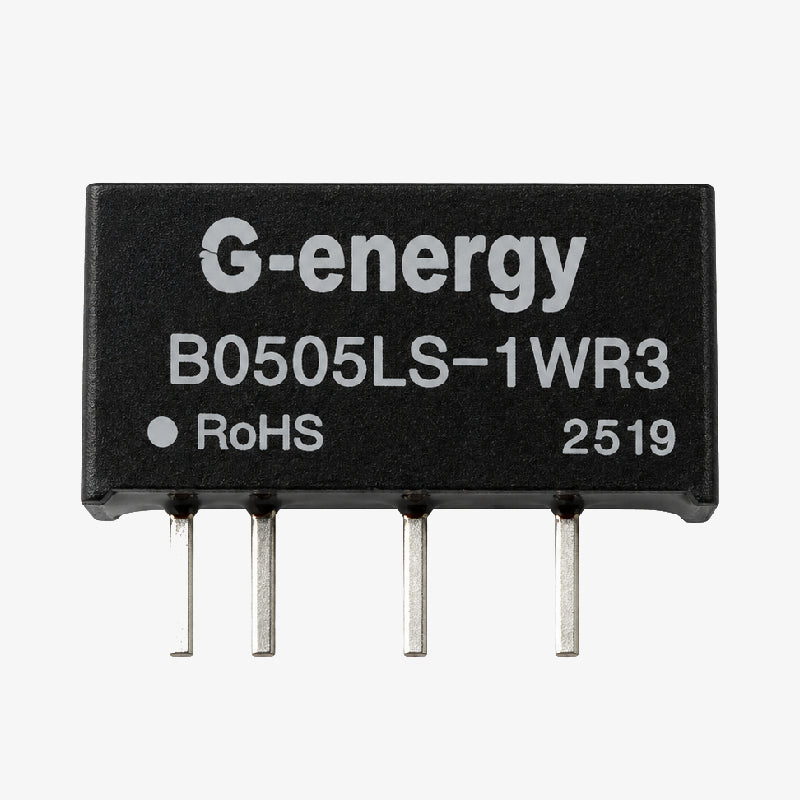

G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC - DC Converter

G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC - DC Converter is a compact isolated DC-DC converter designed to provide a regulated-isolation interface between two 5V DC circuits. The B0505LS-1WR3 accepts a 4.5V to 5.5V input and provides a single 5V output at up to 200mA, with 1W maximum output power. It provides 1500VDC input-to-output isolation, continuous self-recovering short-circuit protection, and high efficiency up to 82% typical for this 5V version. The converter uses a through-hole SIP package with an industry-standard pin arrangement and is suitable for isolated power supply requirements in digital circuits, low-frequency analog circuits, relay-driving circuits, and data-switching circuits.

G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC DC Converter Datasheet

Features:

1. G-energy B0505LS-1WR3 isolated DC-DC converter
2. 5V DC input to 5V DC output
3. 1W maximum output power
4. 200mA maximum output current
5. 4.5V to 5.5V DC input voltage range
6. 1500VDC input-to-output isolation test voltage
7. Single isolated output
8. Unregulated output
9. Continuous short-circuit protection with self-recovery
10. Typical efficiency up to 82%
11. No-load input current as low as 5mA
12. Low ripple and noise, typically 30mVp-p
13. 270kHz typical switching frequency
14. Maximum capacitive load up to 2400µF
15. Operating temperature range of -40°C to +105°C
16. Storage temperature range of -55°C to +125°C
17. 1000MΩ minimum insulation resistance at 500VDC
18. Approximately 20pF isolation capacitance
19. SIP through-hole package
20. Industry-standard pin configuration
21. Black flame-retardant and heat-resistant UL94V-0 case
22. RoHS compliant
23. Suitable for isolated power supplies, digital circuits, low-frequency analog circuits, relay drive circuits, and data switching circuits

Specifications:

Pin Configuration:

If you're exploring similar compact AC-DC power solutions, you can also check out the Hi-Link 3.3V 5W Power Supply Module (HLK-5M03) for low-voltage applications, the Hi-Link 5V 2W Power Supply Module (HLK-2M05) for small embedded projects, the Hi-Link 5V 10W Power Supply Module (HLK-10M05B) for standard electronics setups, and the Hi-Link 12V 5W Power Supply Module (HLK-5M12) for higher voltage requirements, all offering reliable and efficient power conversion for a wide range of applications.

Package Includes:

1 × G-energy B0505LS-1WR3 5V To 5V 200mA 1W DC - DC Converter
