FT232RL USB to Serial UART Interface IC - SSOP-28 SMD Package

The FT232RL is a USB to Serial UART interface IC designed to provide a simple solution for interfacing microcontrollers with USB. It supports both asynchronous and synchronous serial communication and features a compact SSOP-28 surface-mount package, making it suitable for space-constrained applications. The FT232RL offers an integrated USB protocol engine, reducing the need for external components and simplifying the design process.

Specifications:

• Interface Type: USB to Serial UART
• Package Type: SSOP-28
• USB Protocol: USB 2.0 Full Speed
• Data Rate: Up to 3 Mbps (RS232) and 12 Mbps (RS422/RS485)
• Supply Voltage: 3.3 V to 5.25 V
• Operating Temperature Range: -40°C to +85°C
• Integrated EEPROM: For device configuration and personalization
• On-chip oscillator: Requires no external crystal
• Baud Rate: Programmable from 300 bps to 3 Mbps

Pin Configuration:

1. GND: Ground
2. 3V3OUT: 3.3V output for external components
3. VCC: Supply voltage input
4. USBDP: USB D+ line
5. USBDM: USB D- line
6. SLEEP: Sleep indicator output
7. RXD: UART receive data input
8. TXD: UART transmit data output
9. RTS: Request to send control output
10. CTS: Clear to send control input
11. DTR: Data terminal ready control output
12. DSR: Data set ready control input
13. DCD: Data carrier detect control input
14. RI: Ring indicator control input

Features:

• USB to UART interface: Seamlessly connects microcontrollers to USB ports
• Integrated USB protocol engine: Simplifies USB communication
• Low power consumption: Ideal for battery-powered applications
• Support for various communication modes: Asynchronous, synchronous bit-bang
• Integrated EEPROM: Stores device configurations
• Compact design: SSOP-28 package for easy integration into small designs

Applications:

• USB to serial adapters
• Microcontroller communication interfaces
• Industrial control systems
• Consumer electronics
• Data loggers and instrumentation

Package Includes:

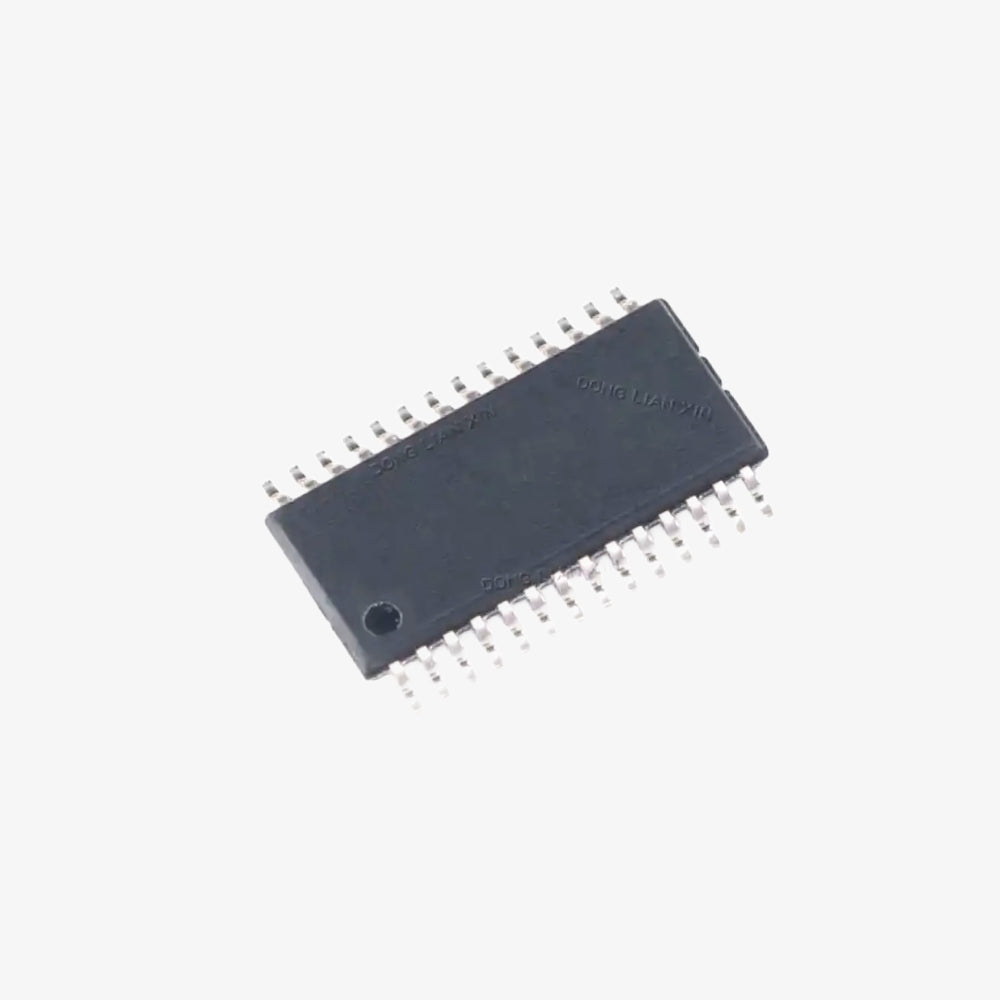

• 1 x FT232RL USB to Serial UART Interface IC (SMD SSOP-28 Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
