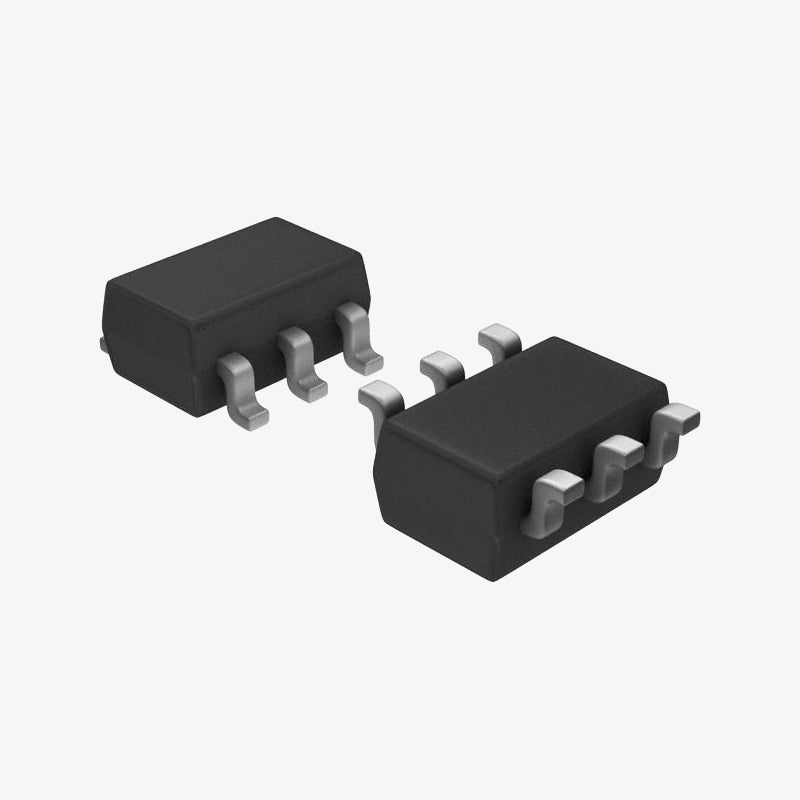

FS8205A Dual N Channel Power MOSFET - SOT-23-6 SMD Package
SKU:
SMD-QC3315
Availability:
440
In Stock
- Rs. 5.00
- Rs. 5.00
- Unit price
- per
Subtotal:
Rs. 5.00
Description
xThe FS8205A is a dual N-channel power MOSFET integrated in a single compact SOT-23-6 surface-mount package. It is designed for low-voltage, high-efficiency switching applications and is widely used in lithium battery protection circuits, load switching, and DC-DC converters. With low RDS(ON), fast switching, and high current capability, the FS8205A provides excellent performance in space-constrained electronic designs.
Features of FS8205A Dual N Channel Power MOSFET:
- Dual N-channel MOSFETs in a single SOT-23-6 package
- Low RDS(ON) for reduced conduction losses
- Fast switching speed for efficient power conversion
- Low gate threshold voltage for logic-level drive
- Ideal for battery protection, load switching, and portable devices
- Compact size suitable for high-density PCB designs
Specifications of FS8205A:
- Model: FS8205A
- Type: Dual N-Channel Power MOSFET
- Drain-Source Voltage (V<sub>DS</sub>): 30V
- Continuous Drain Current (I<sub>D</sub>): ±6A
- Gate Threshold Voltage (V<sub>GS(th)</sub>): 1.0V to 2.5V
- RDS(ON): 35mΩ max @ V<sub>GS</sub> = 4.5V
- Package: SOT-23-6 – SMD
- Operating Temperature Range: -55°C to +150°C
Package Includes:
1 × FS8205A Dual N Channel Power MOSFET – SOT-23-6 Package
