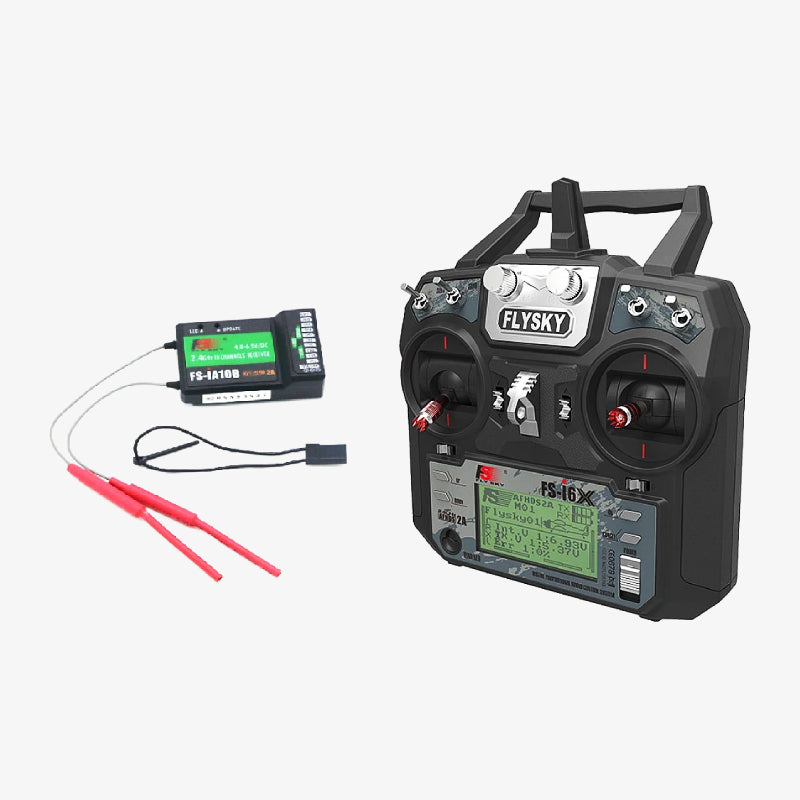

Flysky FS-i6X 2.4GHz 10CH RC Transmitter with FS-iA10B 10CH Receiver

The Flysky FS-i6X 2.4GHz RC Transmitter with FS-iA10B Receiver is designed for radio control applications where stable communication, precise control, and reliable signal transmission are essential. Widely used in airplanes, gliders, helicopters, and multirotor platforms, this system operates on AFHDS 2A technology to provide strong interference resistance and consistent performance. With support for up to 10 channels and bidirectional communication, it is suitable for both hobbyists and advanced RC model users.

Features:

1. Designed for RC aircraft and multirotor platforms requiring stable 2.4GHz communication

2. AFHDS 2A technology for improved anti-interference performance and low power consumption

3. Bidirectional communication supporting telemetry and i-BUS interface

4. Multi-channel frequency hopping for reliable signal transmission

5. Omni-directional high-gain antenna for stable and long-range connectivity

6. Unique ID pairing between transmitter and receiver for secure operation

Specifications:

• Brand: Flysky

• Model: FS-i6X with FS-iA10B

• System Type: 2.4GHz AFHDS 2A

• Modulation Type: GFSK

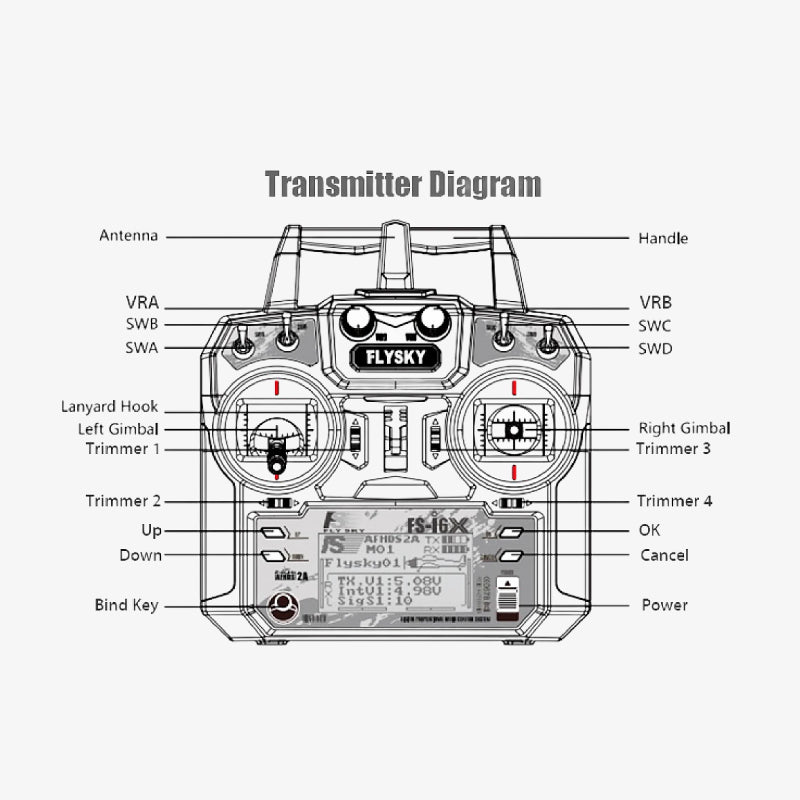

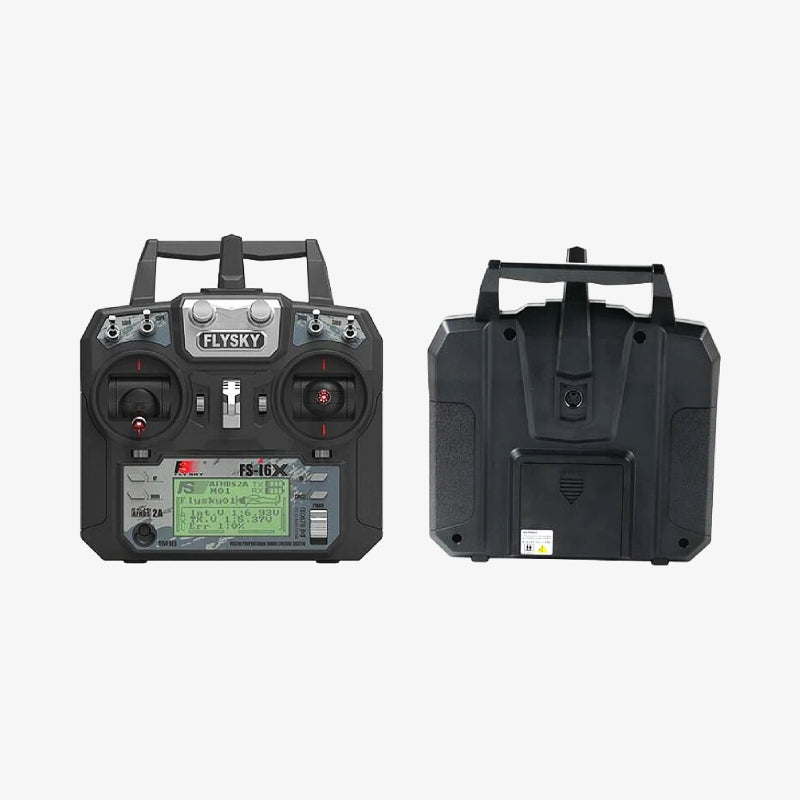

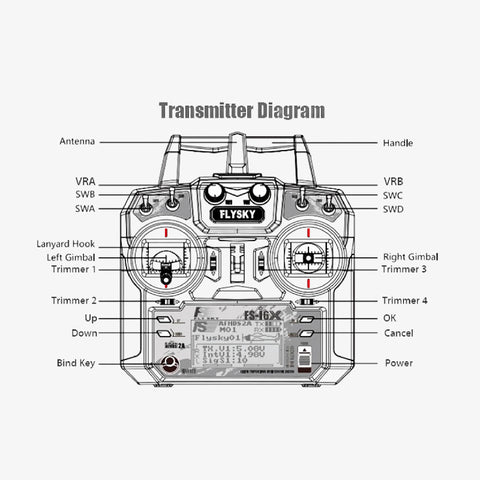

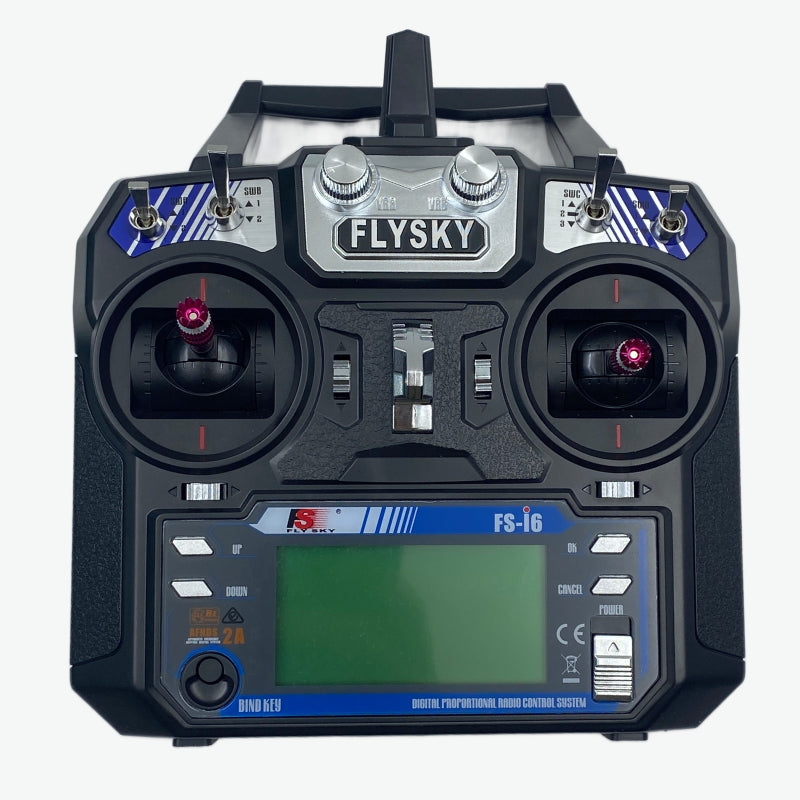

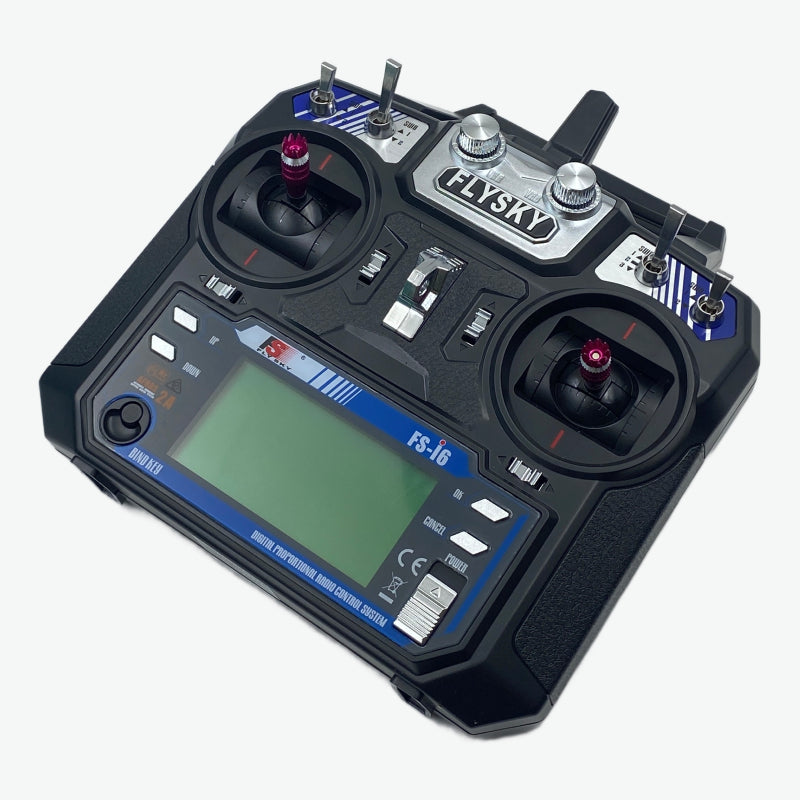

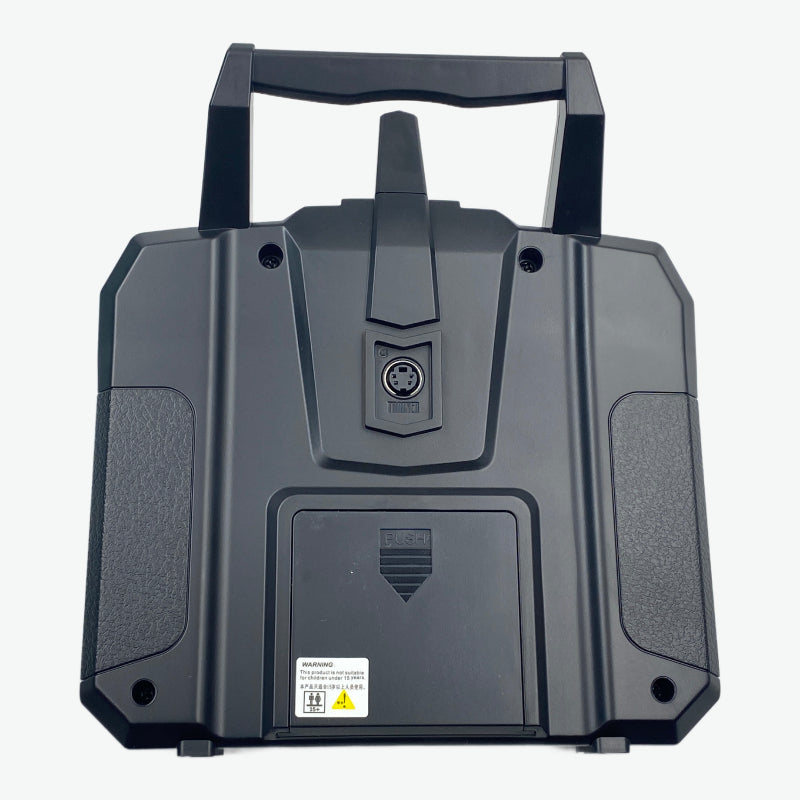

Transmitter Specifications:

• Channels: 6 to 10 (6 Default)

• RF Frequency Range: 2.408 to 2.475 GHz

• RF Power: < 20 dBm

• RF Channels: 135

• Bandwidth: 500 KHz

• Stick Resolution: 4096

• Low Voltage Warning: < 4.2 V

• Antenna Type: Dual Antenna (26 mm)

• Power Supply: 6V DC

• Display: 128 × 64 LCD with white backlight

• Model Support: Fixed-Wing, Glider, Helicopter

• Color: Black

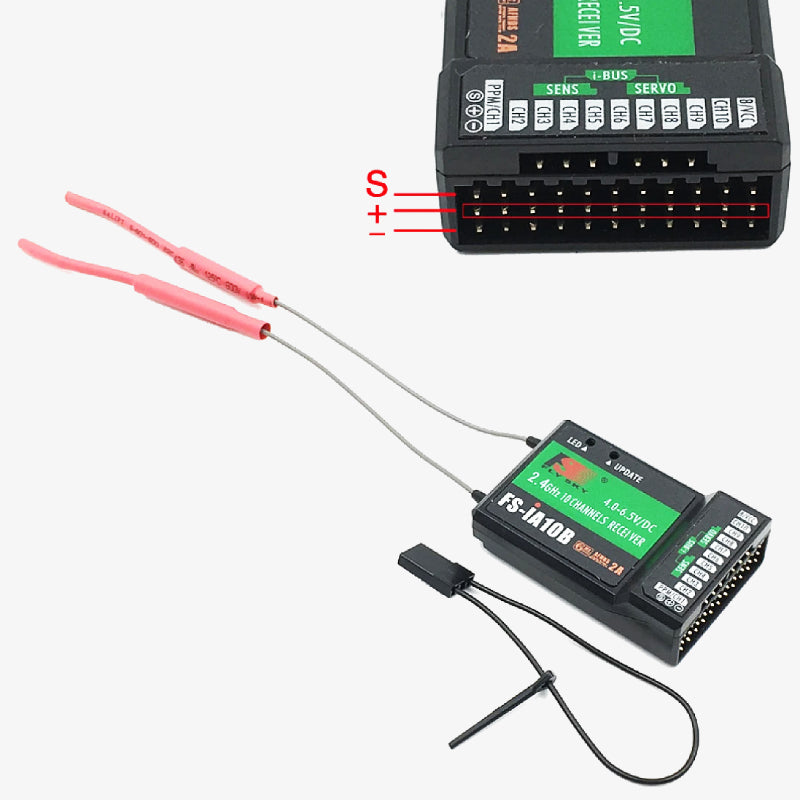

Receiver Specifications:

• Receiver Model: FS-iA10B

• Channels: 10

• Operating Voltage: 4.0 to 6.5 V DC

• Receiver Sensitivity: −105 dBm

• Frequency Range: 2.4 GHz

• Antenna Type: Dual Antenna (26 mm × 2)

• i-BUS Support: Yes

• Data Acquisition Interface: Yes

• Compatible Transmitters: FS-i4, FS-i6, FS-i6X, FS-i10, FS-GT2E, FS-GT2G

Package Includes:

1 × Flysky FS-i6X 2.4GHz RC Transmitter

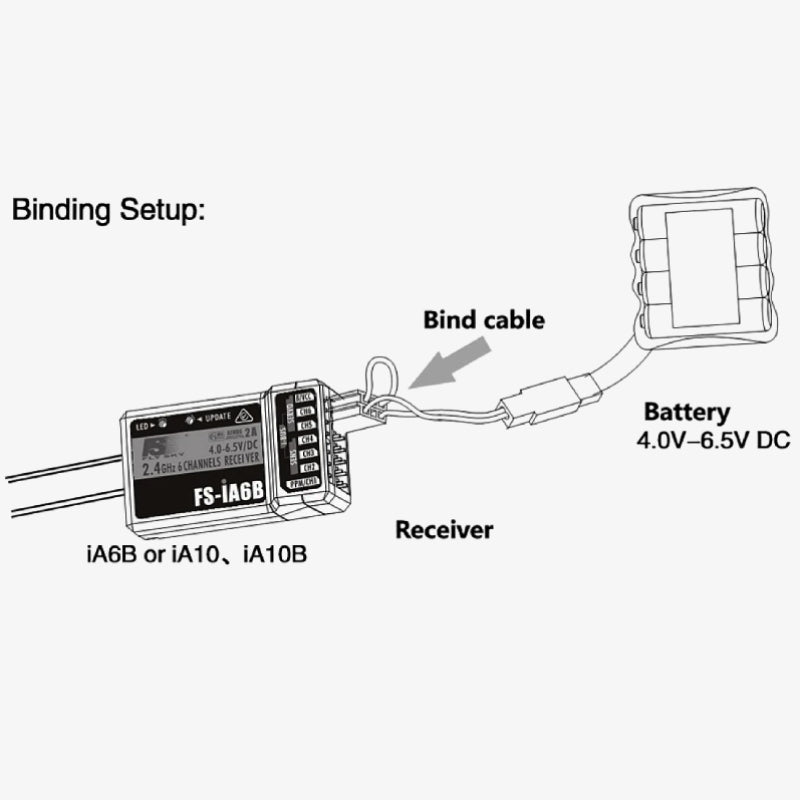

1 × FS-iA10B 10CH Receiver with Binding Cable
1 × PS2 to USB Update Cable
