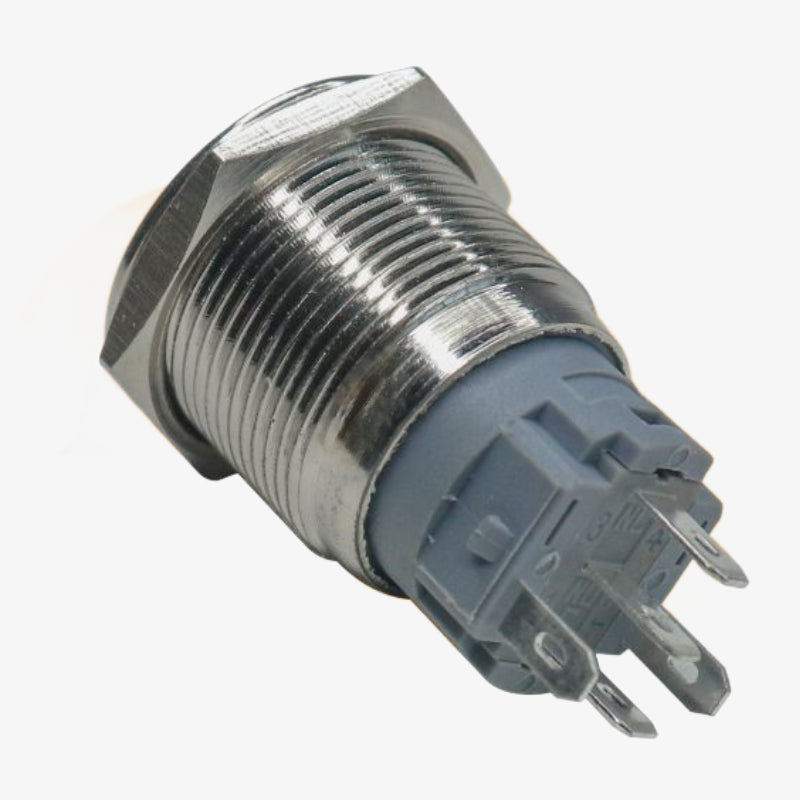

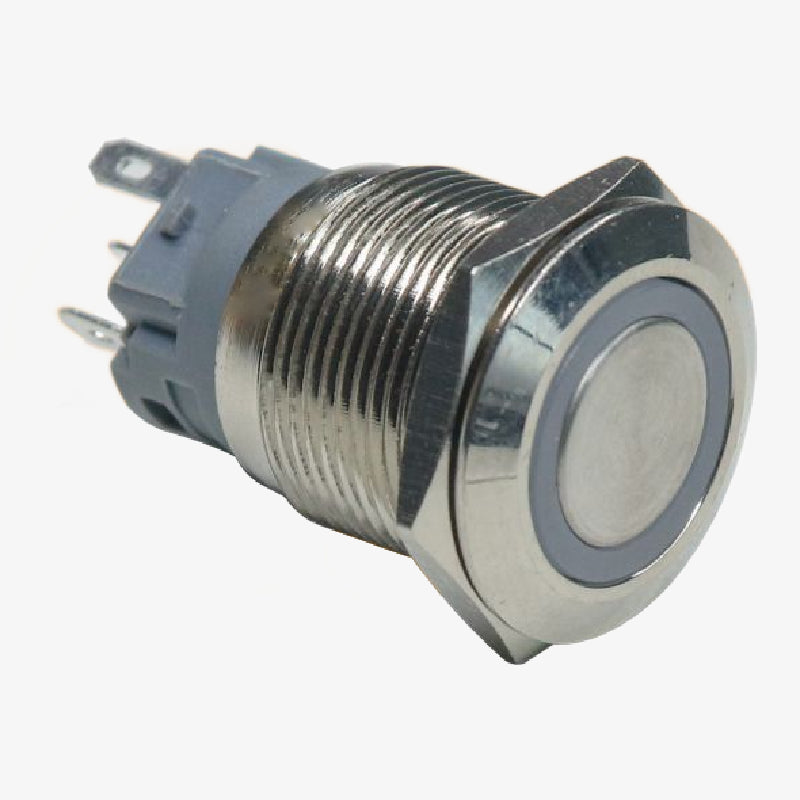

Flat Head 12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-Button Switch - Yellow Light

The Flat Head 12mm Self-Lock Metal Push-Button Switch is designed for reliable ON/OFF control in electronic and industrial systems. Its latching mechanism keeps the switch in the selected state, making it suitable for power toggling, system controls, and device activation. The built-in 12V yellow LED ring offers bright visual indication, while the metal body provides durability even in rugged environments.

Features:

1. Self-locking (latching) mechanism for ON/OFF control
2. Integrated yellow LED ring for 12V operation
3. Flat head metal design with a durable finish
4. 12mm mounting hole suitable for compact panels
5. Long mechanical life with solid tactile feedback
6. Ideal for power switches, control interfaces, automotive projects, and DIY electronics

Specifications:

• Switch Type: Self-lock (Latching), Non-Momentary
• LED Color: Yellow
• LED Operating Voltage: 12V
• Mounting Hole Diameter: 12mm
• Head Style: Flat head
• Contact Configuration: 1NO + 1NC (varies; commonly 1NO)
• Operating Voltage (Contacts): Up to 250V AC / 24V DC
• Rated Current: 1A – 3A
• Body Material: Stainless Steel
• LED Life: > 40,000 hours
• Mechanical Life: > 100,000 cycles
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥100MΩ
• Operating Temperature: –25°C to +80°C
• Terminal Type: Solder lug/pin terminals
• Applications: Power switching, control panels, equipment activation, DIY kits, automotive systems

Package Includes:

1 × Flat Head 12mm 12V Ring Light Self-Lock Metal Push-Button Switch – Yellow Light
