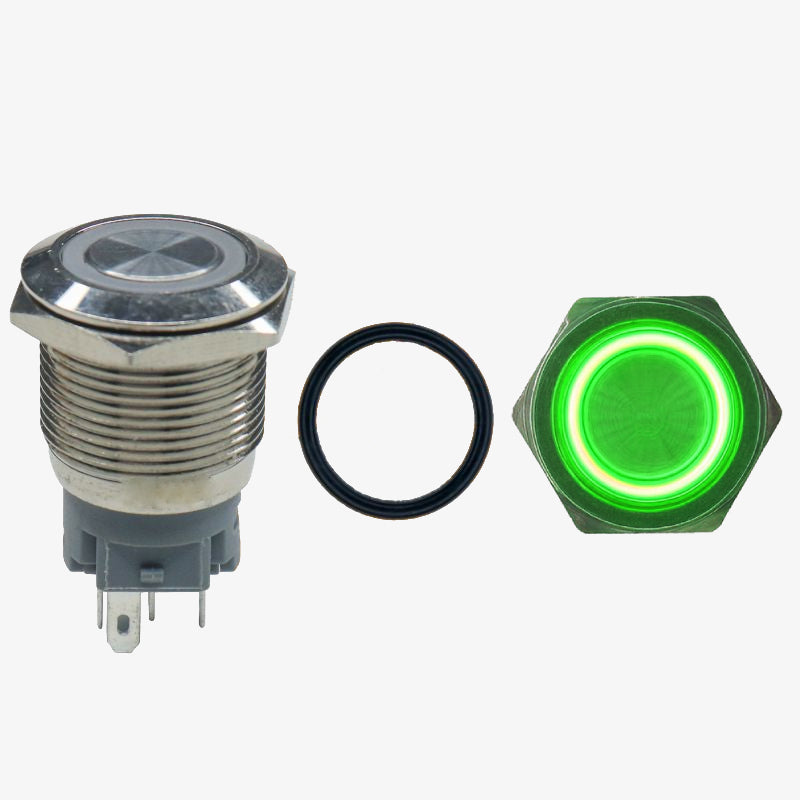

Flat Head 12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-Button Switch - Green Light

The Flat Head 12mm Self-Lock Metal Push-Button Switch is a durable, panel-mount switch designed for reliable ON/OFF control in electronic and industrial applications. Featuring a self-locking (latching) mechanism, the switch maintains its state after each press, making it ideal for power control, system activation, and device toggling. The integrated 12V Green LED ring provides a clear visual indicator, while the stainless-steel body ensures long service life in demanding environments.

Features:

1. Self-locking (latching) mechanism for ON/OFF control
2. Integrated red LED ring for 12V operation
3. Flat head metal design for premium appearance and durability
4. 12mm mounting hole suitable for compact panels and enclosures
5. Long mechanical life with robust tactile feedback
6. Ideal for power switches, control panels, automotive mods, and DIY electronics

Specifications:

• Switch Type: Self-lock (Latching), Non-Momentary
• LED Color: Green
• LED Operating Voltage: 12V
• Mounting Hole Diameter: 12mm
• Head Style: Flat head
• Contact Configuration: 1NO + 1NC (varies; commonly 1NO)
• Operating Voltage (Contacts): Up to 250V AC / 24V DC
• Rated Current: 1A – 3A
• Body Material: Stainless Steel
• LED Life: > 40,000 hours
• Mechanical Life: > 100,000 cycles
• Contact Resistance: ≤50mΩ
• Insulation Resistance: ≥100MΩ
• Operating Temperature: –25°C to +80°C
• Terminal Type: Solder lug/pin terminals
• Applications: Power switching, control panels, equipment activation, DIY kits, automotive systems

Package Includes:

1 × Flat Head 12mm 12V Ring Light Self-Lock Metal Push-Button Switch – Green Light
