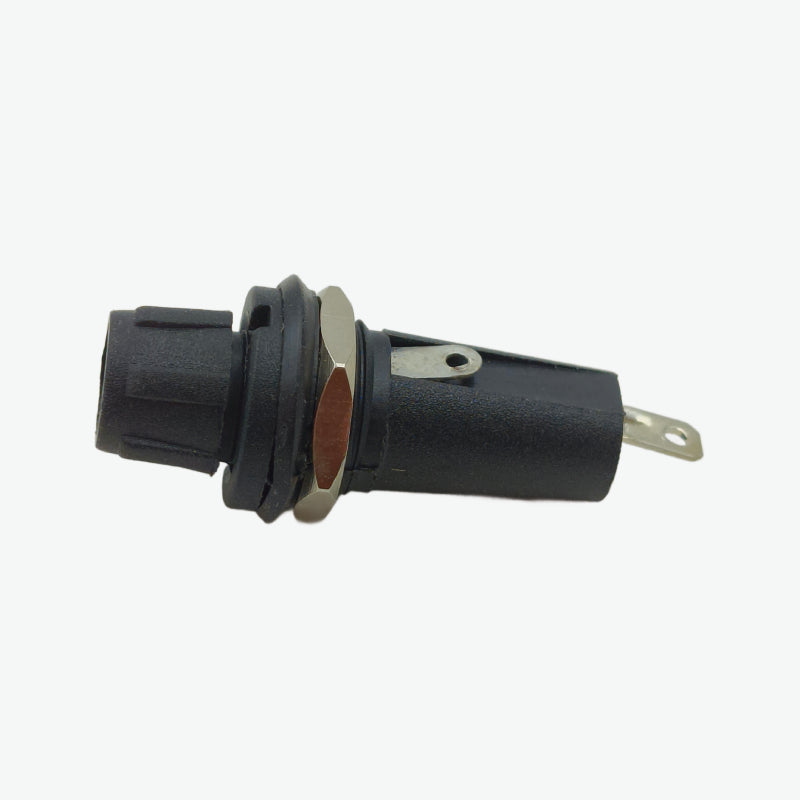

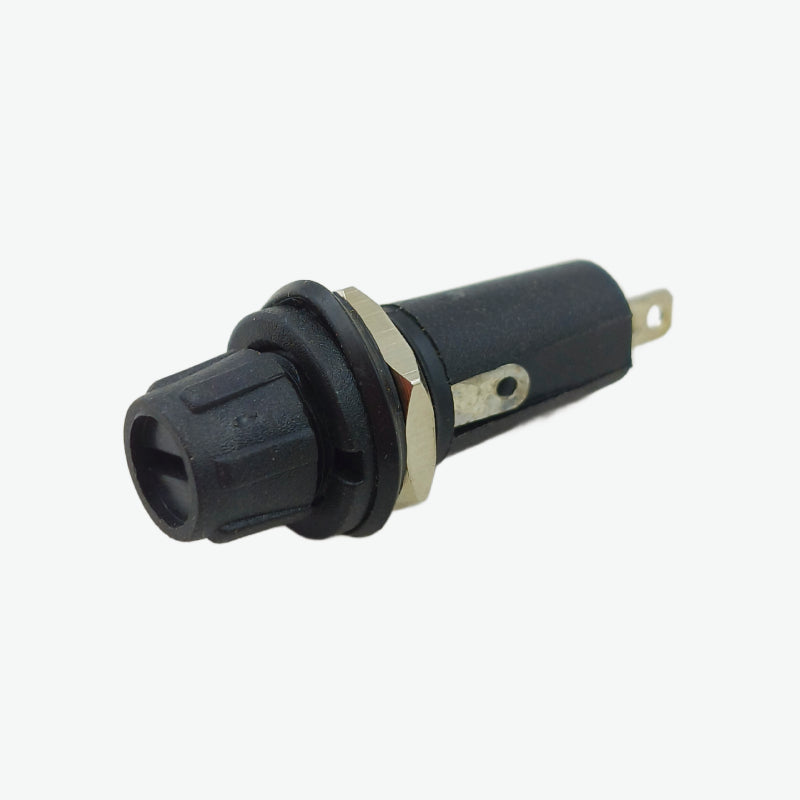

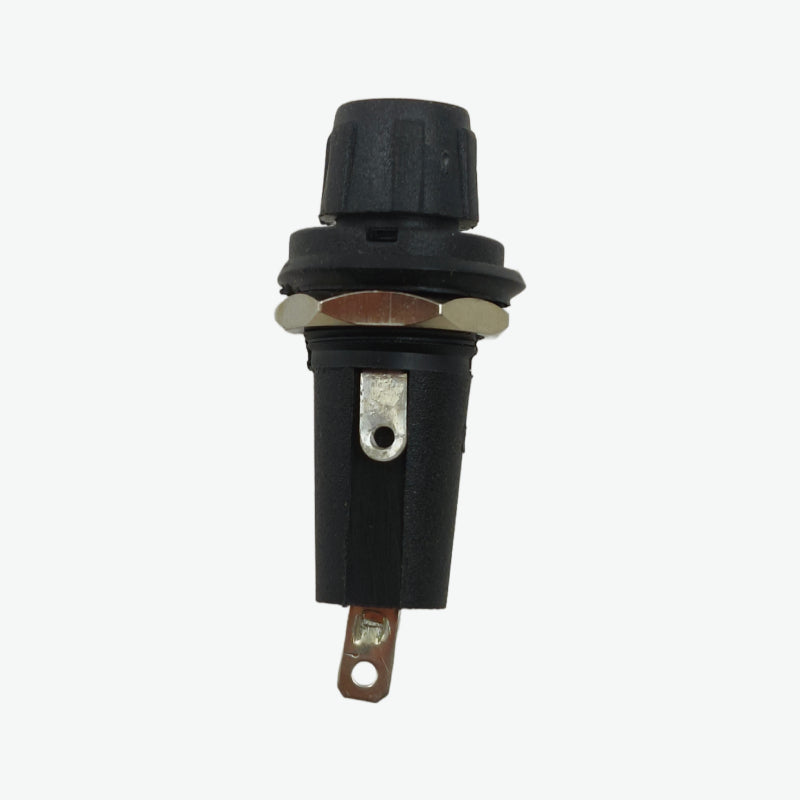

Screw-In Panel Mount Fuse Holder (5×20mm) - 6.3A 250V AC

The Screw-In Panel Mount Fuse Holder is a compact and reliable solution for securely mounting 5×20mm fuse links in electronic and electrical equipment. Designed for screw-up panel installation, it offers a sturdy and safe connection while allowing quick fuse replacement through its coin-slot screw cap. Built with a reinforced Polyamide (Glass-Filled) body and brass tin-plated contacts, it ensures high durability, insulation strength, and stable electrical performance.

Features:

1. Screw-in panel mount design with coin-slot cap for easy fuse access
2. Compatible with standard 5×20mm fuse links
3. High-quality Polyamide (Glass-Filled) body for superior heat resistance and strength
4. Brass tin-plated contacts for enhanced conductivity and corrosion resistance
5. Excellent insulation and voltage withstand capability
6. Compact and lightweight design ideal for tight installations

Specifications:

• Type: Screw-In Panel Mount Fuse Holder

• Mounting Style: Panel, Screw-Up

• Material: Polyamide (Glass-Filled)

• Fuse Size: 5×20mm

• Rated Current/Voltage: 6.3A / 250V AC

• Terminals: Solder Type

• Current Carrying Parts: Brass, Tin-Plated

• Cap Design: Screw-In with Coin Slot

• Panel Thickness (Max.): 3mm

• Insulation Resistance: ≥1000 MΩ

• Contact Resistance (Initial): ≤10 mΩ

• High Voltage Breakdown: 2KV AC for 1 minute

• Permissible Temperature (With/Without Load): -20°C to +85°C

• Approximate Weight: 4.1g

Package Includes:

1 × Screw-In Panel Mount Fuse Holder – 5×20mm, 6.3A 250V AC
