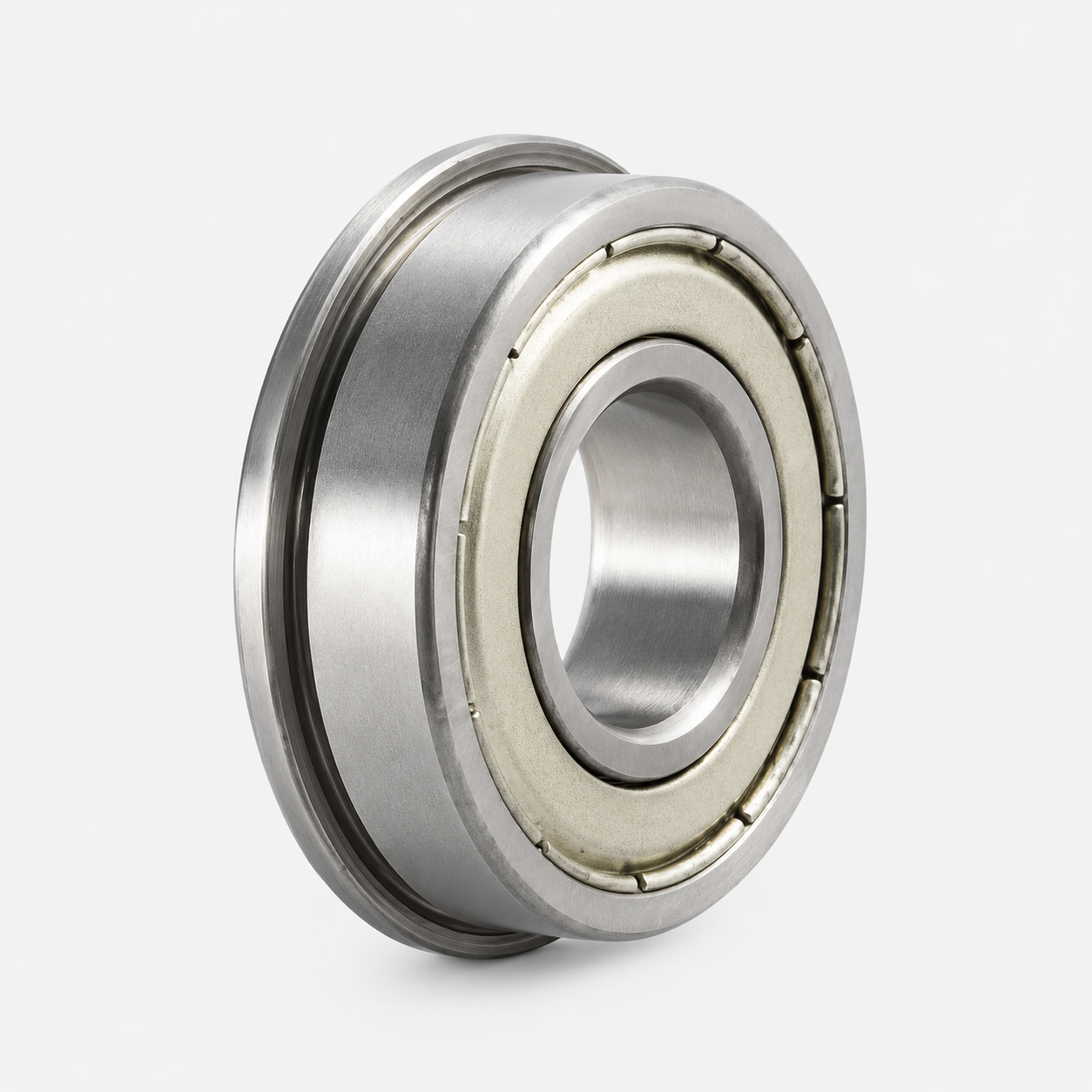

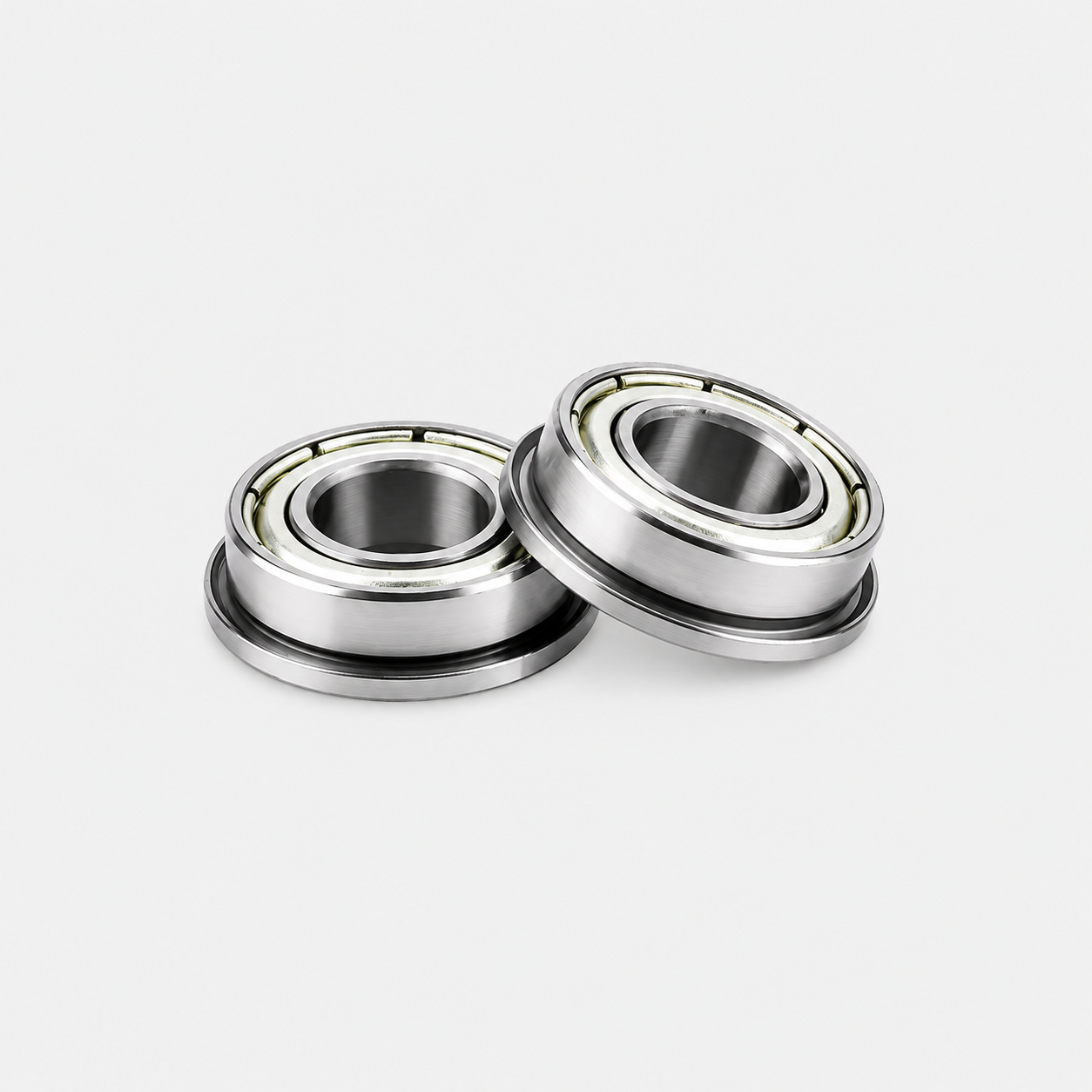

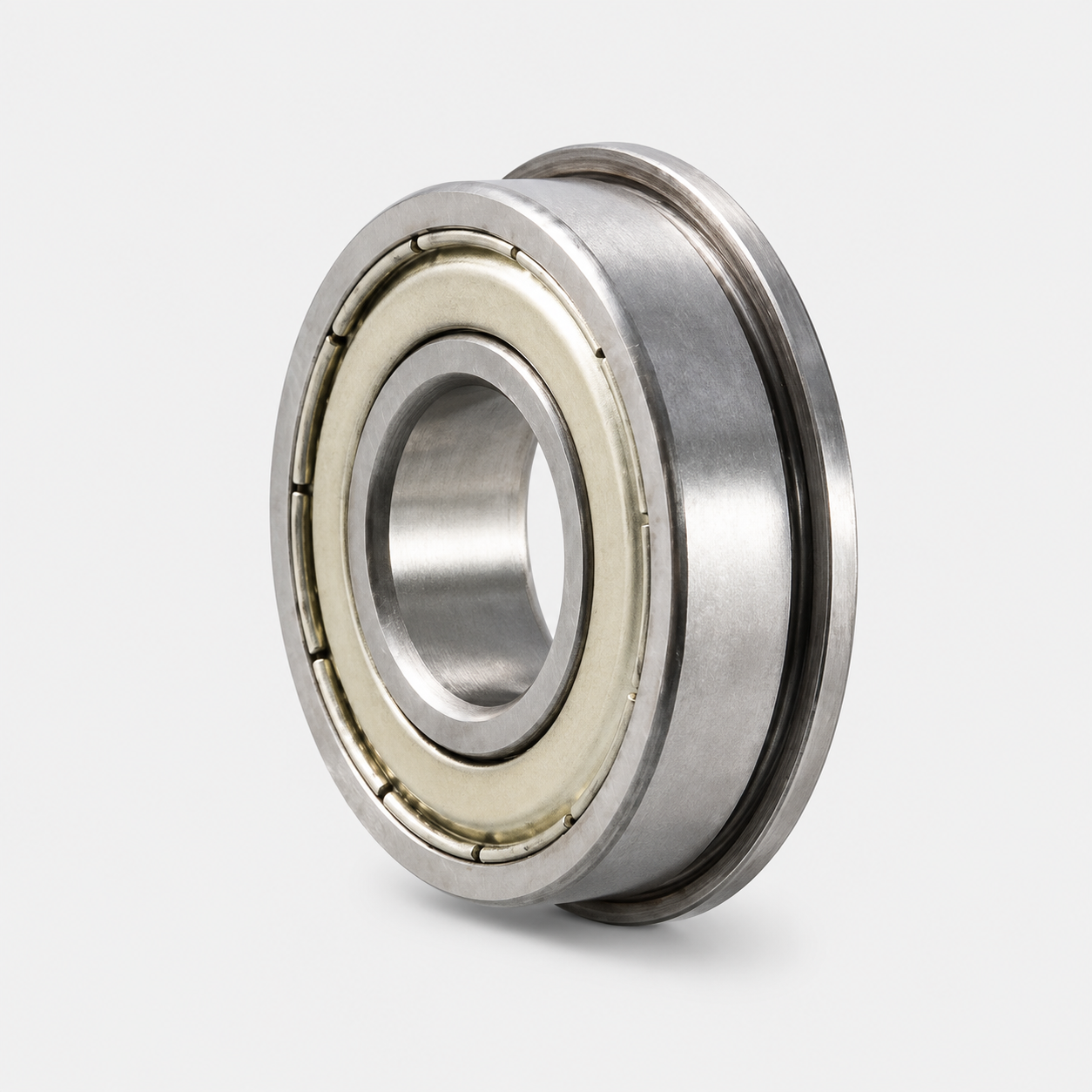

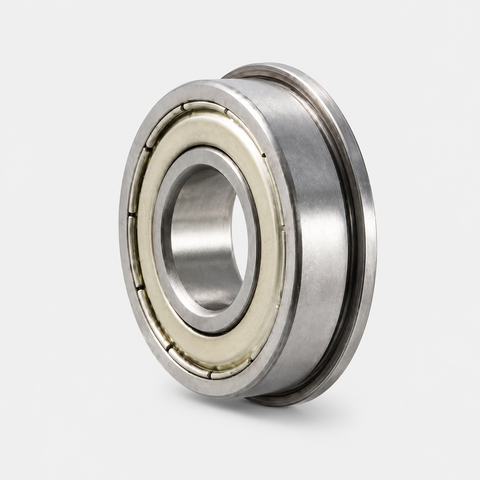

F688ZZ Flanged Steel Ball Bearing (8x16x5mm) - Double Metal Shielded
SKU:
MEC-QC6062
Availability:
100
In Stock
-
- Rs. 36.00
- Unit price
- per
Subtotal:
Rs. 36.00
Description
xThis F688ZZ Flanged Steel Ball Bearing is a high-quality deep groove flanged ball bearing designed for smooth, low-friction rotational motion in mechanical assemblies. Featuring double metal shields (ZZ) for enhanced protection against dust and contaminants, it offers reliable performance, low noise, and long service life. It is widely used in 3D printers, CNC machines, electric motors, robotics, conveyors, and other precision mechanical applications.
Features:
- High-quality deep groove ball bearing with flanged design.
- Double metal shields (ZZ) for protection against dust and debris.
- Low friction for smooth and efficient rotation.
- High-speed operation with low noise.
- Flanged outer ring for easy mounting and accurate positioning.
- Made from high-carbon bearing steel for durability.
- Factory lubricated for maintenance-free operation.
- Excellent wear and corrosion resistance.
- Suitable for radial and light axial loads.
- Ideal for 3D printers, CNC machines, robotics, electric motors, and automation equipment.
Specifications:
| Parameter | Value |
|---|---|
| Bearing Model | F688ZZ |
| Bearing Type | Deep Groove Flanged Ball Bearing |
| Shield Type | Double Metal Shield (ZZ) |
| Material | High Carbon Chrome Bearing Steel |
| Inner Diameter (ID) | 8mm |
| Outer Diameter (OD) | 16mm |
| Flange Outer Diameter | 18mm |
| Width | 5mm |
| Flange Thickness | 1mm |
| Bore Type | Straight Bore |
| Bearing Clearance | C0 (Standard) |
| Lubrication | Pre-Lubricated Grease |
| Dynamic Load Rating | Approximately 1.68kN |
| Static Load Rating | Approximately 0.98kN |
| Maximum Speed (Grease) | Up to 32,000 RPM |
| Maximum Speed (Oil) | Up to 38,000 RPM |
| Operating Temperature | -20°C to +120°C |
| Precision Grade | ABEC-1 / ISO Standard |
| Weight | Approximately 5g |
| Applications | 3D Printers, CNC Machines, Linear Motion Systems, Electric Motors, Robotics, Conveyors, Industrial Machinery |
Also Check These Out:
624 ZZ 4mm Radial Ball Bearings (4x13x5mm) - Double Metal Shielded
603 ZZ Deep Groove Miniature Radial Ball Bearings (3x9x5mm)
6002 2RS Rubber Sealed Ball Bearings (15×32×9 mm) - Double Rubber Sealed
608 2RS Rubber Sealed Ball Bearings (8×22×7 mm) - Double Rubber Sealed
Package Includes:
1 × F688ZZ Flanged Steel Ball Bearing - Double Metal Shielded
