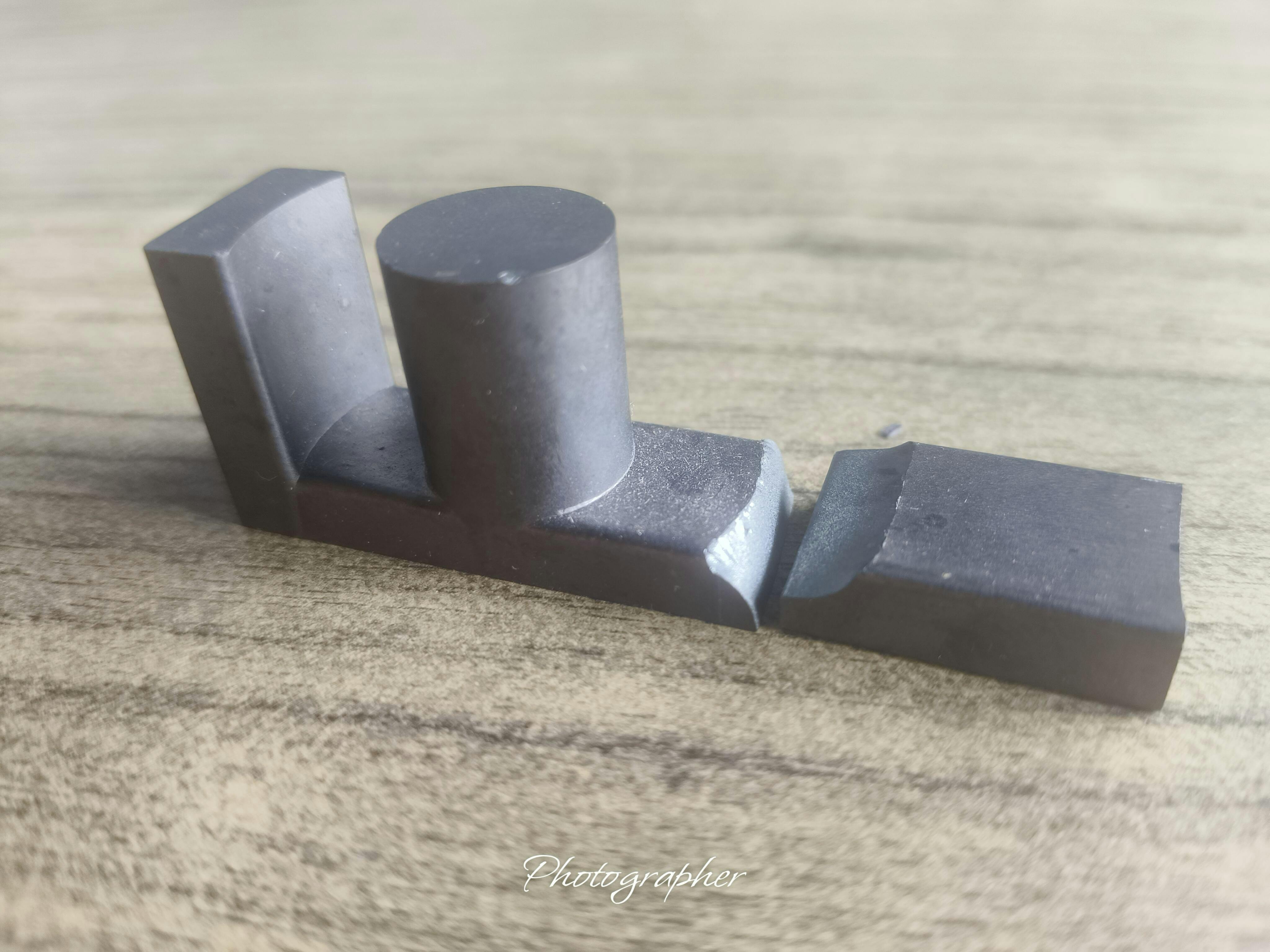

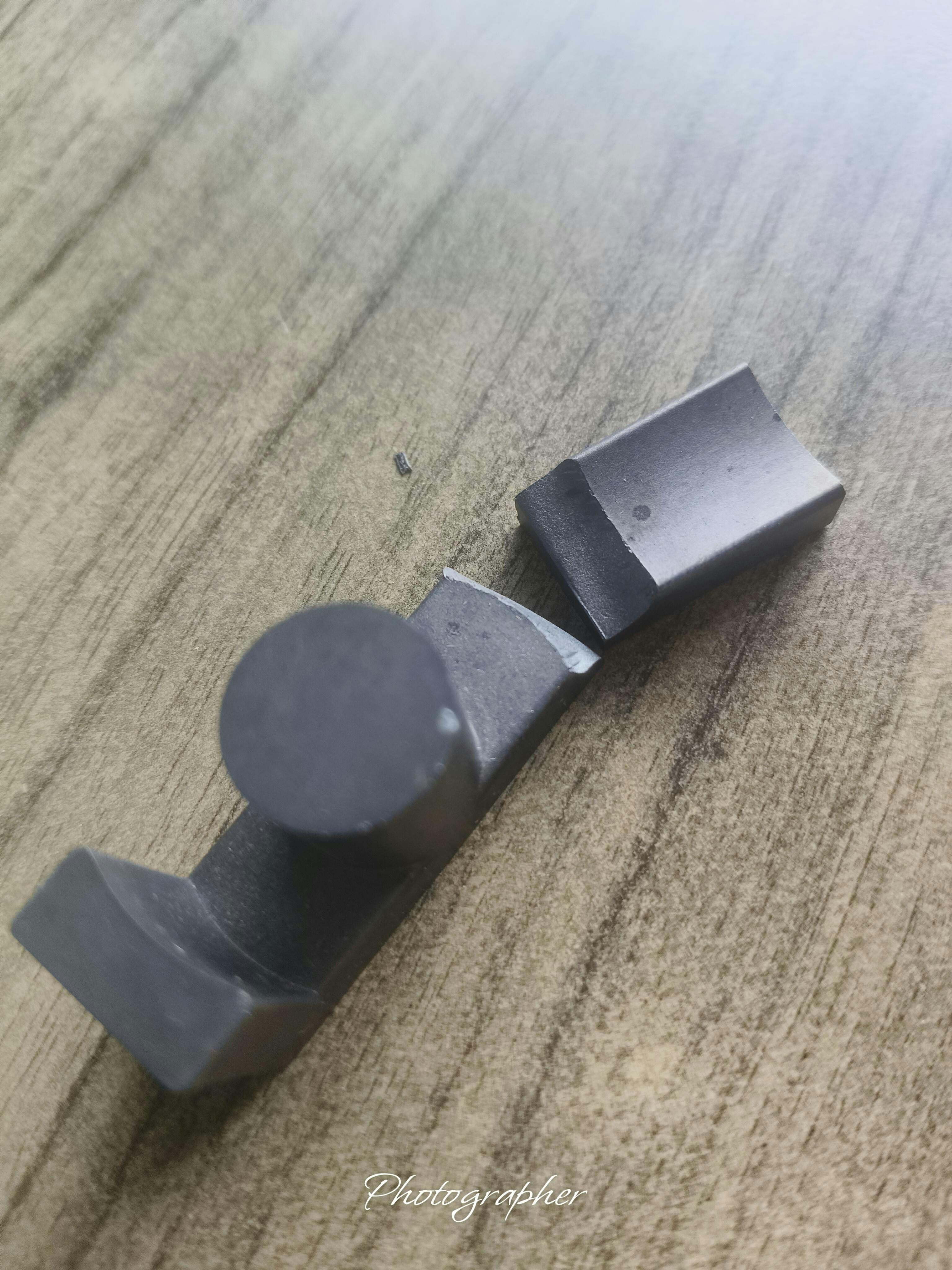

The ETD44 Ferrite Transformer Cores are designed for high-efficiency power transformers, especially in switch-mode power supplies (SMPS) and other high-frequency power applications. These ferrite cores are crafted to minimize losses at high frequencies, making them ideal for compact and efficient power transformer designs. The ETD44 core shape allows for easy winding and optimal magnetic performance.
Features:
- Core Shape: ETD44 shape allows for optimal magnetic performance and easy winding, improving transformer efficiency.
- Material: High-quality ferrite material, optimized for low core losses at high frequencies.
- High Magnetic Permeability: Ensures better magnetic flux control, improving energy transfer in transformers.
- Reduced Core Losses: Low eddy current and hysteresis losses, suitable for high-frequency power applications.
- Pair Configuration: Supplied as a pair (two cores) for assembly into a closed magnetic path.
Specifications:
- Core Type: ETD44
- Material: Ferrite (typically N87, N97, or equivalent, depending on the application)
- AL Value: Typically around 3000 nH (varies based on material type)
- Operating Frequency: Suitable for high-frequency operations, typically ranging from 20 kHz to 500 kHz.
- Applications: Ideal for use in SMPS transformers, inverters, inductors, and other high-frequency power circuits.
Package Includes:
2 x ETD44/22/15 Ferrite Transformer Core
