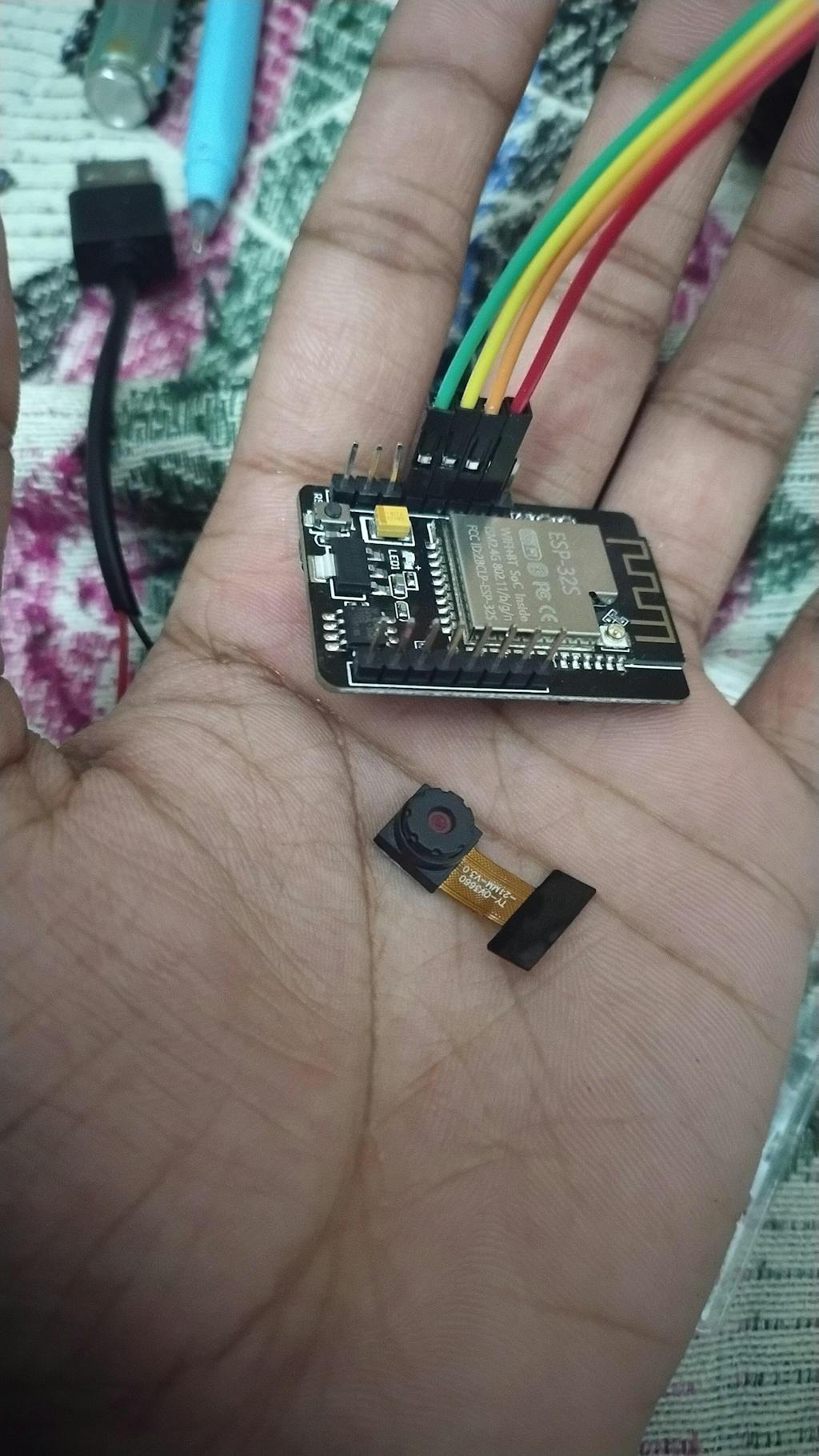

The ESP32-CAM is an Original ESP32 CAM WiFi+Bluetooth module board along with OV2640 Camera Module. This product is based on the ESP32 chip with the additional facility of using a camera. That means, the features of ESP32, especially the Bluetooth and the WiFi connectivity is available along with an additional peripheral OV2640 camera module. This opens up a lot of applications and usage in the field of various IoT applications.
For the camera spec, it is a very small sized camera yet powerful that can be used with minimum system supports. It is available in a ribbon cable formation. The camera is powered by an UXGA resolution of 1600 x 1200 resolution with 2.0 Megapixel resolution. It is a good choice for most of the camera based IoT applications.
ESP32 Board & OV2640 Camera Module pinout:
Package Contains
1x ESP32 Board & OV2640 Camera Module
ESP32 Camera Development Board and OV2640 features & Specifications:
- ESP32-CAM Board and OV2640 Camera module in two separate parts
- 9 fully customizable I/O ports
- 32Mbit Flash
- 520KB SRAM +4M PSRAM
- 802.11 b/g/n/e/i WiFi support
- 4.2v Bluetooth support
- IPEX and PCB Antenna available
- 3.6V ~ 5V supply voltage
- 2.0 Megapixel Color CMOS UXGA technology
- 8-bit compressed data output with RGB565/555 support
- UXGA/SXGA at 15 fps
- SVGA at 30 fps
- CIF at 60 fps
- 1600 x 1200 resolution of UXGA
- 3590um x 2684um image area.
ESP32 WiFi and Bluetooth Module Applications:
- Cellular or Camera Phone
- IoT based surveillance camera
- Web Cam
- Image processing
- Digital still camera
- PC multimedia
ESP32 Board & OV2640 Camera Module Dimension and footprint:
Example Projects on ESP32 Board & OV2640 Camera Module:
ESP32 - video streaming and face recognition
Additional Resources:
