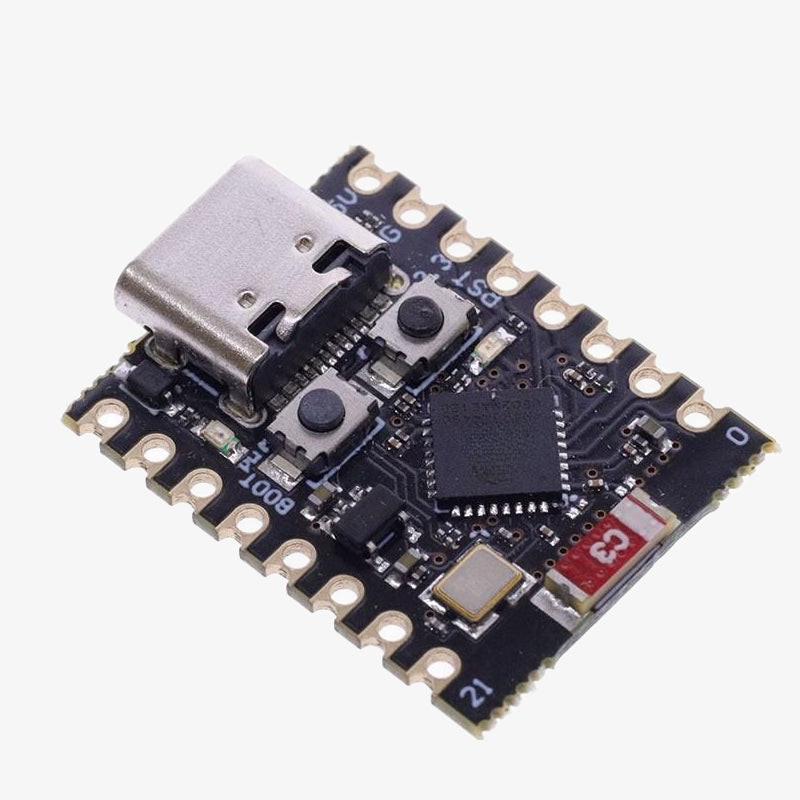

ESP32-C3 Super Mini Development Board - HW-466AB

DVB-QC3883
23 In stock
Rs. 278.00 (Exc. GST)
Rs. 278.00

The ESP32-C3 Super Mini Development Board (HW-466AB) is an ultra-compact WiFi + Bluetooth 5 (LE) development board based on the ESP32-C3 RISC-V MCU. Designed for IoT, automation, wearable tech, and compact embedded systems, it provides powerful wireless connectivity in a tiny footprint. With low-power operation, abundant GPIOs, USB programming, and support for ESP-IDF / Arduino, it is ideal for makers, engineers, and IoT product developers.

Features:

  1. Ultra-compact ESP32-C3 mini development board
  2. Built-in WiFi 2.4 GHz + Bluetooth 5 LE
  3. RISC-V single-core 32-bit MCU

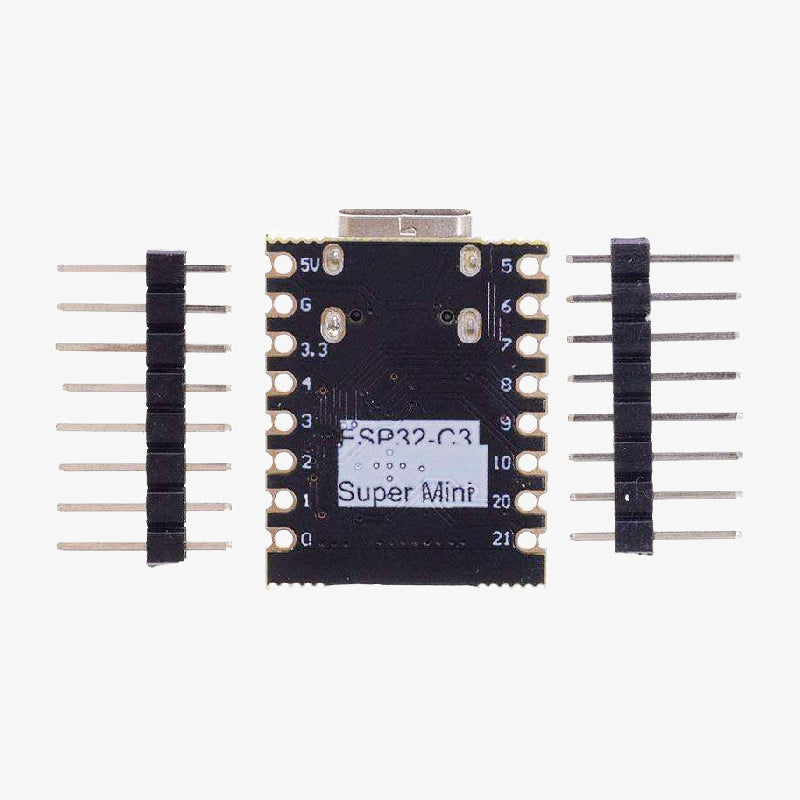

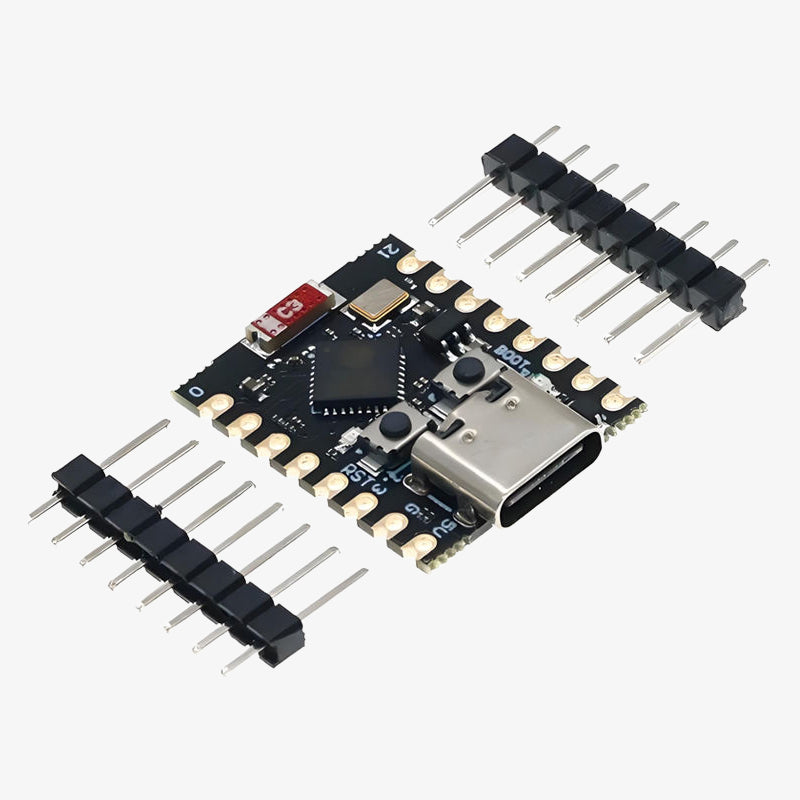

  4. Pre-soldered header pins for instant prototyping
  5. USB-C interface for power and programming
  6. Supports ESP-IDF, Arduino, MicroPython
  7. Low-power design suitable for battery-powered IoT
  8. Multiple GPIOs with PWM, ADC, I2C, SPI, UART support
  9. On-board RGB LED (varies by batch)
  10. Ideal for compact IoT projects, wearables, and automation

Specifications:

  • Model: HW-466AB
  • Chipset: ESP32-C3 (RISC-V 32-bit, single core)
  • Clock Speed: Up to 160 MHz
  • Wireless Connectivity:
    • WiFi: 2.4 GHz, 802.11 b/g/n

    • Bluetooth: BLE 5.0

  • Flash Memory: 4MB
  • Operating Voltage: 5V (USB)
  • Logic Level: 3.3V
  • Interface: USB Type-C
  • GPIO Count: Up to 12 usable GPIOs
  • Supported Protocols: UART, SPI, I2C, PWM, ADC
  • On-Board LED: Programmable indicator
  • Dimensions: Super-mini form factor
  • Operating Temperature: –20°C to +70°C

Package Includes:

1 × ESP32-C3 Super Mini Development Board - HW-466AB
