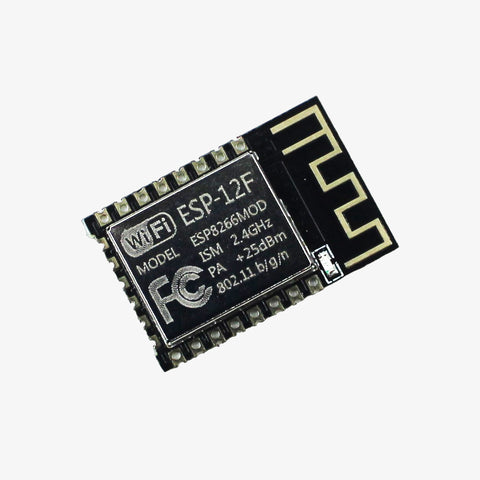

ESP-12F ESP8266 Wireless WiFi Module ESP-12F ESP8266 Wireless WiFi Module

QC1007

78 In stock

Rs. 127.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]

ESP-12F ESP8266 WiFi module is a compact size wireless development board intended to be used in IoT applications. It supports SPI and UART protocols allowing you to connect various types of sensors directly through it's GPIO’s. ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU capability.

Features:

  • Integrated low power 32-bit MCU
  • Integrated 10-bit ADC
  • Integrated TCP/IP protocol stack
  • Integrated PLL, regulators, and power management units
  • Deep sleep power <10uA, Power down leakage current < 5uA
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3) 5
  • Wi-Fi 2.4 GHz, support WPA/WPA2
  • Support STA/AP/STA+AP operation modes
  • Support Smart Link Function for both Android and iOS devices
  • SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
  • STBC, 1x1 MIMO, 2x1 MIMO
  • A-MPDU & A-MSDU aggregation and 0.4s guard interval
  • +20dBm output power in 802.11b mode
  • Operating temperature range -40C ~ 125C

Package Includes:

1 x ESP-12F ESP8266 Wireless WiFi Module

ESP-12F ESP8266 WiFi module is a compact size wireless development board intended to be used in IoT applications. It supports SPI and UART protocols allowing you to connect various types of sensors directly through it's GPIO’s. ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU capability.

Features:

  • Integrated low power 32-bit MCU
  • Integrated 10-bit ADC
  • Integrated TCP/IP protocol stack
  • Integrated PLL, regulators, and power management units
  • Deep sleep power <10uA, Power down leakage current < 5uA
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3) 5
  • Wi-Fi 2.4 GHz, support WPA/WPA2
  • Support STA/AP/STA+AP operation modes
  • Support Smart Link Function for both Android and iOS devices
  • SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
  • STBC, 1x1 MIMO, 2x1 MIMO
  • A-MPDU & A-MSDU aggregation and 0.4s guard interval
  • +20dBm output power in 802.11b mode
  • Operating temperature range -40C ~ 125C

Package Includes:

1 x ESP-12F ESP8266 Wireless WiFi Module
