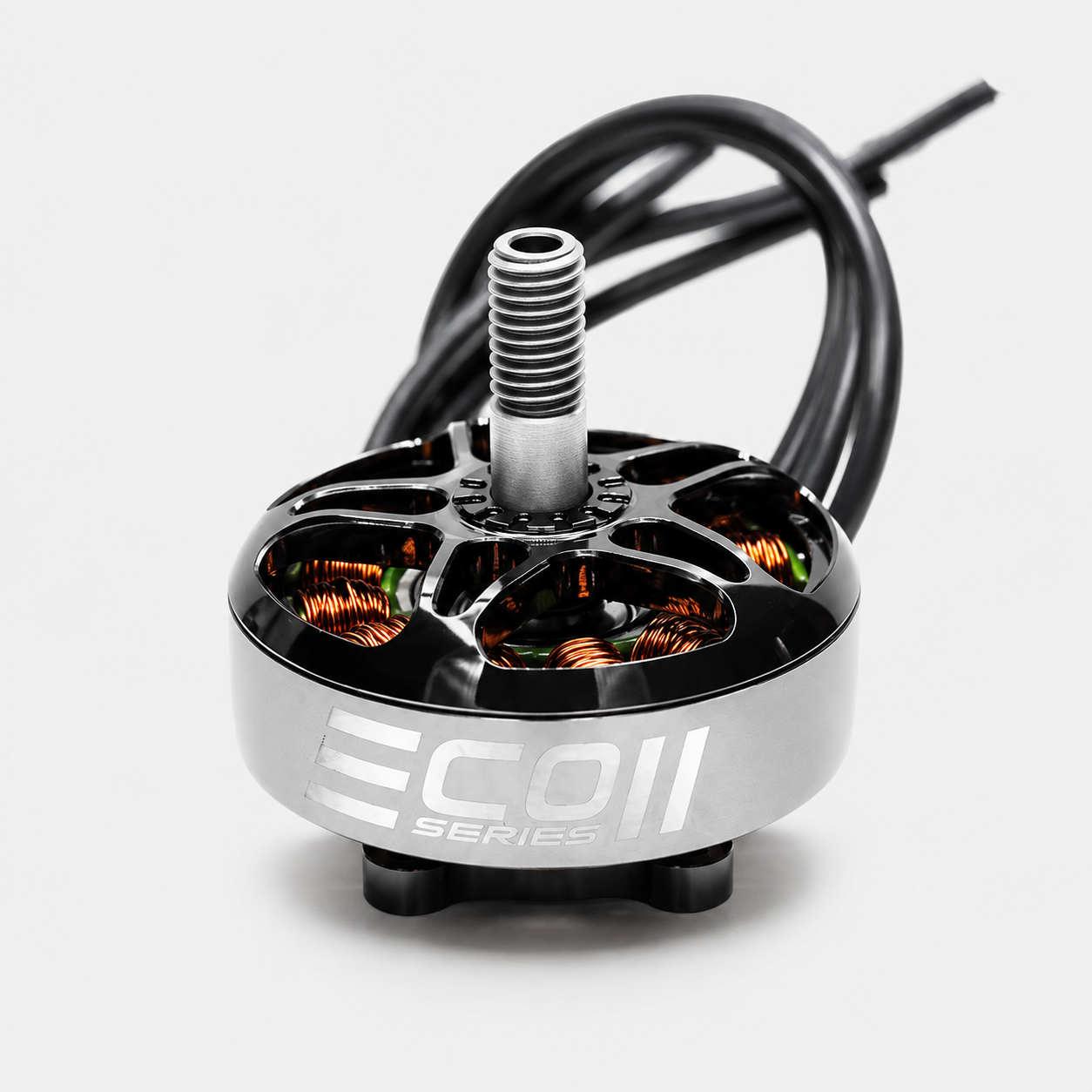

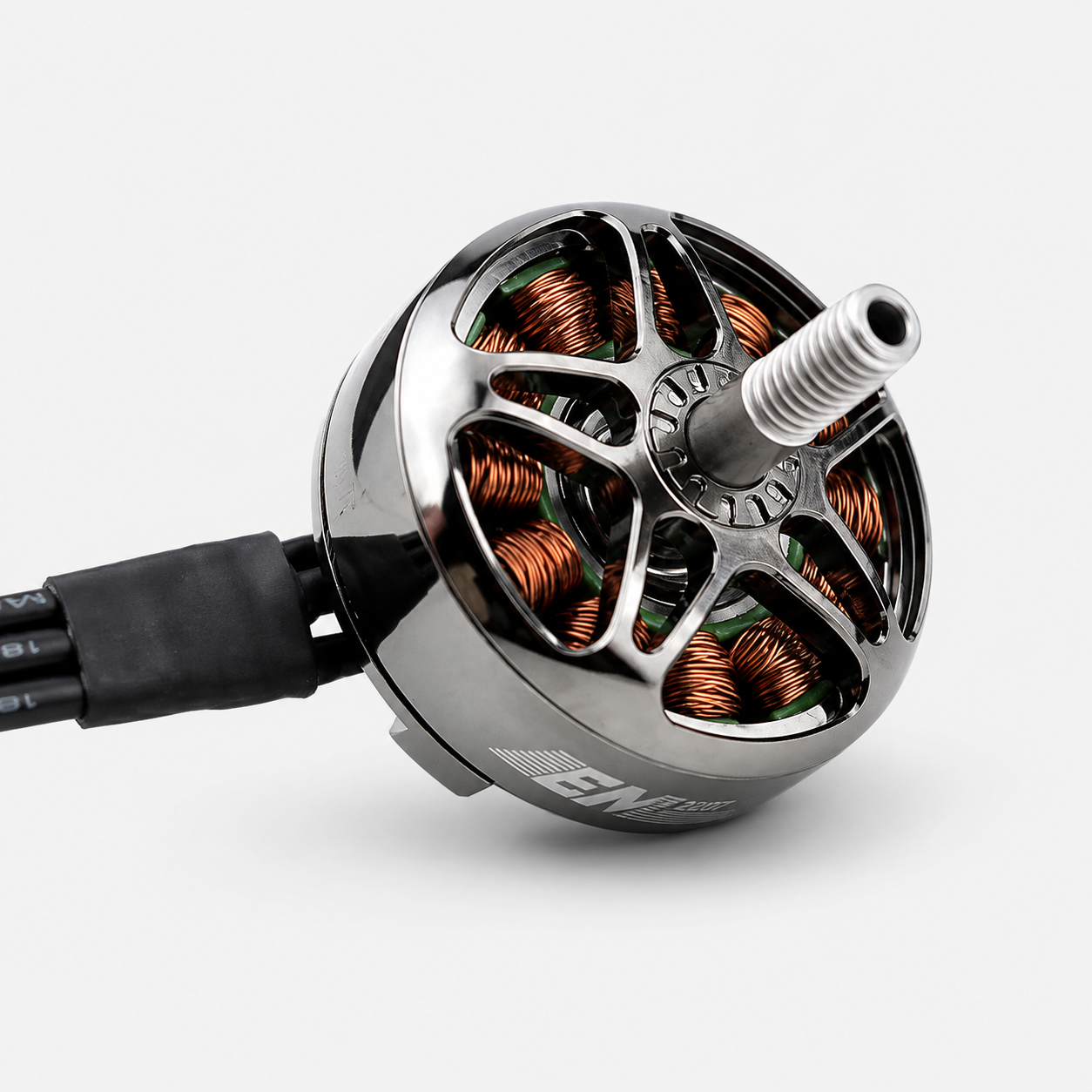

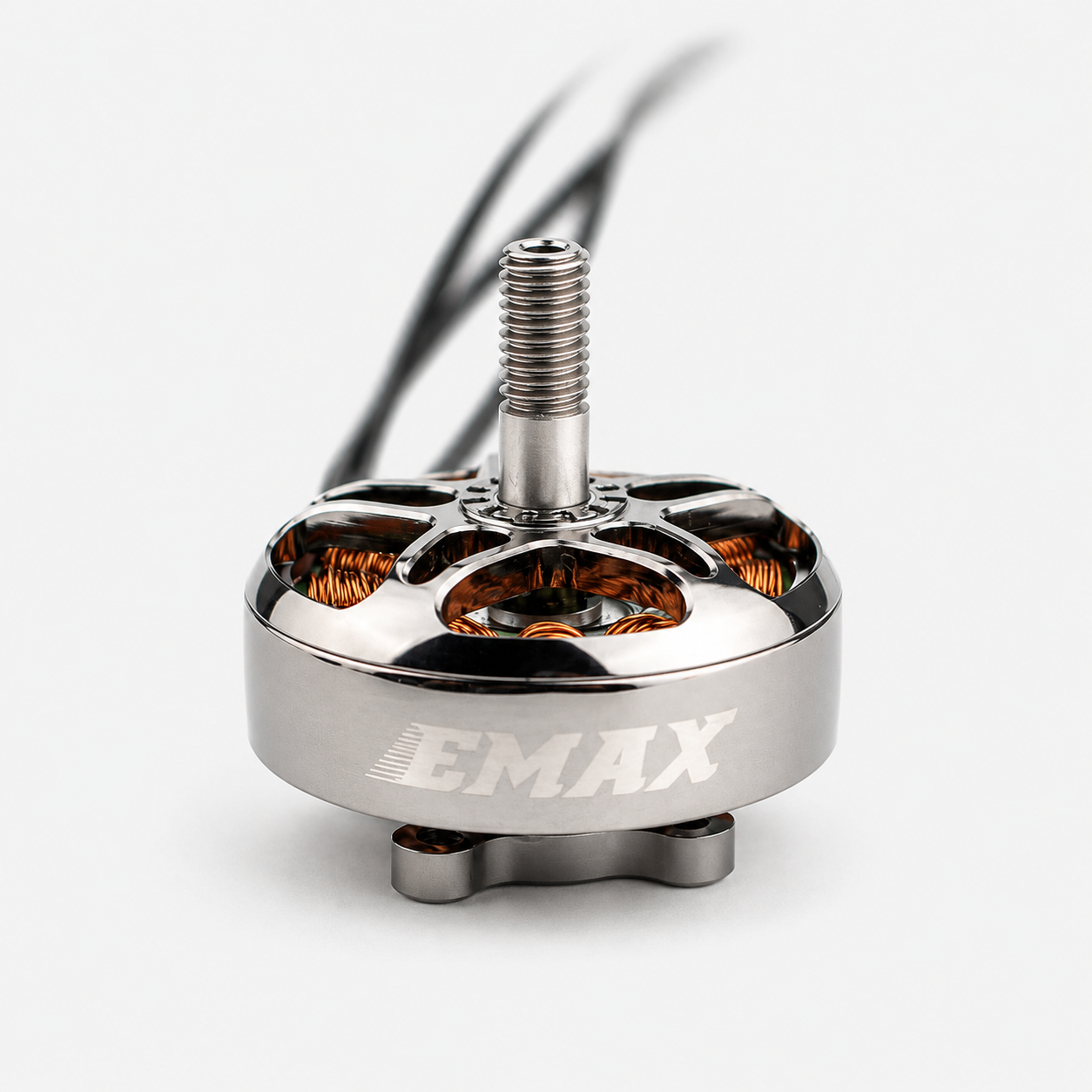

Emax ECOII-2807-1300KV Brushless High Speed DC Motor for Drone
SKU:
MTR-QC6086
Availability:
10
In Stock
-
- Rs. 1,890.00
- Unit price
- per
Subtotal:
Rs. 1,890.00
Description
xEmax ECOII-2807-1300KV Brushless High Speed DC Motor for Drone is a high-performance brushless outrunner motor engineered for FPV, long-range, and heavy-lift drone applications. Featuring upgraded N52SH arc magnets, precision EZO bearings, a hardened steel shaft, and a reinforced unibell design, it delivers exceptional thrust, efficiency, and durability. Optimized for 3S–6S LiPo batteries, it is ideal for 6–7 inch propeller setups used in aerial photography, long-range flights, and professional UAVs.
Features:
- High-performance 1300KV brushless outrunner motor.
- Optimized for 3S–6S LiPo battery operation.
- Upgraded N52SH curved arc magnets for improved efficiency.
- Precision EZO bearings for smooth and reliable operation.
- Hardened steel shaft for enhanced durability.
- Reinforced unibell design for increased impact resistance.
- Multi-strand winding for improved power delivery.
- 200mm 18AWG silicone lead wires.
- Compatible with 6–7 inch propellers.
- Ideal for FPV drones, long-range UAVs, aerial photography, and DIY drone projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Brushless DC Outrunner Motor |
| Model | Emax ECOII-2807 |
| KV Rating | 1300KV |
| Motor Configuration | 12N14P |
| Stator Size | 28 × 7mm |
| Operating Voltage | 3S–6S LiPo |
| Maximum Power | 1310W |
| Maximum Current | Up to 50A |
| Idle Current | 1.3A @ 10V |
| Internal Resistance | 58mΩ |
| Shaft Diameter | 4mm Steel Shaft |
| Bearing Type | Precision EZO Ball Bearings |
| Magnet Type | N52SH Curved Arc Magnets |
| Mounting Hole Pattern | 19 × 19mm (M3) |
| Lead Wire | 18AWG Silicone Wire, 200mm |
| Compatible Propeller Size | 6–7 Inch |
| Weight | Approximately 54g |
| Applications | FPV Racing Drones, Long-Range Drones, Aerial Photography UAVs, Heavy-Lift Quadcopters, DIY Multirotors |
Also Check These Out:
Emax MT2213 935kV Brushless Drone Motor with 1045 Propeller Set CW
Emax MT2213 935kV Brushless Drone Motor CCW without Propeller Set - Red Cap
Emax BLHeli Series 30A ESC - Brushless DC Motor Electronic Speed Controller with Oneshot
Package Includes:
1 × Emax ECOII-2807-1300KV Brushless High Speed DC Motor for Drone
