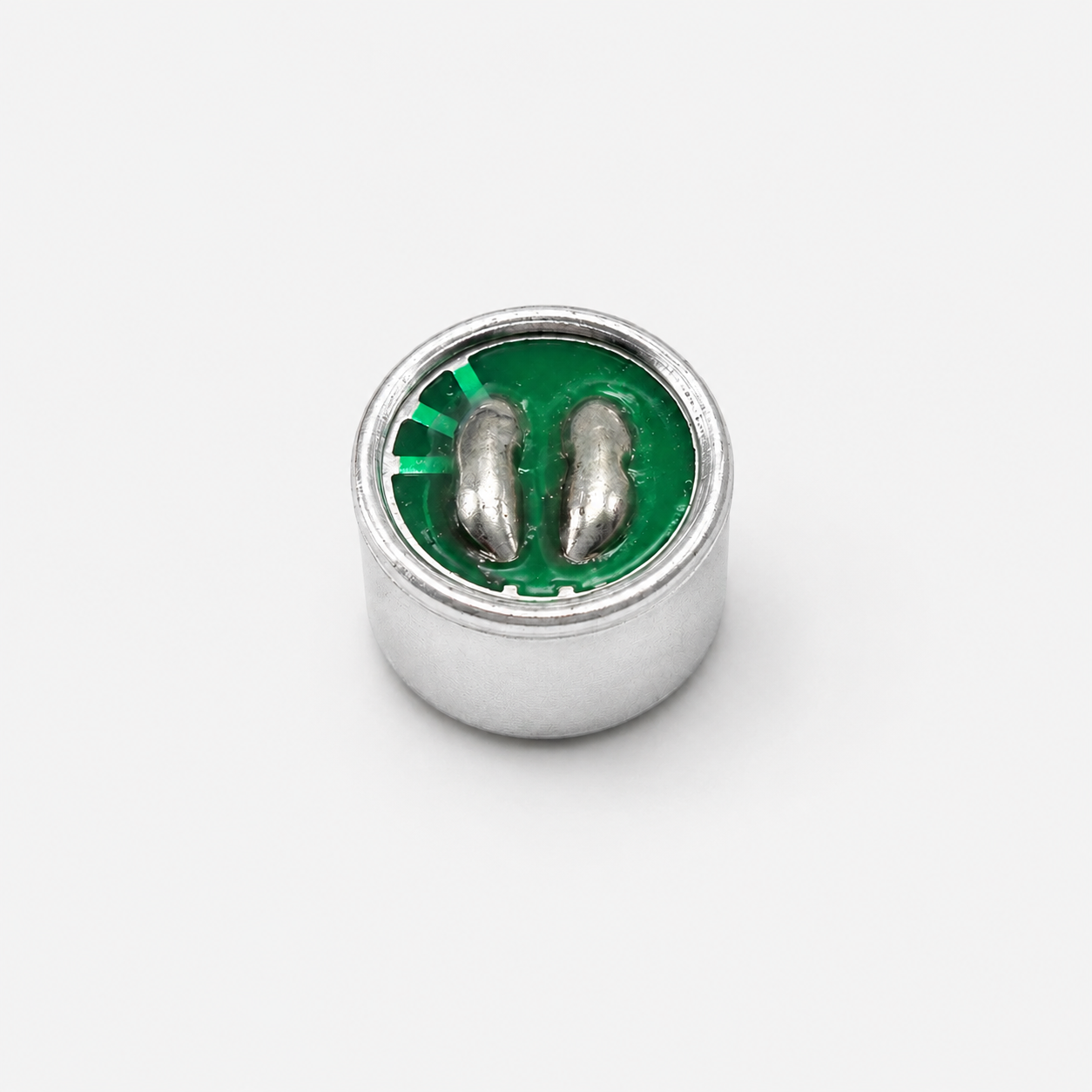

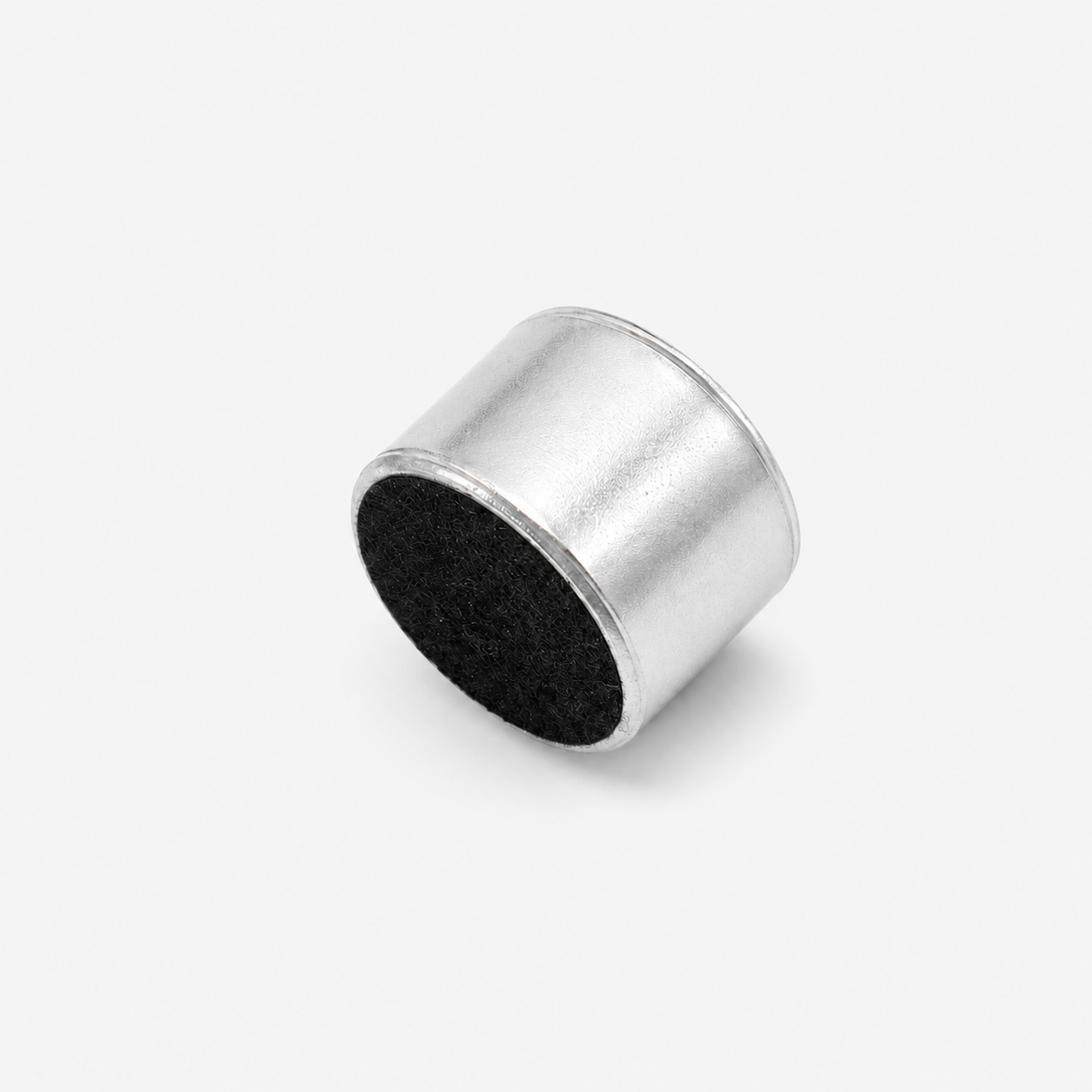

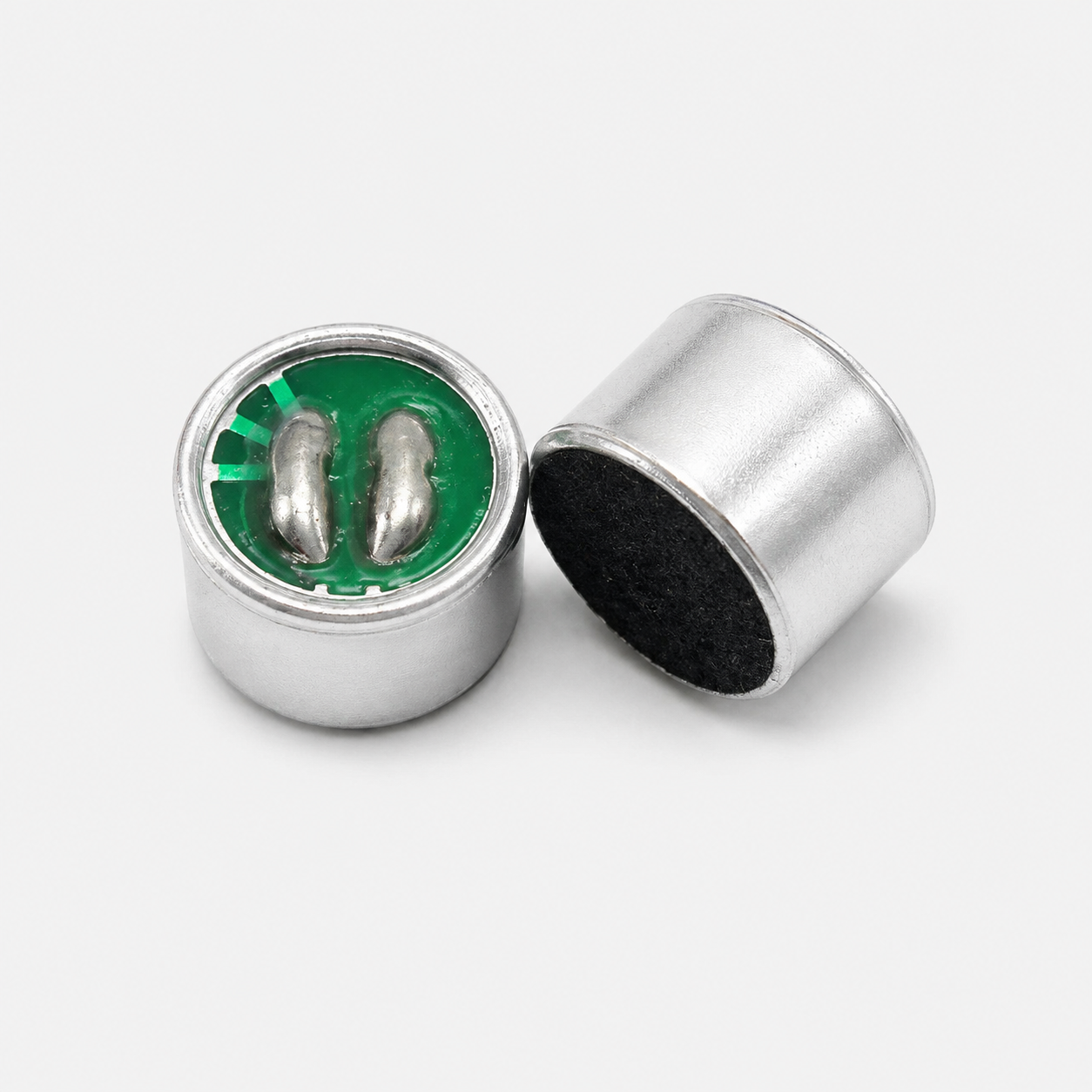

Electret Condenser Microphone - 7 x 9 mm
SKU:
CMP-QC5910
Availability:
400
In Stock
-
- Rs. 9.00
- Unit price
- per
Subtotal:
Rs. 9.00
Description
xElectret Condenser Microphone is a compact, high-sensitivity audio sensor designed for capturing clear voice and sound signals in a wide range of electronic applications. Utilizing electret condenser technology, it provides stable analog audio output with low power consumption, making it ideal for voice recording, communication devices, audio amplifiers, security systems, IoT projects, and DIY electronics.
Features:
- High Sensitivity Electret Condenser Microphone
- Compact and Lightweight Design
- Low Power Consumption
- Clear Analog Audio Output
- Wide Frequency Response
- Omnidirectional Sound Pickup
- Stable and Reliable Performance
- Easy PCB Mounting
- Suitable for Low Voltage Operation
- Ideal for Audio Recording, Voice Recognition, Intercoms, Security Systems, and DIY Electronics
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Electret Condenser Microphone |
| Microphone Type | Electret Condenser |
| Output Type | Analog |
| Operating Voltage | 1.5V–10V DC |
| Frequency Response | 20Hz–20kHz |
| Sensitivity | -44dB ±3dB |
| Output Impedance | ≤2.2kΩ |
| Directivity | Omnidirectional |
| Diameter | Approx. 7mm |
| Mounting Type | Through Hole |
Also Check These Out:
Analog Sound Sensor Microphone Module
USB Plug and Play Desktop Microphone
INMP441 MEMS High Precision Omnidirectional Microphone Module I2S
Package Includes:
1 x Electret Condenser Microphone
