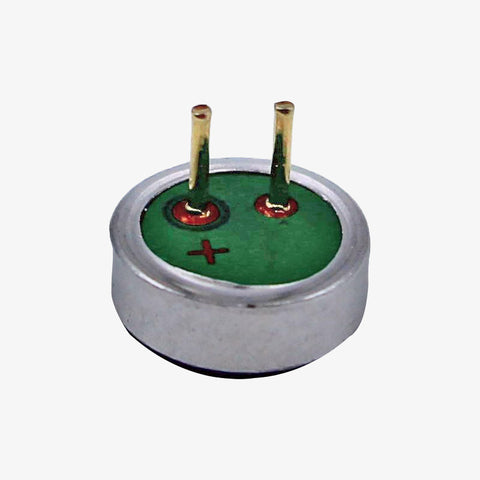

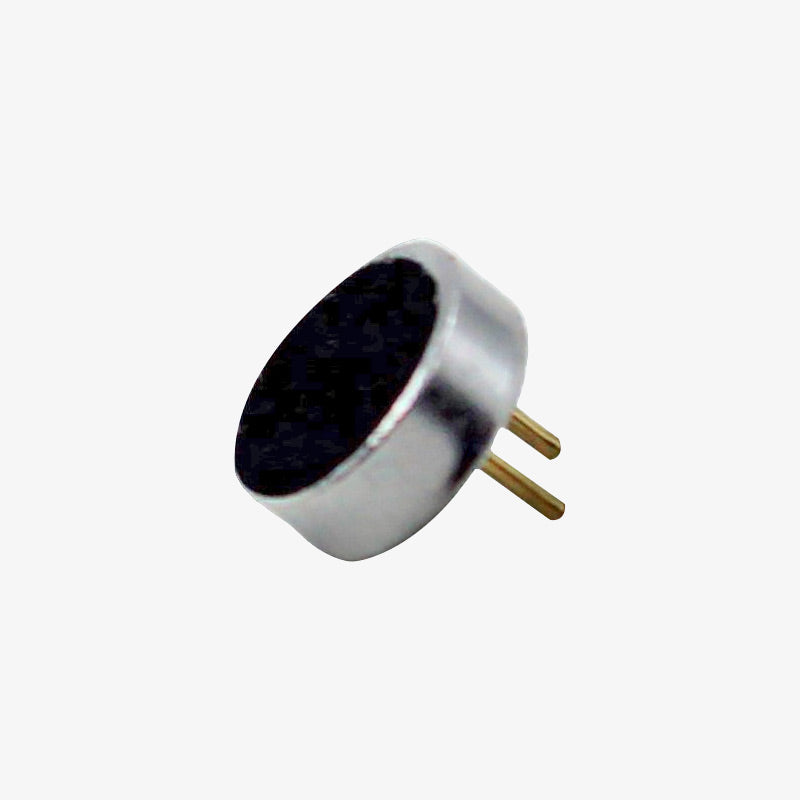

Electret Microphone (Condenser MIC) Electret Microphone (Condenser MIC)

QC0242

13 In stock

Rs. 11.00
-
+
Rs. 11.00
(inc. GST)

An Electret Condenser Microphone is one of the most common types of transducers that is used to detect or measure sound signals. It consists of a parallel plate capacitor in which one plate is fixed and the other is movable (diaphragm) with a very small gap between them. When a sound wave strikes the diaphragm, it starts moving which changes the capacitance of the capacitor and causes a variable current to flow. This variable current is then filtered and processed to get the sound you want to record. It is used in noise detectors, sound recorders, activity monitors mobiles, Digital Cameras, etc.



Specifications

  • Size: 6 x 3.5mm / 0.24" x 0.14" (D*H)
  • Operating Voltage: 2V to 10V
  • Current consumption: 0.5mA (max)
  • Recommended operating voltage: 2V
  • Operating Frequency: 20Hz to 16,000Hz
  • Impedance: <2.2kΩ



Product Description



To use the microphone, you need to supply the microphone with at least 2V as it can take up to 10V, so you can use a 9V battery to supply power. Care should be taken as the maximum current that can be passed through the microphone is 0.5mA. The range of frequencies that the microphone can capture is from 20Hz to 16000Hz.



Additional Resources

Datasheet of Electret Microphone

Simple Microphone to speaker circuit



Package Contents

1×Electret Microphone (Condenser Mic)

    An Electret Condenser Microphone is one of the most common types of transducers that is used to detect or measure sound signals. It consists of a parallel plate capacitor in which one plate is fixed and the other is movable (diaphragm) with a very small gap between them. When a sound wave strikes the diaphragm, it starts moving which changes the capacitance of the capacitor and causes a variable current to flow. This variable current is then filtered and processed to get the sound you want to record. It is used in noise detectors, sound recorders, activity monitors mobiles, Digital Cameras, etc.



    Specifications

    • Size: 6 x 3.5mm / 0.24" x 0.14" (D*H)
    • Operating Voltage: 2V to 10V
    • Current consumption: 0.5mA (max)
    • Recommended operating voltage: 2V
    • Operating Frequency: 20Hz to 16,000Hz
    • Impedance: <2.2kΩ



    Product Description



    To use the microphone, you need to supply the microphone with at least 2V as it can take up to 10V, so you can use a 9V battery to supply power. Care should be taken as the maximum current that can be passed through the microphone is 0.5mA. The range of frequencies that the microphone can capture is from 20Hz to 16000Hz.



    Additional Resources

    Datasheet of Electret Microphone

    Simple Microphone to speaker circuit



    Package Contents

    1×Electret Microphone (Condenser Mic)
