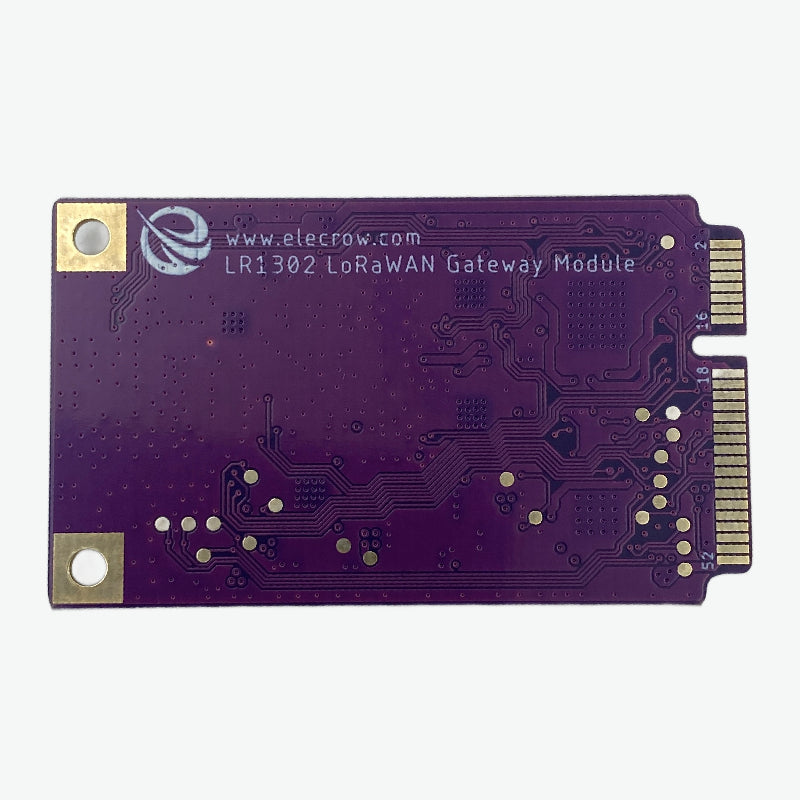

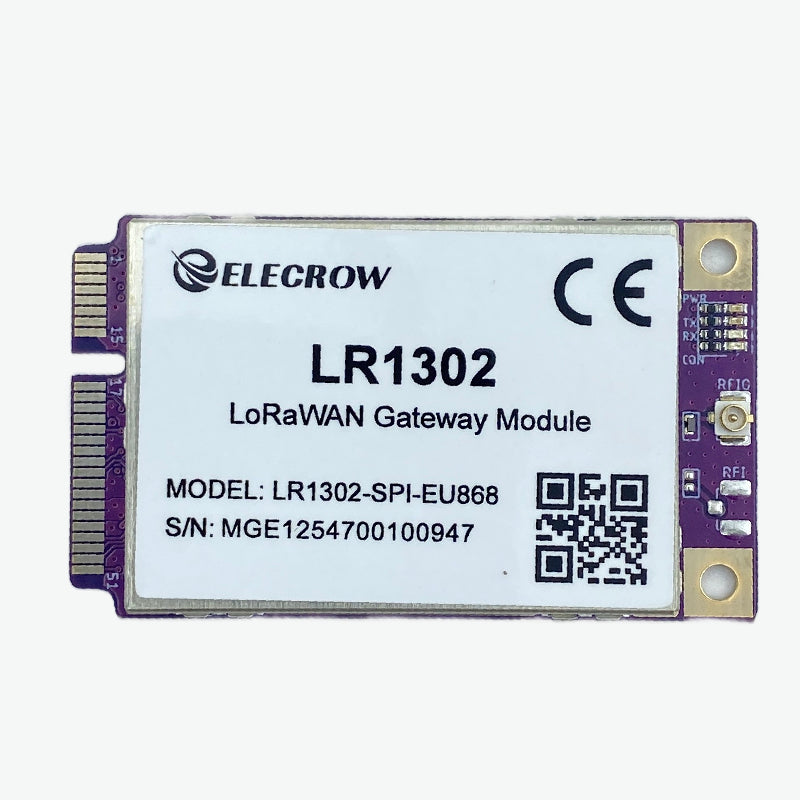

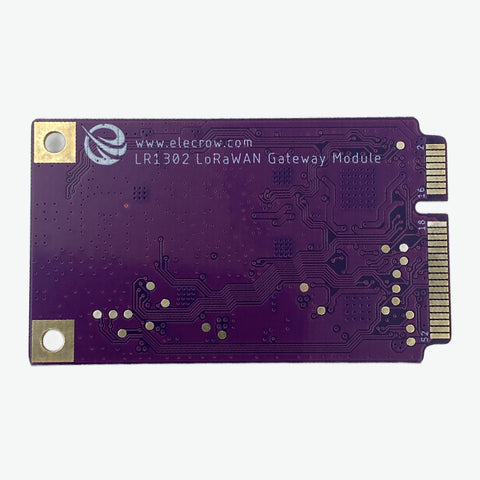

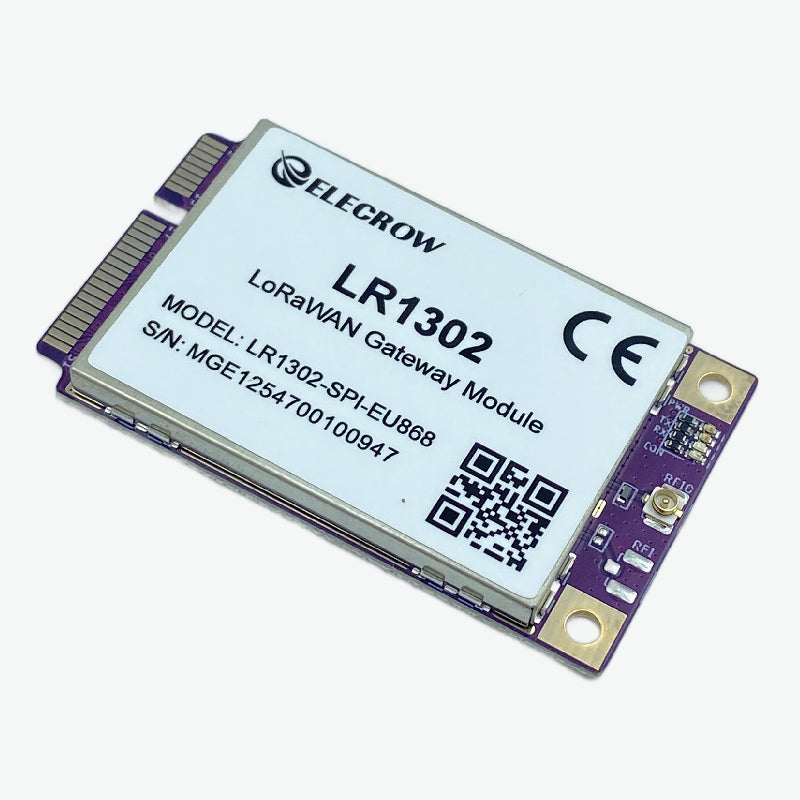

Elecrow LR1302 LoRaWAN SPI EU868 SX1302 Long Range Gateway Module
SKU:
MOD-QC5725
Availability:
1
In Stock
-
- Rs. 2,665.00
- Unit price
- per
Subtotal:
Rs. 2,665.00
Description
xElecrow LR1302 LoRaWAN SPI EU868 SX1302 Long Range Gateway Module (8 Channels) is designed for building high-performance LoRaWAN gateways with low power consumption and long-range communication. Ideal for IoT networks, smart cities, industrial monitoring, and large-scale sensor deployments.
Note:- Without Pi HAT

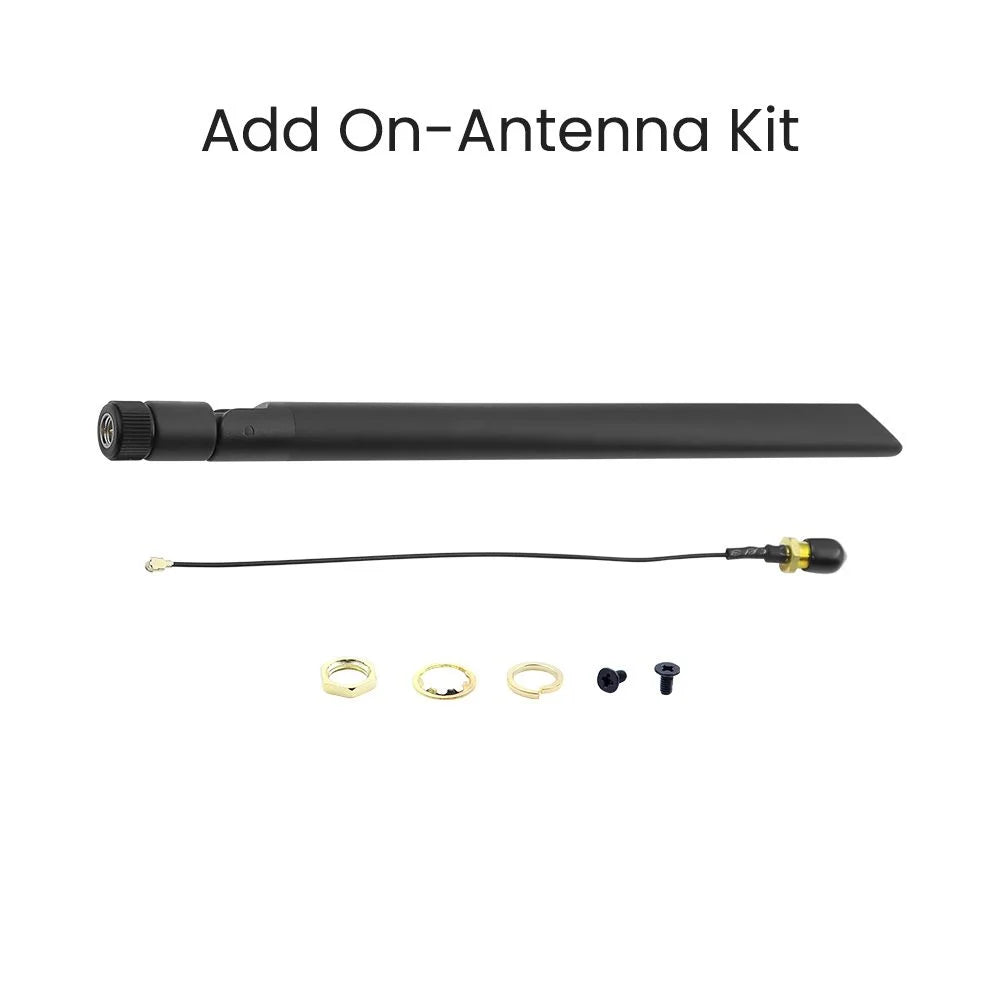

With Antenna Kit
Features:
- Semtech SX1302 LoRa® Baseband Chip
- Supports 8-Channel LoRaWAN Communication
- High Sensitivity up to -139 dBm
- High TX Power up to 26 dBm
- Mini PCIe Form Factor for Easy Integration
- Ultra Low Power Consumption
- Supports LBT (Listen Before Talk)
- CE Certified for Easy Deployment
Specifications:
| Parameter | Value |
|---|---|
| Brand | Elecrow |
| Region | EU868 / US915 |
| Frequency Range | 863 – 870 MHz (EU868) / 902 – 928 MHz (US915) |
| Chipset | Semtech SX1302 + SX1250 |
| Sensitivity | -125 dBm (SF7), -139 dBm (SF12) |
| TX Power | Up to 26 dBm (EU) / 25 dBm (US) |
| Bandwidth | 125 / 250 / 500 kHz |
| Interface | SPI (Mini PCIe) |
| Form Factor | Mini PCIe (52-pin) |
| Antenna Connector | U.FL |
| Power Consumption (SPI) | Standby: 7.5 mA, RX: 40 mA, TX: 415 mA |
| Power Consumption (USB) | Standby: 20 mA, RX: 53 mA, TX: 425 mA |
| Operating Temperature | -40°C to +85°C |

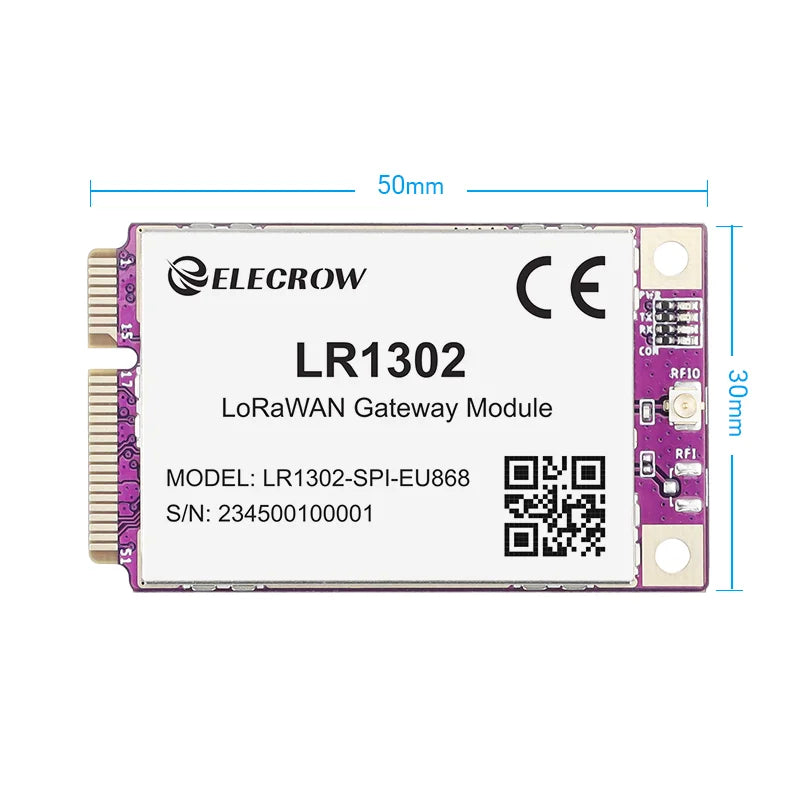

| Dimensions | 30 × 50.95 mm |
Discover Elecrow products such as Arduino starter kits, ESP32 HMI displays, CrowPanel touch screens, and IoT development modules, ideal for electronics prototyping, automation, embedded systems, and smart device development.
Package Includes:
1 x Elecrow LR1302 LoRaWAN SPI EU868 SX1302 Long Range Gateway Module
