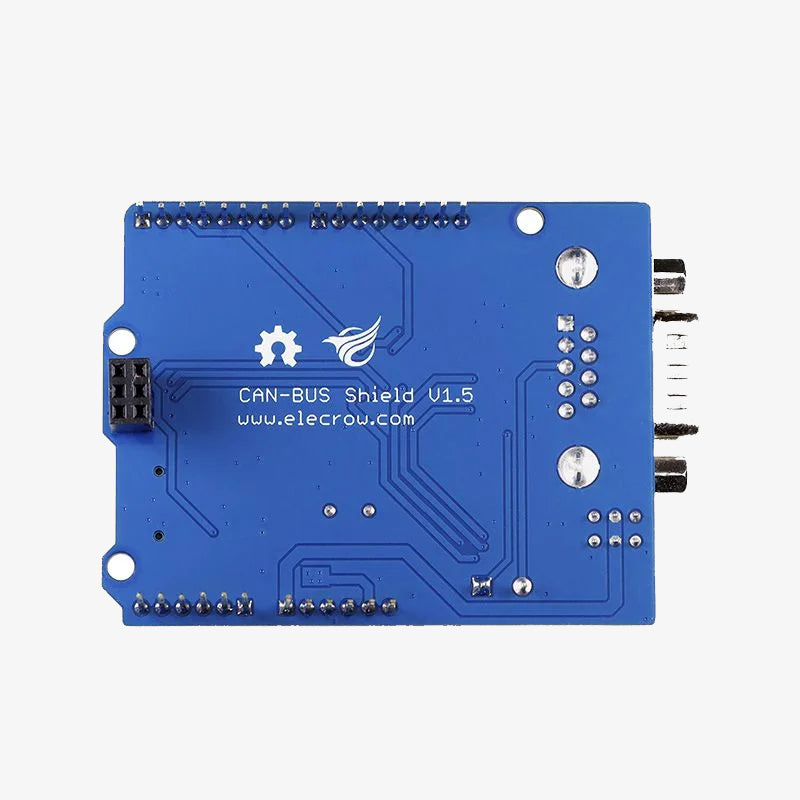

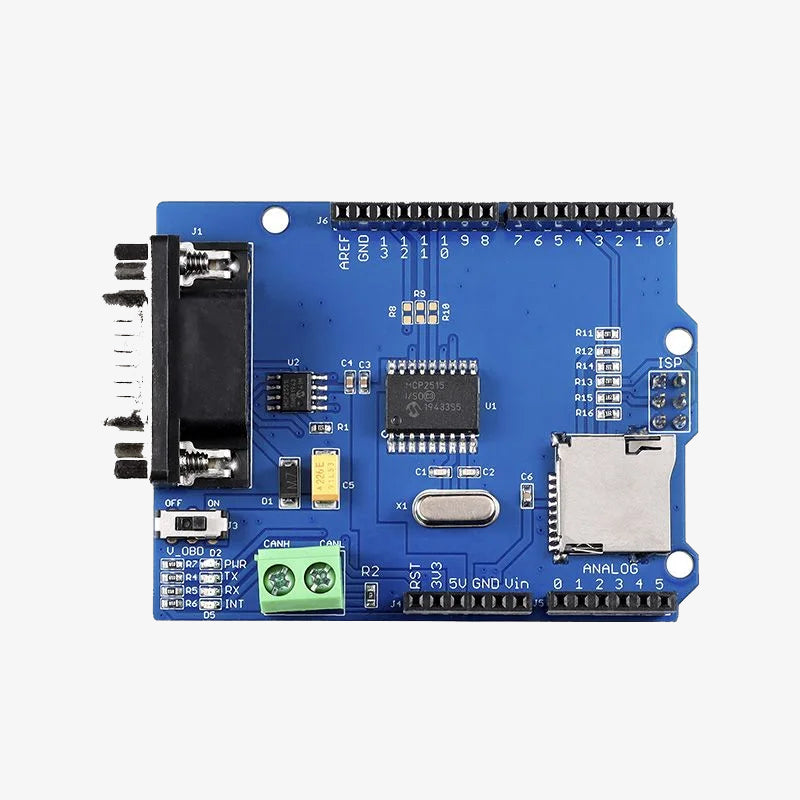

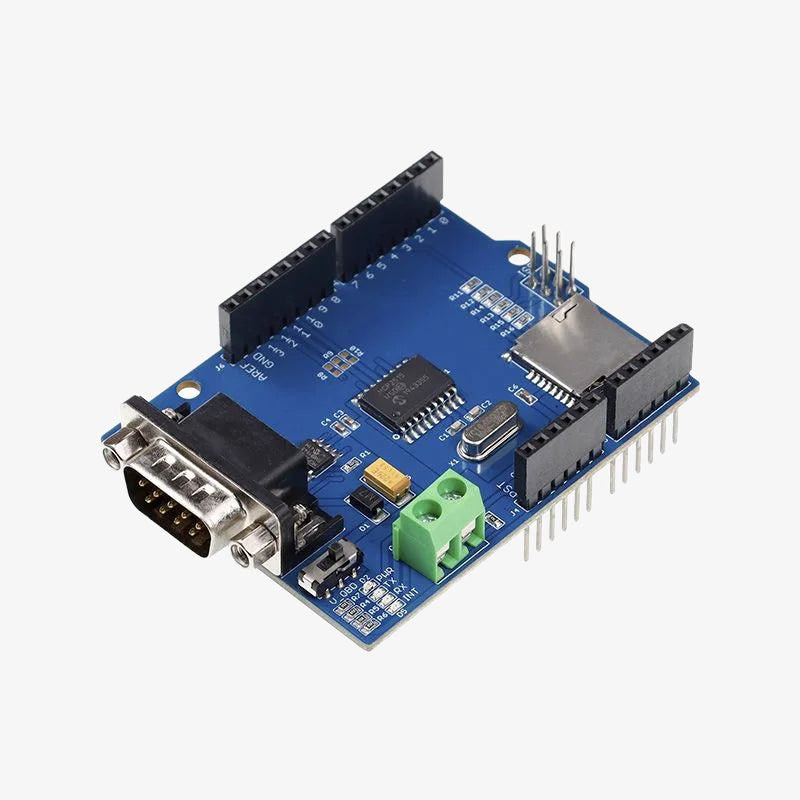

Elecrow Can-Bus Shield-V1.5 for Arduino Uno

The Elecrow CAN-BUS Shield V1.5 for Arduino is an expansion board designed to add CAN (Controller Area Network) communication capability to Arduino-compatible development boards. It allows reliable data communication between multiple microcontrollers and devices, making it ideal for automotive systems, industrial automation, robotics, and embedded network applications. The shield is easy to use, well-documented, and suitable for both learning and professional projects.

Features:

1. Provides CAN-BUS communication capability for Arduino-compatible boards.
2. Based on a reliable CAN controller and transceiver for stable data transfer.
3. Supports standard CAN protocols for automotive and industrial use.
4. Stackable shield design for easy integration with Arduino boards.
5. Onboard CAN connector for simple wiring and connectivity.
6. LED indicators for power and CAN communication status.
7. Supports extended and standard CAN frames.
8. Ideal for automotive, robotics, and industrial communication projects.
9. MCP2515 CAN Controller with SPI Interface

Specifications:

• Product Type: CAN-BUS Shield
• Model Version: V1.5
• Interface: CAN (Controller Area Network)
• Compatibility: Arduino Uno and compatible boards
• Communication Protocol: CAN 2.0B (standard and extended frames)
• Operating Voltage: 5V
• Controller Type: As per Elecrow design specification
• Transceiver: CAN transceiver onboard
• Mounting Style: Shield / Stackable
• Applications: Automotive systems, industrial automation, robotics, embedded networks

Usage Links:

• Wiki Link
• ELE Can-bus Shield Design Files

Package Includes:

1 × Elecrow CAN-BUS Shield V1.5 for Arduino Uno
