EGS002 EG8010 + IR2113 DC-AC SPWM Pure Sine Wave Inverter Module

QC1904
14 In stock
Rs. 449.00 Rs. 443.00 (Inc. GST)
Rs. 443.00

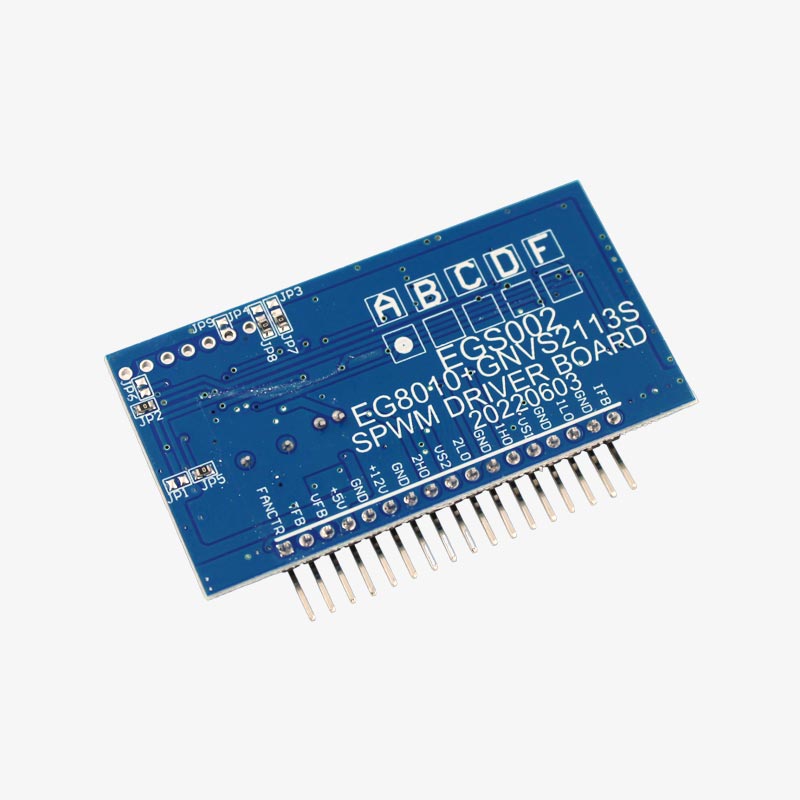

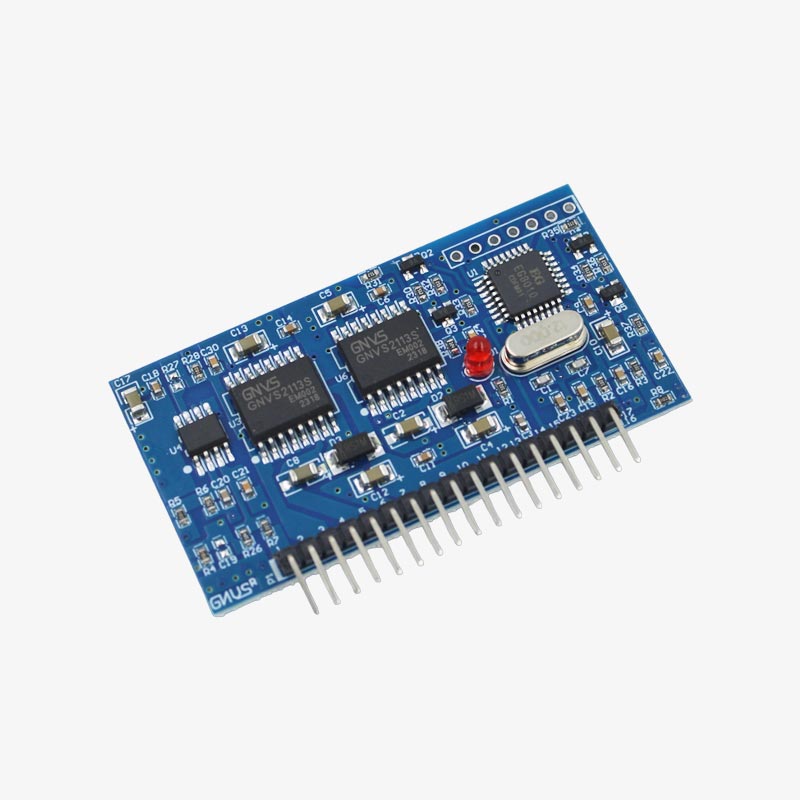

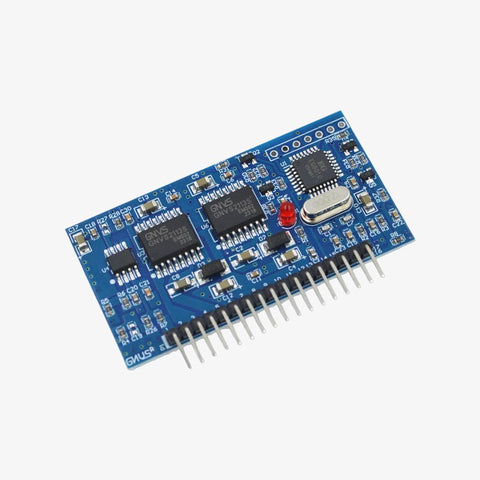

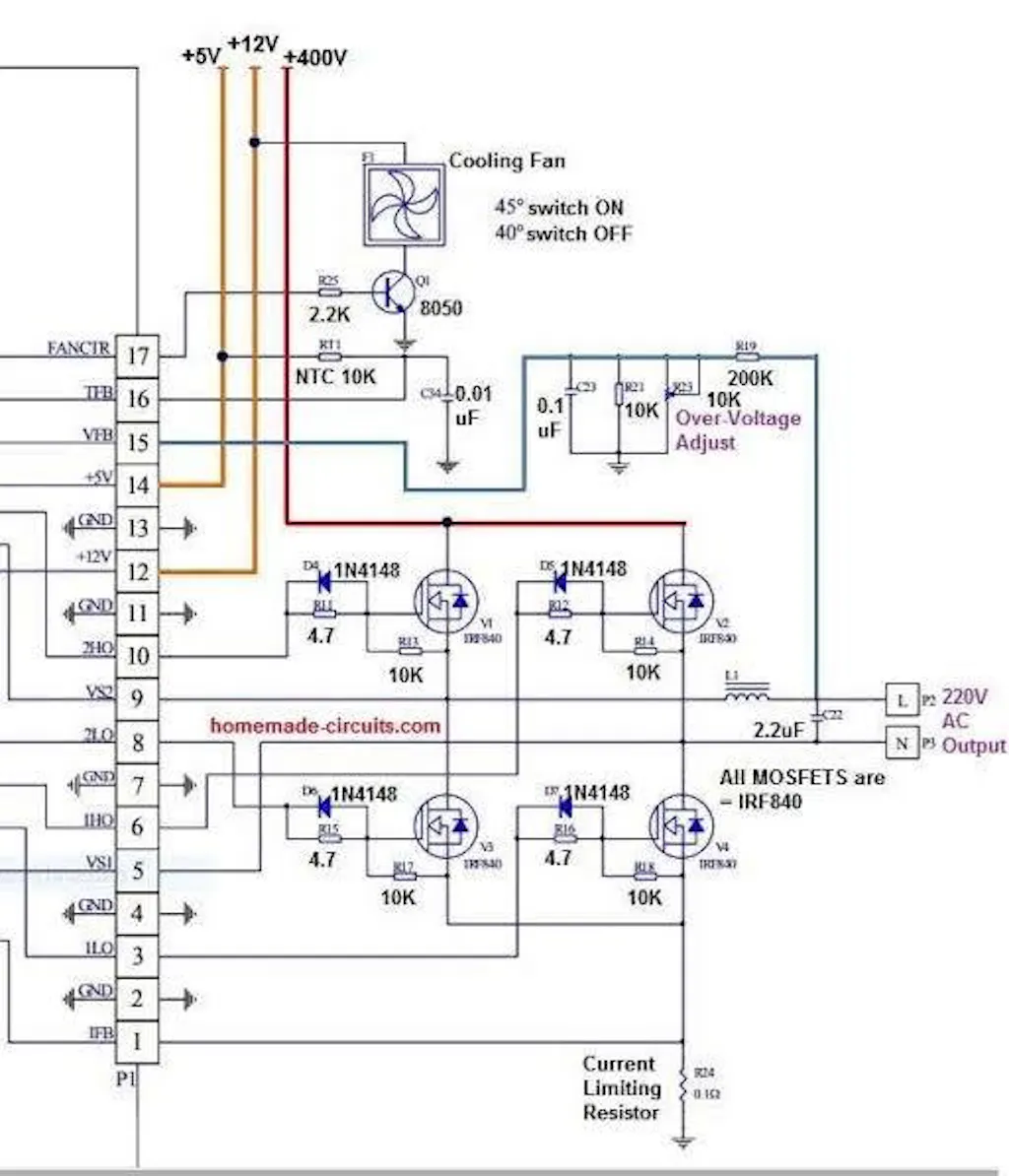

The EGS002 EG8010 + IR2110S Single-Phase Sinusoid Inverter Driver Board is specifically designed to control single-phase sinusoid inverters. It employs the EG8010 control chip, which integrates advanced features for precise frequency control and waveform generation. The driver board incorporates a range of functions, including voltage, current, and real-time temperature protection, ensuring safe and reliable operation.

The board's IR2110S driver chip facilitates efficient and accurate driving of the inverter circuit. A notable feature is the integration of LED warning indicators, fan control, and jumper-configurable settings for AC output frequency (50/60Hz), soft start mode, and dead time.

EGS002 is an improved version of EGS001 that is compatible with EGS001’s original interfaces. EGS002 also integrates cross-conduction prevention logic to enhance its ability of anti-interference, and LCD display interface for users’ convenience to use chip’s built-in display function.

EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two-stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead-time control circuit, range divider, soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc.

Applications:

  • Single-phase pure sine wave inverters.
  • Photovoltaic (PV) inverters.
  • Wind power inverters.
  • Uninterruptible Power Supply (UPS) systems.
  • Digital generator systems.
  • IF power applications.
  • Single-phase motor speed controllers.
  • Sine wave dimmers and regulators.
  • Sine wave generators

Features & Specifications:

  • Operating Voltage (VDC): 5V
  • Provides protection against voltage spikes, low voltage, high current, and overheating.
  • Equipped with LED lights that give warnings, and it can control a fan.
  • You can adjust the board for either 50Hz or 60Hz AC output and control how smoothly it starts and stops.
  • It's been improved to handle interference better and has an interface for connecting a display.
  • It's designed to fit with the previous version, EGS001, making upgrades easy.
  • Soft-start mode pin setting the response time of 1S
  • You can control and adjust its behavior through a computer or other device.
  • It's great for making devices like solar power converters, wind power converters, and even things like speed controllers for motors.

Package Includes:

1 x EGS002 EG8010 + IR2113 DC-AC SPWM Pure Sine Wave Inverter Module
