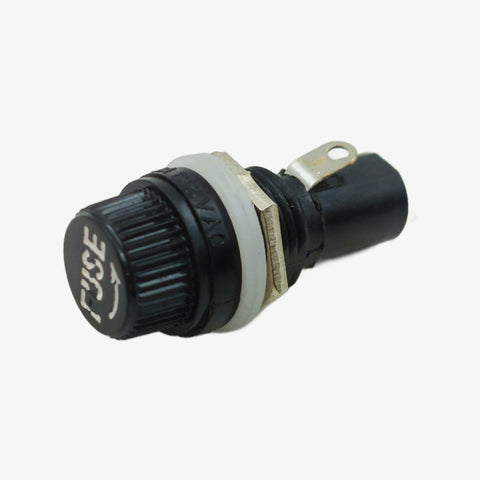

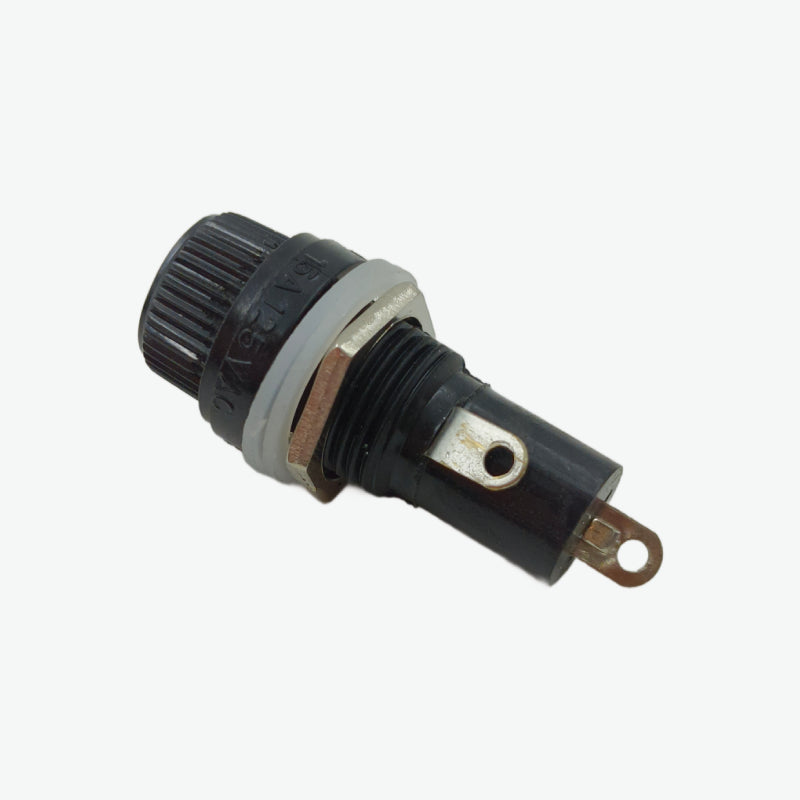

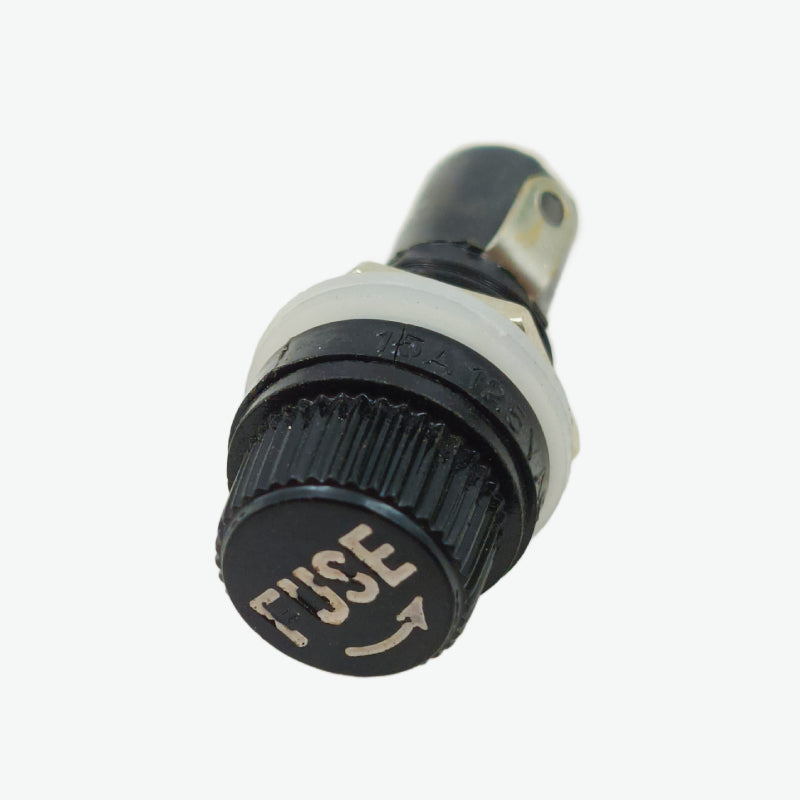

Screw-In Panel Mount Fuse Holder (5×20mm) - 10A 250V AC

The Screw-In Panel Mount Fuse Holder is a durable and reliable solution for mounting 5×20mm fuses in electronic and industrial equipment. Designed for secure panel installation, it features a screw-in cap design with a metal nut for easy and stable mounting. Its Bakelite insulation and brass tin-plated contacts ensure safe and efficient current flow, while maintaining high insulation and voltage withstand performance.

Features:

1. Panel-mount screw-in fuse holder with metal nut for secure installation
2. Suitable for standard 5×20mm fuse links
3. Durable Bakelite housing provides high mechanical strength and insulation
4. Brass tin-plated contacts for reliable electrical performance
5. Low initial contact resistance: ≤10 mΩ
6. Screw-in cap design for convenient fuse replacement

Specifications:

• Type: Panel Mount Screw-In Fuse Holder
• Fuse Size: 5×20mm
• Rated Current/Voltage: 10A / 250V AC
• Mounting Style: Panel, Screw-In with Metal Nut
• Material: Bakelite (Housing)
• Contact Material: Brass, Tin-Plated
• Terminals: Solder Type
• Insulation Resistance: ≥1000 MΩ
• High Voltage Breakdown: 2KV AC for 1 minute
• Contact Resistance (Initial): ≤10 mΩ
• Cap Design: Screw-In
• Maximum Panel Thickness: 3mm
• Permissible Temperature With/Without Load: -20°C to +85°C
• Permissible Soldering Temperature: 27°C for 5 seconds max
• Approximate Weight: 5.5g

Package Includes:

1 × Screw-In Panel Mount Fuse Holder – 5×20mm, 10A 250V AC
