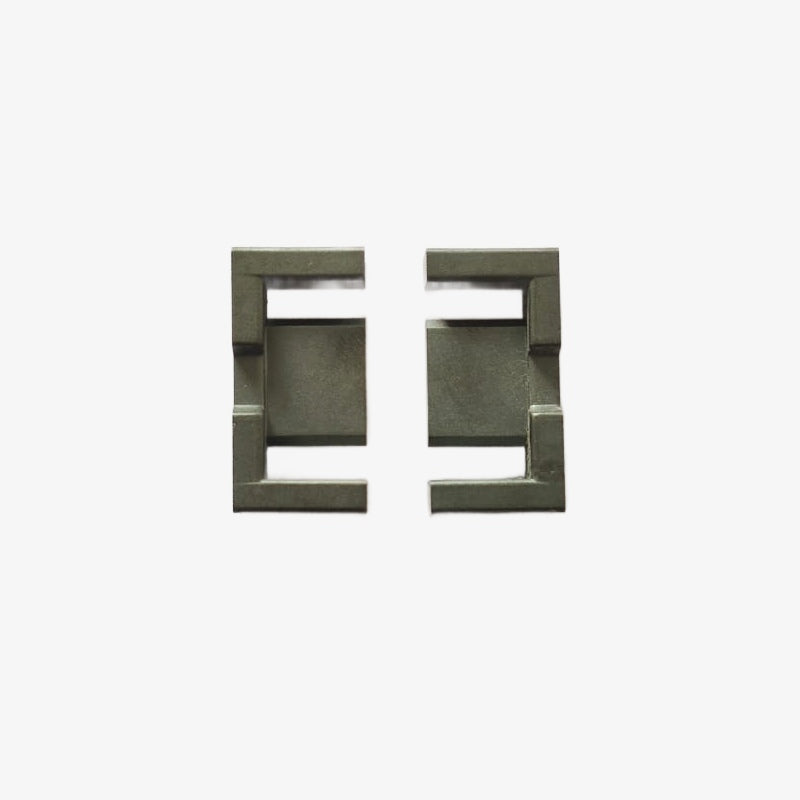

The EFD30/15/9 Ferrite Core Transformer Cores are designed to meet the demands of high-efficiency and space-constrained power applications. With their slim EFD form factor, these cores are perfect for low-profile transformers used in modern electronic devices, especially where heat dissipation and energy efficiency are crucial. The high-quality ferrite material ensures low core losses, making it suitable for high-frequency applications like switching power supplies (SMPS), power converters, and lighting ballasts.
Features:
- Slim EFD30 design optimized for compact and low-profile transformers
- Low core losses for high-efficiency power conversion
- High magnetic flux density for stable and reliable performance
- Ideal for use in SMPS, power converters, and other high-frequency applications
- Sold in pairs for balanced transformer configurations
Specifications:
- Core Dimensions: 30 mm x 15 mm x 9 mm (EFD30/15/9)
- Material: High-performance ferrite
- Operating Frequency: Up to 500 kHz
- Permeability: 2300 µ
- Temperature Range: -40°C to +125°C
- Applications: Power transformers, inductors, SMPS transformers, and choke designs
Package Includes:
2 x EFD30/15/9 Ferrite Core Transformer Core
