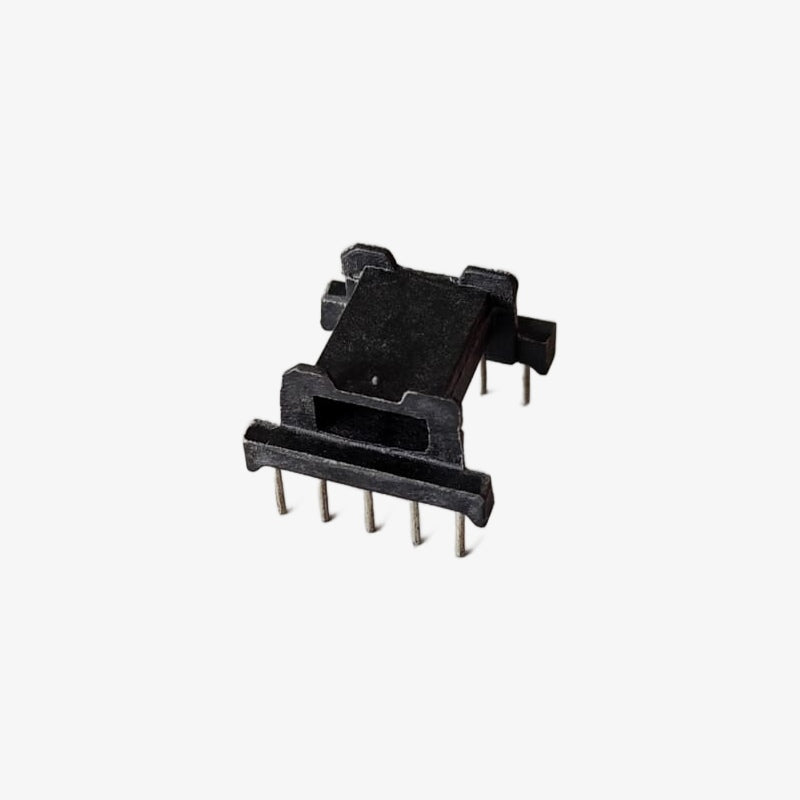

EFD20 Transformer Bobbin - Horizontal 10 Pin

QC2623
100 In stock
Rs. 6.00 (Exc. GST)
Rs. 6.00

The EF20 Transformer Horizontal Bobbin (10 Pin) is designed for high-frequency transformers used in applications such as switch-mode power supplies (SMPS) and other power conversion systems. The horizontal layout and 10-pin configuration make it an excellent choice for space-saving designs. This bobbin ensures efficient winding of transformer coils, offering excellent performance in compact circuits.

Features:

  • Pin Configuration: 10 pins, providing flexible winding options for different transformer designs.
  • Horizontal Design: Low-profile horizontal structure, ideal for space-constrained applications.
  • High-Quality Material: Constructed from durable thermoplastic material with high thermal stability and electrical insulation.
  • Efficient Winding: Optimized for compact and efficient winding of coils, reducing the overall transformer size.
  • Mounting Type: Through-hole mounting for secure attachment to PCBs.
  • Thermal and Electrical Stability: Suitable for high-frequency, high-temperature environments, ensuring reliable transformer operation.

Specifications:

  • Core Type: EF20
  • Pin Count: 10
  • Material: UL94-V0 rated thermoplastic for enhanced safety, insulation, and heat resistance.
  • Operating Temperature: -40°C to +125°C
  • Mounting Type: Through-hole
  • Dimensions: Standard EF20 dimensions (refer to datasheet for precise measurements)
  • Applications: Ideal for use in SMPS transformers, DC-DC converters, and other high-frequency power applications where compact and efficient design is required.
