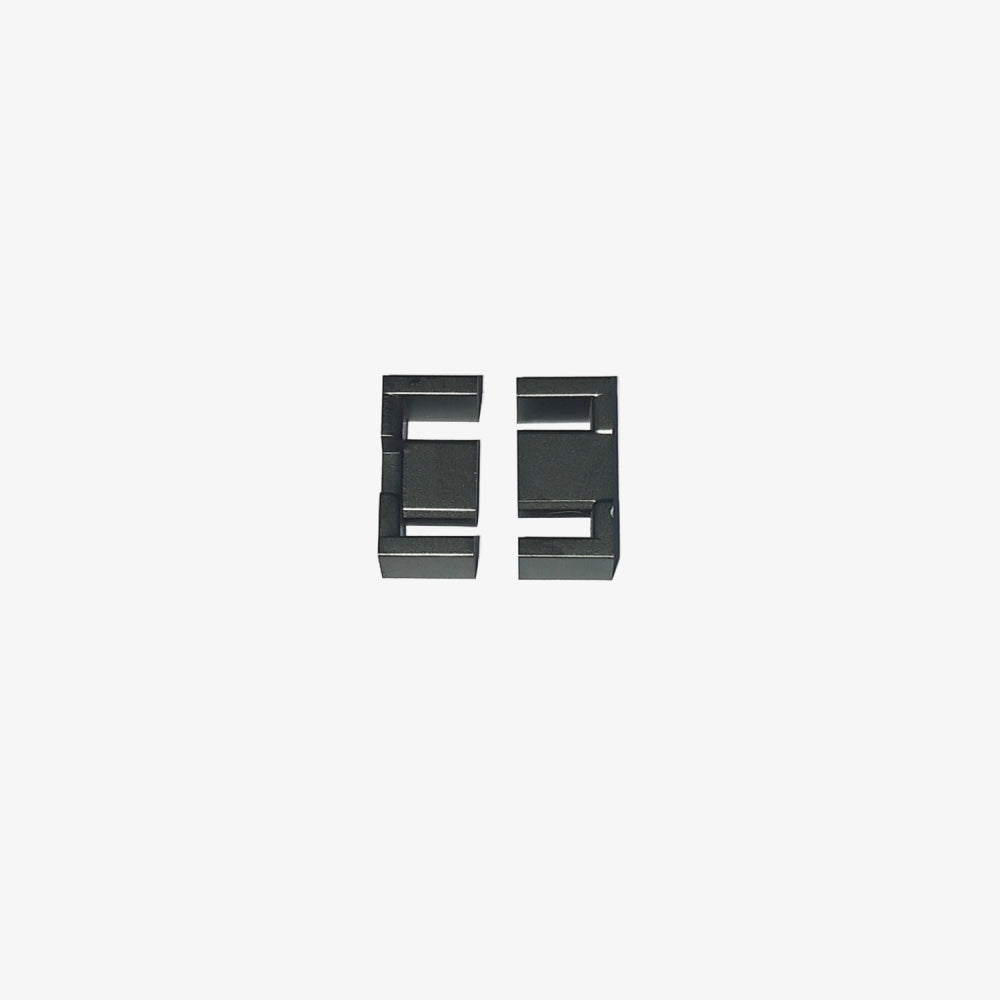

The EF20/10/6 PC44 OL Ferrite Core Transformer Cores are high-performance cores made from PC44 material, designed for efficient magnetic performance in high-frequency applications. These ferrite cores are ideal for use in power transformers, inductors, and other electromagnetic components in switched-mode power supplies (SMPS), inverters, and other high-frequency circuits. The EE shape offers optimized winding space and minimal leakage inductance, enhancing the performance of transformers in compact and high-power designs.
Features:
- Made from high-quality PC44 ferrite material for optimal magnetic properties
- EE core design for efficient winding and reduced leakage inductance
- Excellent performance in high-frequency applications
- Low core loss and high saturation flux density
- Suitable for transformers in SMPS, inverters, and high-power converters
Applications:
- Switched-mode power supplies (SMPS)
- High-frequency power transformers
- Inverters and converters
- Industrial power electronics
- Inductors and other magnetic components
Specifications:
- Core Type: EF20/10/6
- Material: PC44 Ferrite
- Outer Dimensions: 20mm x 10mm x 6mm
- Frequency Range: Suitable for high-frequency applications
Package Includes:
2 x EF20/10/6 PC44 Ferrite Core Transformer Core
