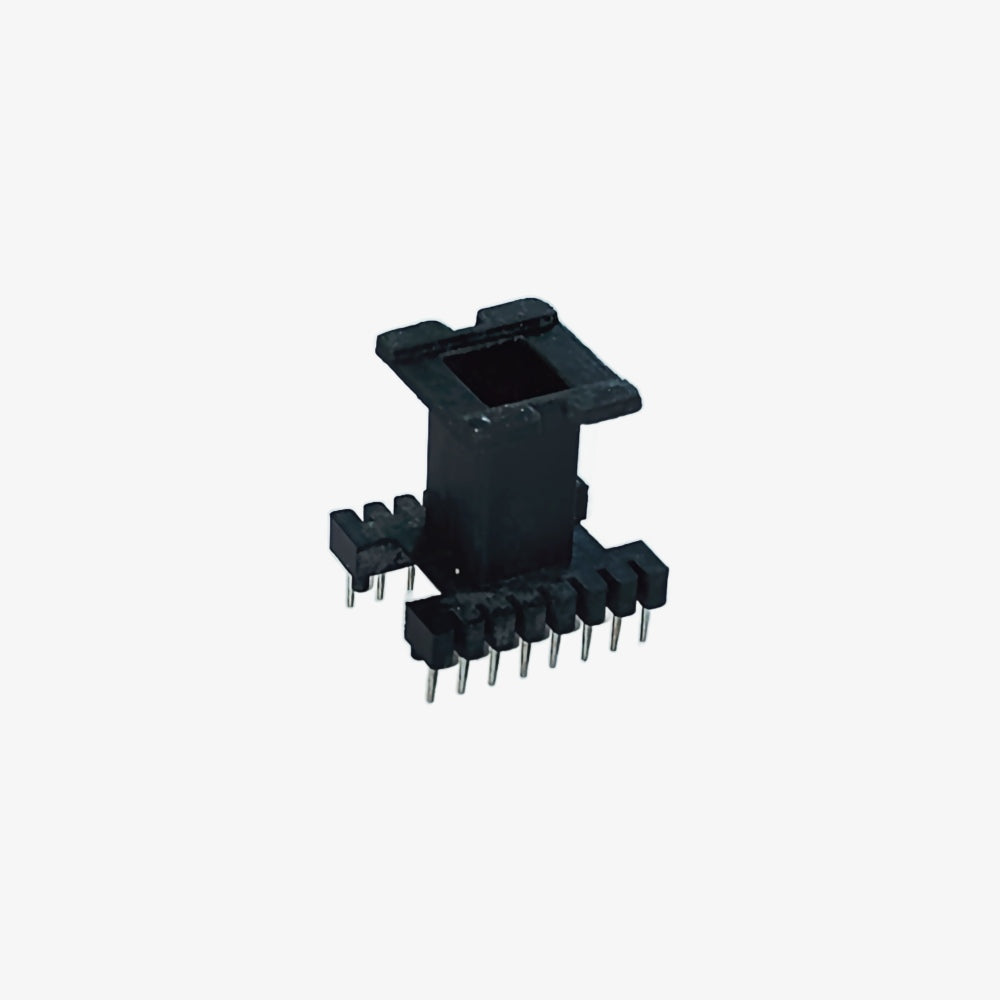

EE42 Transformer Vertical Bobbin 16 Pin

Brand: GENERIC
SKU: MTR-QC2475
Availability: 7 In Stock
Rs. 16.00
Rs. 16.00
Subtotal: Rs. 16.00
Description
Description
x

The EE42 Transformer Vertical Bobbin with 16 legs is designed for use with EE42 ferrite cores in high-frequency transformers and inductors. This bobbin provides an efficient winding structure for transformers, enabling easy assembly and improved space utilization. Its vertical design allows for better alignment in compact designs, making it suitable for applications in power supplies, converters, and other high-frequency circuits.

Features:

  • Vertical bobbin design for optimized transformer assembly
  • 16-leg configuration for efficient winding and enhanced electrical performance
  • Durable plastic construction to withstand mechanical and thermal stress
  • Compatible with EE42 ferrite cores for high-frequency applications
  • Simplifies winding process, improving productivity in transformer manufacturing

Applications:

  • Switched-mode power supplies (SMPS)
  • High-frequency transformers and inductors
  • Power converters and inverters
  • Industrial power electronics
  • Custom transformer manufacturing

Specifications:

  • Bobbin Type: EE42
  • Leg Count: 16
  • Mounting Style: Vertical
  • Material: High-quality plastic
  • Core Compatibility: EE42 ferrite cores
