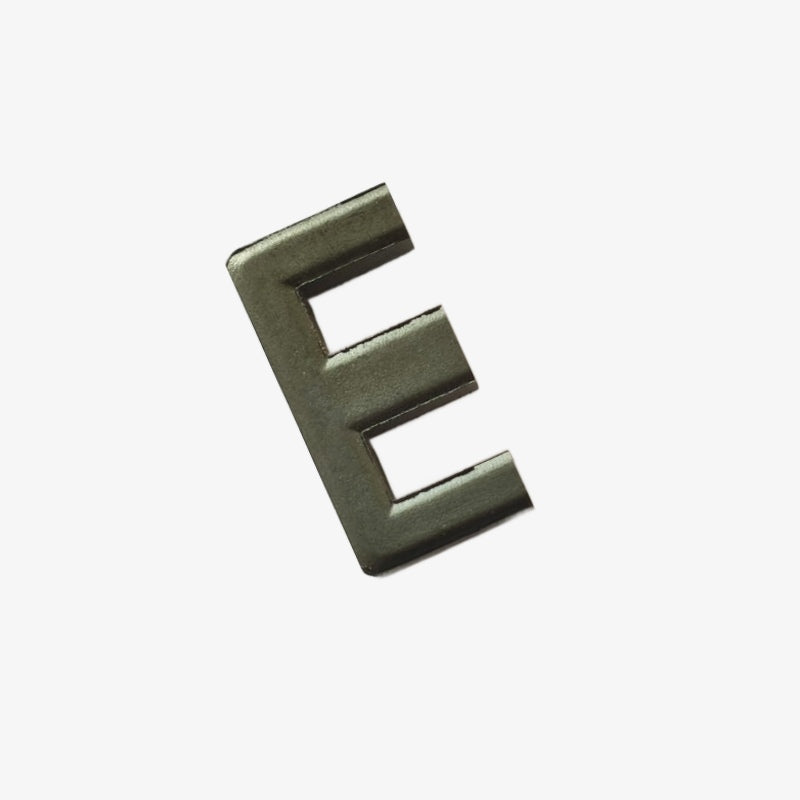

The EE30 Ferrite Core Transformer Cores are ideal for building transformers in high-efficiency power electronics, including switch-mode power supplies (SMPS) and power converters. These cores feature a classic EE shape, offering optimal magnetic performance and energy efficiency in medium to high-power applications. Made from high-quality ferrite material, they minimize core losses and improve transformer performance at high frequencies, making them an excellent choice for reliable power conversion.
Features:
- Classic EE core design for optimal magnetic performance
- High magnetic flux density for efficient power transfer
- Low core losses, ideal for high-frequency applications in SMPS and power supplies
- Compact size suitable for medium-power applications
- Supplied as a pair for balanced transformer design
Specifications:
- Core Dimensions: 30 mm (EE30)
- Material: High-performance ferrite
- Operating Frequency: Up to 500 kHz
- Permeability: 2200 µ
- Temperature Range: -40°C to +125°C
- Applications: Power transformers, inductors, chokes, SMPS, and power converters
Package Includes:
2 x EE30 Ferrite Core Transformer Core
