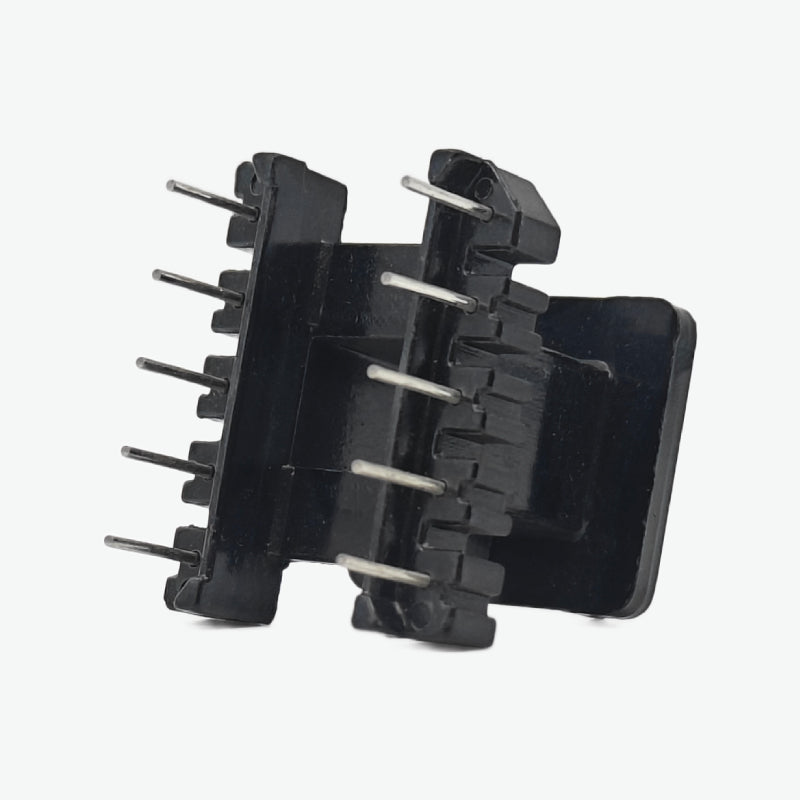

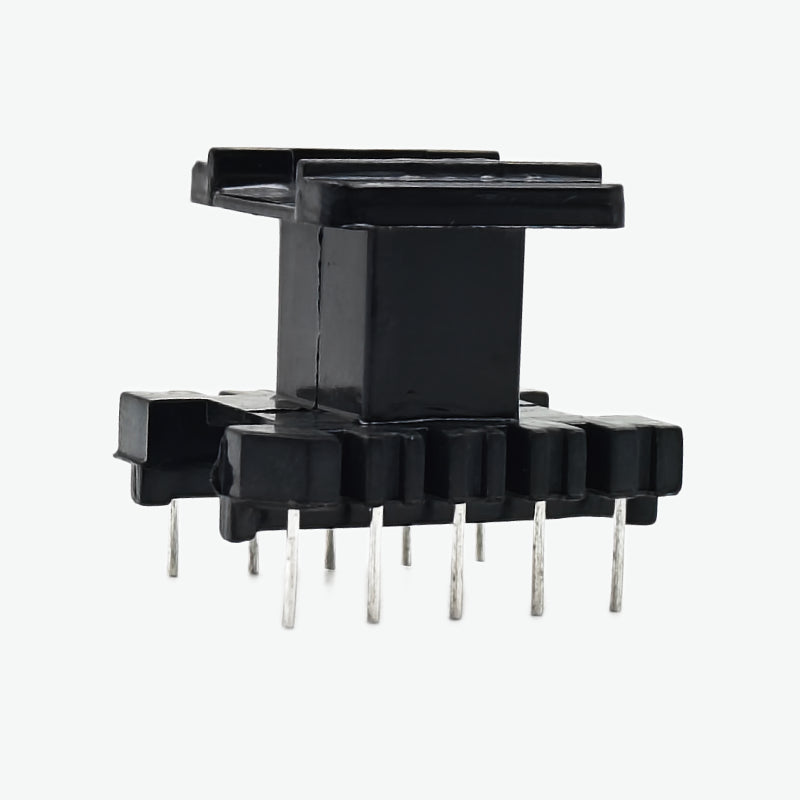

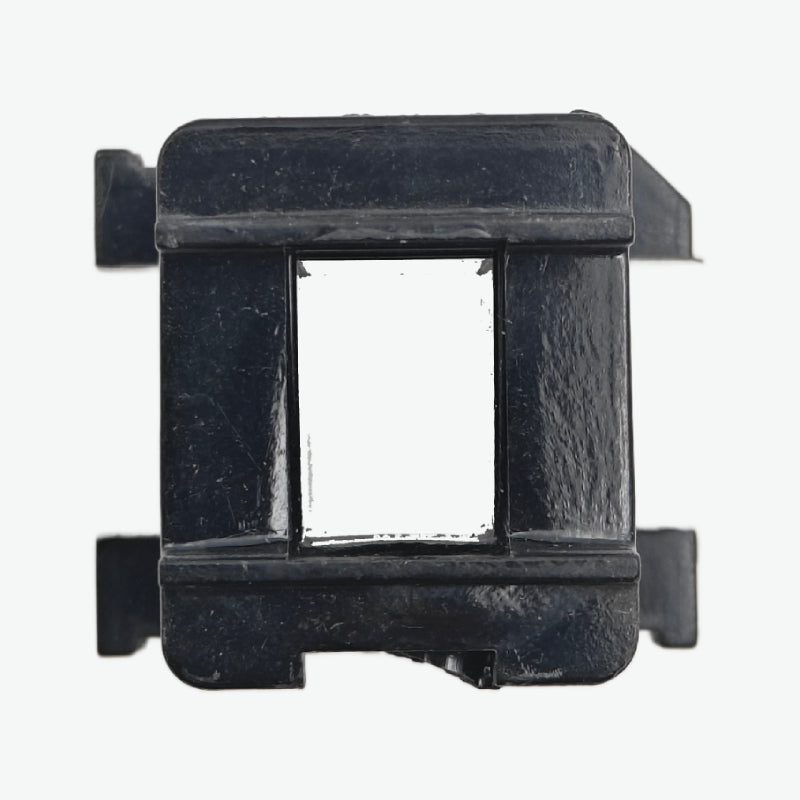

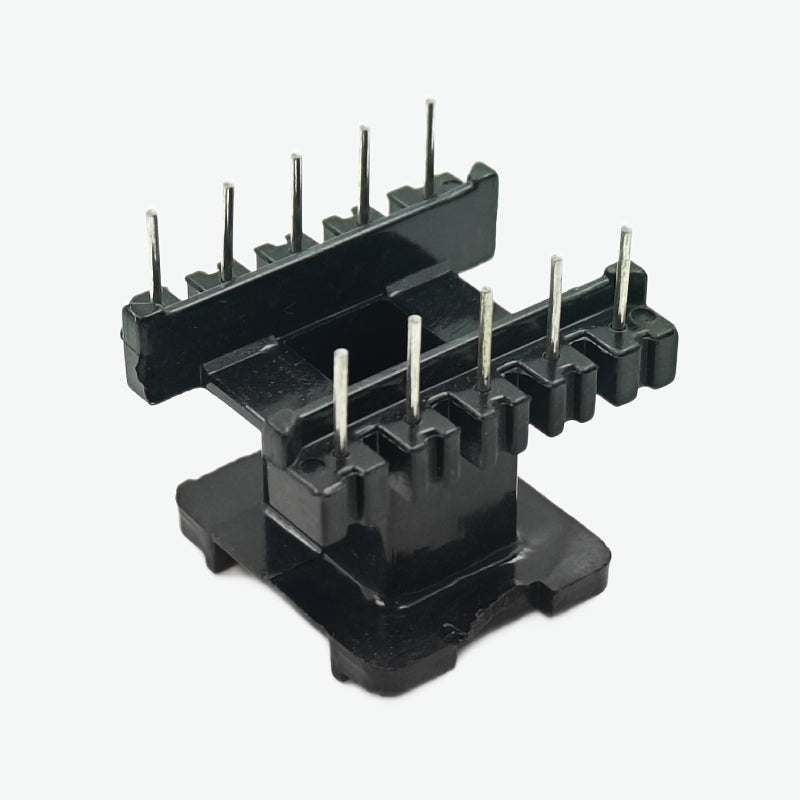

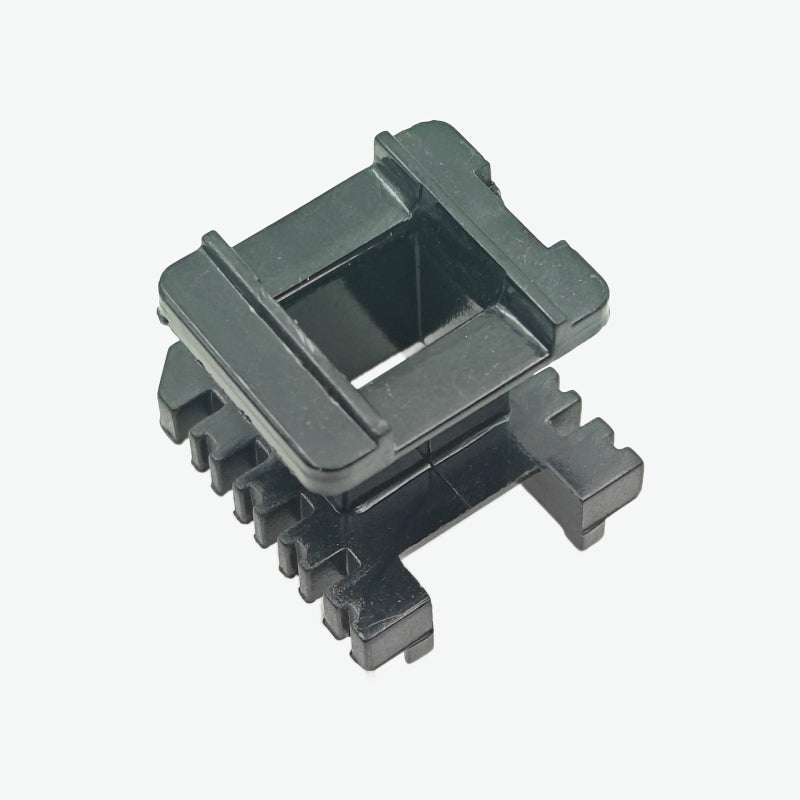

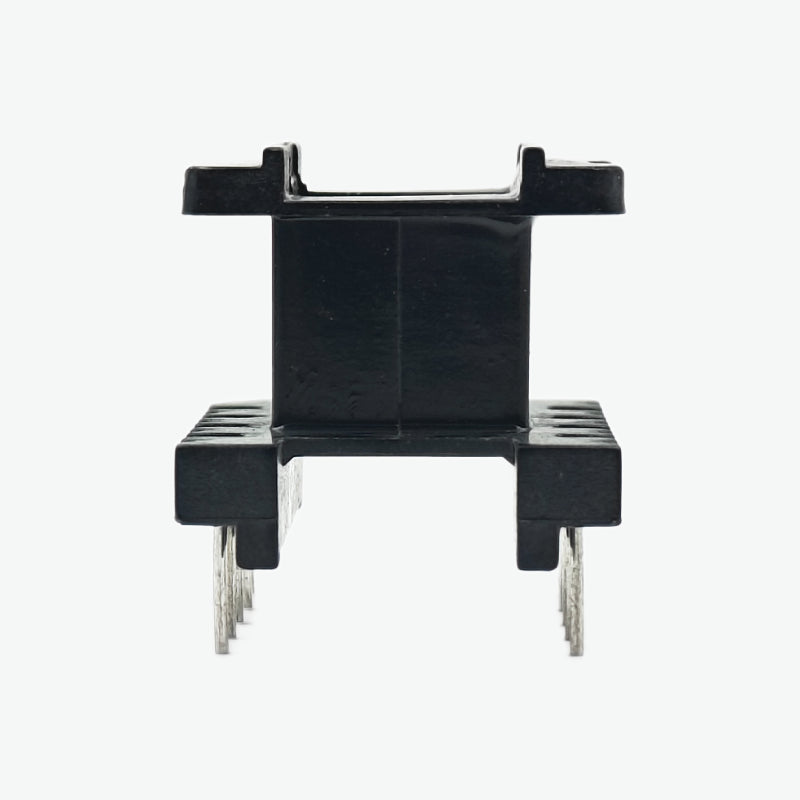

The EE28 Transformer Vertical Bobbin – 10 Pin is designed for use in the winding of high-frequency transformers, SMPS, inverters, and power supply circuits. Made from durable, high-temperature-resistant plastic, this bobbin ensures excellent insulation and mechanical stability during coil winding. Its vertical design is optimized for compact PCB mounting, offering efficient space utilization and ease of assembly.
This bobbin fits the EE28 core and comes with 10 sturdy pins for secure soldering onto PCBs. It is widely used in electronic manufacturing, DIY electronics, and industrial power solutions.
Features of EE28 Transformer Vertical Bobbin – 10 Pin:
- Compatible with EE28 ferrite core
- Vertical mount design for space-saving PCB layouts
- 10-pin configuration for flexible winding options
- Made from high-quality, heat-resistant plastic
- Provides strong insulation and mechanical durability
- Ideal for SMPS, inverters, chargers, and power converters
Specifications of EE28 Transformer Vertical Bobbin:
- Model: EE28 Vertical Bobbin
- Pin Count: 10 pins
- Mounting Type: Vertical, PCB mount
- Material: High-temperature-resistant plastic
- Color: Black
- Suitable Core Type: EE28
- Operating Temperature: -40°C to +120°C (approx.)
- Application: SMPS, transformers, inverters, power supplies
Package Includes:
1 × EE28 Transformer Vertical Bobbin – 10 Pin
