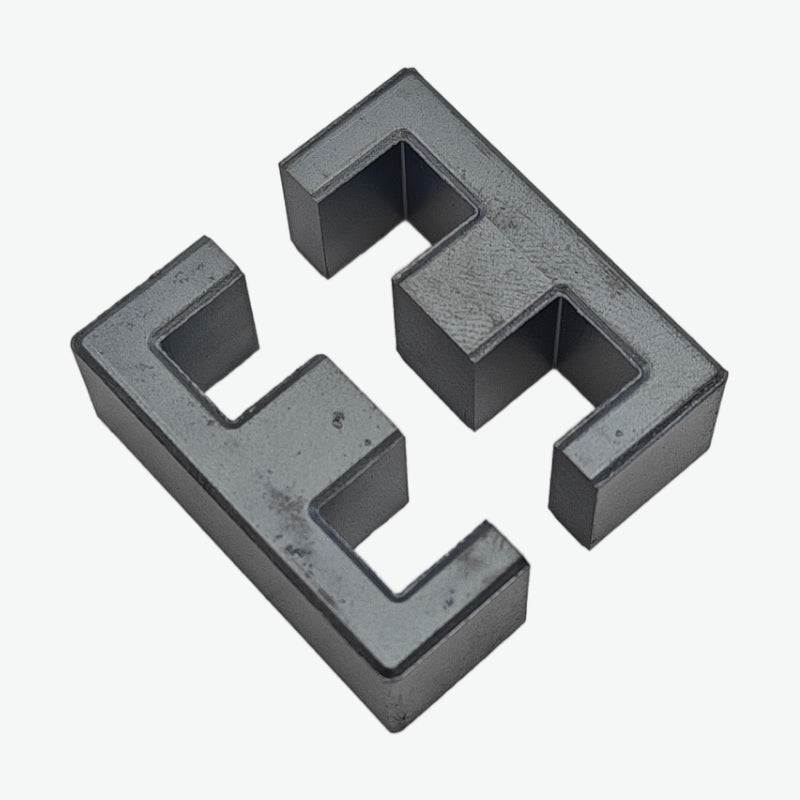

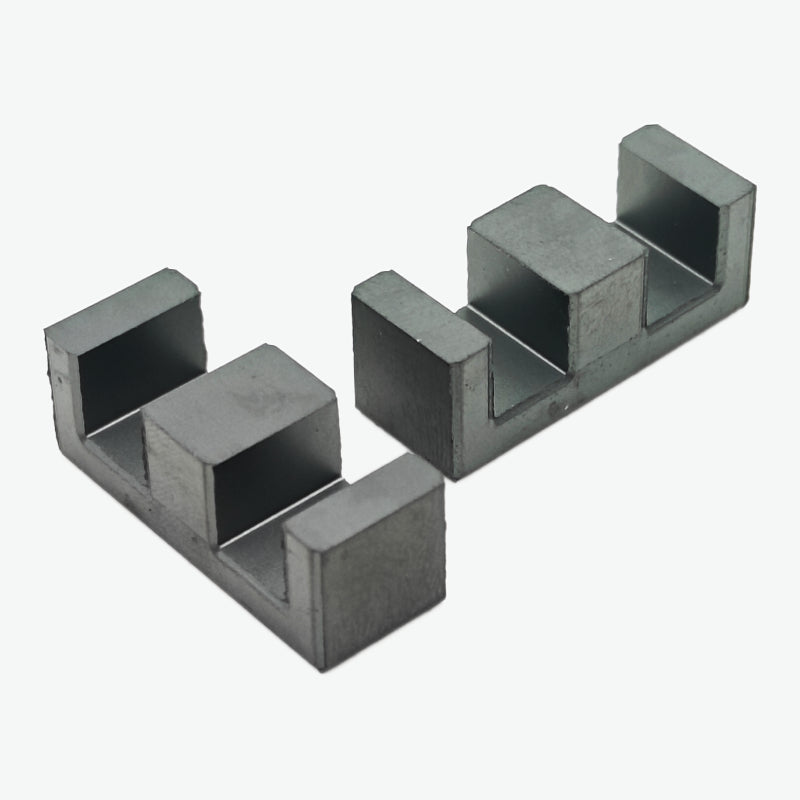

The EE28 Ferrite Core Pair is designed for high-frequency transformers used in SMPS, inverters, battery chargers, and power supply circuits. Made from premium ferrite material (PC40 grade or equivalent), this EE28 core offers excellent magnetic properties, low core losses, and high efficiency over a wide frequency range.

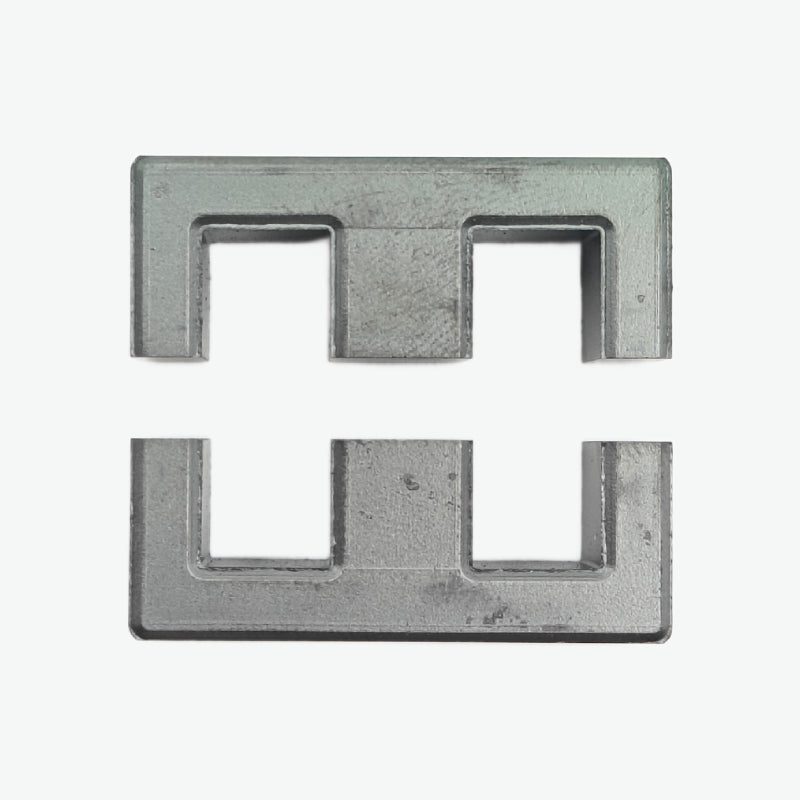

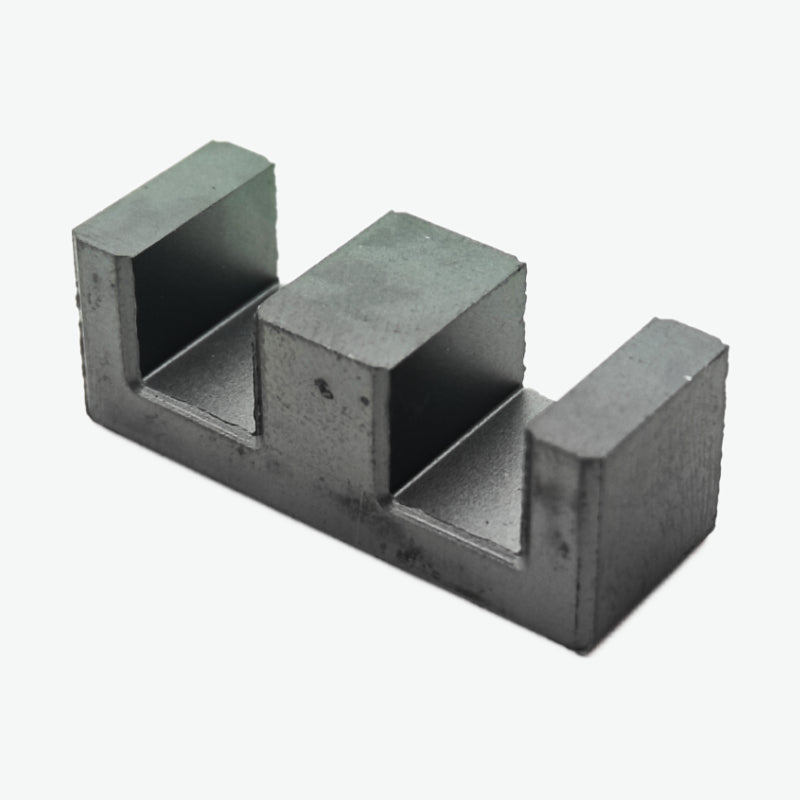

The EE-type core consists of two identical E-shaped pieces that fit together to form a closed magnetic loop, providing superior energy transfer and minimal electromagnetic interference (EMI). This core is ideal for DIY transformer winding, prototyping, or industrial power electronics.
Features of EE28 Ferrite Core Pair:
- High-quality EE28 ferrite core for efficient power conversion
- Supports frequencies from 20kHz to 500kHz
- Low core losses with high magnetic permeability
- Suitable for SMPS, inverters, battery chargers, and power converters
- Easy to assemble with matching bobbins (not included)
Specifications of EE28 Ferrite Core Pair:
- Core Type: EE28 (E + E pair)
- Core Material: Ferrite (PC40 grade)
- Operating Frequency: 20kHz – 500kHz
- Color: Dark Grey / Black
- Configuration: E + E core set
- Application: SMPS, inverters, DC-DC converters, power supplies
Package Includes:
1 × Pair of EE28 Ferrite Cores (E + E)
