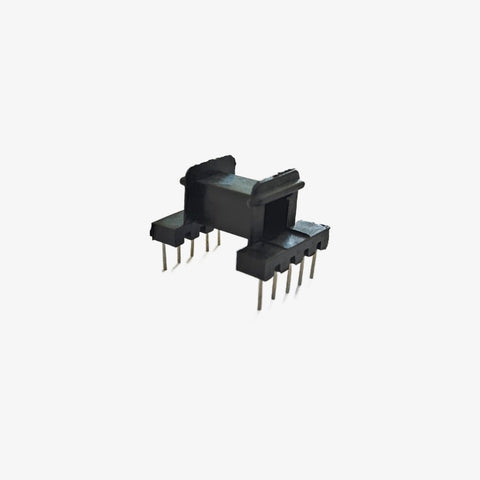

EE25 Transformer Horizontal Bobbin 10 Pin

Brand: GENERIC
SKU: MTR-QC2474
Availability: 50 In Stock
Rs. 10.00
Rs. 10.00
Subtotal: Rs. 10.00
Description
Description
x

The EE25 Transformer Horizontal Bobbin with 10 legs is designed for use with EE25 ferrite cores in various high-frequency transformer and inductor applications. This bobbin provides an easy-to-use, organized structure for winding transformer coils, enhancing efficiency during assembly. Its horizontal design is ideal for applications where compact, low-profile configurations are required, such as in power supplies and electronic converters.

Features:

  • Horizontal bobbin design for low-profile transformer configurations
  • 10-leg structure for efficient winding and improved electrical performance
  • Made from durable plastic to withstand high temperatures and mechanical stress
  • Easy to assemble, improving productivity in transformer manufacturing
  • Compatible with EE25 ferrite cores for high-frequency power applications

Applications:

  • Switched-mode power supplies (SMPS)
  • High-frequency transformers and inductors
  • Power converters and adapters
  • Consumer electronics and industrial equipment
  • Custom transformer design and manufacturing

Specifications:

  • Bobbin Type: EE25
  • Leg Count: 10
  • Mounting Style: Horizontal
  • Material: High-quality plastic
  • Core Compatibility: EE25 ferrite cores
