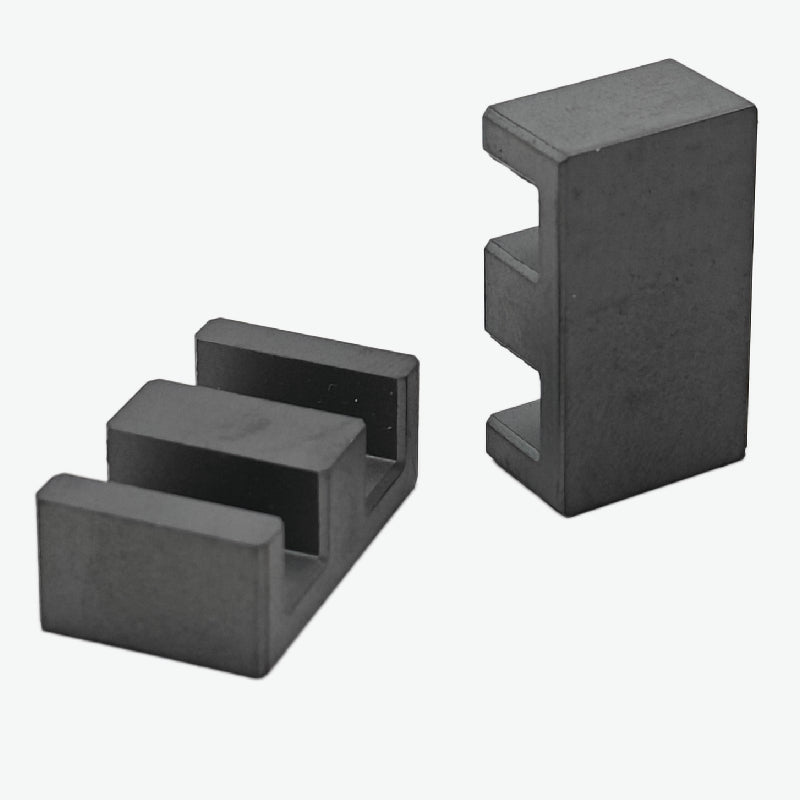

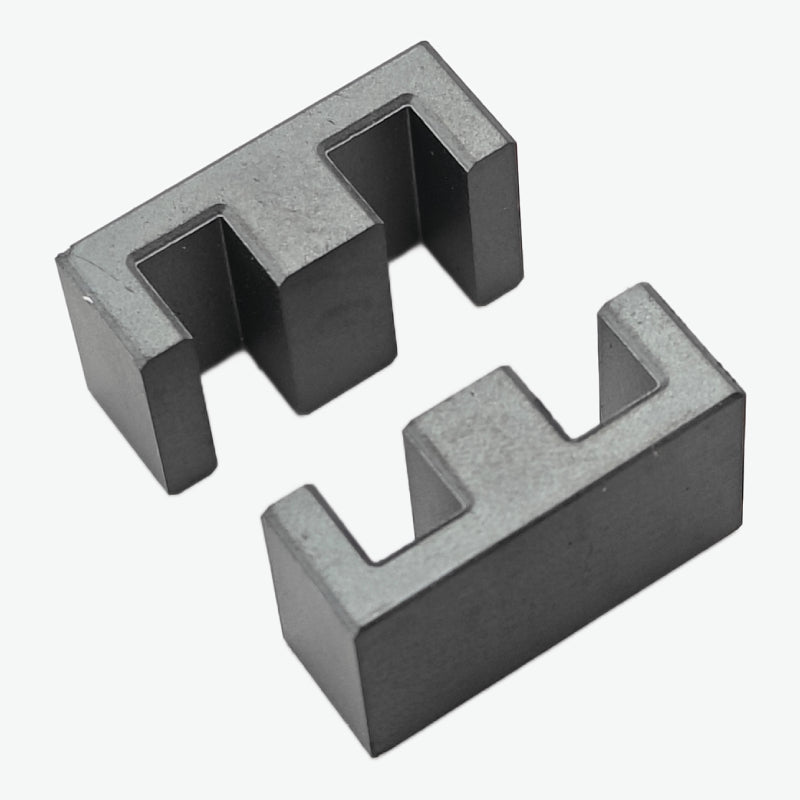

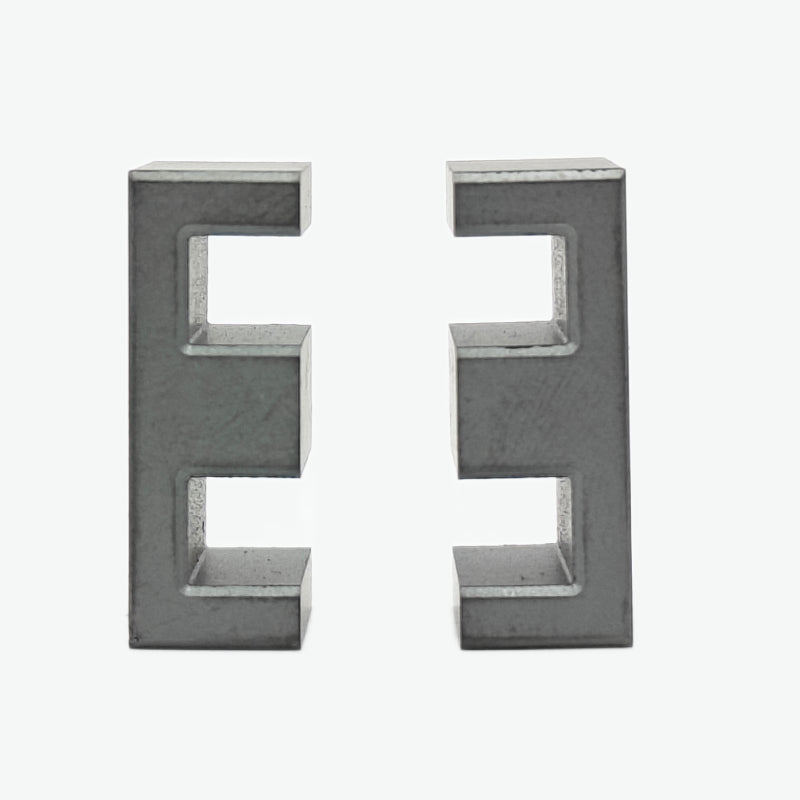

EE22 X 13 PC95 OL Ferrite Core for High-Frequency SMPS Transformer (Pair)

The EE22 PC95 OL Ferrite Core is a high-performance magnetic core designed for high-frequency transformer and inductor applications. Manufactured using premium PC95 ferrite material, this core provides low core loss, high magnetic permeability, and stable performance across wide operating conditions. Engineered for SMPS transformers, DC-DC converters, inverters, and power supply circuits, the EE22 OL type core ensures efficient magnetic coupling and reliable long-term operation in compact transformer designs.

Features:

1. EE22 core structure for compact transformer assemblies
2. PC95 ferrite material for low power loss at high frequency
3. OL (Optimized Low-loss) magnetic grade
4. High permeability for efficient flux transfer
5. Excellent thermal stability
6. Precision-molded core halves for accurate alignment
7. Ideal for SMPS and power electronics applications

Specifications:

• Core Type: EE (E-E Pair)
• Core Size: EE22
• Material Grade: PC95
• Core Variant: OL (Optimized Low-Loss)
• Color: Black
• Application: SMPS Transformers, Inverters, Power Supplies
• Frequency Range: Suitable for high-frequency operation
• Configuration: Two matched E-core halves

Applications:

• Switch Mode Power Supplies (SMPS)
• High-Frequency Transformers
• DC-DC Converters
• Battery Chargers
• Inverter Circuits
• Industrial Power Electronics

Package Includes:

1 × EE22 PC95 OL Ferrite Core Transformer Core (E-E Pair)
