EE20 Transformer Horizontal Bobbin 8 Pin

QC2473
84 In stock
Rs. 10.00 (Inc. GST)
Rs. 10.00

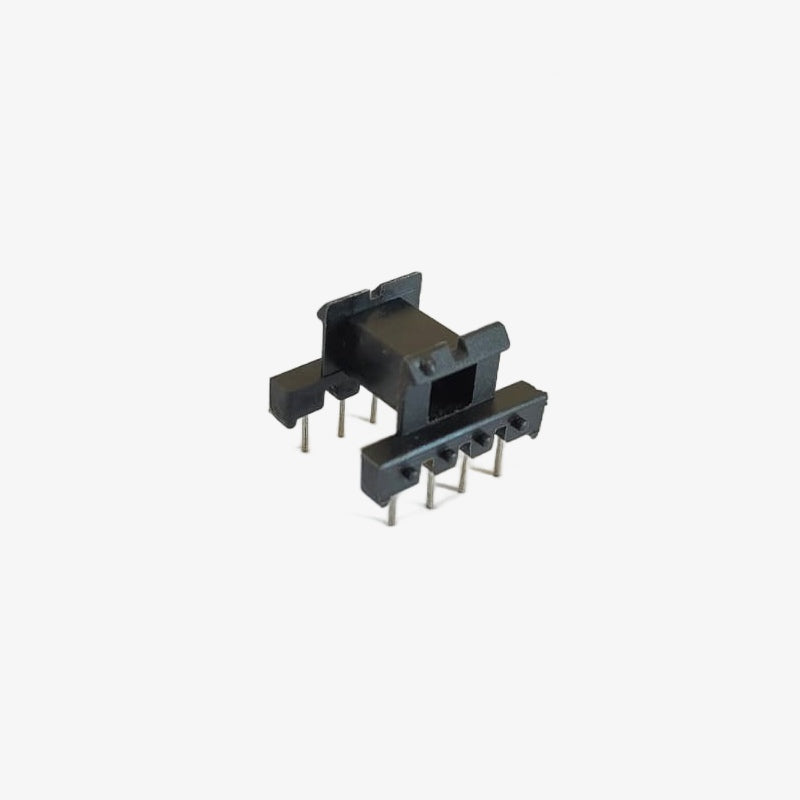

The EE20 Transformer Horizontal Bobbin with 8 pins is specifically designed for use with EE20 ferrite cores in high-frequency transformer and inductor applications. Its horizontal design ensures a compact and low-profile form factor, making it ideal for space-constrained electronics. The bobbin allows for organized and efficient coil winding, simplifying the transformer assembly process and enhancing electrical performance.

Features:

  • Horizontal design for compact, low-profile transformer assemblies
  • 8-pin configuration for efficient and organized coil winding
  • Made from durable, heat-resistant plastic for long-lasting performance
  • Ideal for high-frequency applications with EE20 ferrite cores
  • Easy to assemble, improving productivity in manufacturing

Applications:

  • Switched-mode power supplies (SMPS)
  • High-frequency transformers and inductors
  • Power converters and inverters
  • Consumer electronics and industrial equipment
  • Custom transformer and inductor manufacturing

Specifications:

  • Bobbin Type: EE20
  • Pin Count: 8
  • Mounting Style: Horizontal
  • Material: High-quality, heat-resistant plastic
  • Core Compatibility: EE20 ferrite cores
