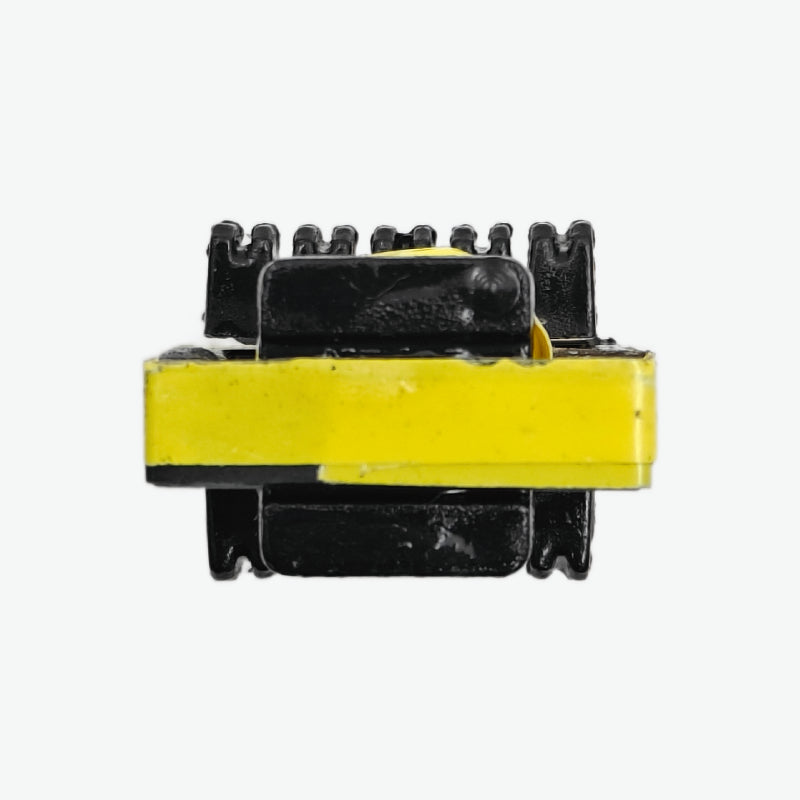

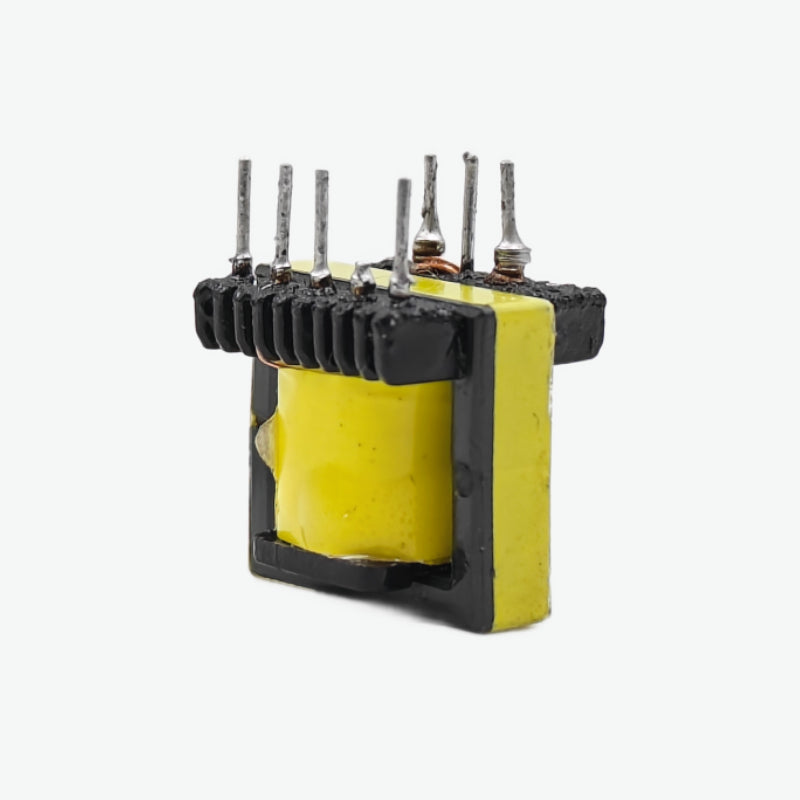

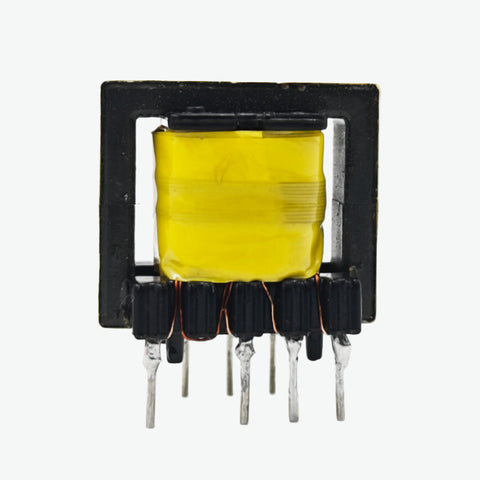

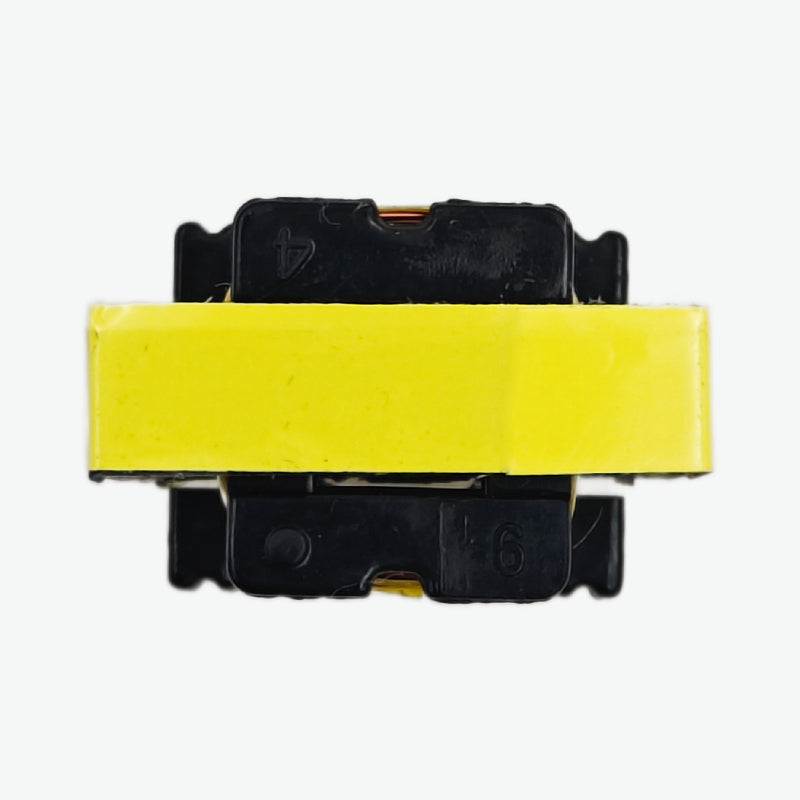

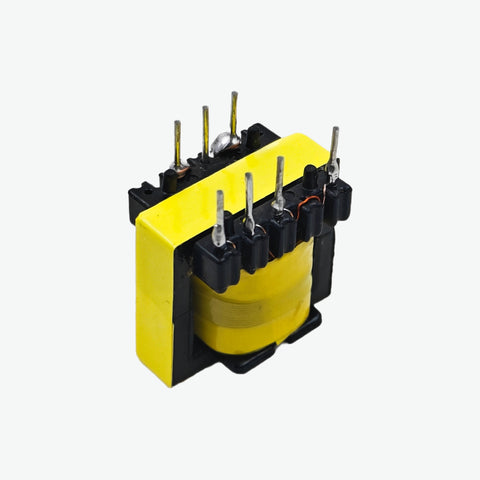

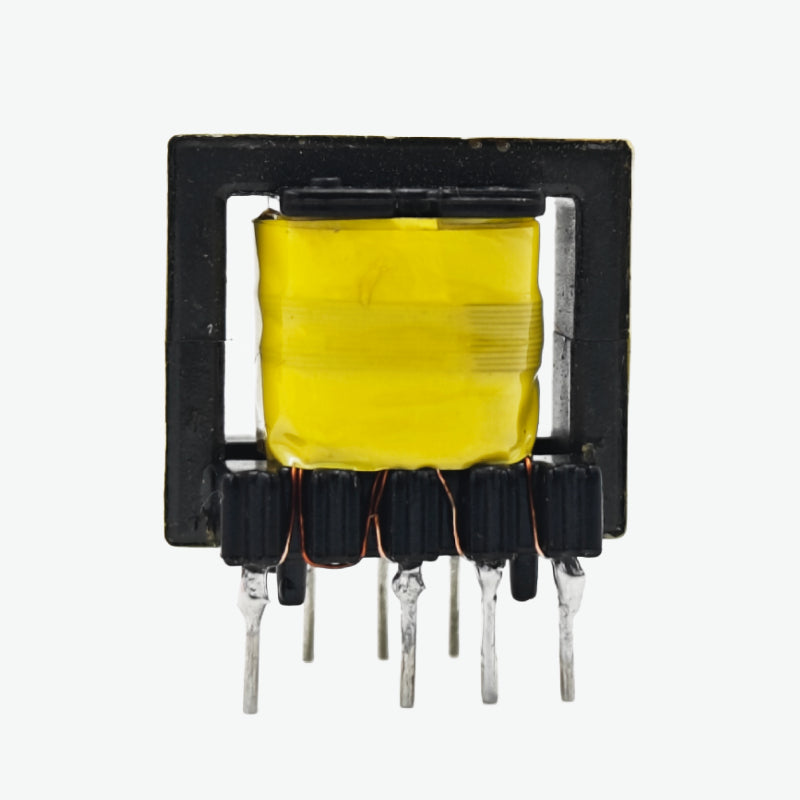

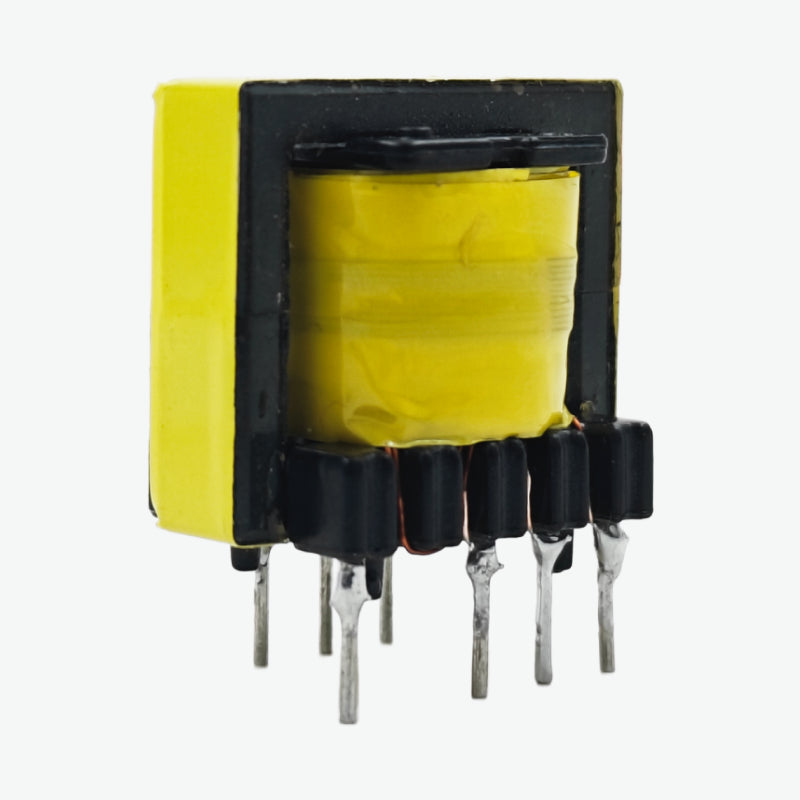

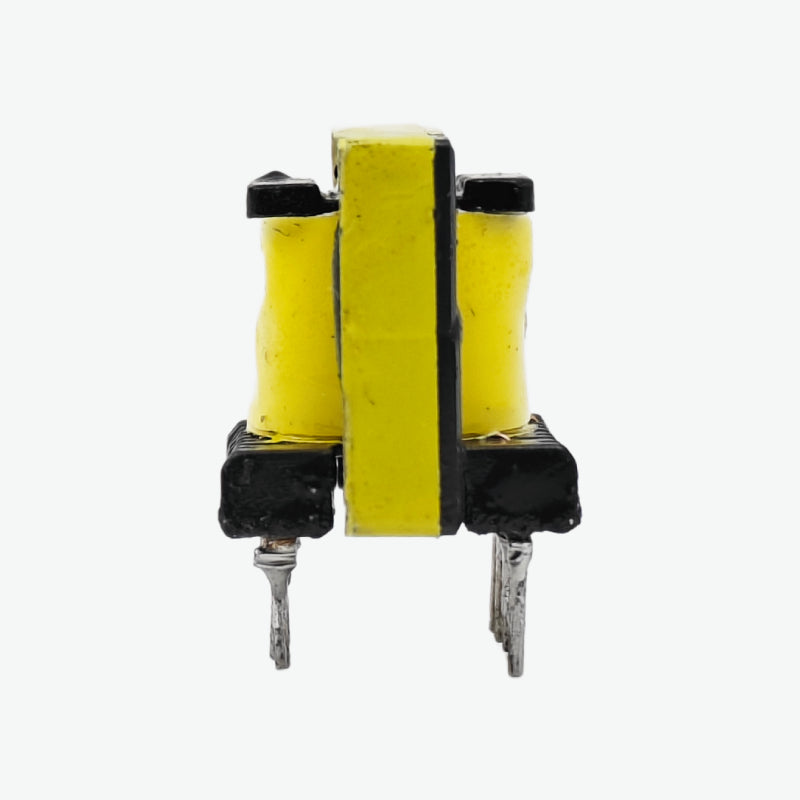

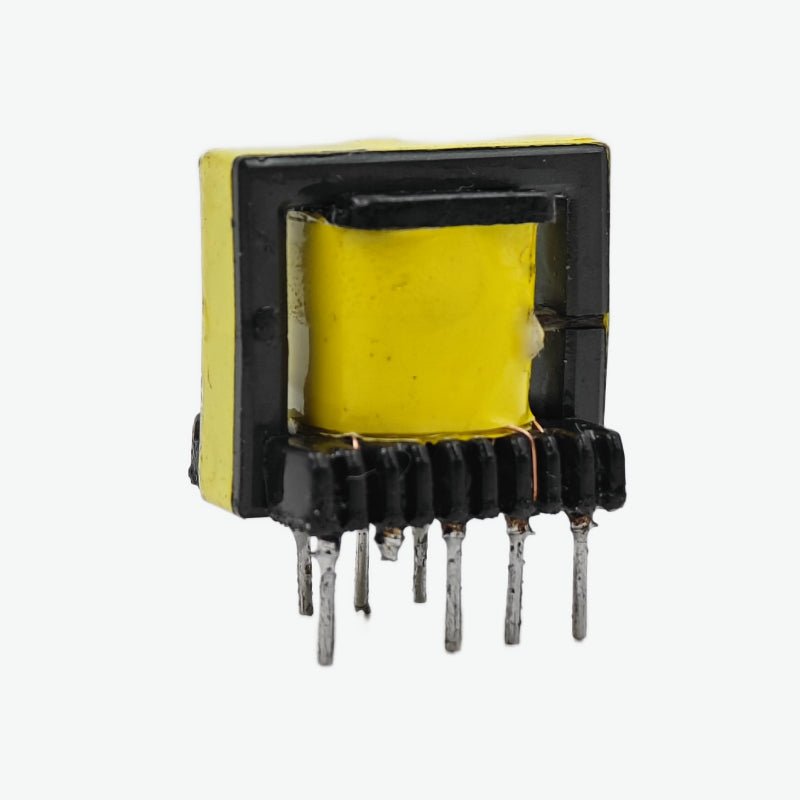

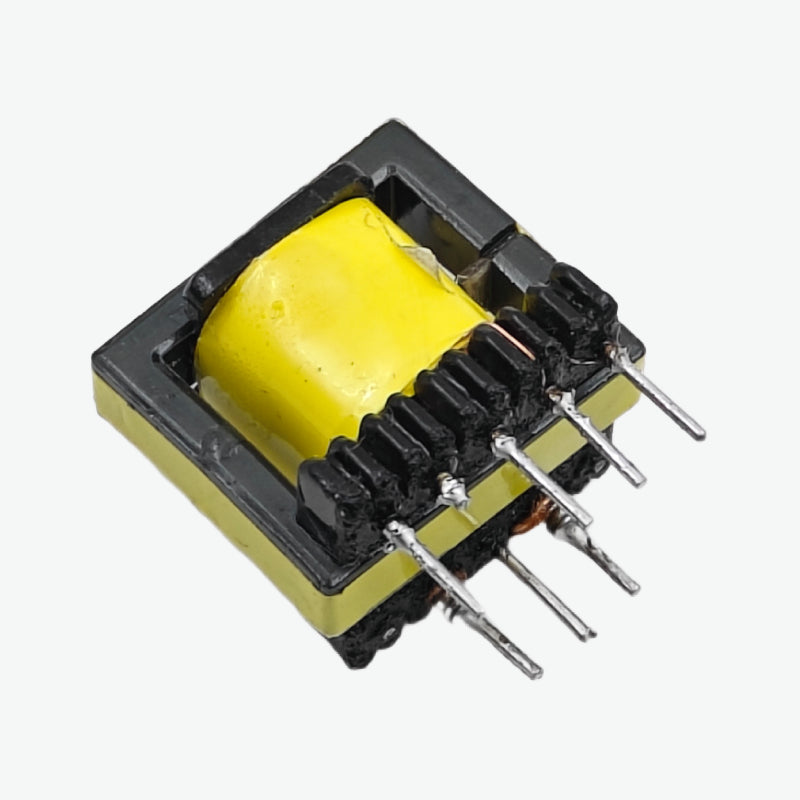

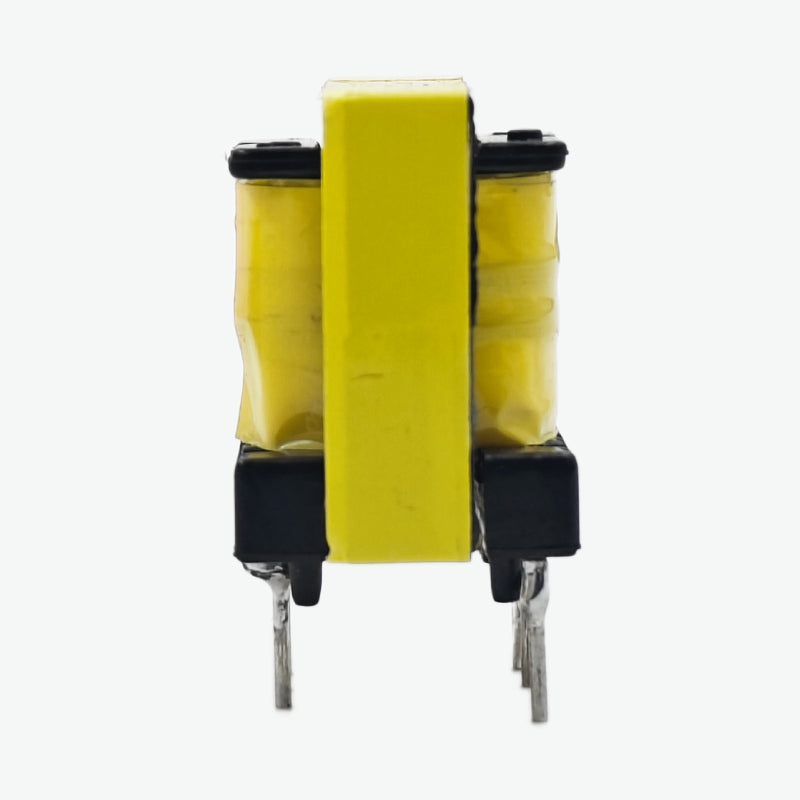

The EE19 SMPS High Frequency 24W PCB Mount Transformer is engineered for compact and efficient power conversion in switch-mode power supplies. Built with a PC40 core and high-grade copper windings, it supports a wide frequency range and delivers consistent output with low thermal stress. Featuring an auxiliary winding, 6-pin through-hole mounting, and robust design, this transformer is ideal for isolated converter circuits, chargers, and other high-frequency SMPS applications.
Features of EE19 SMPS High Frequency 24W Transformer:
- Supports power delivery up to 24 Watts.
- Wide operating frequency range from 20kHz to 500kHz.
- Includes auxiliary bias winding for versatile circuit integration.
- High-grade copper winding for efficient energy transfer.
- Compact through-hole design for easy PCB mounting.
Specifications of EE19 SMPS High Frequency 24W Transformer:
- Model Number: EE19
- Core Shape: PC40
- Phase: Single
- Power Rating: 24 Watts
- Max Secondary Current Draw: 2.5A
- Primary Winding: ~1.2mH, (80+80) Turns, 0.2mm wire
- Secondary Winding: 11 Turns, 2 x 0.4mm wire
- Bias Winding: 13 Turns, 0.2mm wire
- Working Frequency: 20kHz ~ 500kHz
- Winding Material: High-Grade Copper
- Temperature Range: -15°C to +105°C
- No. of Poles: 6 Pin
- Mounting Style: Through Hole
- Dimensions (L×B×H): 19.3mm x 12.6mm x 19.1mm
- Weight: 8.5g
Package Includes:
1 × EE19 SMPS High Frequency 24W PCB Mount Transformer with Auxiliary Winding
