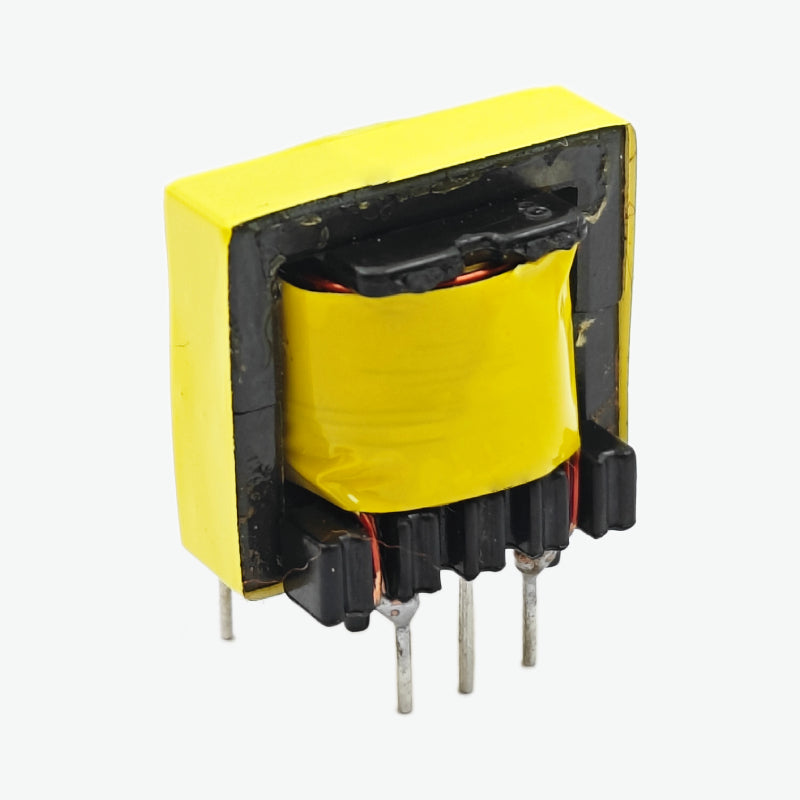

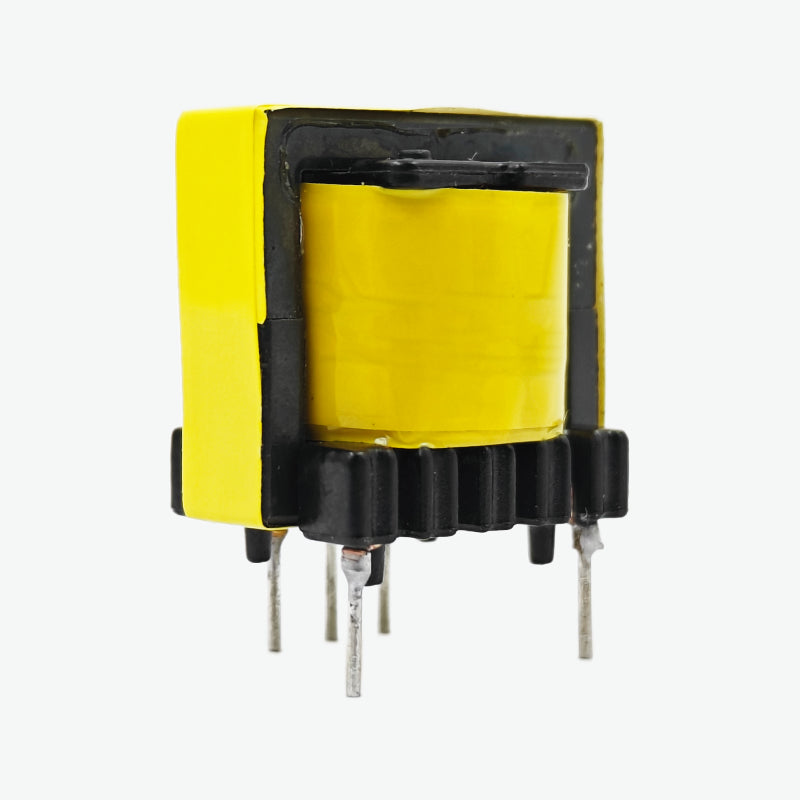

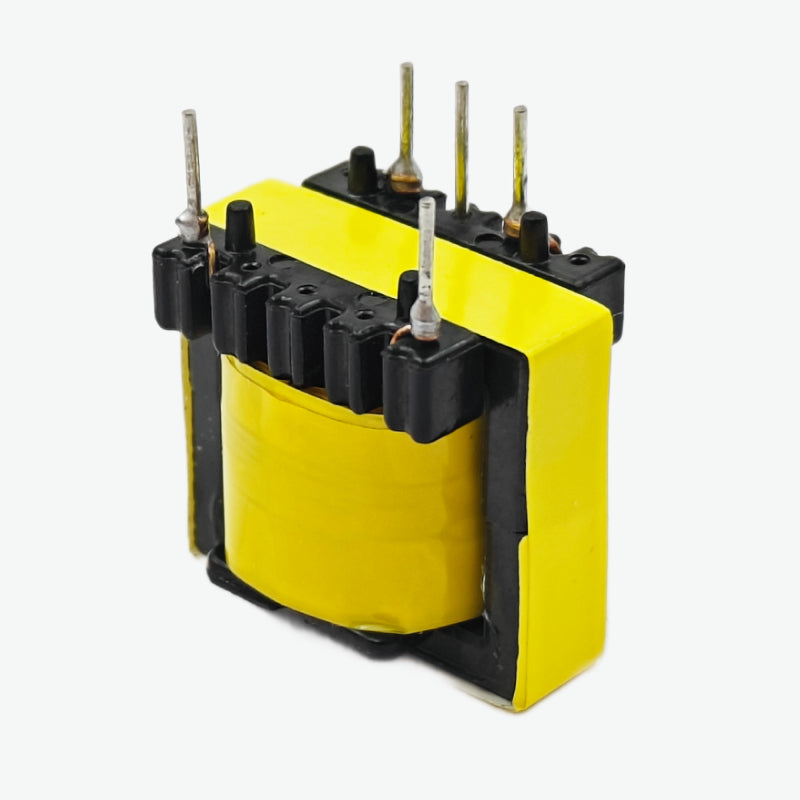

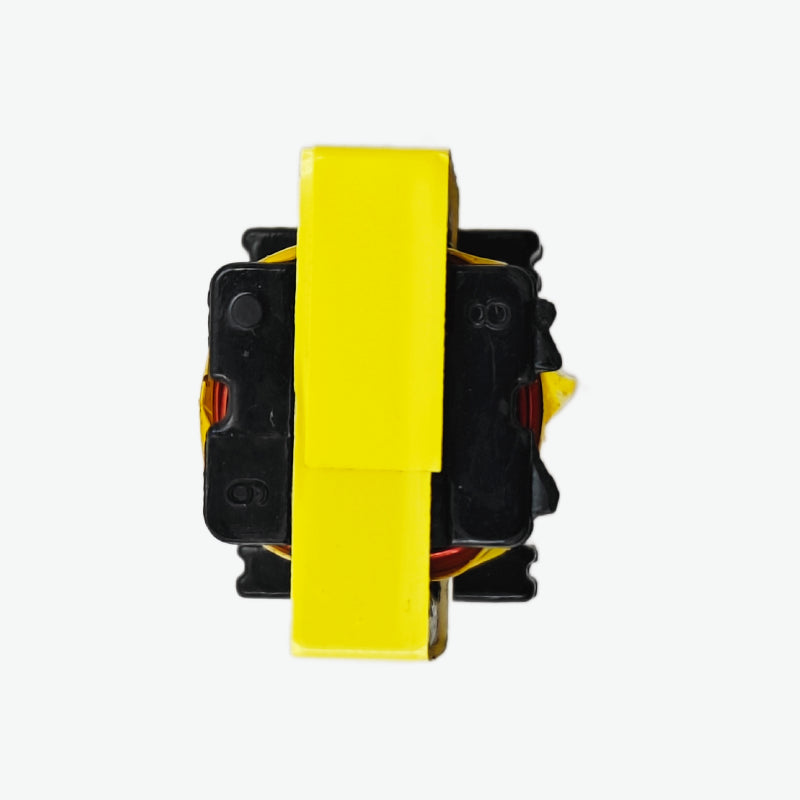

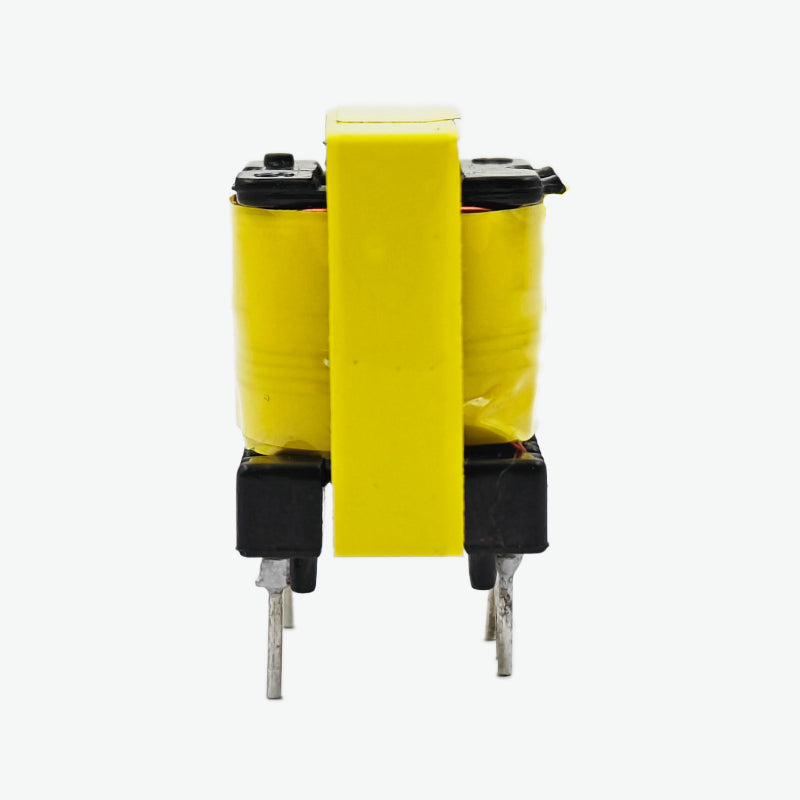

The EE19 High-Frequency SMPS Transformer is designed for compact, efficient power delivery in switch-mode power supply (SMPS) circuits with power ratings up to 20 watts. Featuring a PC40 ferrite core and precision-wound high-grade copper wire, this transformer ensures reliable isolation and consistent voltage conversion. With its broad operating frequency range and sturdy construction, it's ideal for use in AC-DC or DC-DC converters, power adapters, and various low-power modules.
Features of EE19 SMPS 20W Transformer:
- EE19 core with PC40 ferrite material for low core losses
- Supports up to 20W power supply circuits
- Wide working frequency range: 20kHz to 500kHz
- High-grade copper windings for excellent conductivity and long-term durability
- Compact form factor optimized for PCB mounting
- Through-hole mounting ensures secure and stable installation
Specifications of EE19 SMPS 20W Transformer:
- Model Number: EE19
- Core Shape: PC40
- Phase: Single
- Power Rating: 20 Watts
- Primary Inductance: ~1.2mH
- Turns Ratio: 130:16
- Working Frequency: 20kHz ~ 500kHz
- Winding Material: High-Grade Copper
- Temperature Range: -15°C to +105°C
- No. of Poles: 5 Pin
- Mounting Style: Through Hole
- Dimensions (L×B×H): 19.3mm x 12.6mm x 19.1mm
- Weight: 10g
Note: This is a switching power supply transformer and is not suitable for direct use with 220V 50Hz mains power. Connecting it directly to 50Hz AC will damage the transformer.
Package Includes:
1 × EE19 SMPS High Frequency 20 Watt PCB Mount Transformer
