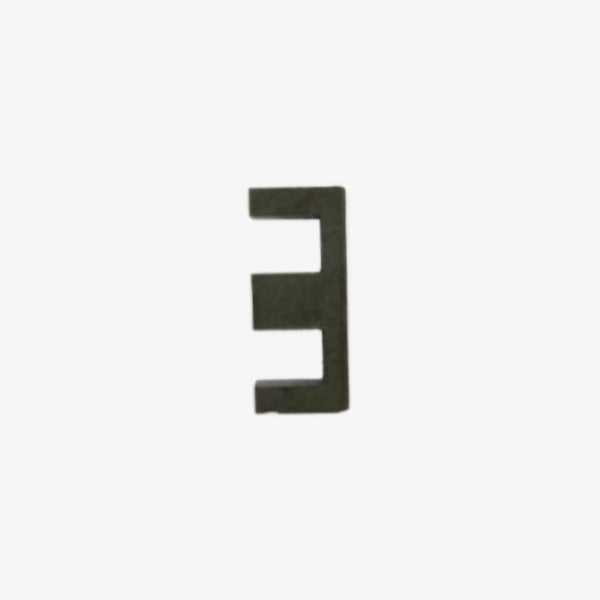

EE19-5 Ferrite Transformer Cores (Pair)

Brand: GENERIC
SKU: MTR-QC2608
Availability: 423 In Stock
Rs. 24.00
Rs. 24.00
Subtotal: Rs. 24.00
Description
Description
x

EE19-5 ferrite transformer cores are magnetic components commonly used in high-frequency transformers and inductors, particularly within switching power supplies. Their design, featuring two 'E'-shaped halves, offers efficient magnetic coupling and minimizes leakage inductance.

Key Specifications:

  • Dimensions:
    • A: 19.0 ± 0.4 mm
    • B: 8.0 ± 0.3 mm
    • C: 5.0 ± 0.3 mm
    • D: 5.0 ± 0.3 mm
    • E: 14.2 mm (minimum)
    • F: 5.7 ± 0.2 mm

These dimensions ensure compatibility with standard bobbins and hardware, facilitating ease of assembly in various electronic circuits.

  • Material: Typically made from Mn-Zn ferrite materials like PC40, which offer high permeability and low core losses

  • Inductance Factor (A_L): Approximately 1150 nH, indicating the inductance per turn squared, which is crucial for transformer design calculations.



Applications:

  • Switching Power Supplies: Efficiently handle high-frequency operations with minimal losses.
  • Transformers: Suitable for power and signal transformers requiring compact size and high performance.
  • Inductors: Employed in various inductor designs, including power inductors and filter inductors, to ensure consistent inductance values.
