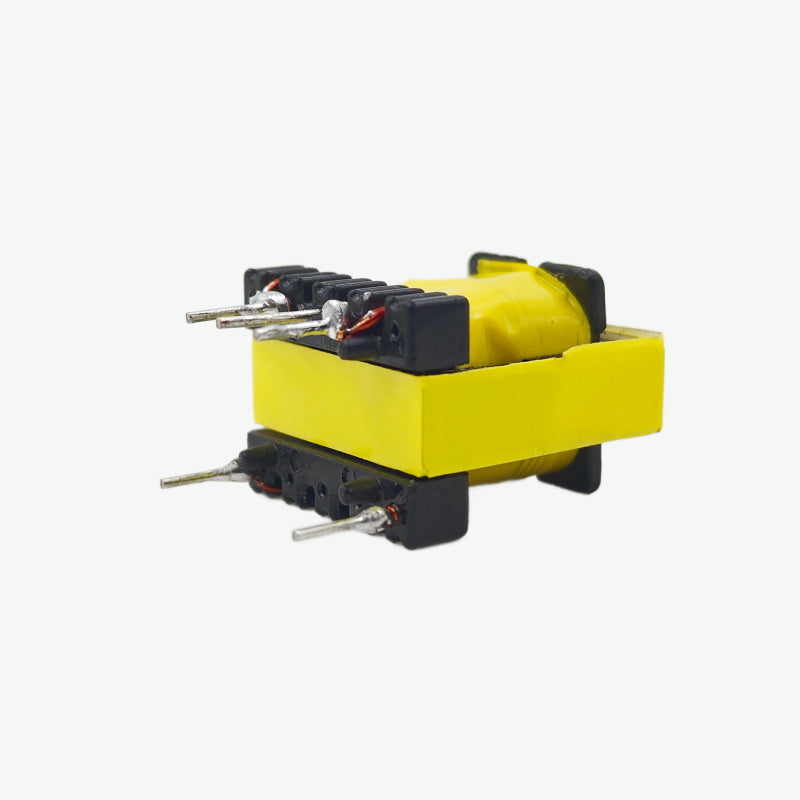

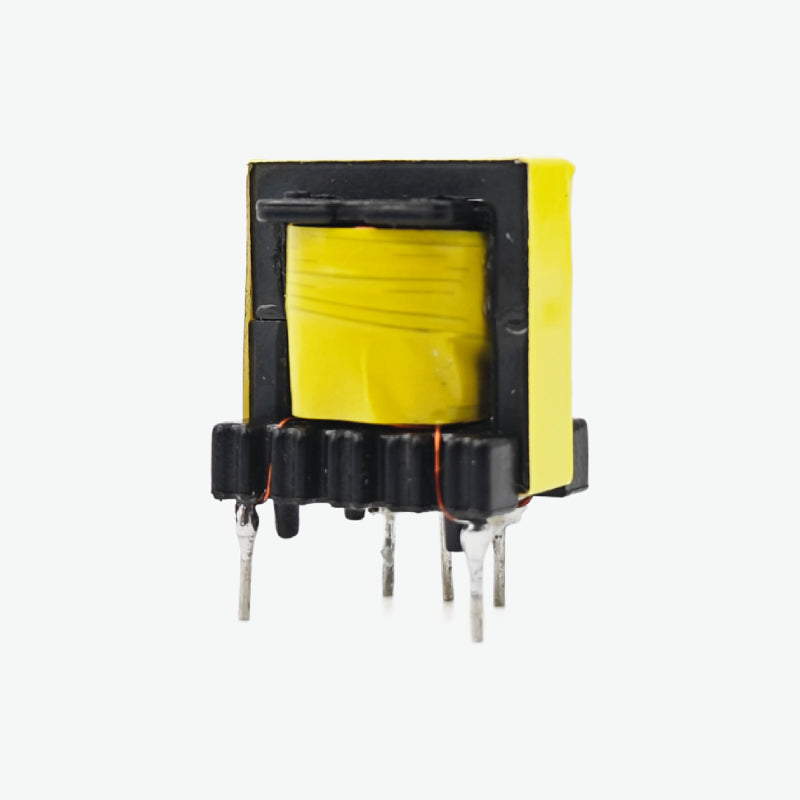

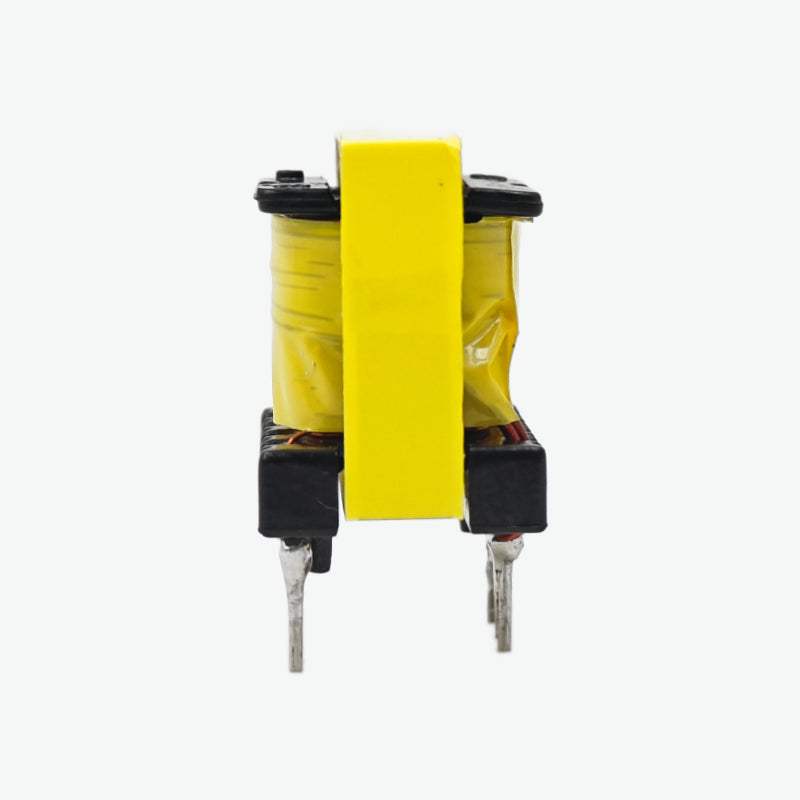

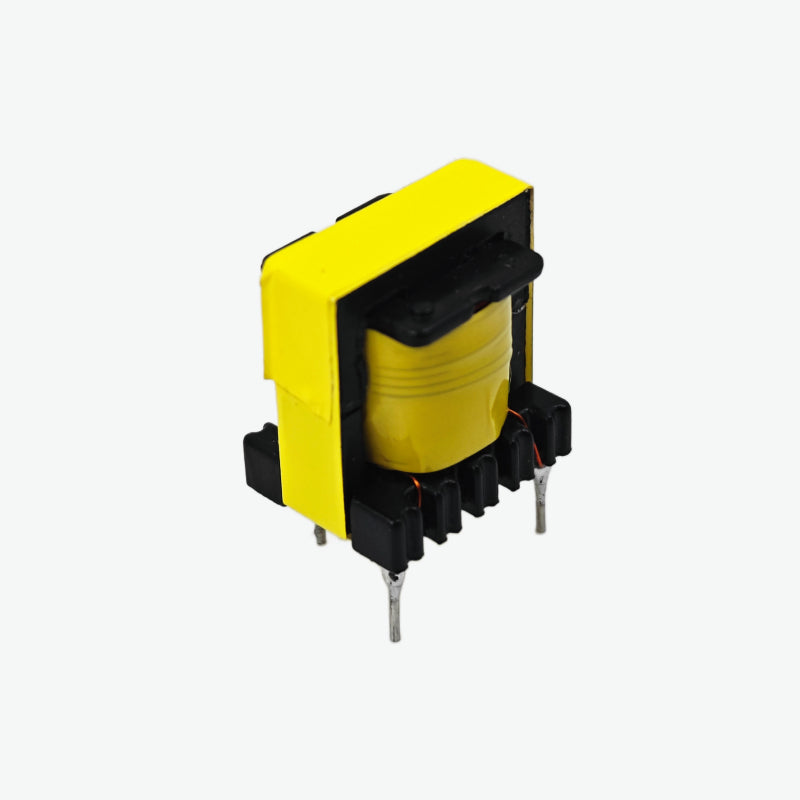

The EE16 High-Frequency SMPS Transformer is a compact and efficient transformer designed for use in switch-mode power supplies (SMPS) with power ratings up to 10 watts. Built with a PC40 core and high-grade copper windings, it offers reliable isolation and stable voltage conversion. Its wide operating frequency range makes it suitable for a variety of applications in AC-DC or DC-DC converters, adapters, and power modules.
Features of EE16 SMPS 10W Transformer:
- EE16 core with PC40 ferrite material for minimal core losses
- Suitable for 10W power supply circuits
- Wide working frequency range: 20kHz to 500kHz
- Turns ratio of 90:11 for effective voltage step-down or step-up
- High-grade copper windings for improved conductivity and durability
- Compact design ideal for PCB mounting
- Through-hole mounting for secure placement
- Capable of withstanding temperature extremes from -15°C to +105°C
Specifications of EE16 SMPS 10W Transformer:
- Model Number: EE16
- Core Shape: PC40
- Phase: Single
- Power Rating: 10 Watts
- Primary Inductance: 2.6 ~ 4.0mH
- Turns Ratio: 90:11
- Working Frequency: 20kHz ~ 500kHz
- Winding Material: High-Grade Copper
- Temperature Range: -15°C to +105°C
- No. of Poles: 5 Pin
- Mounting Style: Through Hole
- Dimensions(L×B×H): 16.3 x 12.5 x 19 mm
Note: It is a switching power supply power transformer and can not be used directly with 220V 50Hz. Direct connection with 50Hz AC will burn the transformer.
