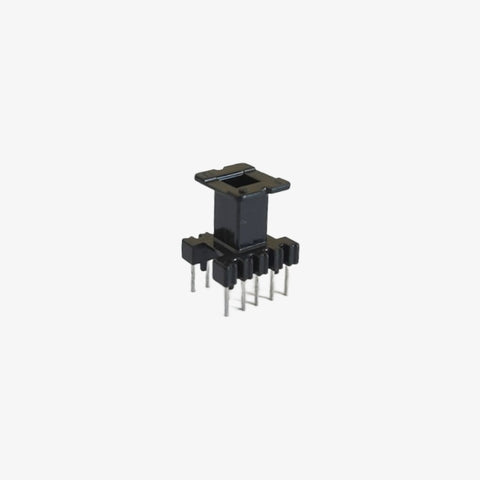

EE16 Transformer Vertical Bobbin 8 Pin
EE16 Transformer Vertical Bobbin 8 Pin

Free Shipping

Free standard shipping on all orders over INR 500

COD Available

On all the orders above INR 500

Free Returns

*Terms & Conditions Applied

Customer Assistance

Contact Us : 0141-4946677 or support@quartzcomponents.com
  • QuartzComponents

EE16 Transformer Vertical Bobbin 10 Pin

Brand: GENERIC
SKU: MTR-QC2472
Availability: 224 In Stock
Rs. 4.00
Rs. 4.00
Subtotal: Rs. 4.00
Description
Description
x

The EE16 Transformer Vertical Bobbin with 10 pins is engineered for use with EE16 ferrite cores in high-frequency transformers and inductors. Featuring a vertical design, this bobbin is ideal for applications requiring an upright transformer configuration, providing excellent winding efficiency and ease of assembly. Its compact design makes it suitable for power supplies, converters, and other high-frequency circuits in compact electronic devices.

Features:

  • Vertical bobbin design for upright transformer assembly
  • 10-pin configuration for organized and efficient coil winding
  • Made from durable, heat-resistant plastic for reliable long-term performance
  • Ideal for use with EE16 ferrite cores in high-frequency applications
  • Simplifies winding and assembly processes, enhancing productivity

Applications:

  • Switched-mode power supplies (SMPS)
  • High-frequency transformers and inductors
  • Power converters and adapters
  • Consumer electronics and industrial equipment
  • Custom transformer and inductor designs

Specifications:

  • Bobbin Type: EE16
  • Pin Count: 10
  • Mounting Style: Vertical
  • Material: High-quality, heat-resistant plastic
  • Core Compatibility: EE16 ferrite cores
