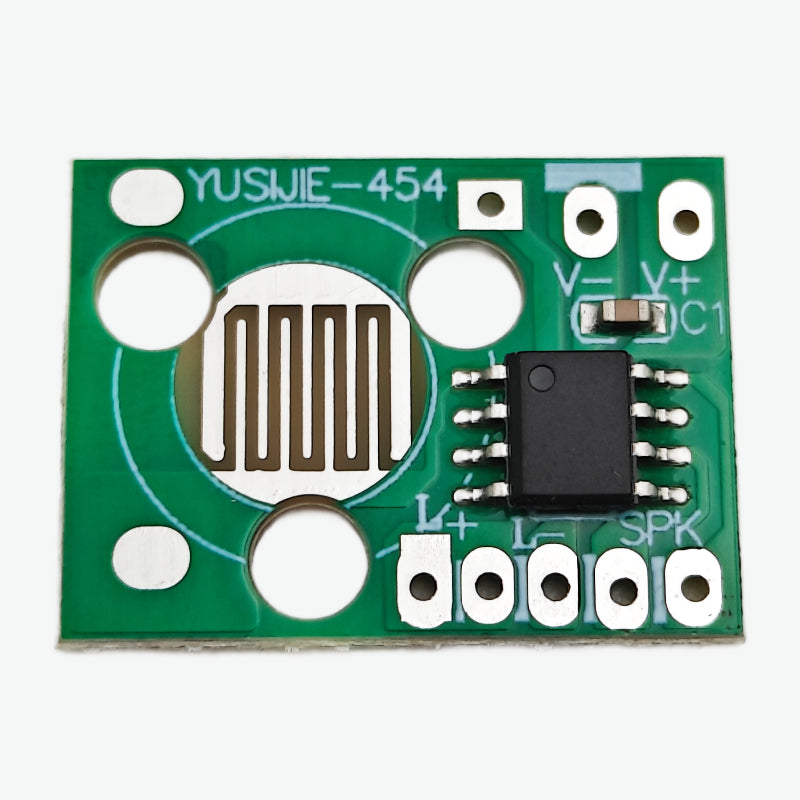

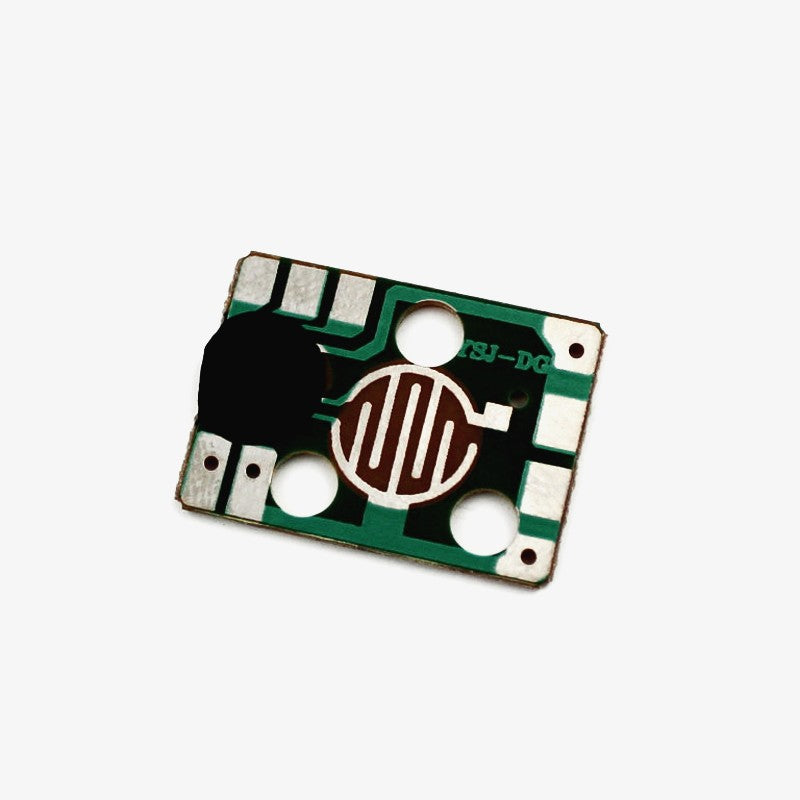

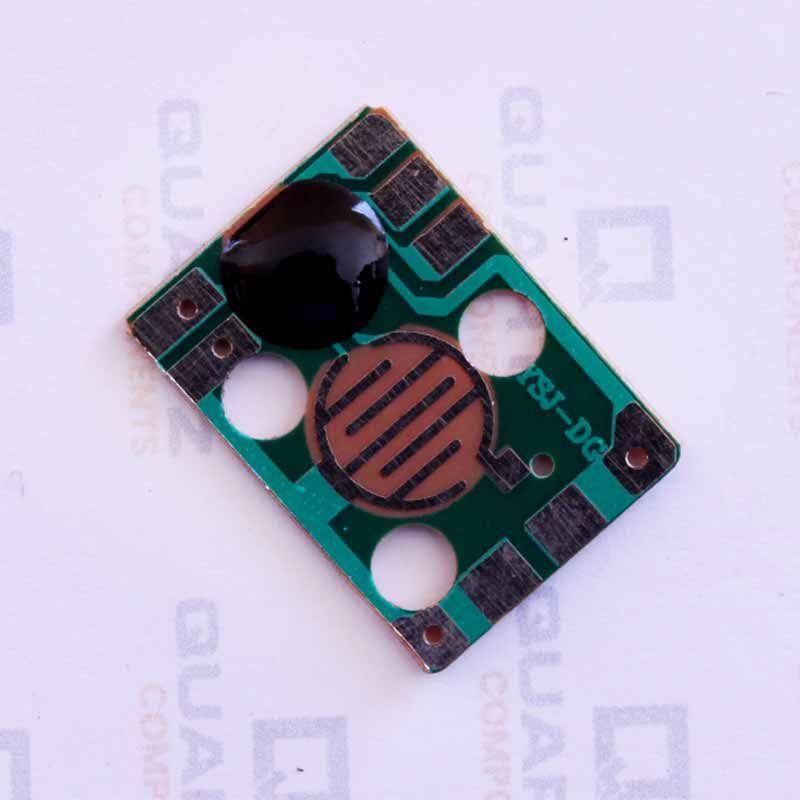

Dog Barking Music Sound Module Trigger Animals Chip 3V Yelp Voice Module for DIY
Sold Out

Dog Barking Music Sound Module Trigger Animals Chip 3V Yelp Voice Module for DIY Dog Barking Music Sound Module Trigger Animals Chip 3V Yelp Voice Module for DIY

QC0743

Out of stock

Rs. 35.00

A useful as well as single module to produce dog barking musical sound that can be easily interfaced with speakers and a simple power supply without the need of additional amplifier units. The module has a non-removable chip and easy to connect PCB leads for trouble free soldering solutions.

It can be powered using simple 3-4.5V DC which is suitable for usage of 2 pcs 1.5V batteries if used as indoor bell systems. The output specification requires 0.25W to 2W speakers with 8 Ohms impedance. Inbuilt button or trigger offers one time play if shorted.

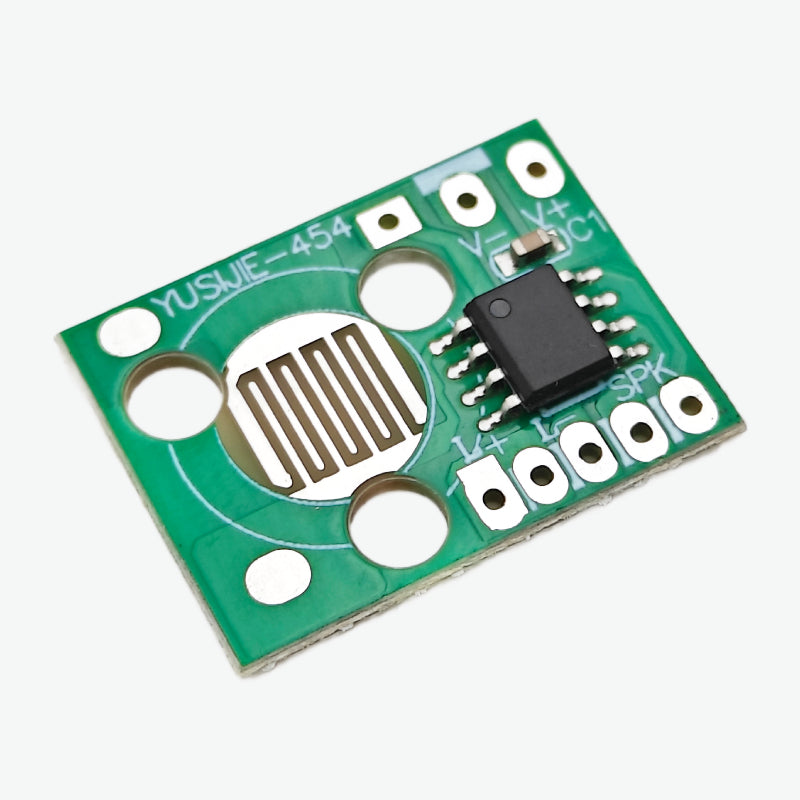

Pinouts

Dog Barking Music

Dog Barking Music Chip Features & specifications:

  • Good Quality Output
  • 3.0-4.5V Operation voltage
  • No additional amplifier requires
  • Small size PCB to be fitted in very small space during DIY
  • 0.25W-2W speaker support with 8 Ohms impedance
  • Solder-able pads available in the module


Dog Barking Music Chip Applications:

  • Calling bell
  • Toys
  • Various alerting devices

Dimension

Dog Barking Music Sensor

Package Contains

1x Dog Barking Music chip module

A useful as well as single module to produce dog barking musical sound that can be easily interfaced with speakers and a simple power supply without the need of additional amplifier units. The module has a non-removable chip and easy to connect PCB leads for trouble free soldering solutions.

It can be powered using simple 3-4.5V DC which is suitable for usage of 2 pcs 1.5V batteries if used as indoor bell systems. The output specification requires 0.25W to 2W speakers with 8 Ohms impedance. Inbuilt button or trigger offers one time play if shorted.



Pinouts

Dog Barking Music

Dog Barking Music Chip Features & specifications:

  • Good Quality Output
  • 3.0-4.5V Operation voltage
  • No additional amplifier requires
  • Small size PCB to be fitted in very small space during DIY
  • 0.25W-2W speaker support with 8 Ohms impedance
  • Solder-able pads available in the module


Dog Barking Music Chip Applications:

  • Calling bell
  • Toys
  • Various alerting devices

Dimension

Dog Barking Music Sensor

Package Contains

1x Dog Barking Music chip module
