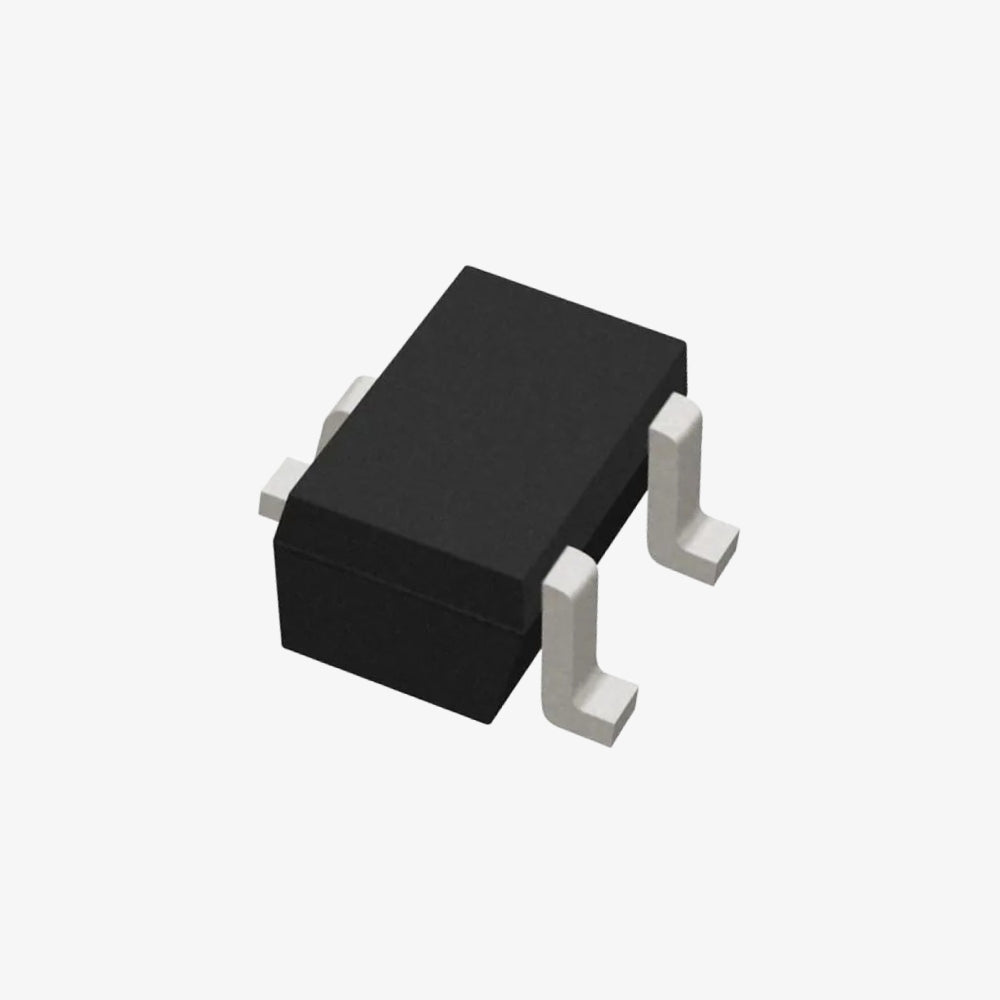

DMG1012UW-7 N-Channel MOSFET SOT-323 SMD Package

Brand: GENERIC
SKU: SMD-QC2433
Availability: 328 In Stock
Rs. 6.00
Rs. 6.00
Subtotal: Rs. 6.00
Description
Description
x

The DMG1012UW-7 is an N-Channel MOSFET designed for high-efficiency switching and amplification in a variety of electronic applications. It is housed in a compact SOT-323 surface-mount device (SMD) package, making it suitable for high-density circuit designs.

Key Features:

  1. Type: N-Channel MOSFET

  2. Package: SOT-323 (3-pin surface-mount package)

  3. Maximum Voltage (VDS): 20V

  4. Maximum Current (ID): 880mA

  5. Power Dissipation (Ptot): 250mW

  6. Low On-Resistance (RDS(on)): Typically 0.4Ω at VGS = 4.5V

  7. Fast Switching Speed: Ideal for high-speed applications

  8. Gate Threshold Voltage (VGS(th)): Typically 1.2V

Electrical Characteristics:

  • Drain-Source Voltage (VDS): 20V

  • Gate-Source Voltage (VGS): ±12V

  • Continuous Drain Current (ID): 880mA

  • Pulsed Drain Current (IDM): 2.5A

  • Power Dissipation (Ptot): 250mW

  • On-Resistance (RDS(on)):

    • 0.4Ω at VGS = 4.5V

    • 0.5Ω at VGS = 2.5V

  • Gate Charge (Qg): Typically 1.3nC

Package and Pin Configuration:

The DMG1012UW-7 MOSFET is housed in a compact SOT-323 package with three pins:

  • Pin 1: Gate (G)

  • Pin 2: Source (S)

  • Pin 3: Drain (D)

Package Includes:

1 x DMG1012UW-7 N-Channel MOSFET SOT-323 SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
