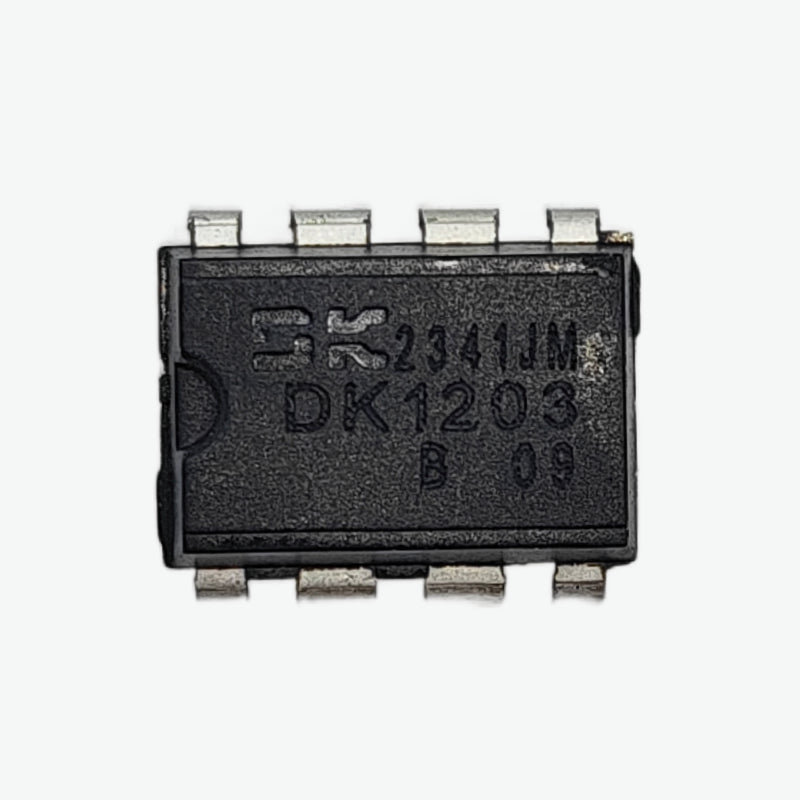

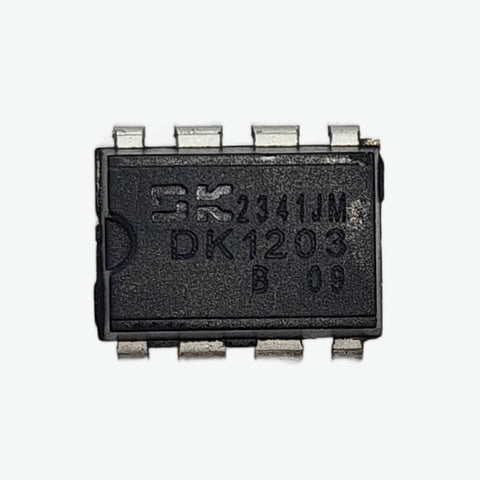

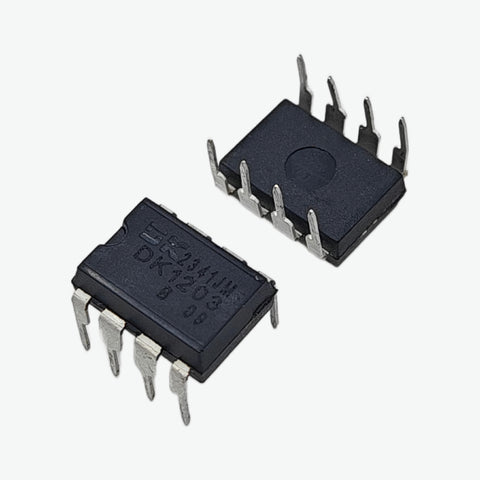

DK1203 AC-DC Switch Mode Power Controller IC - DIP-8
SKU:
CMP-QC3007
Availability:
Out Of Stock
- Rs. 18.00
- Rs. 18.00
- Unit price
- per
Subtotal:
Rs. 18.00
Description
xThe DK1203 SMPS IC is a high-performance monolithic switch-mode power controller IC designed for low-power offline AC-DC applications. It combines a PWM controller with a built-in high-voltage power MOSFET in a compact DIP-8 package, making it ideal for small and efficient SMPS designs. It features low standby power, frequency jittering to reduce EMI, and integrated protection functions, making it a reliable solution for chargers, LED drivers, and auxiliary power supplies.
Features :
- Integrated PWM controller with high-voltage MOSFET
- Wide input voltage range (85V–265V AC)
- Low standby power for energy-efficient designs
- Frequency jittering function to reduce EMI
- Built-in over-voltage, over-current, and thermal protection
- Internal startup and feedback circuitry
- DIP-8 through-hole package for easy prototyping and soldering
Specifications :
- Model: DK1203
- Input Voltage: 85V – 265V AC
- Output Type: PWM Switching
- Package: DIP-8
- Package Pitch: 10.16mm
- Switching Frequency: ~65kHz (typical, with jitter)
- MOSFET Voltage Rating: Up to 700V
- Application: AC-DC SMPS control
Package Includes:
1 × DK1203 AC-DC Switch Mode Power Controlling DIP-8 IC
