DSO138 Handheld Oscilloscope Kit
Sold Out

DSO138 Handheld Oscilloscope Kit with 2.4 Inch Display DSO138 Handheld Oscilloscope Kit with 2.4 Inch Display

QC1052

Out of stock

Rs. 1,642.00
(Excluding 18% GST)

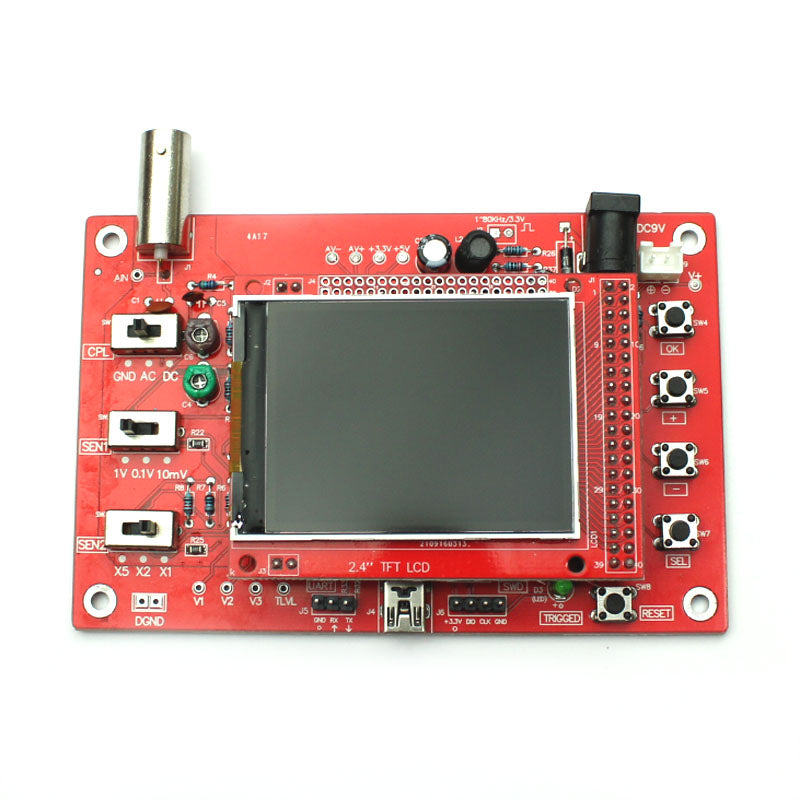

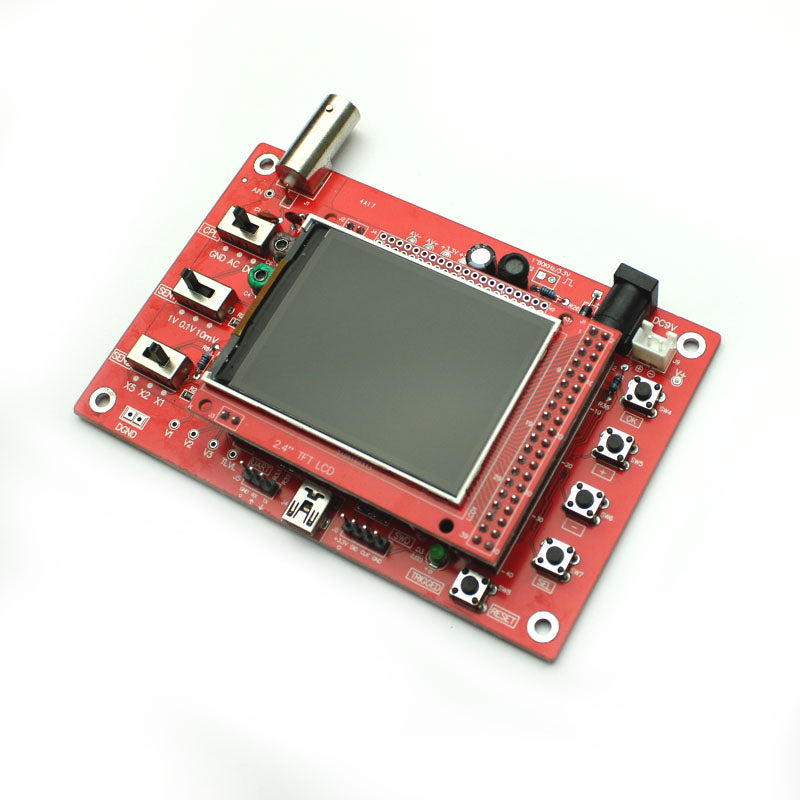

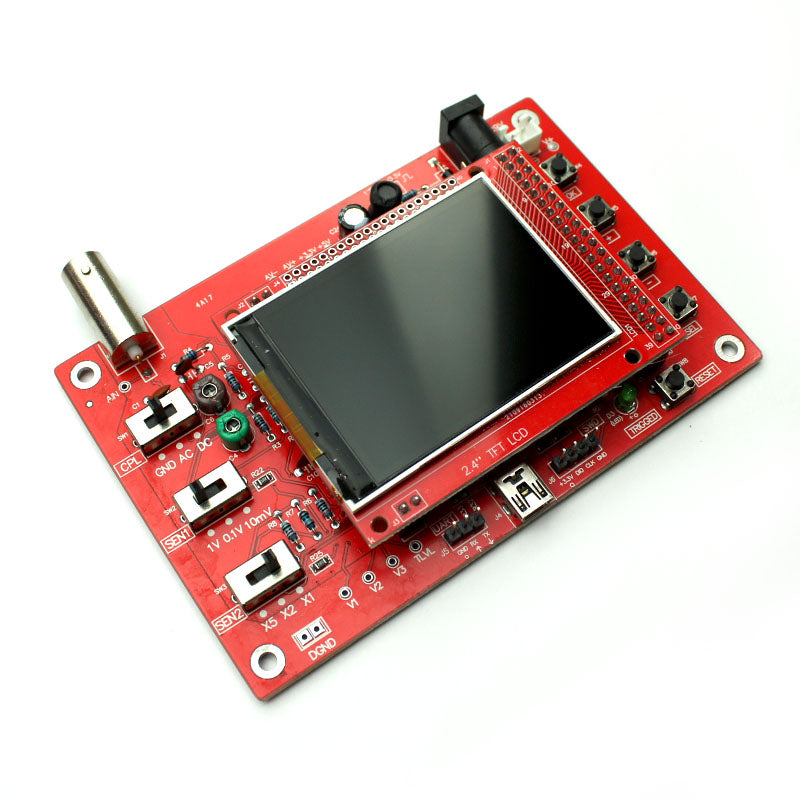

This is ready to use handheld oscilloscope kit powered by ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch TFT display. The DSO138 kit can display frequency, period, pulse width, duty ratio, and max/min/avg/peak/virtual values.

Features:

  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
  • Waveform storage function: will not lose the waveform after power off.
  • Short-circuit and open-circuit detection: can help the user find out the soldering error.
  • TFT controller recognition function.

Specifications:

  • Maximum Real-time Sampling Rate: 1Msps
  • Accuracy: 12Bit
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
  • Input Impedance: 1MΩ
  • Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
  • Coupling Modes: DC / AC / GND
  • The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
  • Supply Voltage: DC 9V
  • PCB Size: 117 * 76mm / 4.6 * 3in
  • Screen Size: 52 * 40mm / 2 * 1.57in
  • Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
  • Package Weight: 119g / 4.21oz


Package List:
1 x DSO138 DIY Digital Oscilloscope Kit

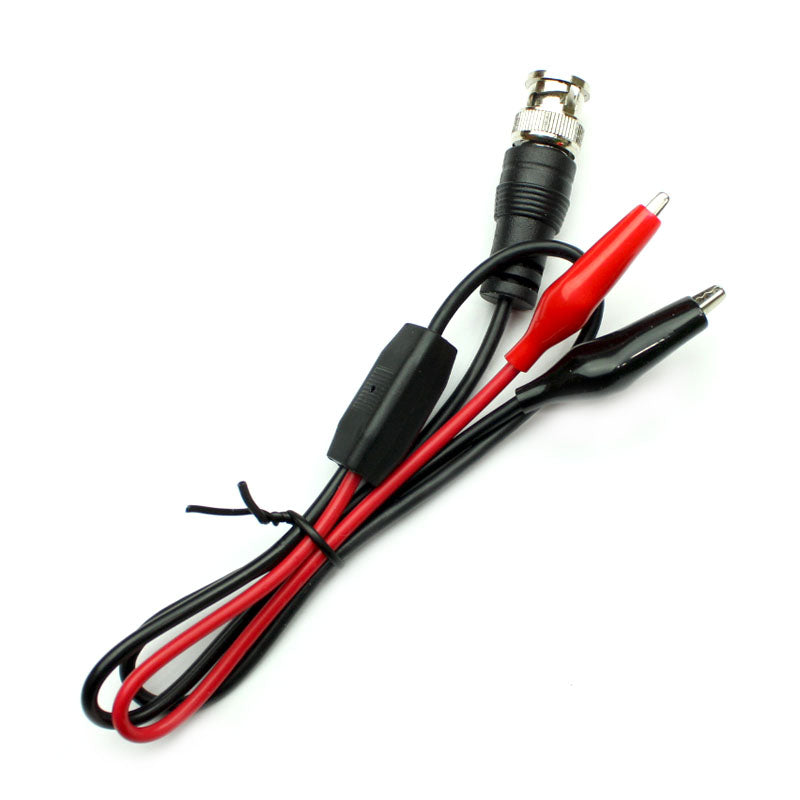

1 x Probe
3 x User Manual (English)

This is ready to use handheld oscilloscope kit powered by ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch TFT display. The DSO138 kit can display frequency, period, pulse width, duty ratio, and max/min/avg/peak/virtual values.

Features:

  • Observable previous trigger waveform (negative delay).
  • Can freeze at any time waveform display (HOLD function).
  • Comes 1Hz /3.3V square wave test signal source.
  • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
  • Waveform storage function: will not lose the waveform after power off.
  • Short-circuit and open-circuit detection: can help the user find out the soldering error.
  • TFT controller recognition function.

Specifications:

  • Maximum Real-time Sampling Rate: 1Msps
  • Accuracy: 12Bit
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
  • Input Impedance: 1MΩ
  • Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
  • Coupling Modes: DC / AC / GND
  • The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
  • Supply Voltage: DC 9V
  • PCB Size: 117 * 76mm / 4.6 * 3in
  • Screen Size: 52 * 40mm / 2 * 1.57in
  • Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
  • Package Weight: 119g / 4.21oz


Package List:
1 x DSO138 DIY Digital Oscilloscope Kit
1 x Probe
3 x User Manual (English)
