8 Position DIP Switch 8 Position DIP Switch

QC0247

94 In stock

Rs. 19.00
-
+
Rs. 19.00
(inc. GST)
[Delivery: 2 to 5 days]

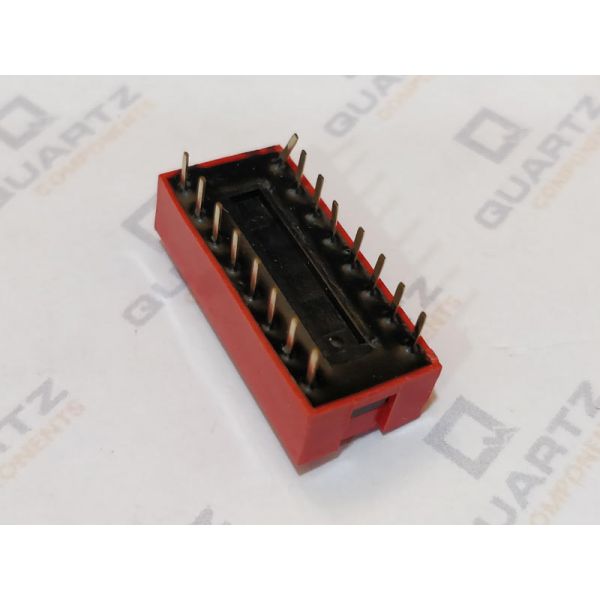

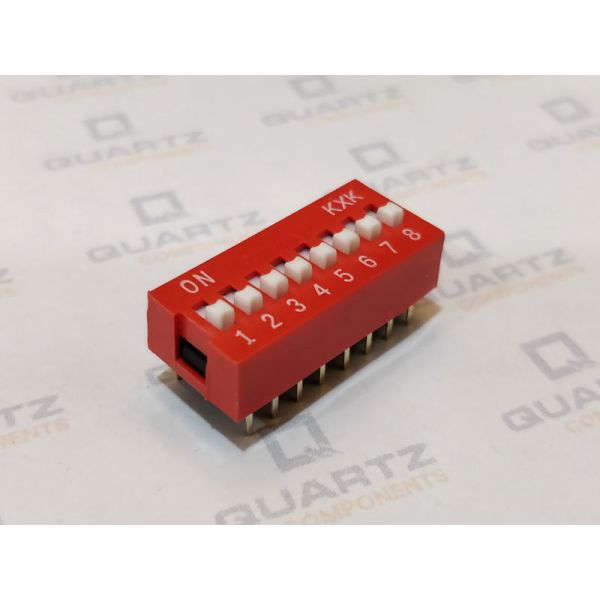

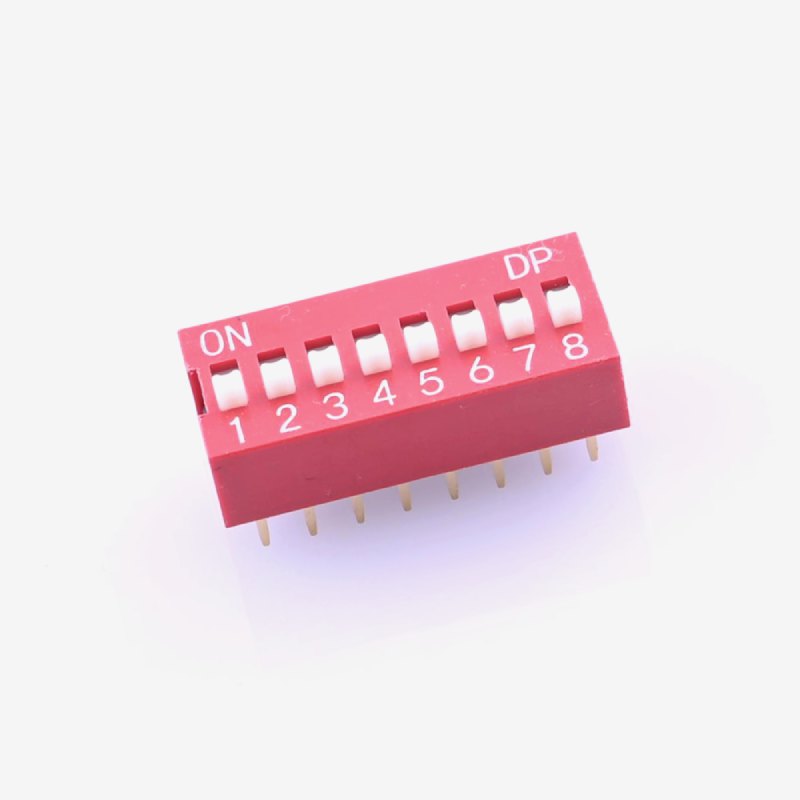

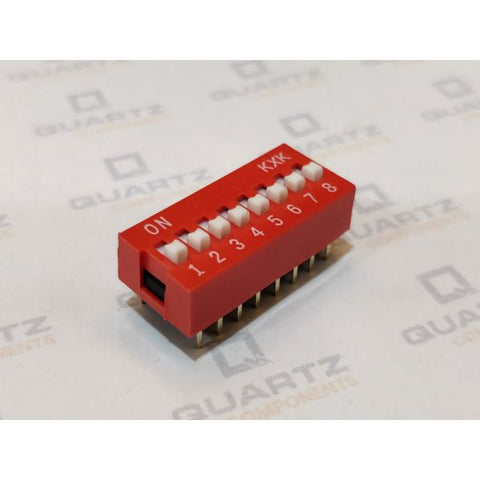

DIP stands for Dual in Line Package which means electrically conductive pins are arranged in two rows in through hole form in this package. The pins are spaced 0.1 inches apart to fit a standard breadboard or perfboard and the two rows are spaced 0.3 inches apart to fit a standard DIP socket. It consists of 8 Single Pole Single Throw (SPST) switches which can be toggled between ON and OFF by slide action. It can be used to configure computer peripherals such as modems, hard drives, and sound cards. They are also found on motherboards and expansion cards. They are used in place of jumpers because they are easier to operate and provide more reliable solution. You can also check out this Toggle Slide Switch, 10 position DIP switch, 4 position DIP Switch etc.



Specifications

  • Standard Mounting
  • Switch Rating: 50Vdc @ 100mA
  • SPST Switches
  • Leads Pre-Tinned
  • Each Contact Numbered



Product Description

      8 Position DIP

To use the 8 position DIP switch you just need to solder the pins on your PCB use a DIP holder and use this as a simple ON/OFF switch of the line in which the switch is connected. Care should be taken not to use it for application requiring more than 100 mA of current.



Additional Resources

Circuit Example using DIP switches

Half Adder Circuit

Package Contents

1×8 Position DIP Switch

DIP stands for Dual in Line Package which means electrically conductive pins are arranged in two rows in through hole form in this package. The pins are spaced 0.1 inches apart to fit a standard breadboard or perfboard and the two rows are spaced 0.3 inches apart to fit a standard DIP socket. It consists of 8 Single Pole Single Throw (SPST) switches which can be toggled between ON and OFF by slide action. It can be used to configure computer peripherals such as modems, hard drives, and sound cards. They are also found on motherboards and expansion cards. They are used in place of jumpers because they are easier to operate and provide more reliable solution. You can also check out this Toggle Slide Switch, 10 position DIP switch, 4 position DIP Switch etc.



Specifications

  • Standard Mounting
  • Switch Rating: 50Vdc @ 100mA
  • SPST Switches
  • Leads Pre-Tinned
  • Each Contact Numbered



Product Description

      8 Position DIP

To use the 8 position DIP switch you just need to solder the pins on your PCB use a DIP holder and use this as a simple ON/OFF switch of the line in which the switch is connected. Care should be taken not to use it for application requiring more than 100 mA of current.



Additional Resources

Circuit Example using DIP switches

Half Adder Circuit

Package Contents

1×8 Position DIP Switch
