W1209 Digital Temperature Controller Thermostat Module W1209 Digital Temperature Controller Thermostat Module

QC1201

21 In stock

Rs. 158.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]
How easy would it be to switch on your fan automatically as and when the temperature increases or decreases? All you need to do is, set a trigger temperature at which the fan should switch on or off. Using W1209 module, which is highly functional and low cost can help you to invent such minor yet amazing automation in your home!

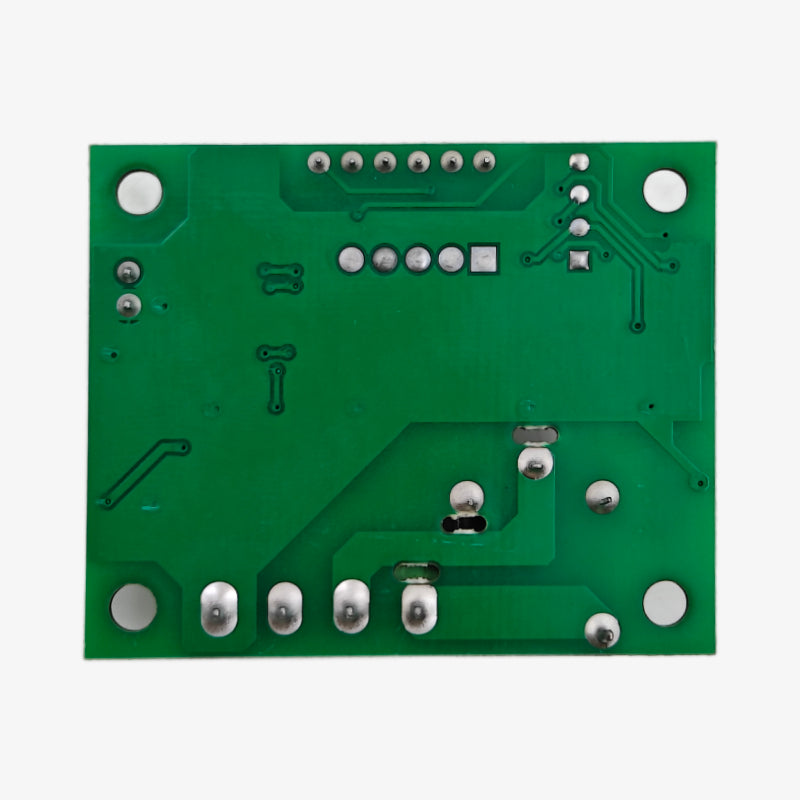

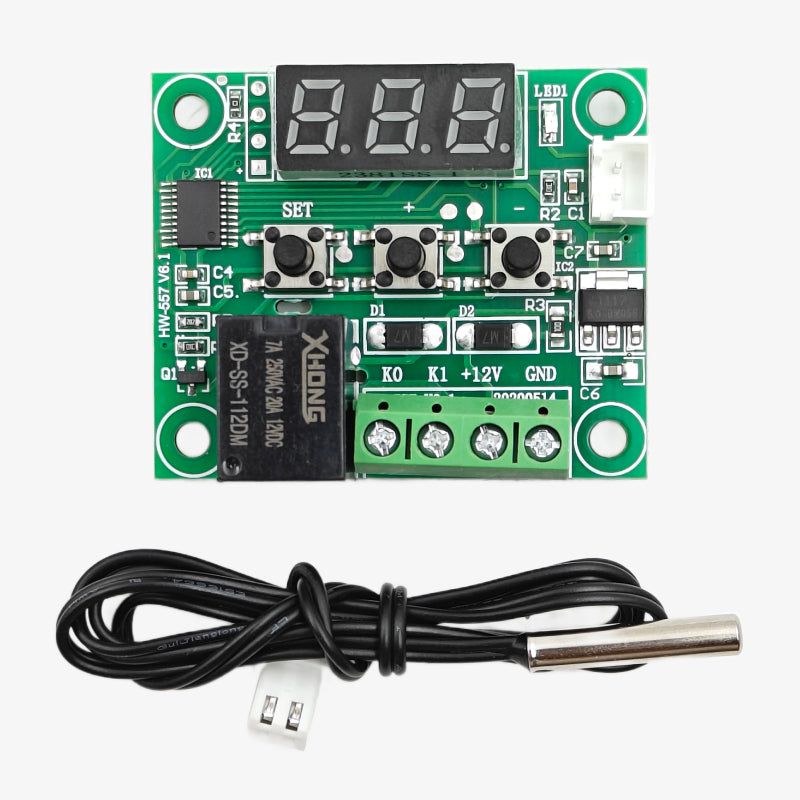

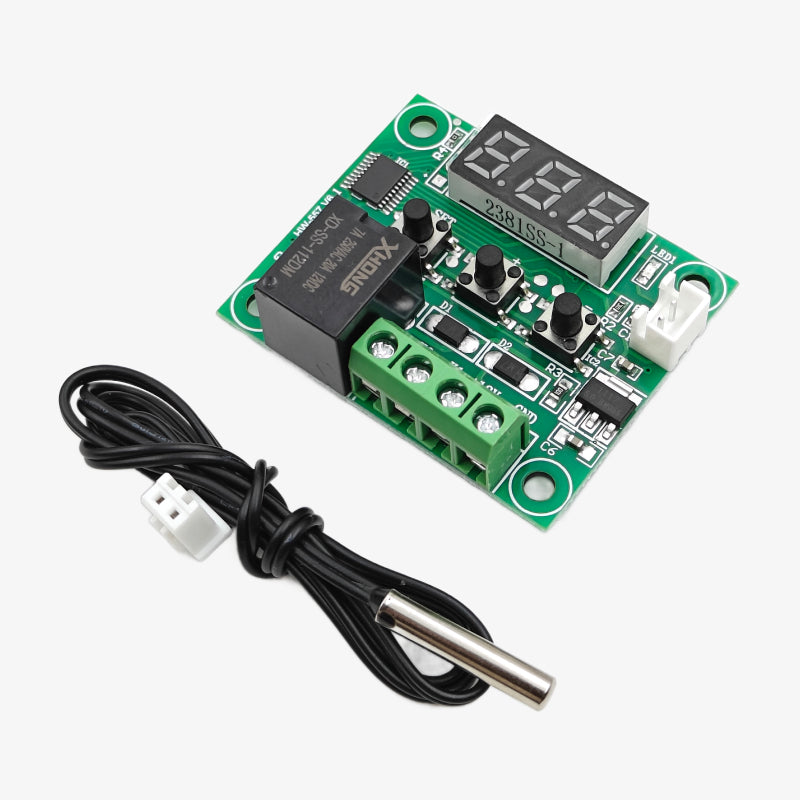

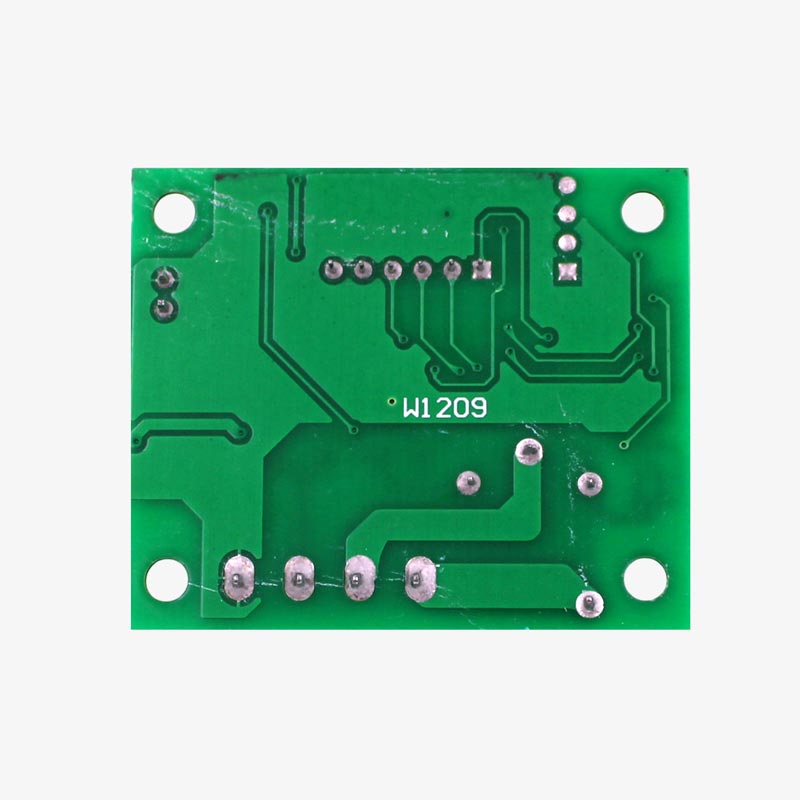

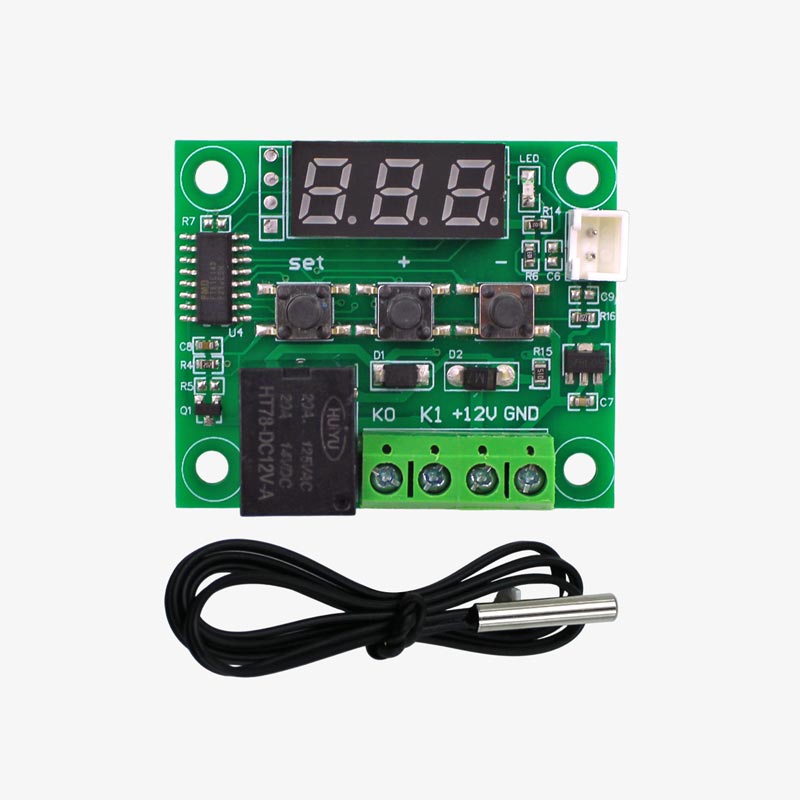

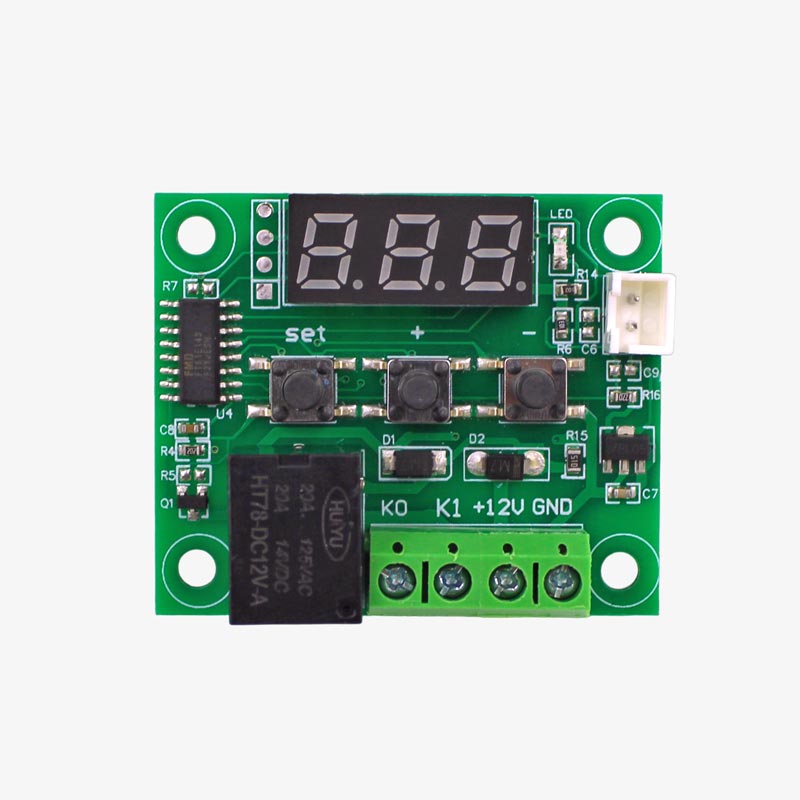

W1209 thermostat module has a temperature sensor, keys, LED display, relay and requires DC 12V power supply. It is an affordable, good quality thermostat controller. Thermostats are devices that sense the temperature of a system so that the temperature is maintained at the desired set point or near to it. NTC temperature sensor allows the module to intelligently control varied electrical devices based on the temperature. NTC thermistor has a negative temperature coefficient, which means the resistance decreases with increasing temperature. W1209 has an inbuilt embedded micro-controller, thus not much programming knowledge is required. The module consists of three switches to configure the various parameters including ON and OFF trigger temperatures. The relay can operate at voltages up to a maximum of 240V AC at 5A or 14V DC at 10A to power on. The temperature is displayed in degree centigrade and with the help of 7-segment display and the relay, the state is displayed with the help of the LED present on the W1209 module.

Specifications:

  • Temperature Control Range: -50 ~ 110 C
  • Resolution at -9.9 to 99.9: 0.1 C
  • Resolution at all other temperatures: 1 C
  • Measurement Accuracy: 0.1 C
  • Control Accuracy: 0.1 C
  • Refresh Rate: 0.5 Seconds
  • Input Power (DC): 12V
  • Measuring Inputs: NTC (10K 0.5%)

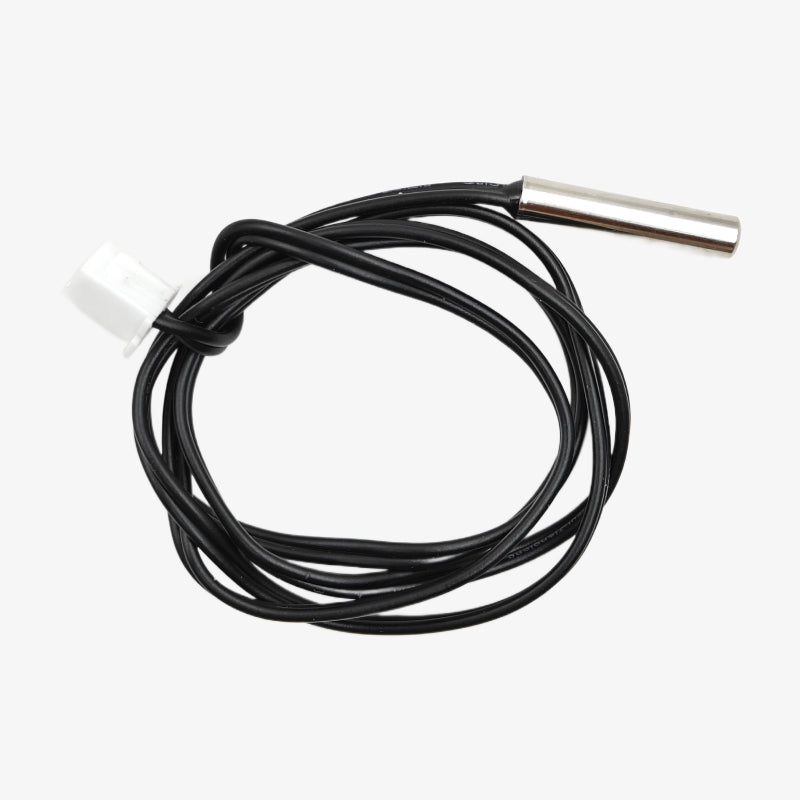

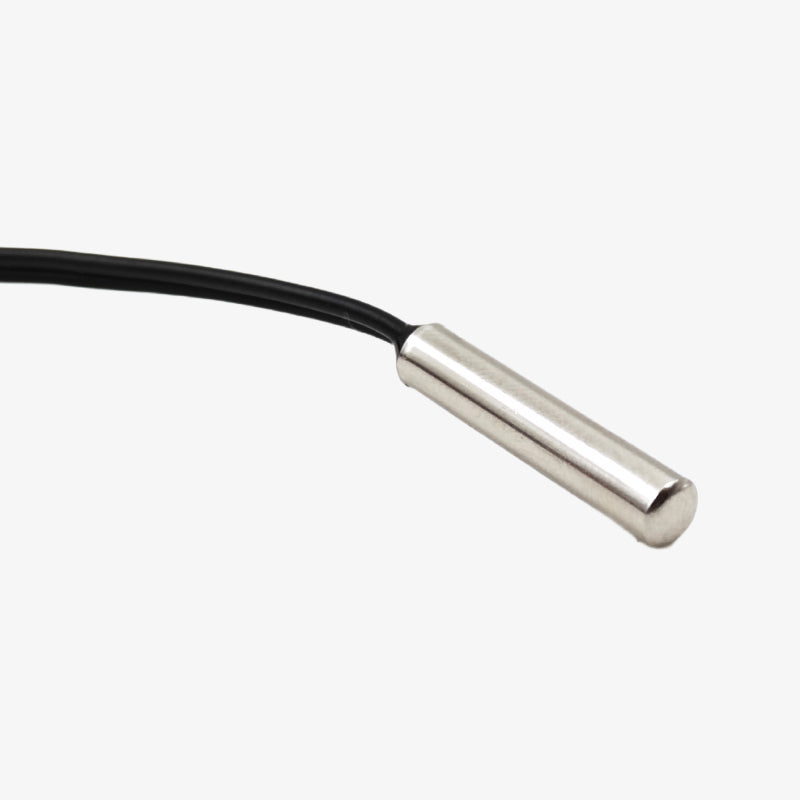

  • Waterproof Sensor: 0.5M
  • Output: 1 Channel Relay Output,
  • Capacity: 10A

Power Consumption:

  • Static Current: <=35mA
  • Current: <=65mA

Environmental Requirements:

  • Temperature: -10 ~ 60 C
  • Humidity: 20-85%

Dimensions:

  • 48mm x 40mm x 14mm
How easy would it be to switch on your fan automatically as and when the temperature increases or decreases? All you need to do is, set a trigger temperature at which the fan should switch on or off. Using W1209 module, which is highly functional and low cost can help you to invent such minor yet amazing automation in your home!

W1209 thermostat module has a temperature sensor, keys, LED display, relay and requires DC 12V power supply. It is an affordable, good quality thermostat controller. Thermostats are devices that sense the temperature of a system so that the temperature is maintained at the desired set point or near to it. NTC temperature sensor allows the module to intelligently control varied electrical devices based on the temperature. NTC thermistor has a negative temperature coefficient, which means the resistance decreases with increasing temperature. W1209 has an inbuilt embedded micro-controller, thus not much programming knowledge is required. The module consists of three switches to configure the various parameters including ON and OFF trigger temperatures. The relay can operate at voltages up to a maximum of 240V AC at 5A or 14V DC at 10A to power on. The temperature is displayed in degree centigrade and with the help of 7-segment display and the relay, the state is displayed with the help of the LED present on the W1209 module.

Specifications:

  • Temperature Control Range: -50 ~ 110 C
  • Resolution at -9.9 to 99.9: 0.1 C
  • Resolution at all other temperatures: 1 C
  • Measurement Accuracy: 0.1 C
  • Control Accuracy: 0.1 C
  • Refresh Rate: 0.5 Seconds
  • Input Power (DC): 12V
  • Measuring Inputs: NTC (10K 0.5%)
  • Waterproof Sensor: 0.5M
  • Output: 1 Channel Relay Output,
  • Capacity: 10A

Power Consumption:

  • Static Current: <=35mA
  • Current: <=65mA

Environmental Requirements:

  • Temperature: -10 ~ 60 C
  • Humidity: 20-85%

Dimensions:

  • 48mm x 40mm x 14mm
