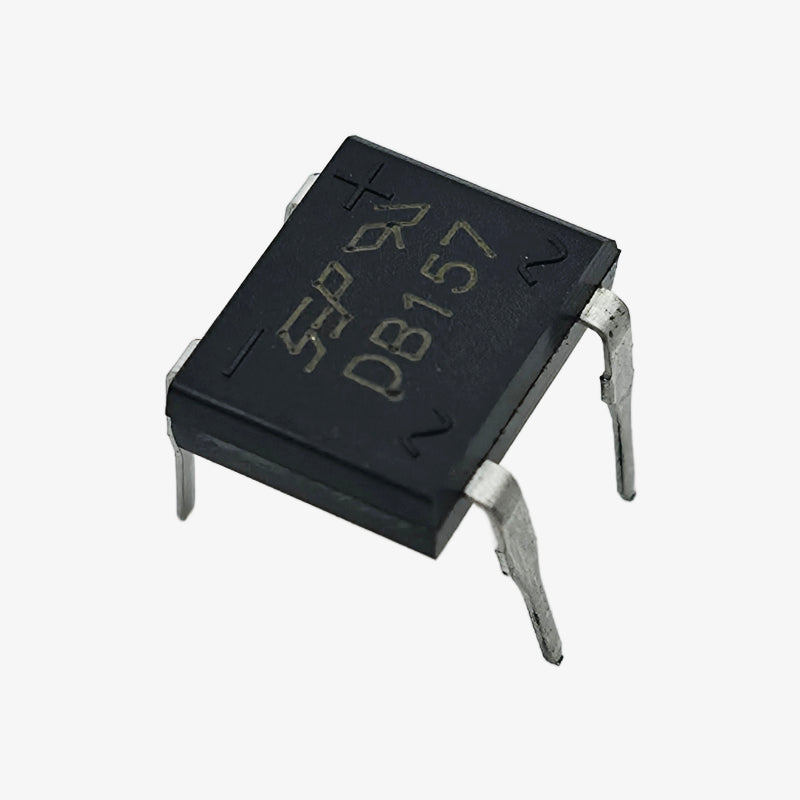

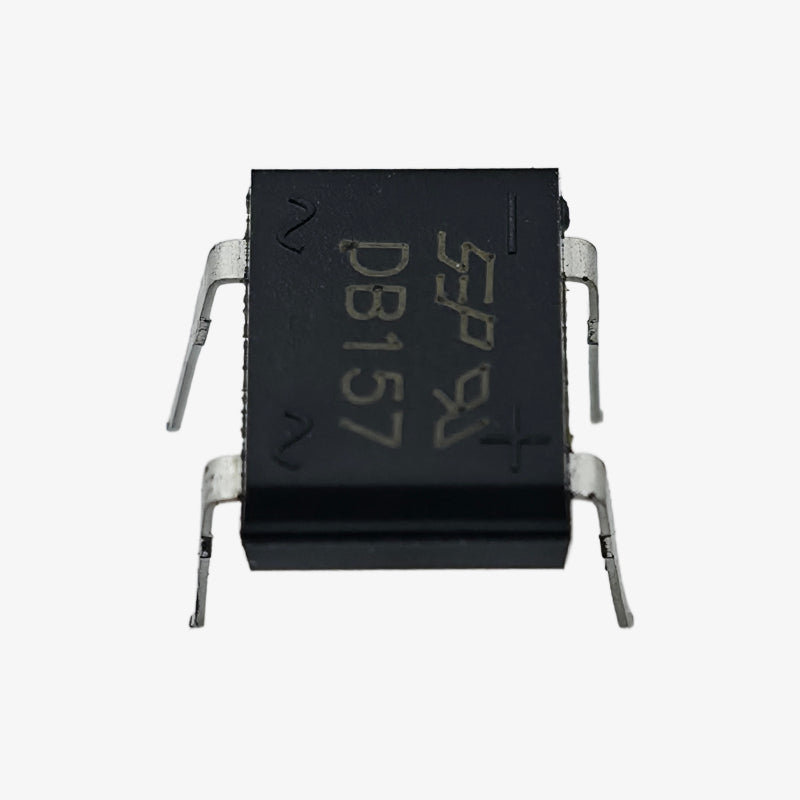

DB157 1.5A 1000V Single Phase Bridge Rectifier IC - 4-Pin DIP Package

The DB157 Bridge Rectifier 1.5A is a reliable through-hole rectifier designed for AC to DC conversion in low-power applications. Built with a glass-passivated die and molded plastic body, it ensures excellent thermal stability and surge resistance. Ideal for adapters, control systems, and general power circuits requiring robust rectification.

CLICK HERE FOR DATASHEET

Features:

1. Glass-passivated die construction for improved performance

2. Low forward voltage drop for efficient power conversion

3. High surge current capability up to 50A

4. UL 94V-0 flame-retardant molded plastic case

5. Leads solderable per MIL-STD-202, Method 208

Specifications:

• Average Rectified Output Current (IO): 1.5A

• Peak Repetitive Reverse Voltage (VRRM): 1000V

• DC Blocking Voltage (VDC): 1000V

• RMS Reverse Voltage (VR(RMS)): 700V

• Peak Forward Surge Current (IFSM): 50A (8.3ms single half sine wave)

• Forward Voltage (VFM): 1.1V

• Reverse Current (IRM) at 25°C: 5µA

• Reverse Current (IRM) at 125°C: 500µA

• Typical Junction Capacitance (Cj): 25pF

• Thermal Resistance Junction to Ambient (RθJA): 40°C/W

• Thermal Resistance Junction to Lead (RθJL): 15°C/W

• Operating Junction Temperature (TJ): -65°C to +150°C

• Storage Temperature Range (TSTG): -65°C to +150°C

Package Includes:

1 × DB157 1.5A 1000V Single Phase Bridge Rectifier Module -  4-Pin DIP Package
