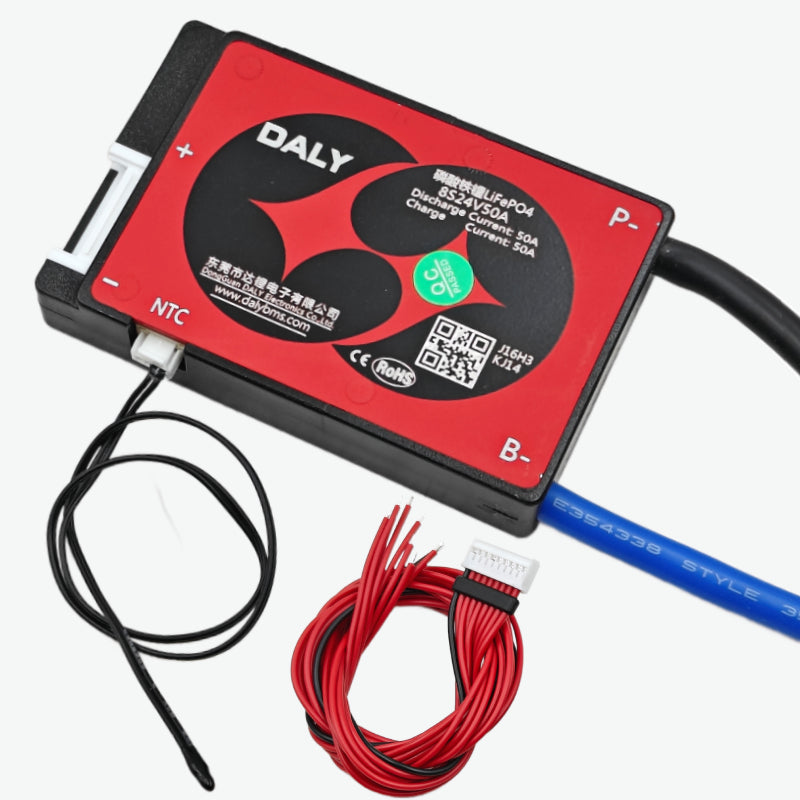

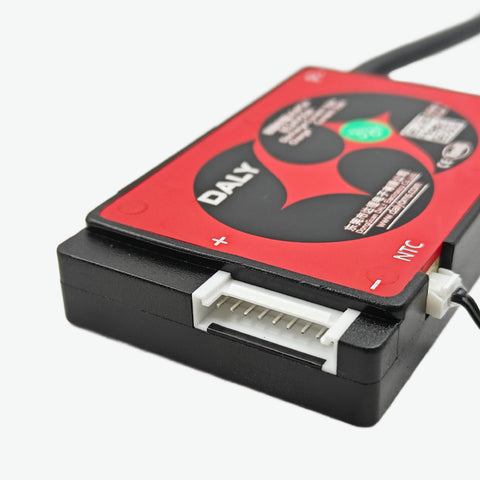

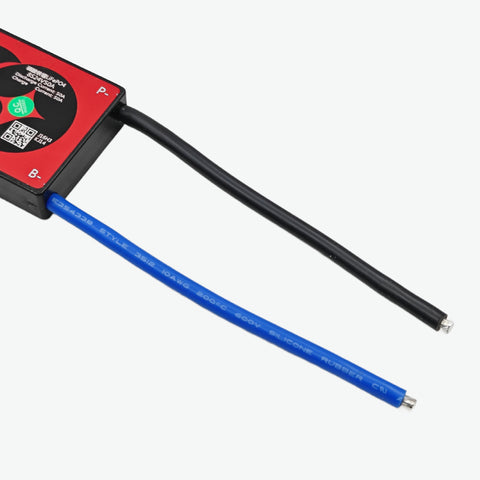

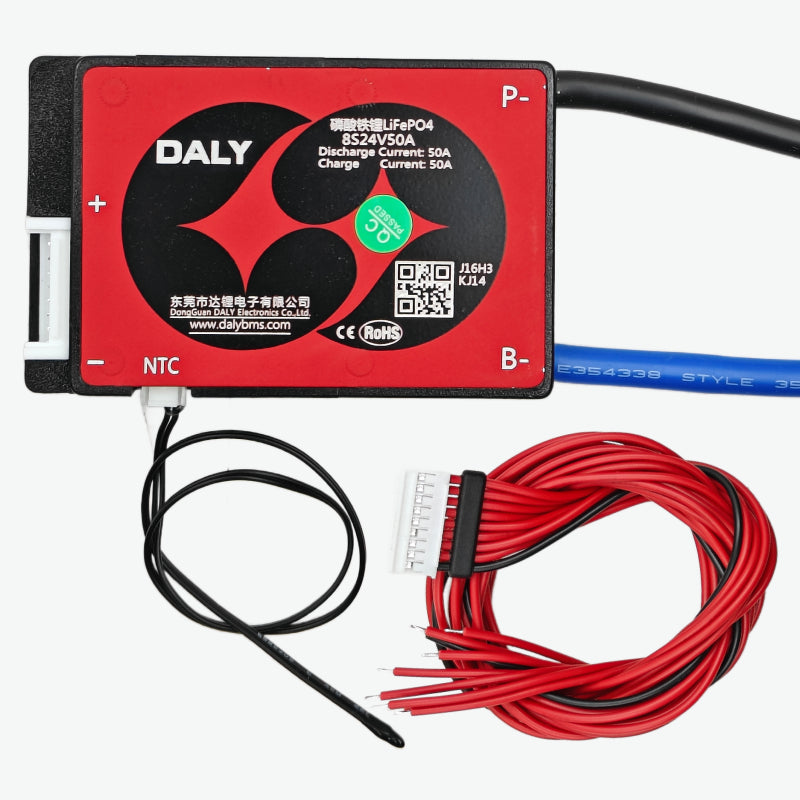

DALY LiFePO4 8S 24V 50A Waterproof Battery Management System - BMS Protection Board

DALY LiFePO4 8S 24V 50A Waterproof Battery Management System - BMS Protection Board is a high-reliability battery management system engineered for 8-series LiFePO4 battery packs, providing comprehensive protection, stable high-current performance, and cell balancing, supporting a nominal 25.6V battery system with 50A continuous charge and discharge capability, precise voltage protection thresholds, and an IP65 waterproof design suitable for demanding energy storage, solar, EV, and industrial applications.

DALY LiFePO4 8S 24V 50A Datasheet

Features:

1. Designed for 8S LiFePO4 (LFP) battery packs
2. 50A continuous charge and discharge current support
3. Integrated cell balancing for extended battery life
4. Accurate over-voltage and discharge protection
5. IP65 waterproof design for harsh environments
6. Stable operation across a wide temperature range
7. Suitable for high-power battery systems

Specifications:

• Product Type: Battery Management System (BMS)
• Battery Type: LiFePO4 (LFP)
• Series Configuration: 8S
• Nominal Voltage: 25.6 V (3.2 V × 8 cells)
• Charge Voltage: 29.2 V (3.65 V × 8 cells)
• Discharge Cutoff Voltage: 20 V (2.5 V × 8 cells)
• Continuous Charge Current: 50 A
• Continuous Discharge Current: 50 A
• Over-Voltage Protection: 3.75 ± 0.05 V per cell
• Balancing Current: 70 ± 25 mA
• Waterproof Rating: IP65
• Operating Temperature: -20°C to 60°C
• Applications: LiFePO4 battery packs, solar energy storage systems, electric vehicles, backup power systems, industrial battery protection

Explore wide range of DALY Smart BMS >

Package Includes:

1 × DALY LiFePO4 8S 24V 50A Waterproof Battery Management System – BMS Protection Board
