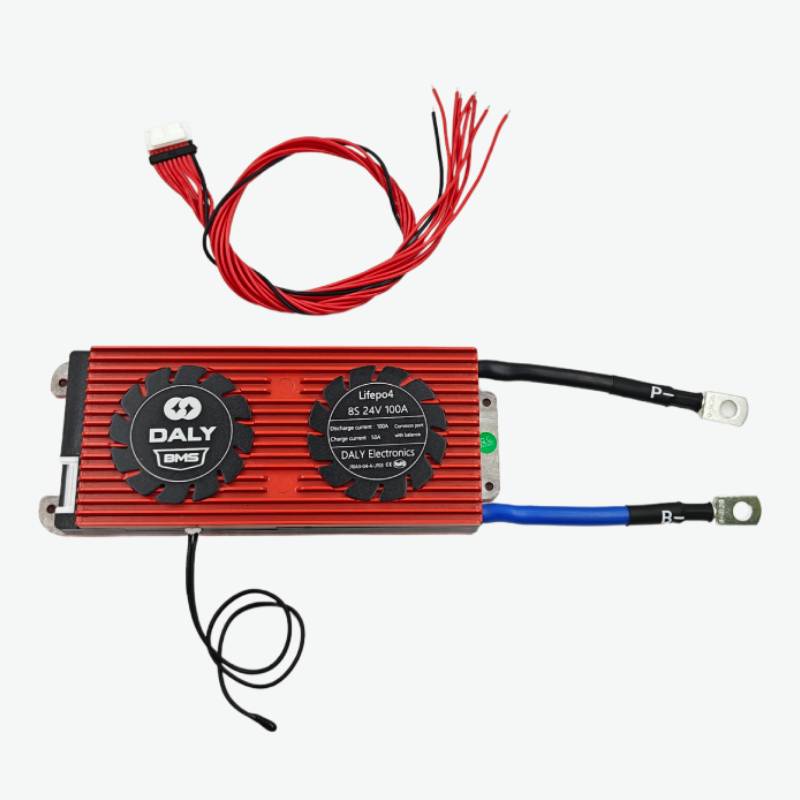

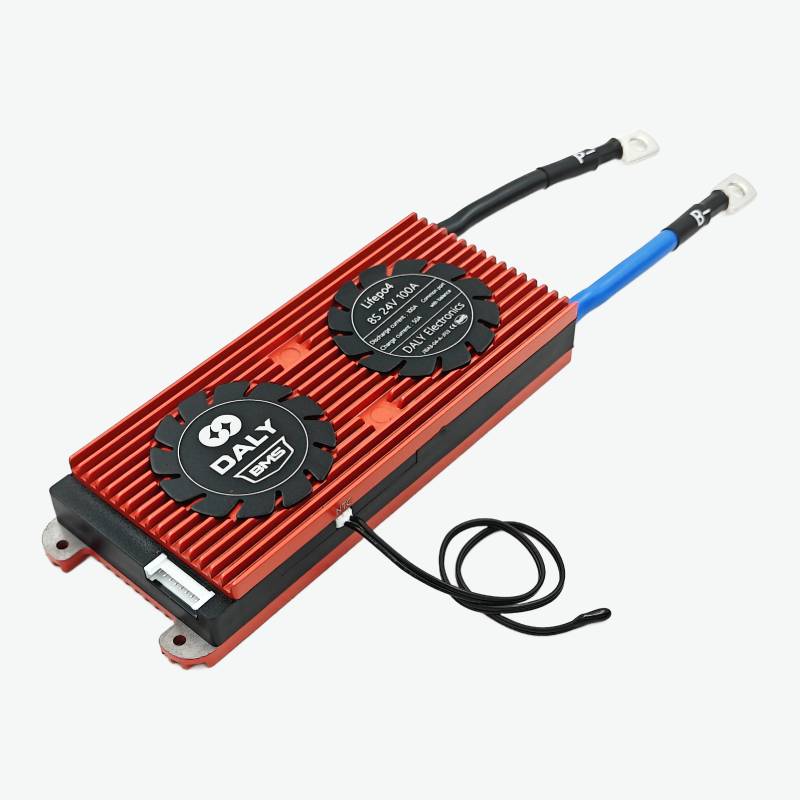

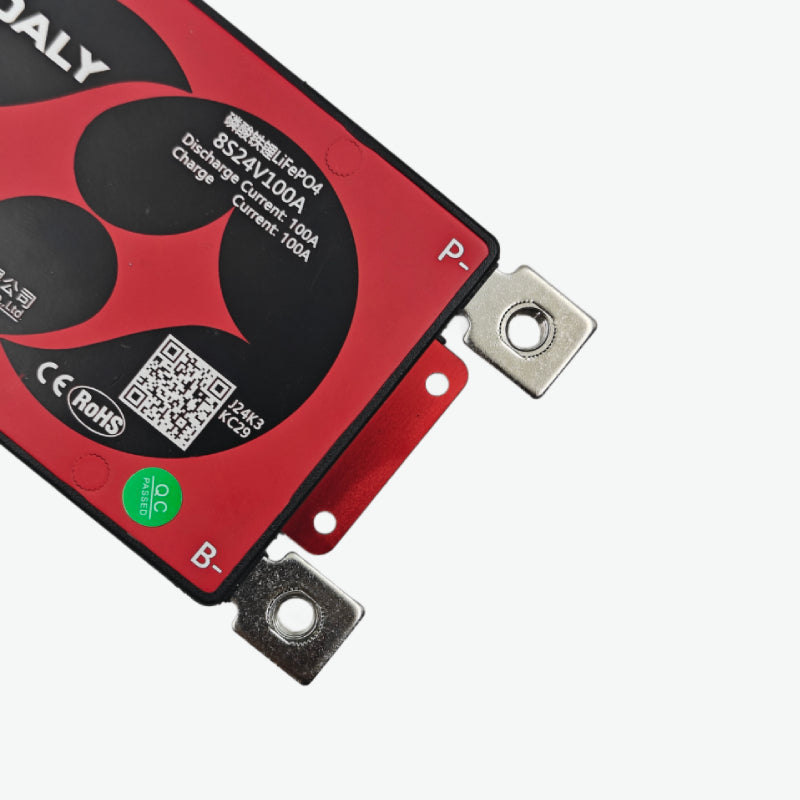

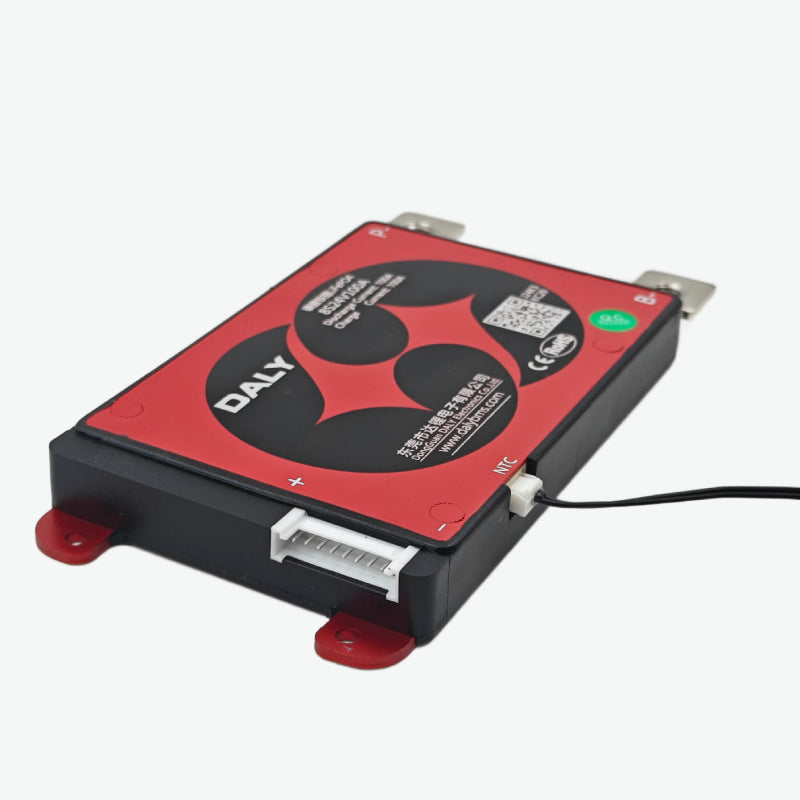

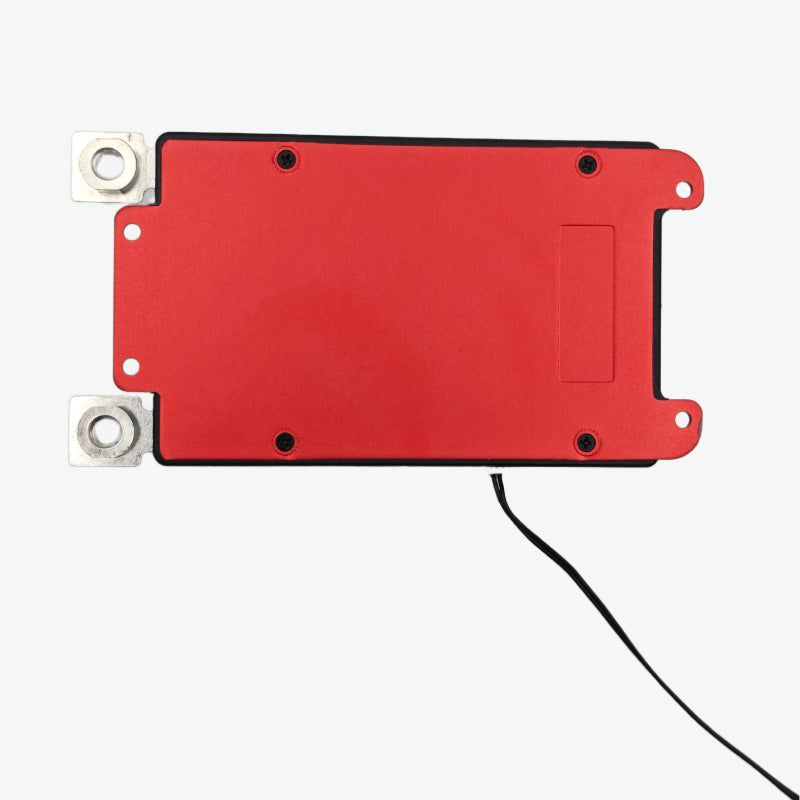

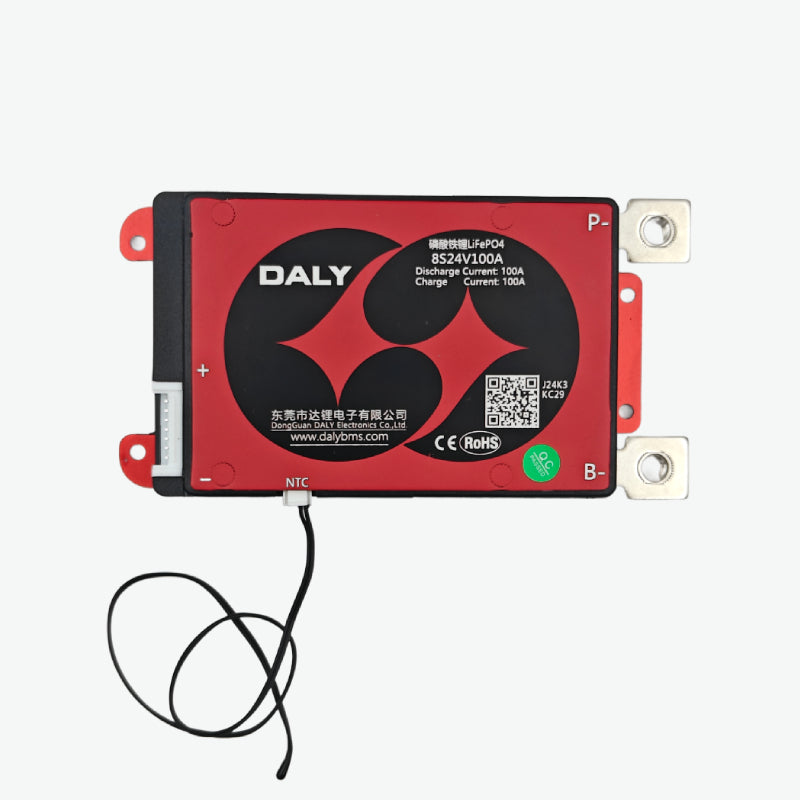

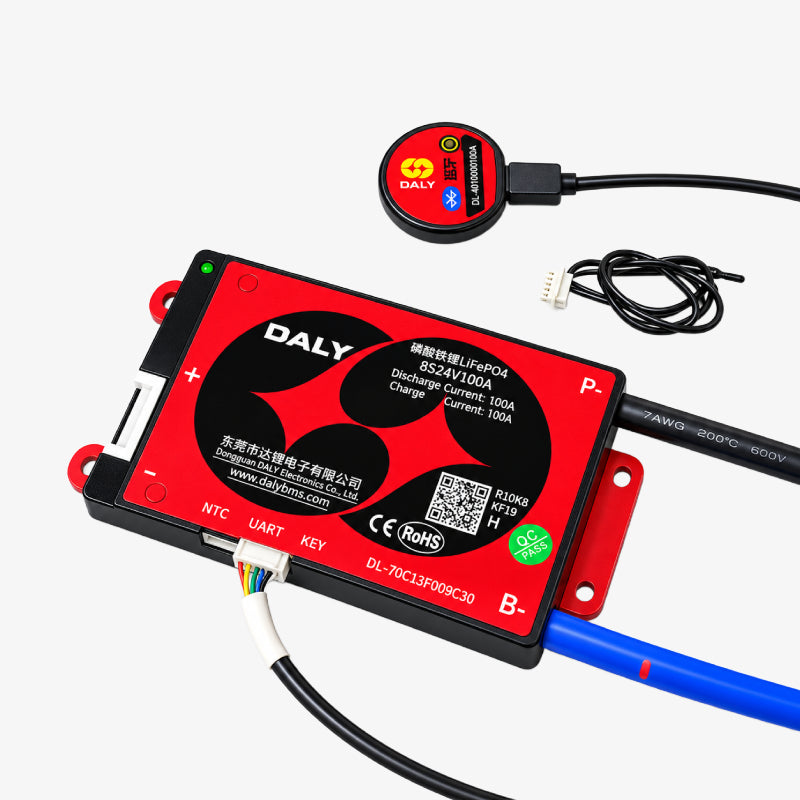

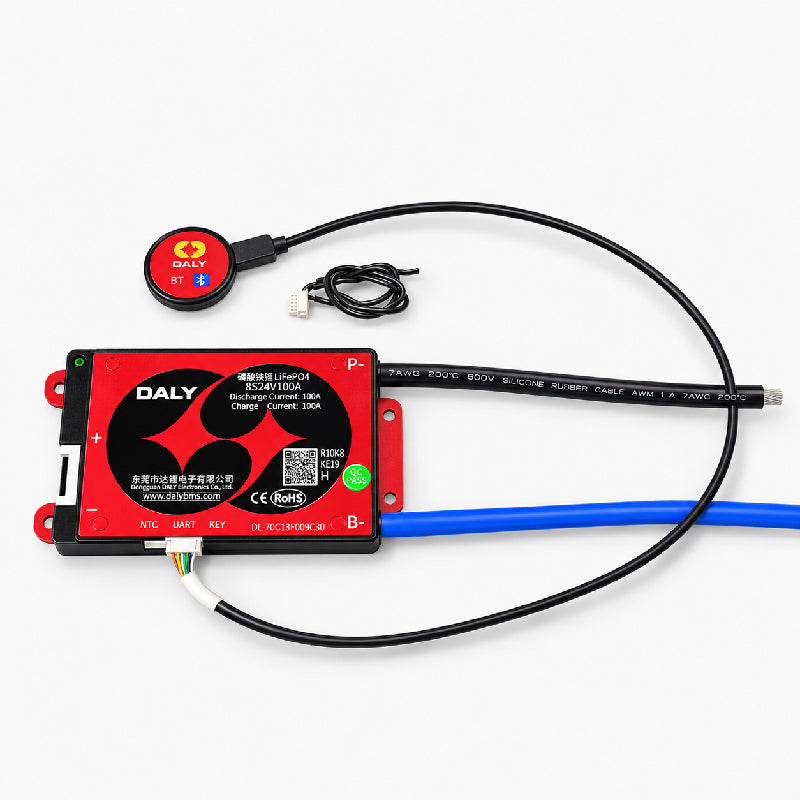

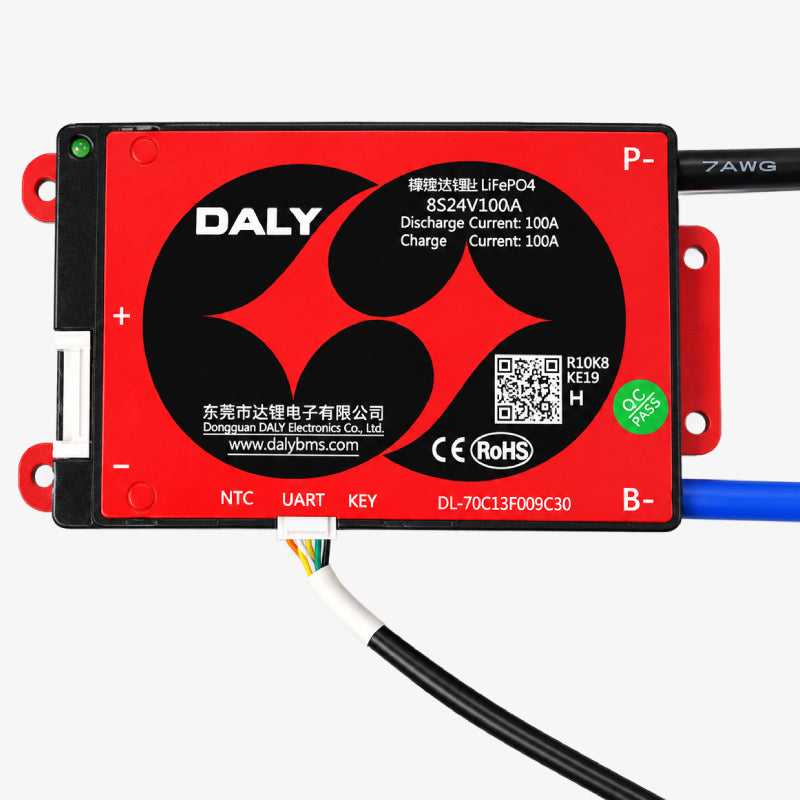

DALY LiFePO4 8S 24V 100A Waterproof Battery Management System - BMS Protection Board
SKU:
BCL-QC3069
Availability:
10
In Stock
- Rs. 2,900.00
Rs. 3,199.00- Rs. 2,900.00
- Unit price
- per
Subtotal:
Rs. 2,900.00
Description
xDALY LiFePO4 8S 100A is a Lithium Battery Protection Board (PCM BMS) designed for balance charging in LiFePO4 battery packs. It utilizes an A-level protective integrated circuit (IC) to ensure robust safety and efficient performance. With a 100A continuous discharge current, it is an ideal solution for high-demand applications that require reliable power. The board incorporates a power MOSFET with high voltage resistance and low internal resistance, and its integrated heat sink significantly enhances cooling performance, ensuring the system operates safely even under high loads.
DALY LiFePO4 8S 100A Waterproof BMS Features:
- State of charge calculations.
- Cell over-voltage and under-voltage protection.
- Intelligent passive battery balancing for optimal battery health.
- Fully sealed waterproof design (IP65 rated) providing dustproof, shockproof, and anti-squeezing protection for demanding environments.

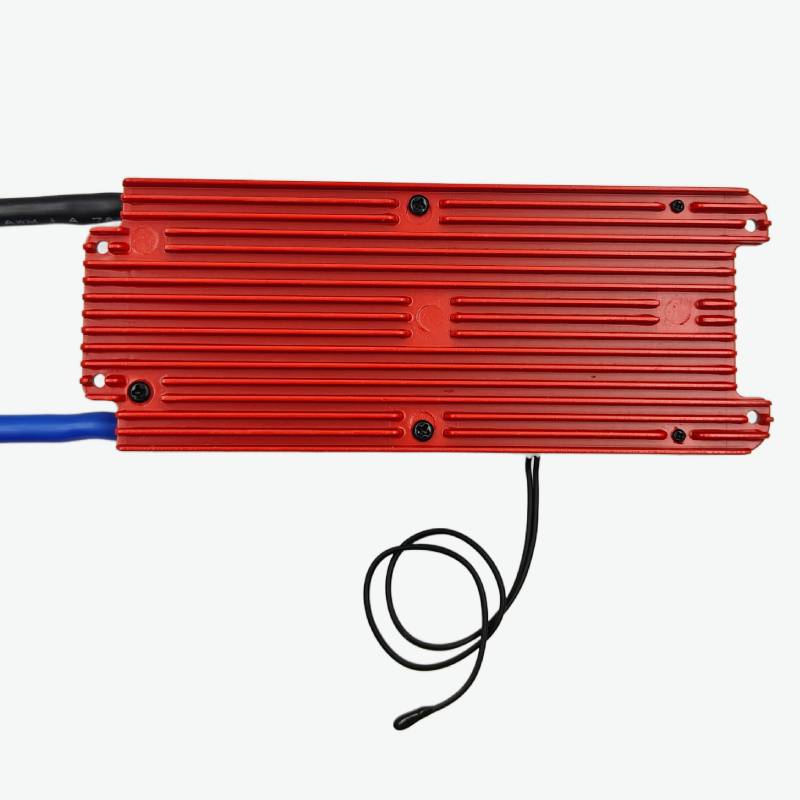

- Aluminum heat sink for enhanced heat dissipation.
DALY LiFePO4 8S 100A Waterproof BMS Specifications:
| Specification | Value |
|---|---|
| Model | LiFePO4 8S 100A Waterproof |
| Charge Voltage (V) | 29.2V |
| Charge Current (A) | 50A |
| Balance Current (mA) | 30±5 |
| Balance Detect Voltage (V) | 3.50V |
| Working Current (uA) | 100uA |
| Overcharge Detect Voltage (V) | 3.65V ±0.05 |
| Overcharge Release Voltage (V) | 3.50V ±0.05 |
| Over-Discharge Detect Voltage (V) | 2.00V ±0.1 |
| Over-Discharge Release Voltage (V) | 2.50V ±0.1 |
| Working Temperature Range (°C) | -20°C to 60°C |
| Length (mm) | 125mm |
| Width (mm) | 65mm |
| Height (mm) | 13mm |
Package Includes:

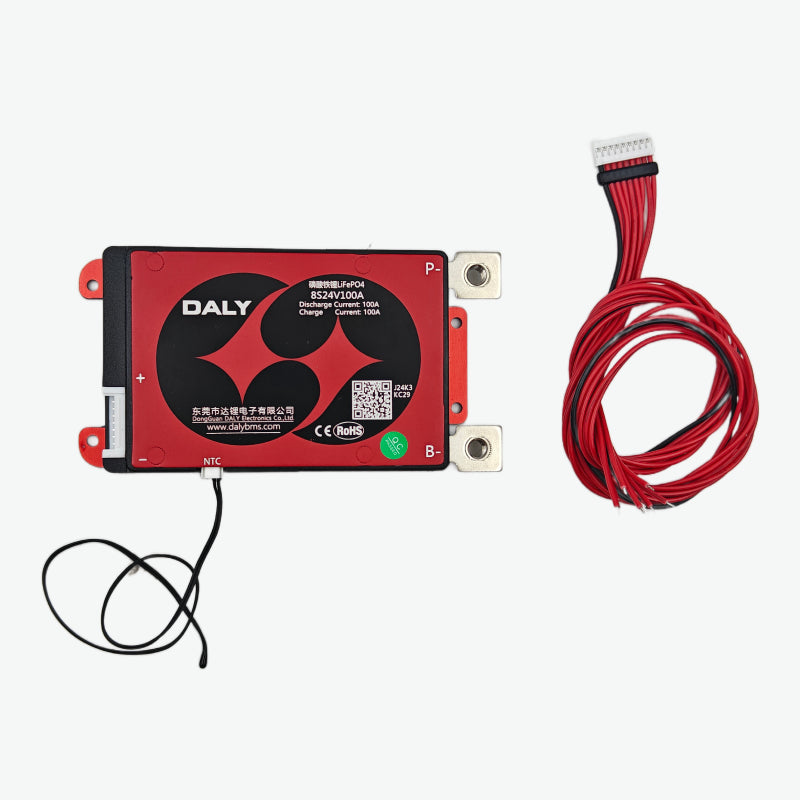

1 x DALY LiFePO4 8S 100A Waterproof Battery Management System - BMS Protection Board
Shipping & Return
xReturns Policy
Due to the type of products we sell, we accept limited returns. Below are the conditions where we can accept a return request.
1. Damaged During Shipment
If you receive a product damaged during shipment, please notify us within 3 days of receiving the product, supported by proper pictures and a description. Once our support team accepts the return, we will provide a replacement or a complete refund, including the return shipping cost.
2. Wrong Item Shipped
If your item looks different from what is shown in the image on our website, we will take the item back and provide a refund or replacement as per your choice.
Limitation of Returns
We don’t accept returns for products damaged due to improper use. Moreover, we don’t accept returns if the ordered product is not suitable for a specific application. Please read the product specifications and datasheet carefully before placing an order. Returns are accepted only within 3 days from the date of delivery.
Shipping
We ship all over India with free shipping on all prepaid orders above ₹500. For Cash on Delivery (COD) orders, ₹80 will be charged for orders below ₹599 and ₹30 for orders above ₹599.
For any questions related to shipping, please contact our support team at support@quartzcomponents.com.
Note: The minimum order value for COD orders is ₹500.
Review
xCustomer Reviews
Based on 1 review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(1)
G

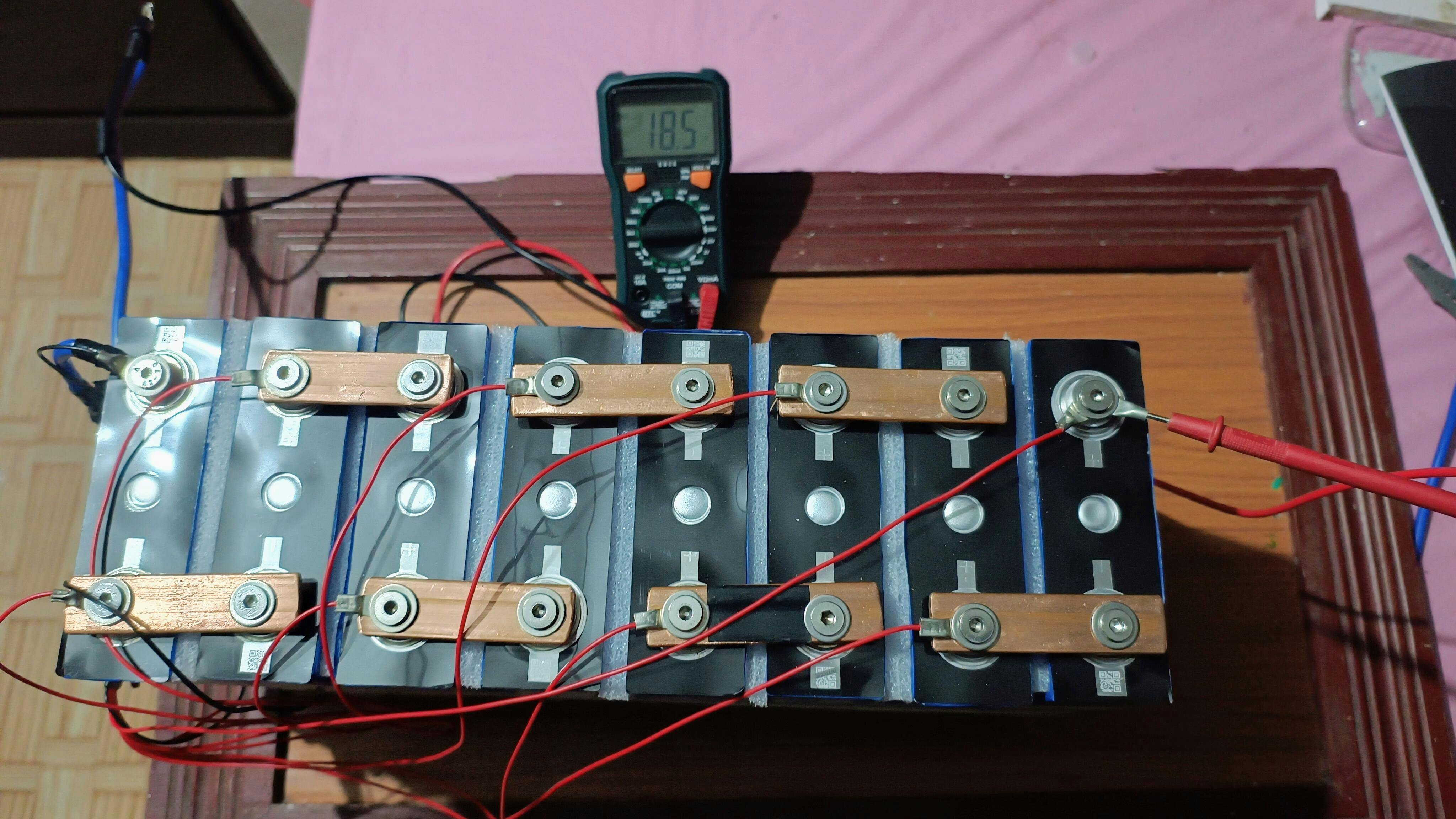

One BMS (24V 8S 100A) , out of two I purchased from you is faulty. It shows only 18.6 V instead of 26.2 when connected series of 8 LiFePO4 prismatic cells of 3.2V each. Please do replace the faulty.
