DALY LiFePO4 4S 12V 60A Waterproof Smart BMS with Communication, Alarm & Switch
SKU:
BCL-QC6335
Availability:
3
In Stock
-
- Rs. 2,432.00
- Unit price
- per
Subtotal:
Rs. 2,432.00
Description
xDALY LiFePO4 4S 12V 60A Waterproof Smart BMS with Communication, Alarm & Switch is a smart battery management system designed for 4-series LiFePo4 battery packs with a nominal 12.8V battery configuration. It provides up to 60A current handling and incorporates battery protection, temperature monitoring, communication functionality, alarm indication, and external ON/OFF control. The waterproof construction is suitable for demanding battery-pack installations, while the included communication harness, antenna, buzzer, temperature sensors, switch, and power cables provide the accessories required for installation and monitoring. DALY documentation supports Smart BMS communication, temperature sensing, key-switch activation, and protection parameter monitoring through its communication system.
DALY LiFePO4 4S 12V 60A Waterproof Smart BMS with Communication, Alarm & Switch Datasheet
Features:
- Designed for 4-series LiFePO4 battery packs
- 12V-class LiFePO4 battery system
- 60A rated current
- Waterproof BMS construction
- Smart communication functionality
- External communication antenna included
- Signal/communication wire harness included
- Audible buzzer/alarm function
- External ON/OFF power switch
- NTC temperature monitoring
- Additional temperature sensor with cable
- Battery protection and monitoring functions
- Suitable for custom LiFePO4 battery-pack assemblies
- Includes power and battery connection harnesses for installation
Specifications:
| Specification | Value |
|---|---|
| Brand | DALY |
| Product Type | Smart Battery Management System |
| Battery Chemistry | LiFePO4 |
| Battery Configuration | 4S |
| Battery System | 12V Class |
| Nominal Battery Voltage | 12.8V |
| Rated Current | 60A |
| BMS Type | Smart / Communication |
| Protection Type | Battery Protection and Monitoring |
| Temperature Monitoring | NTC Temperature Sensor |
| Alarm Function | Buzzer / Alarm Siren |
| Power Control | External ON/OFF Switch |
| Communication | Supported |
| Enclosure Type | Waterproof |
| Application | 4S LiFePO4 Battery Packs |
Explore wide range of DALY Smart BMS >

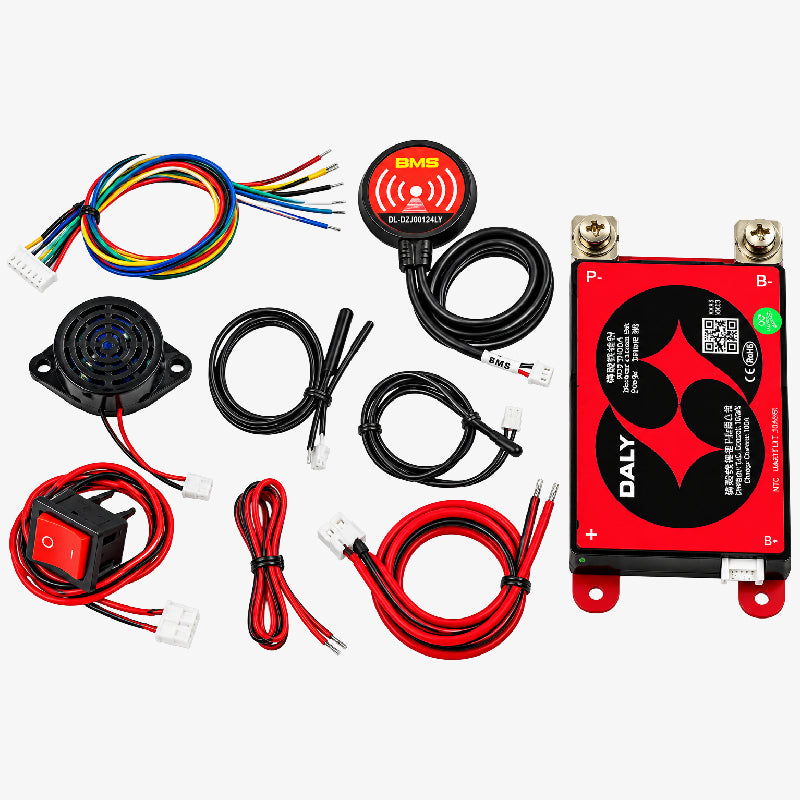

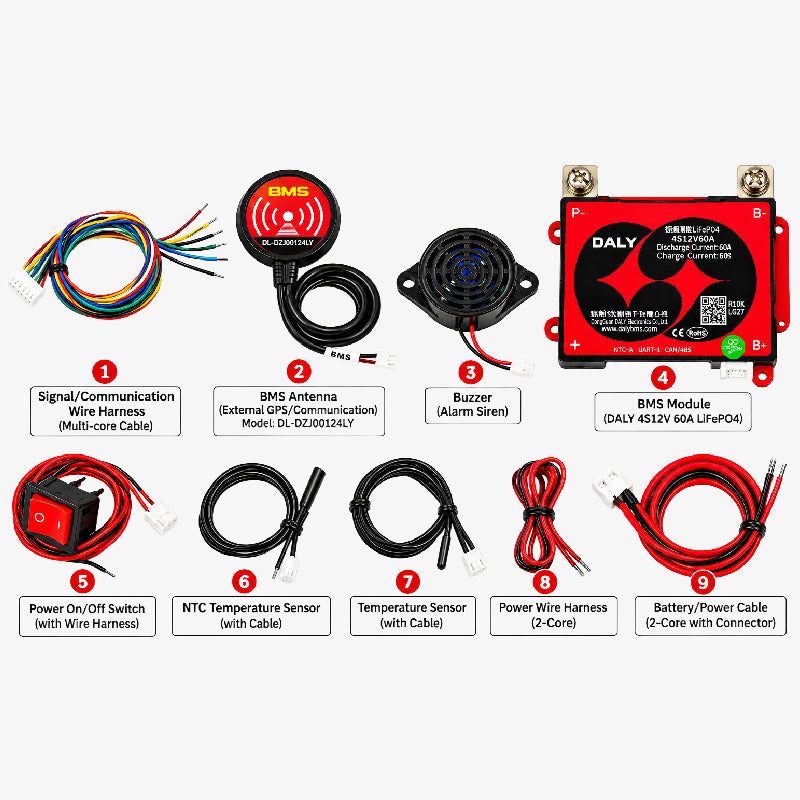

Package Includes:
1 × Signal/Communication Wire Harness
1 × BMS Antenna (External GPS/Communication)
1 × Buzzer / Alarm Siren

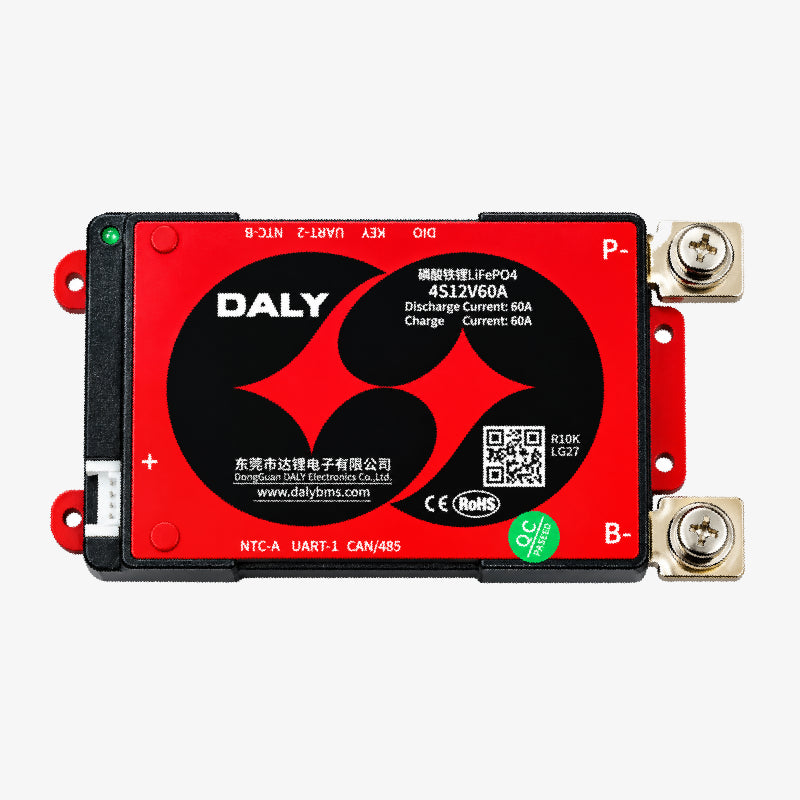

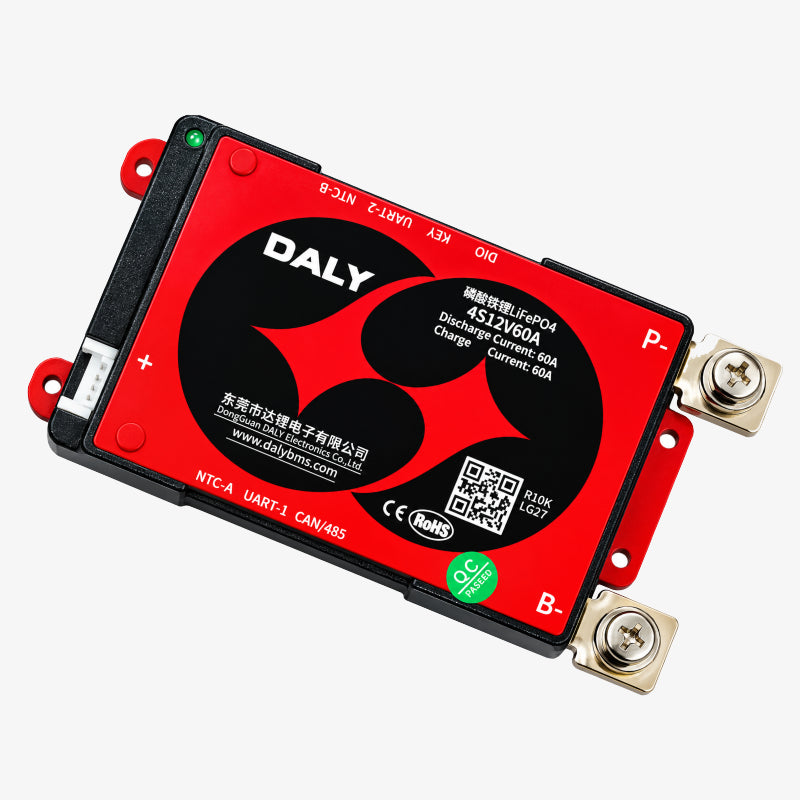

1 × DALY 4S 12V 60A LiFePO4 BMS Module
1 × Power ON/OFF Switch with Wire Harness
1 × NTC Temperature Sensor with Cable
1 × Temperature Sensor with Cable
1 × 2-Core Power Wire Harness
1 × 2-Core Battery/Power Cable with Connector
