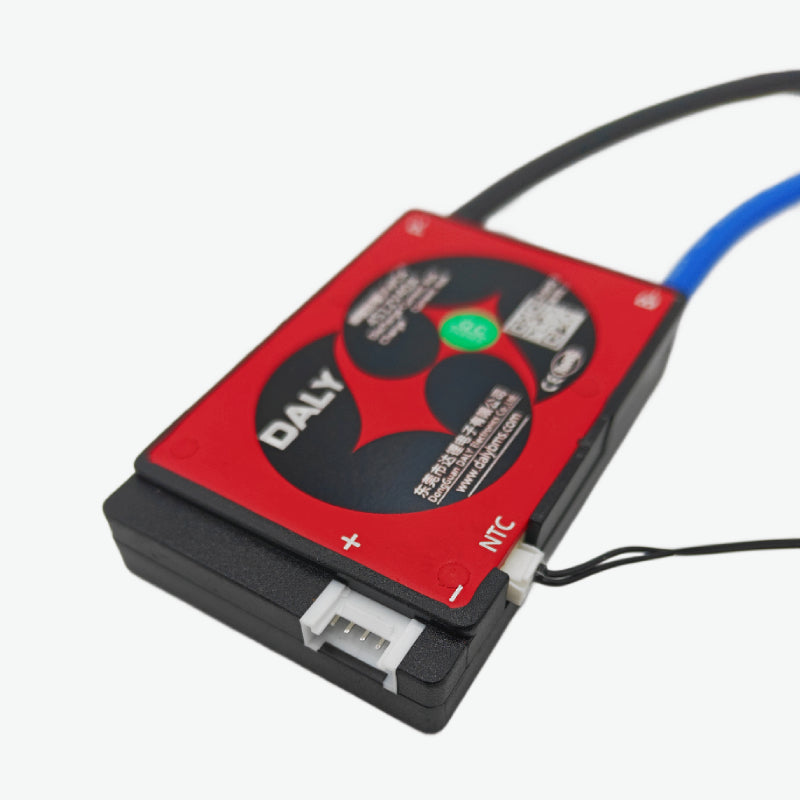

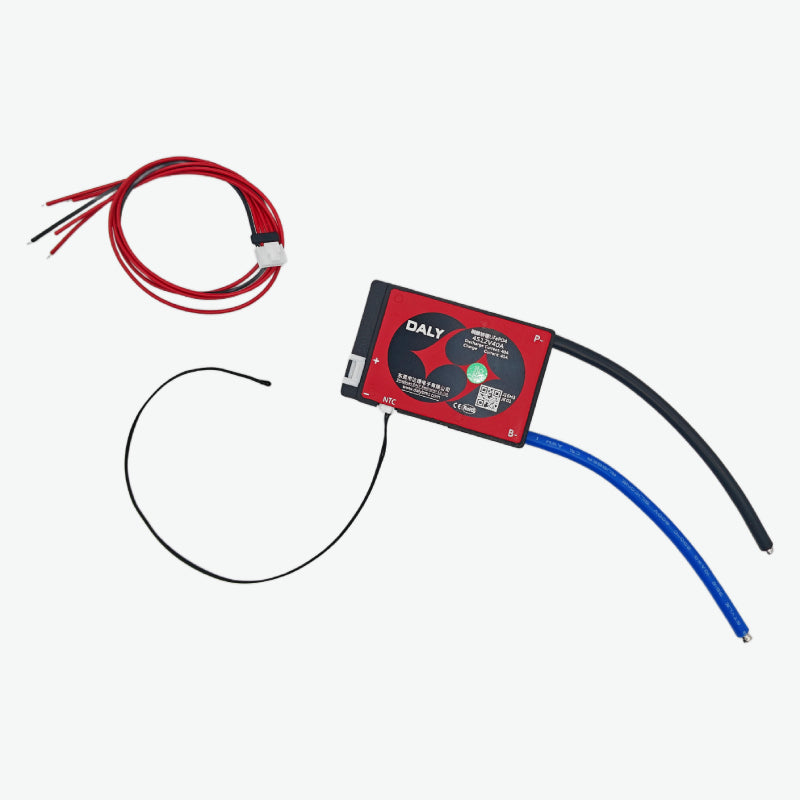

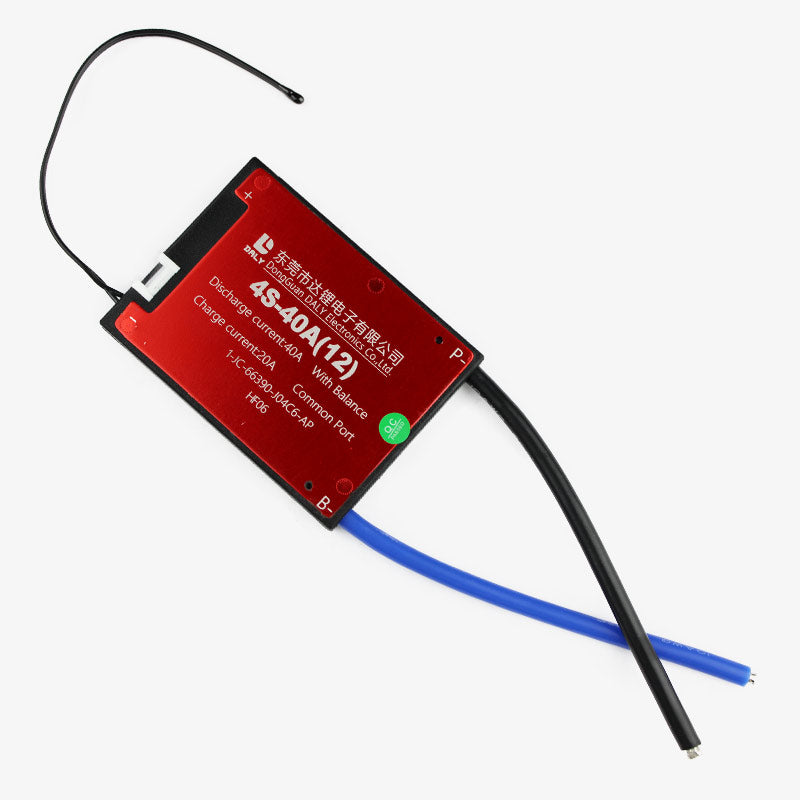

DALY LiFePo4 4S 12V 40A BMS

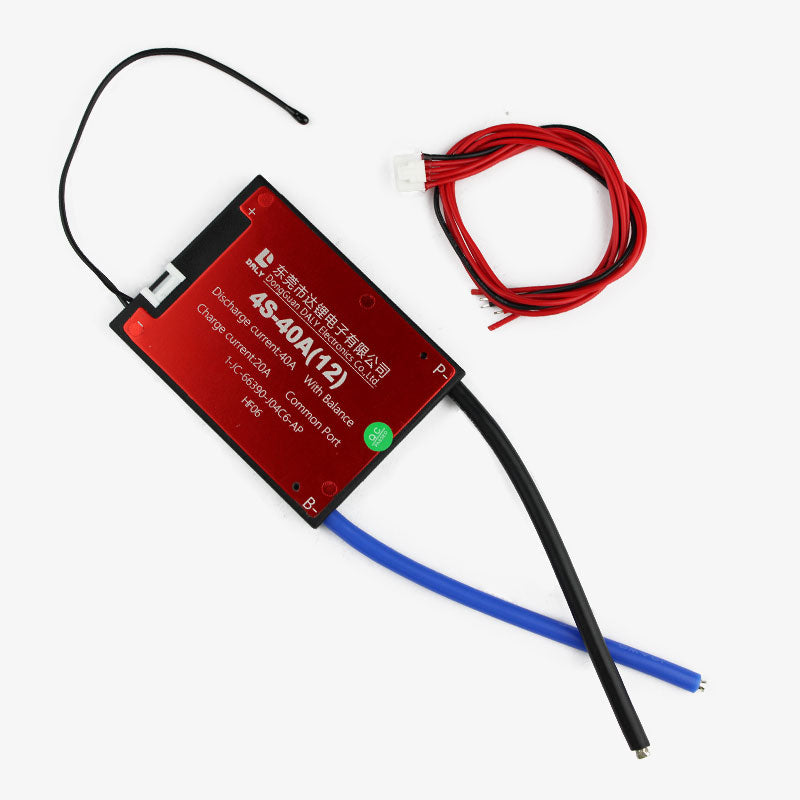

DALY LiFePo4 4S 12V 40A BMS Board
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

DALY LiFePo4 4S 12V 40A Waterproof Battery Management System - BMS Protection Board

QC1429
21 In stock
Rs. 999.00 (Exc. GST)
Rs. 999.00

Daly Lifepo4 4S 12V 40A  Battery Management System Circuit is an 4 Cell in Series 12V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.

Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Features:

  1. State of charge calculations.
  2. Cell over-voltage and under-voltage protection.
  3. Intelligent battery balancing (passive).
  4. Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.

Specification :

Balance Current(mA)

30±5

Balance Detect Voltage(V)

3.5

Cable Size (AWG)

10

Charge Current(A)

20

Charge Voltage(V)

14.6

Height (mm)

9

Length (mm)

81.9

Model

4S 12V 40A

Over Discharge Detect(V)

2.2±0.05

Over Discharge Release(V)

Off load

Overcharge Detect Voltage(V)

3.75±0.05

Overcharge Release Voltage(V)

3.55±0.05

Width (mm)

61.2

Working Current(uA)

100

Working Temperature Range (°C)

-20 to 70



Package Includes:

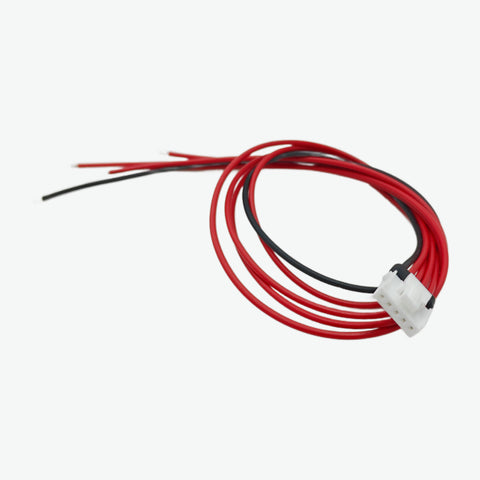

1 x Daly 4S 12V 40A Battery Management System
