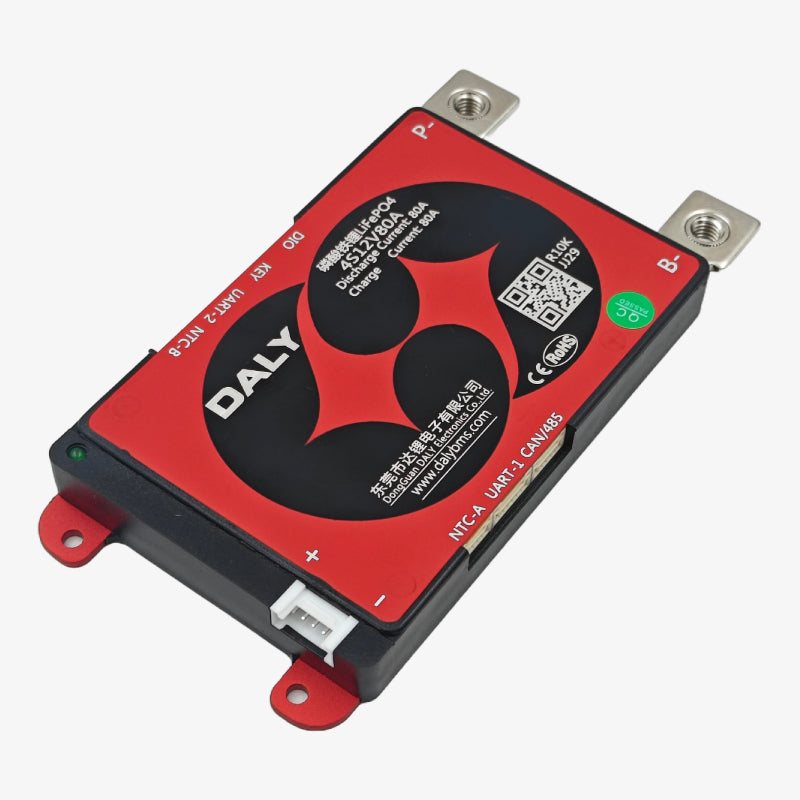

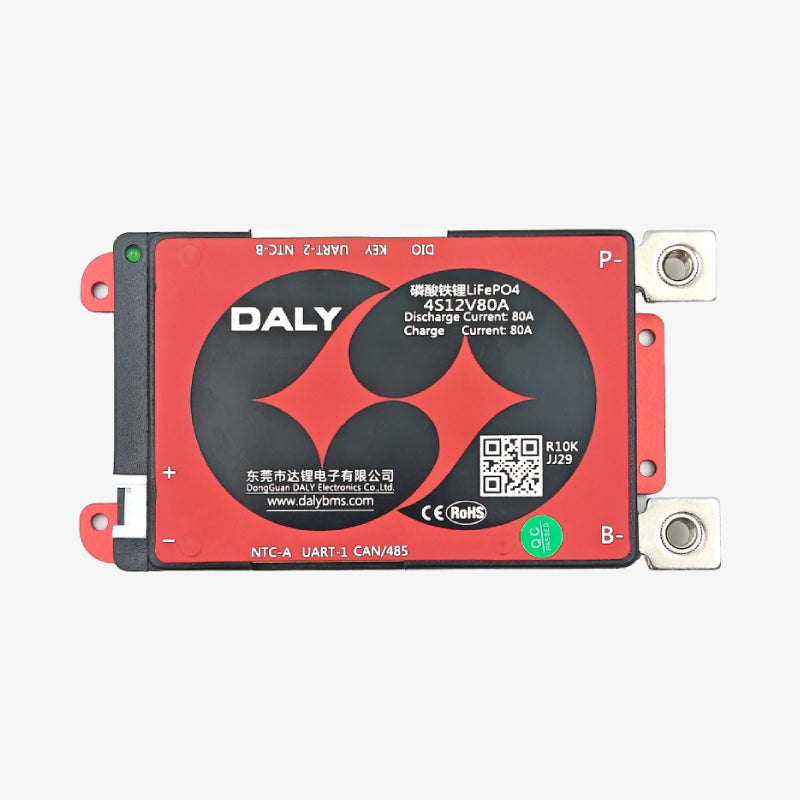

The DALY Smart BMS is a comprehensive Battery Management System designed to monitor and protect lithium-based battery packs (LiFePO₄ and others). It features intelligent protection, real-time data communication, and multiple interface ports to ensure battery health, safety, and remote diagnostics. The system integrates UART, CAN, and RS-485 communication along with Bluetooth support for enhanced connectivity. Passive balancing is included to maintain cell voltage uniformity and extend battery life.
Key Features:
- Supports various lithium battery chemistries including LiFePO₄ (configurable series)
- Multiple communication interfaces: UART, Bluetooth, CAN, and RS-485
- Integrated protection against over-voltage, under-voltage, overcurrent, short-circuit, and over-temperature
- Passive balancing to improve performance and prolong battery pack lifespan
- Real-time data monitoring and parameter configuration via app or external controller
- Digital I/O and switch control for custom integration and alerts
- Ideal for solar energy systems, EVs, powerwalls, and industrial battery management
Specifications:
| Specification | Value |
|---|---|
| Model | DALY Smart BMS |
| Supported Battery Type | LiFePO₄ (configurable series) |
| Nominal Voltage | Configurable (e.g., 12.8V for 4S) |
| Charge Voltage | Depends on configuration |
| Charge Current | 40A |
| Continuous Discharge Current | 80A |
| Balance Current | 30 ±5 mA |
| Overcharge Detect Voltage | 3.75 ±0.05V per cell |
| Overcharge Release Voltage | 3.55 ±0.05V per cell |
| Over-discharge Detect Voltage | 2.20 ±0.1V per cell |
| Over-discharge Release Voltage | 2.50 ±0.1V per cell |
| Communication Protocols | Bluetooth, UART, CAN, RS-485 |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions(mm) | 83 x 60 x 10 |

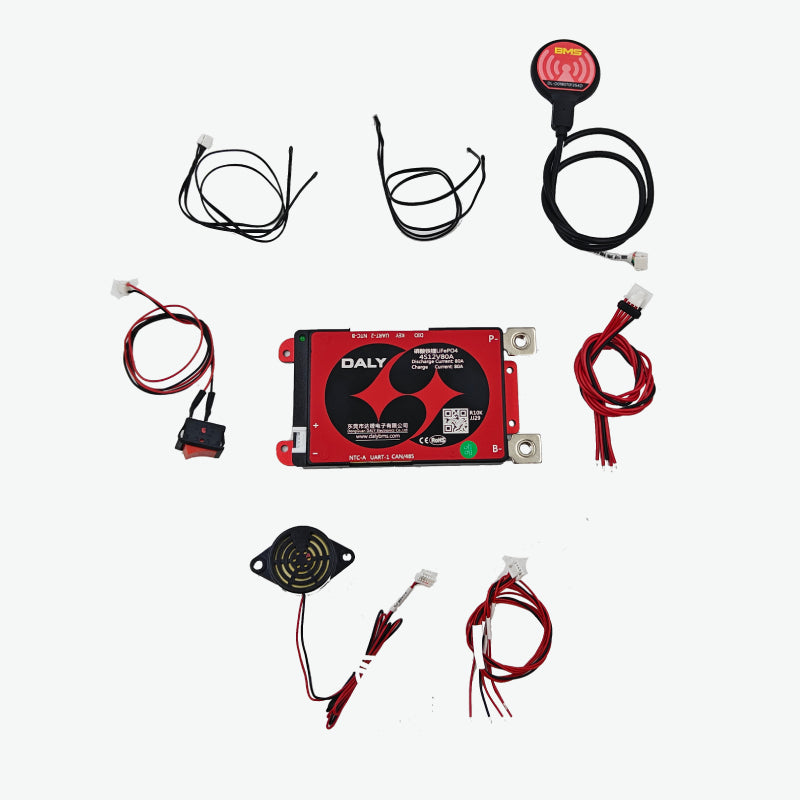

Package Includes:
1 x DALY Smart BMS (Enclosed Module)
1 x Bluetooth Communication Module
1 x Buzzer/Alarm Module
1 x Switch with Connector
4 x Temperature Sensors (NTC-A- & NTC-B)
1 x Main Power Cable (Red & Black)
1 x Communication/Signal Cable (for UART & CAN/RS-485)
