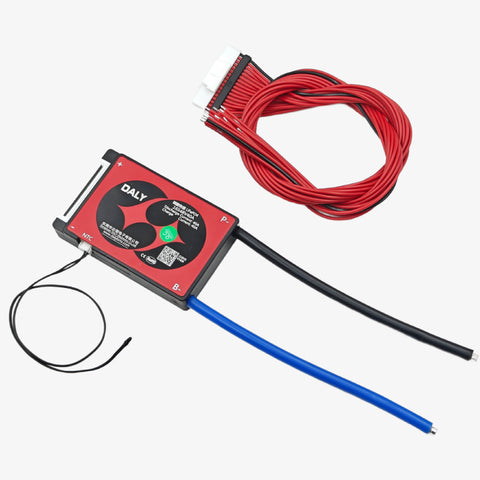

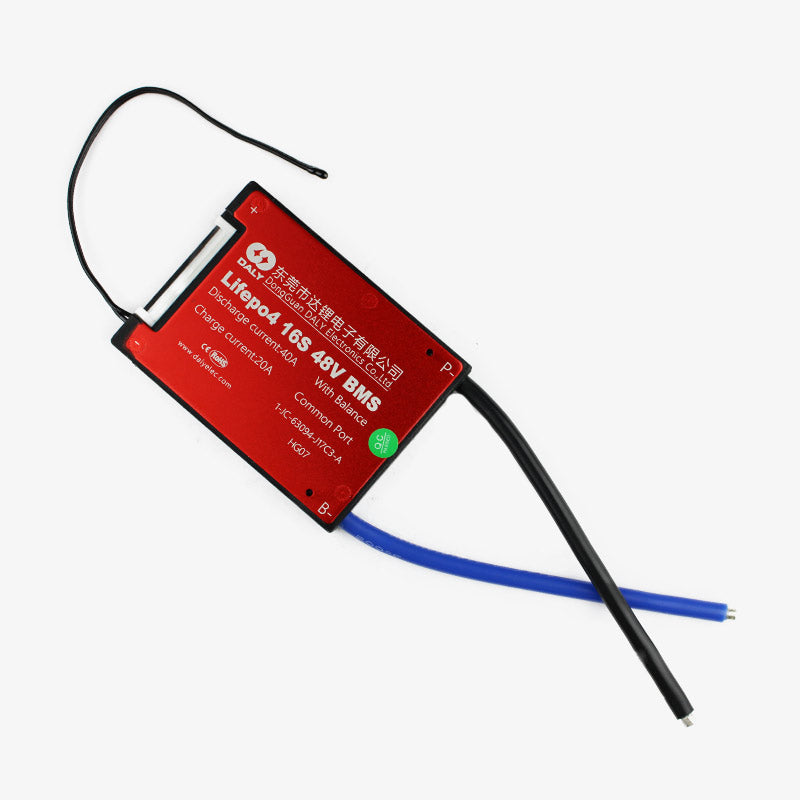

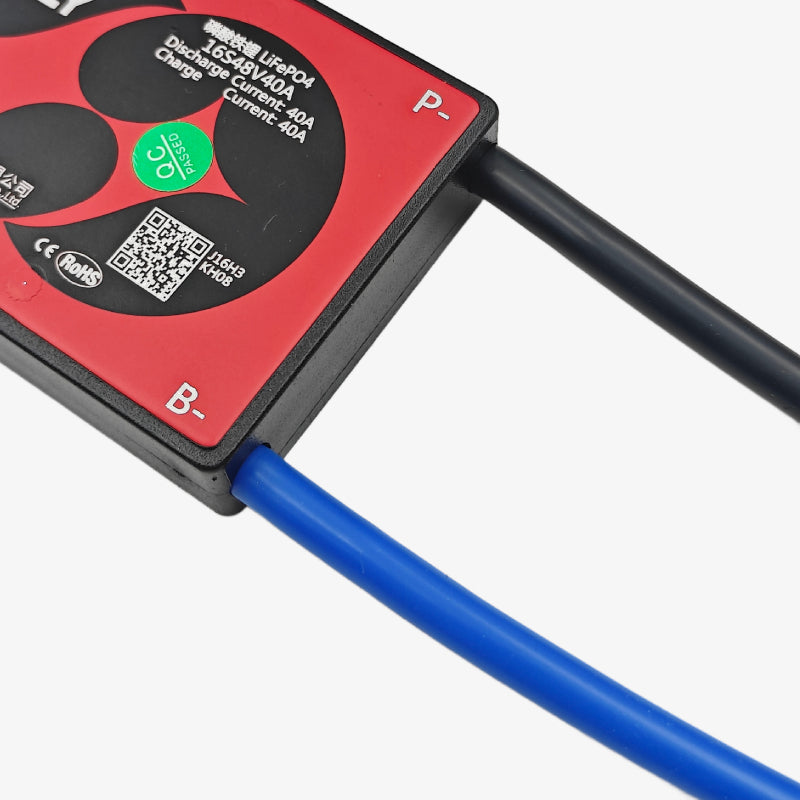

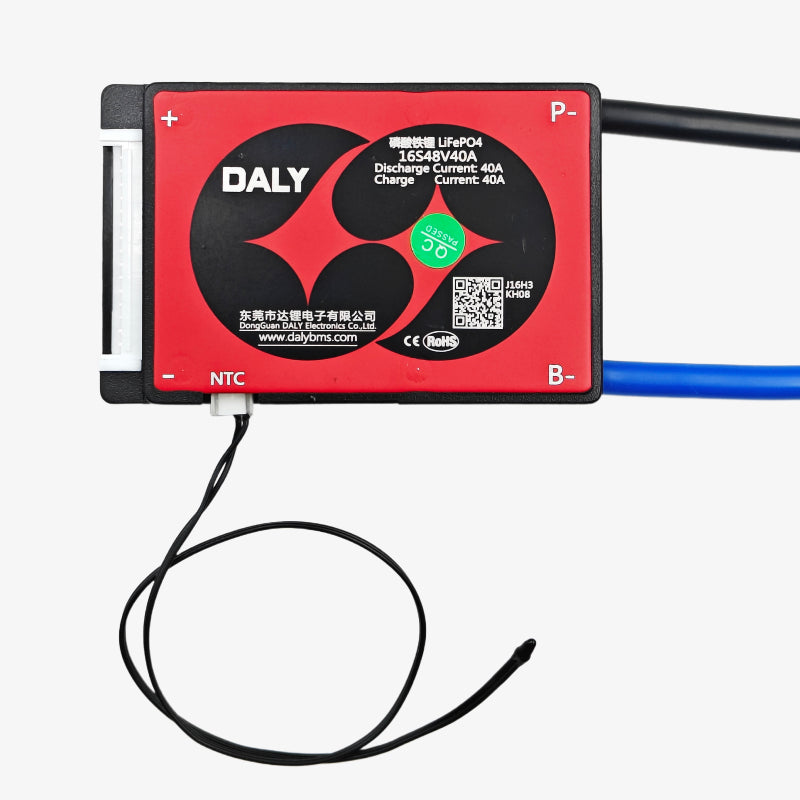

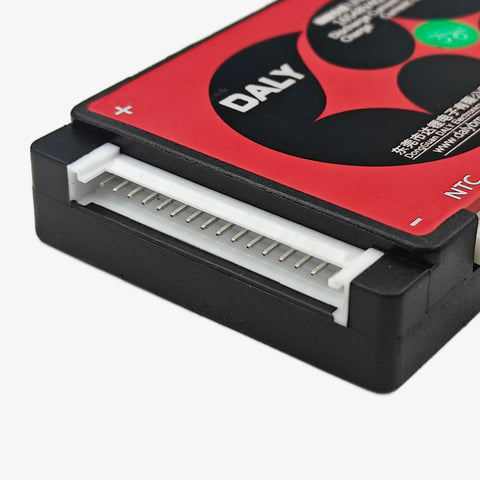

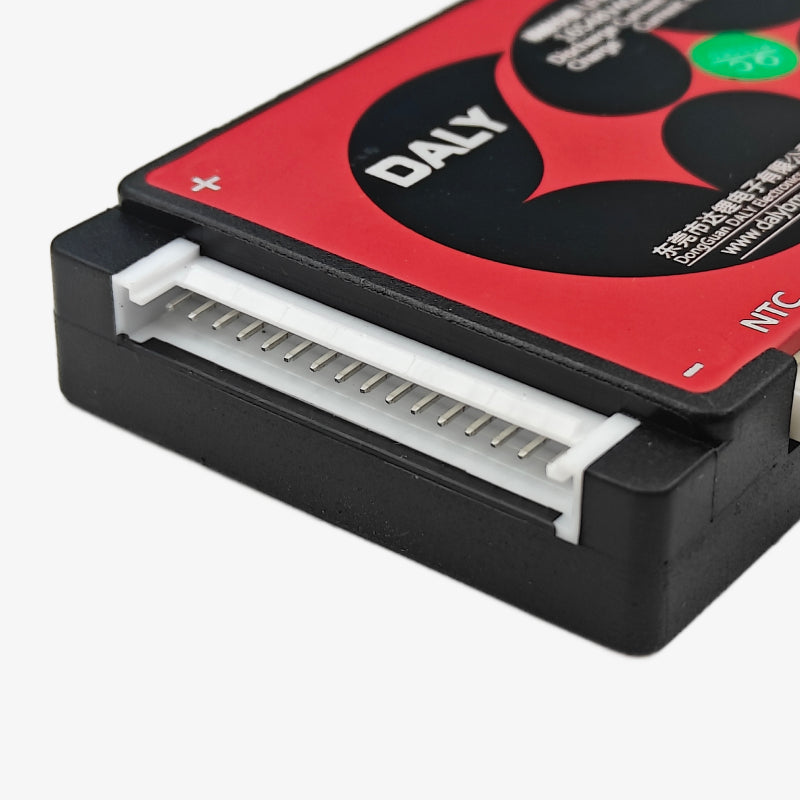

DALY LiFePo4 16S 48V 40A BMS

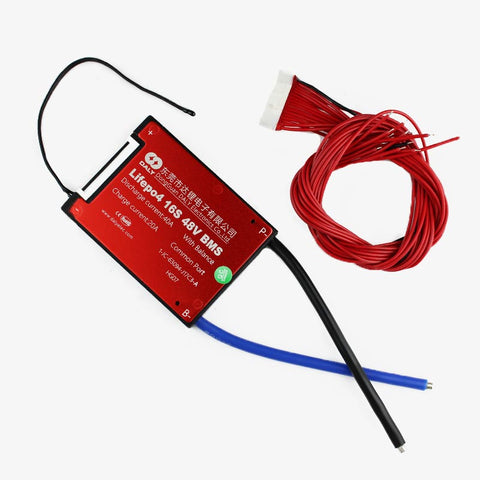

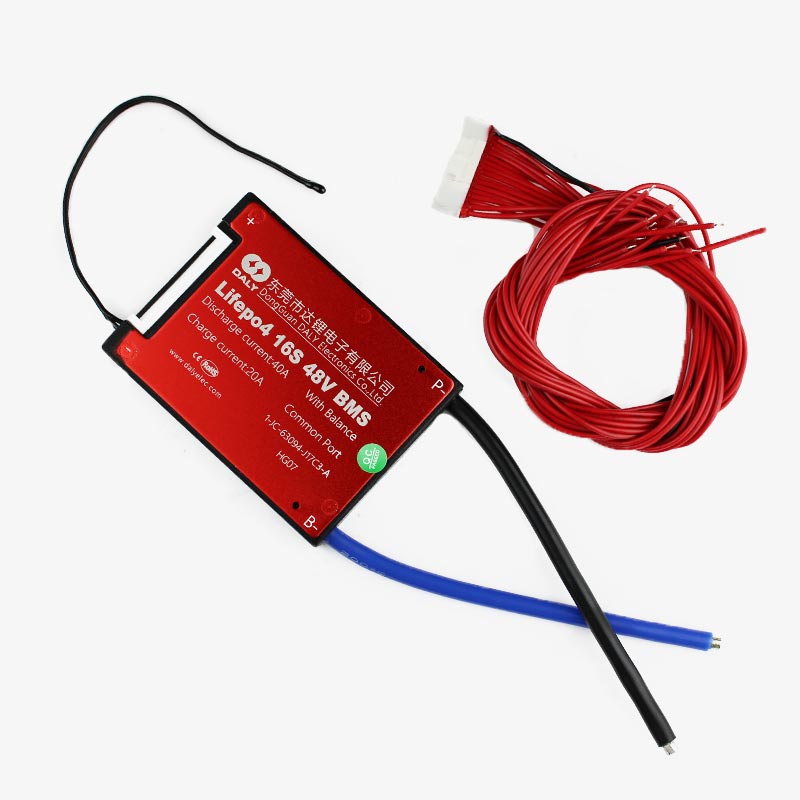

DALY LiFePo4 16S 48V 40A BMS Board
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

DALY LiFePo4 16S 48V 40A Waterproof Battery Management System - BMS Protection Board

QC1433
3 In stock
Rs. 2,255.00 Rs. 2,009.00 (Exc. GST)
Rs. 2,009.00

Daly Lifepo4 16S 48V 40A  Battery Management System Circuit is an 16 Cell in Series 48V circuit power tool mostly used for solar lighting. It is designed for lithium Batteries for charging, Protection from overcharge, and Over-discharge. The battery protection board, as the name suggests battery protection board is mainly rechargeable and protects the integrated circuit board.

Lithium batteries (rechargeable type) so need protection, is determined by their own characteristics. As the Orange lithium battery, its material determines itself can not be overcharge, over-discharge, overcurrent, short circuit, and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with a sampling resistor, and a current fuse.

Features:

  1. State of charge calculations.
  2. Cell over-voltage and under-voltage protection.
  3. Intelligent battery balancing (passive).
  4. Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.

Specification :

Balance Current(mA)

30±5

Balance Detect Voltage(V)

3.5

Cable Size (AWG)

10

Charge Current(A) 20
Charge Voltage(V)

58.4

Height (mm) 11.2
Length (mm)

81.6

Model

16S 48V 40A

Over Discharge Detect(V)

2.2±0.05

Over Discharge Release(V)

Off load

Overcharge Detect Voltage(V)

3.75±0.05

Overcharge Release Voltage(V)

3.55±0.05

Width (mm)

60.8

Working Current(uA)

100

Working Temperature Range (°C)

-20 to 70



Package Includes:

1 x Daly 16S 48V 40A Battery Management System
