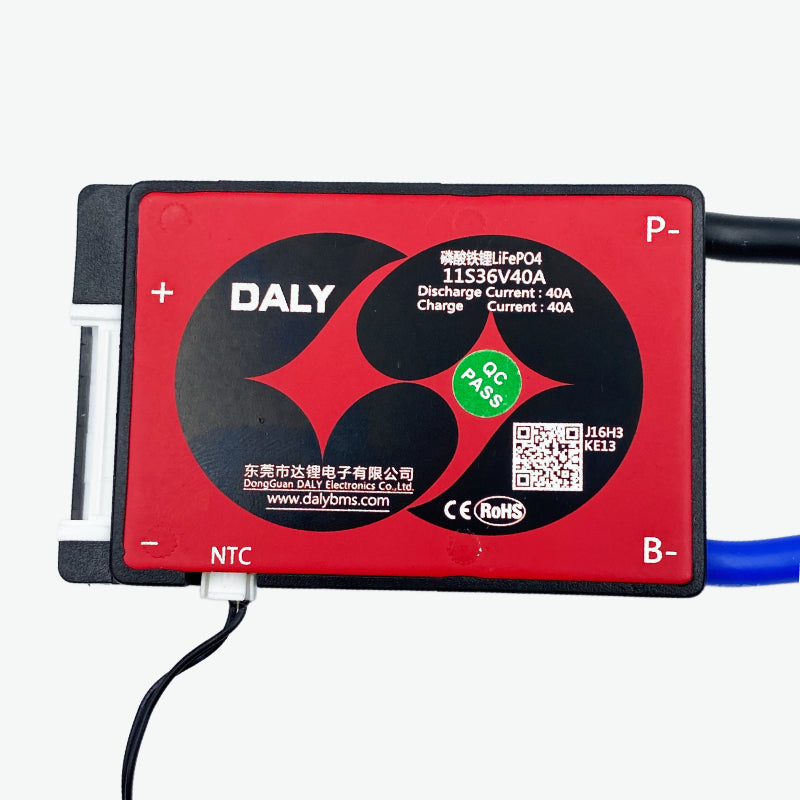

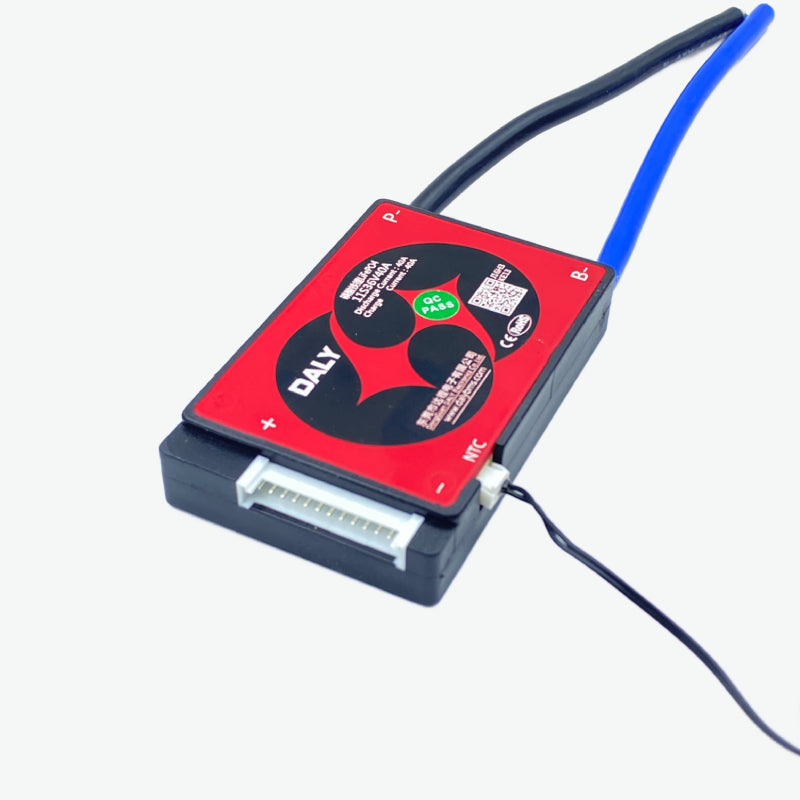

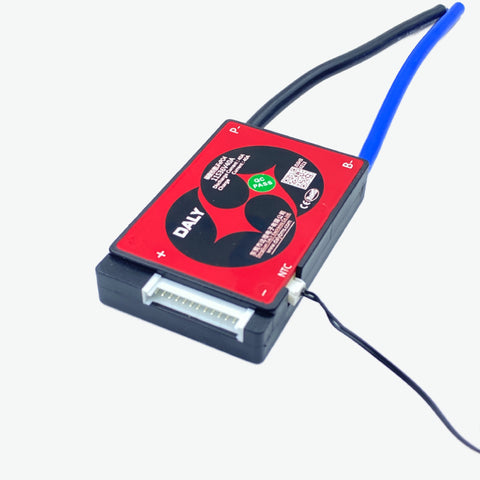

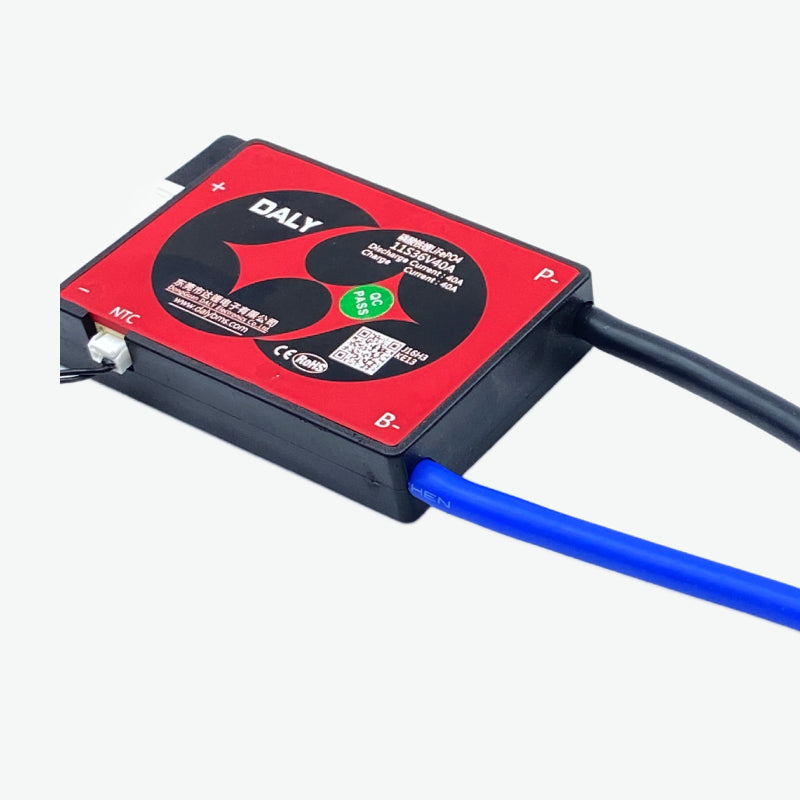

DALY LiFePO4 11S 36V 40A Waterproof Battery Management System - BMS Protection Board

DALY LiFePO4 11S 36V 40A Waterproof Battery Management System – BMS Protection Board is a durable and high-reliability battery management system designed for 11-series LiFePO4 battery packs, providing complete protection, accurate voltage control, integrated cell balancing, and stable 40A charge and discharge performance, featuring an IP65 waterproof enclosure suitable for solar energy storage, electric mobility, and industrial lithium battery applications.

DALY LiFePO4 11S 35V 40A Waterproof BMS Datasheet

Features:

1. Designed for 11S LiFePO4 battery packs
2. 40A continuous charge and discharge current support
3. Integrated cell balancing function
4. Accurate over-charge and over-discharge protection
5. IP65 waterproof design for harsh environments
6. Wide operating temperature range
7. Suitable for solar and inverter battery systems

Specifications:

• Product Type: Battery Management System (BMS)
• Model: Daly BMS LFP 11S 40A Waterproof
• Battery Type: LiFePO4 (LFP)
• Series Configuration: 11S
• Nominal Voltage: 35.2 V
• Charge Voltage: 40.15 V
• Discharge Cutoff Voltage: 27.5 V
• Continuous Charge Current: 40 A
• Continuous Discharge Current: 40 A
• Balancing Current: 70 ± 25 mA
• Waterproof Rating: IP65
• Operating Temperature: -20°C to 60°C
• Applications: Solar energy storage systems, inverter battery packs, electric vehicles, backup power systems, industrial lithium battery protection

Explore wide range of DALY Smart BMS >

Package Includes:

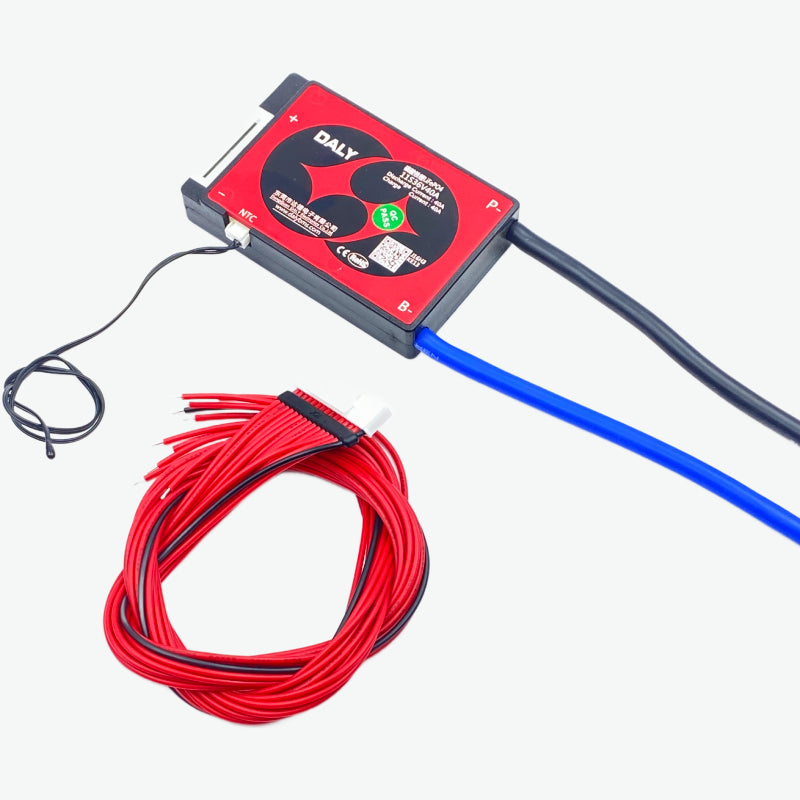

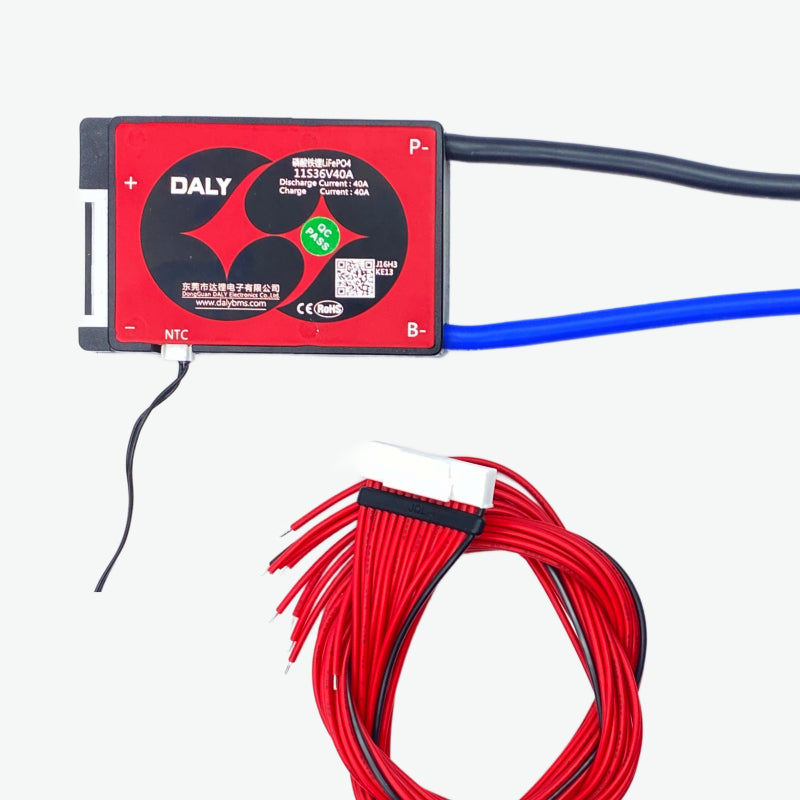

1 × DALY LiFePO4 11S 36V 40A Waterproof Battery Management System - BMS Protection Board
