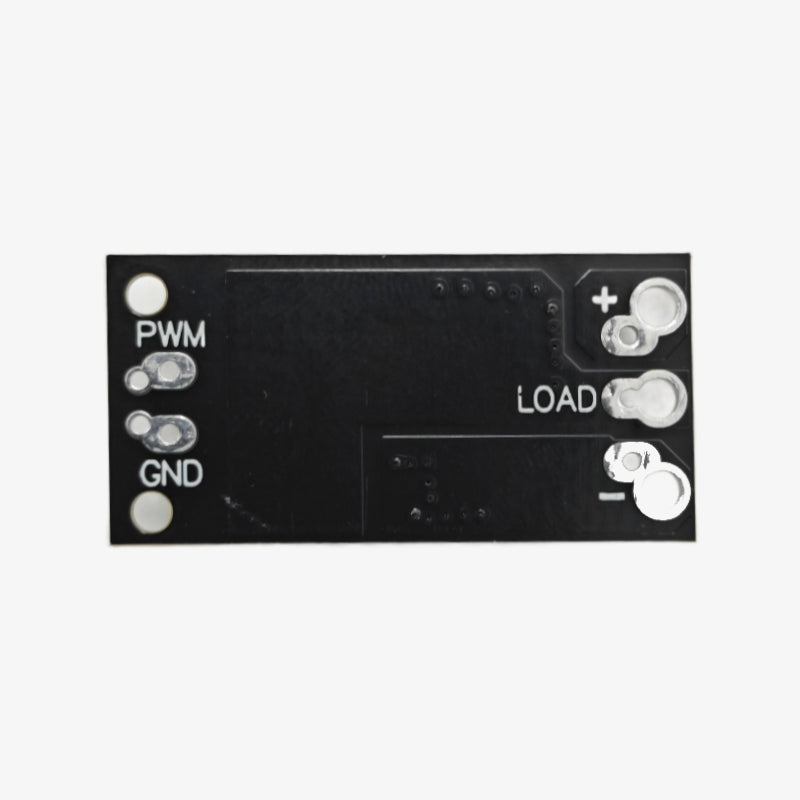

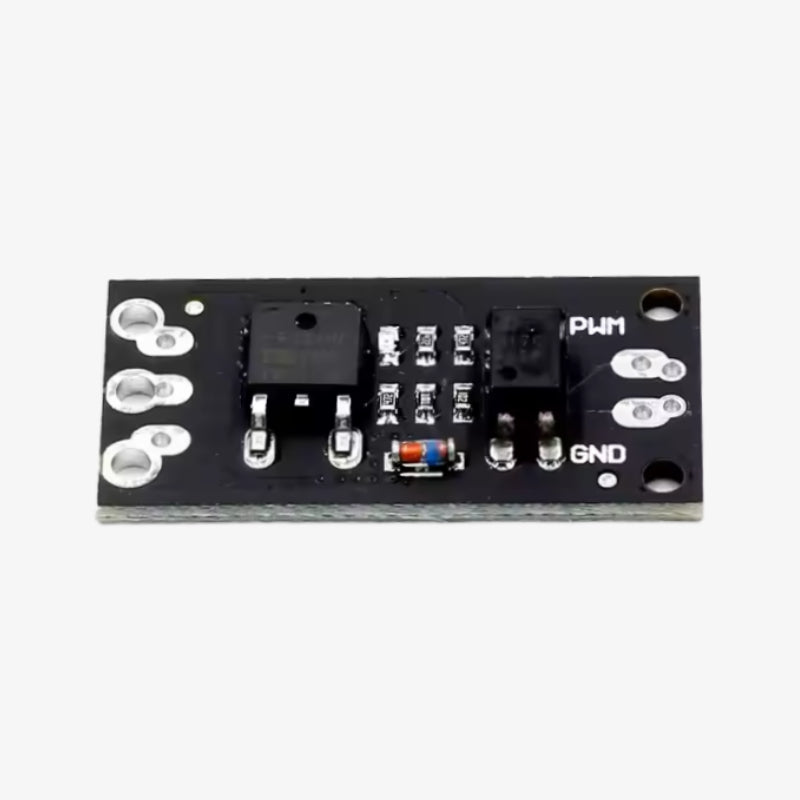

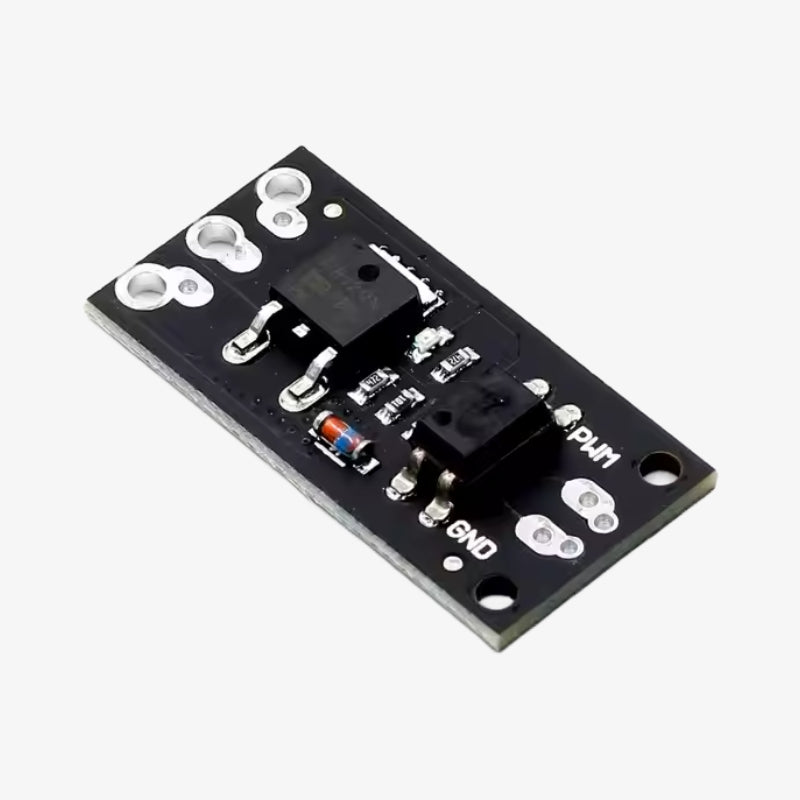

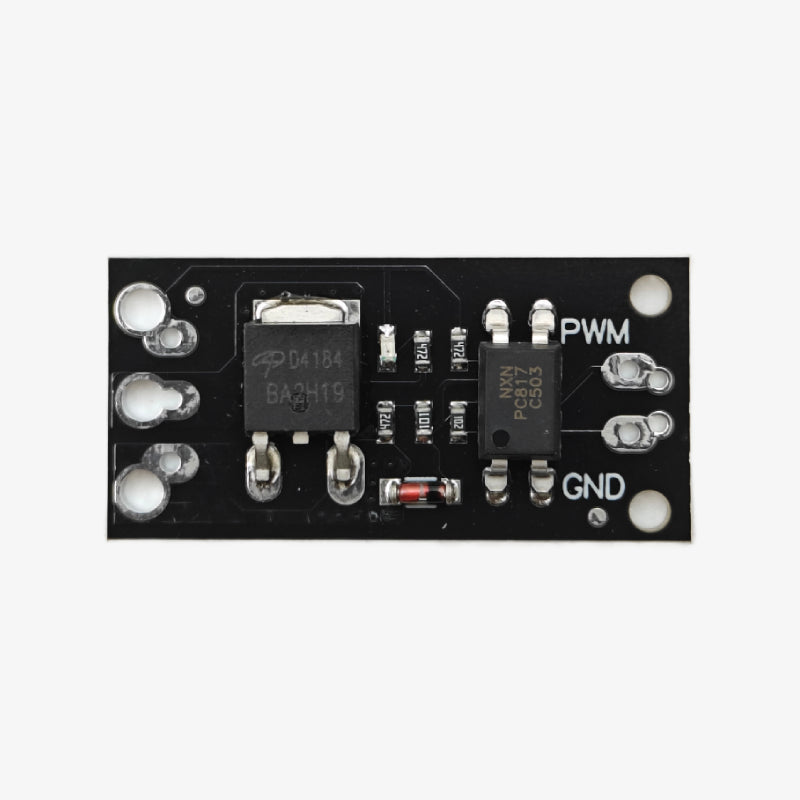

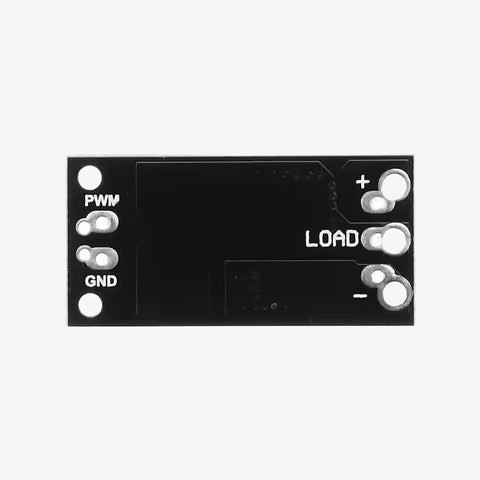

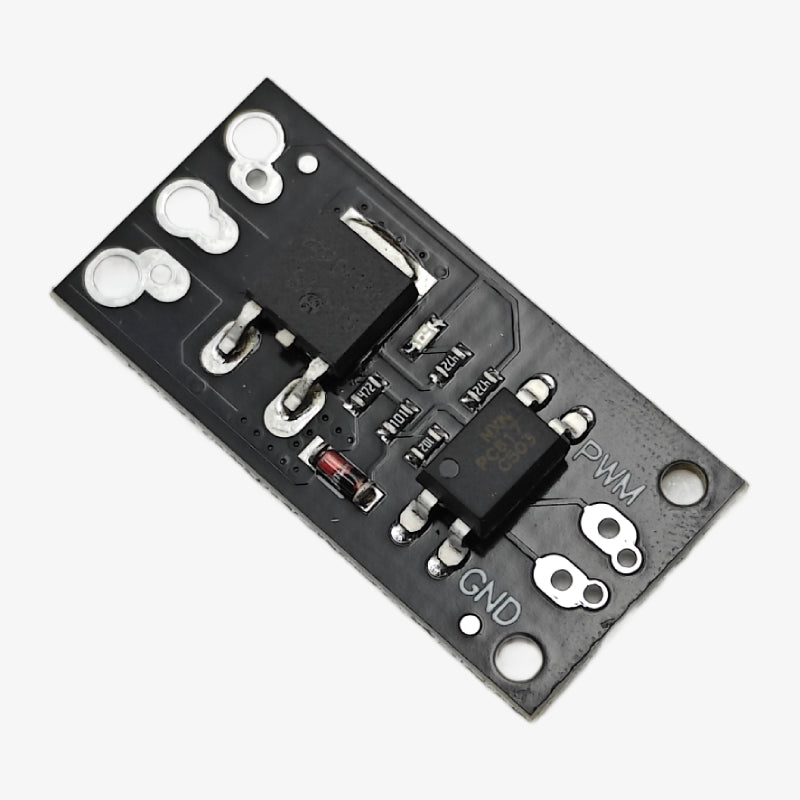

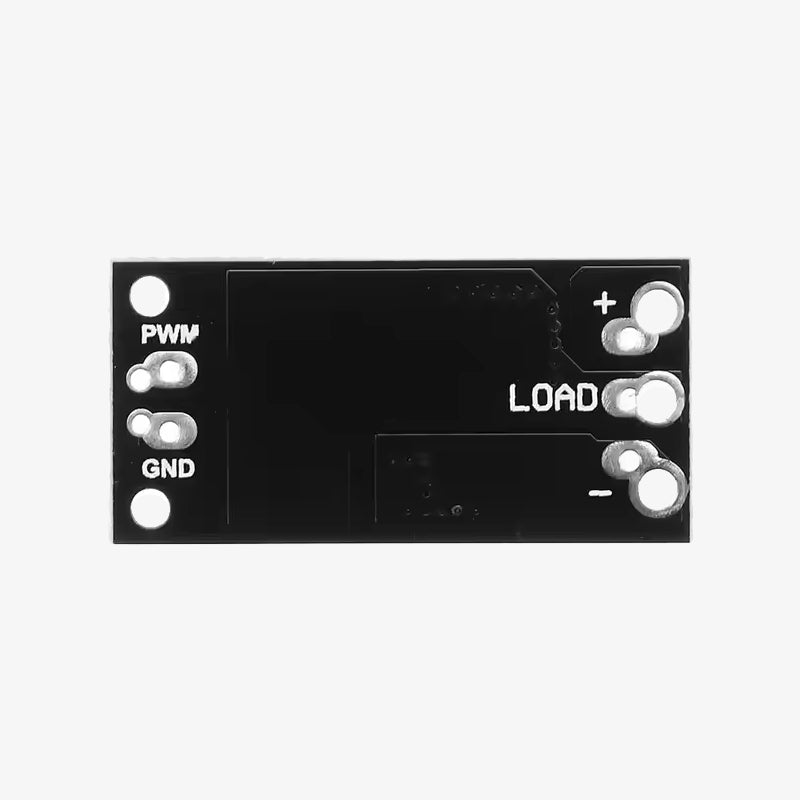

D4184 MOSFET Control Module for Relay Replacement
SKU:
MOD-QC2934
Availability:
267
In Stock
- Rs. 35.00
- Rs. 35.00
- Unit price
- per
Subtotal:
Rs. 35.00
Description
xThe D4184 MOSFET Control Module is a highly efficient solid-state switching module designed to replace traditional mechanical relays. It features a D4184 MOSFET, which enables fast and reliable switching for high-power loads with minimal heat dissipation. This module is ideal for motor control, LED dimming, heater control, and other DC switching applications.
Features of D4184 MOSFET Control Module:
- Replaces mechanical relays with a more efficient MOSFET switch.
- Supports PWM control, making it ideal for dimming and speed control applications.
- Low on-resistance (Rds ON ≤ 5mΩ) ensures minimal power loss.
- Optocoupler isolation for safe and reliable operation.
- Compatible with microcontrollers like Arduino, Raspberry Pi, and STM32.
Specifications of D4184 MOSFET Control Module:
- MOSFET Model: D4184
- Input Voltage (Control Signal): 3.3V - 20V DC
- Load Voltage: 5V - 36V DC
- Load Current: Up to 10A
- Trigger Signal: Low-level trigger
- Output Type: Open-drain MOSFET switch
- Dimensions: Compact and easy to integrate into circuits

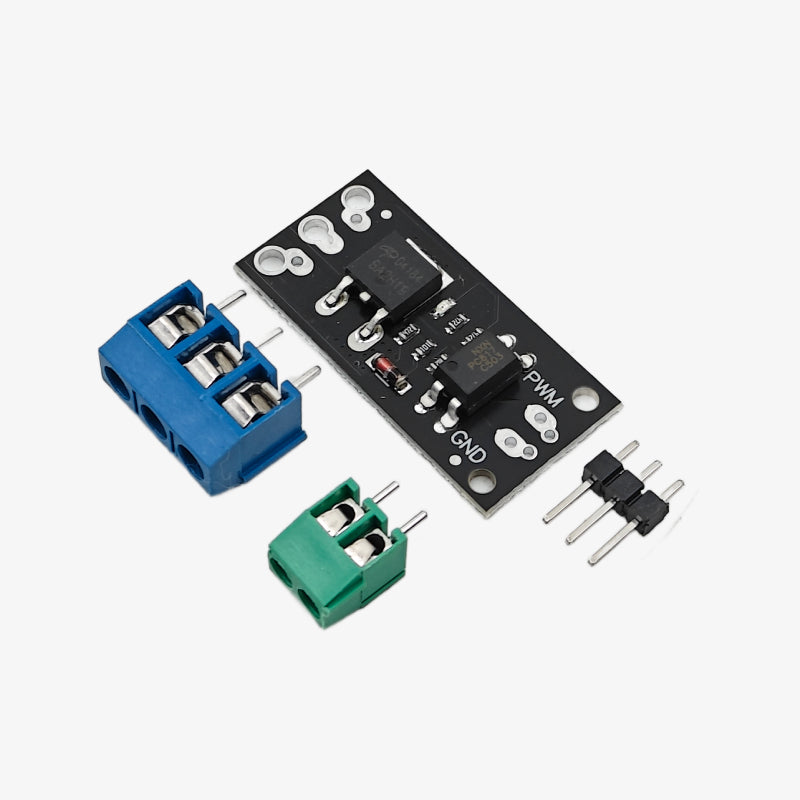

Package Includes:
1 × D4184 MOSFET Control Module
